Smart Heated Towel Rail Timer Switch: Tailor-Made Warmth, When You Need It

Key Features:

• Instant Warmth: Choose from 1 or 2-hour boost options for those cold mornings.
• Seasonal Flexibility: Auto-adjusts for summer and winter, with an override option.
• Safety First: CE and UKCA certified, with dual-pole isolation and a replaceable 13-amp cartridge fuse.
• Universal Use: Perfect for various lighting setups and resistive loads up to 3kW.

Important Note: Requires installation by a certified electrician.

Detailed Features and Specifications:

• Versatile Programming: 7-day, 24-hour programmable timer suitable for patress box mounting.
• Resilient Backup: Built-in rechargeable cell for uninterrupted operation during power loss.
• Manual Override: Built-in option to manually adjust settings.

Compatibility and Application:

• Resistive Loads: Max 3kW - Ideal for Immersion Heaters
• Lighting Types: Works with various forms of lighting up to a specified wattage.
• Suitable for Single Heat or ER-Touch Thermostatic
• Switched fused spur with programmable timer with display,
• 1 or 2 hour boost function, override facility
• Summer/winter time auto-adjustment.
• CE Certified,
• 7 Day fused spur timer
• Patress box mounting
• Double-pole isolation
• Fits a 25mm back box
• Internally-linked mains switching
• 200 Hour-running reserve

The Digital Towel Rail Timer is a digital fused-spur time switch. The timer is suitable for patress box mounting. The 7-day programming logic controls a mains-linked switch, with a resistive rating of 13 amperes. There is an inbuilt re-chargeable cell to keep the timer running in the event of a loss of mains power.

The output can be disconnected by an integrated double-pole isolator switch; the load is protected by a replaceable BS1362 13 Ampere cartridge fuse, within a removable caddy.

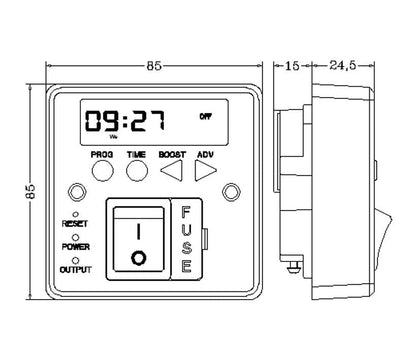

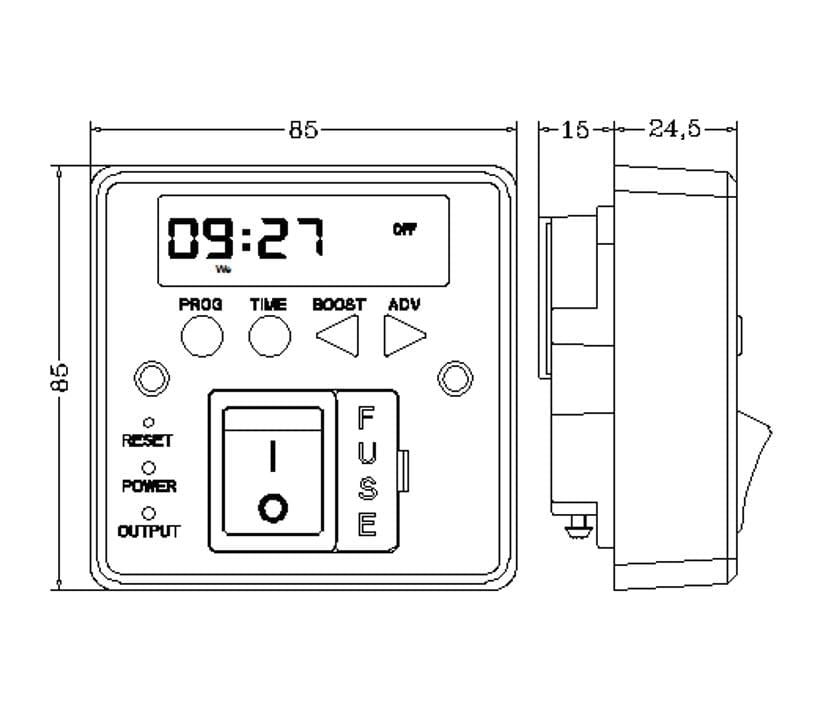

• Dimensions: 85 x 85 x 24.5 (see drawing below)
• Connections: 4 x wire-protect screw terminals
• Weight: 150g
• Power consumption: 1VA @ 230v 50hz
• Resistive load: 13 Amperes
• Inductive load: 2 Amperes (cos ø 0.6)
• Minimum load: 100mA @ 20v ac/dc
• Running reserve: 200 Hours
• Temperature rating: -20T55
• Accuracy quartz regulated: (typically /- 2.5 sec/day)
• Minimum switching period: 1 minute
• Programme capacity: 7 Days, 5 Day (Weekday only), 2 Days (Weekend only), Individual times per day. (Up to 4 x ON/OFF switch timings per day)
• Manual override: fix on, timed, fix off & random

Suitable for use with:

• Resistive loads (3kW max) - such as Immersion Heaters
• Incandescent / Halogen Lighting (700W max)
• Fluorescent Lighting (500W max)
• CFL Compact Fluorescent Lighting (80W max)
• LED Lighting (150W max)
• Not suitable for use with discharge lighting

 Please CLICK HERE for Wifi connected electric towel radiator timer.

USER MANUAL DOWNLOAD
