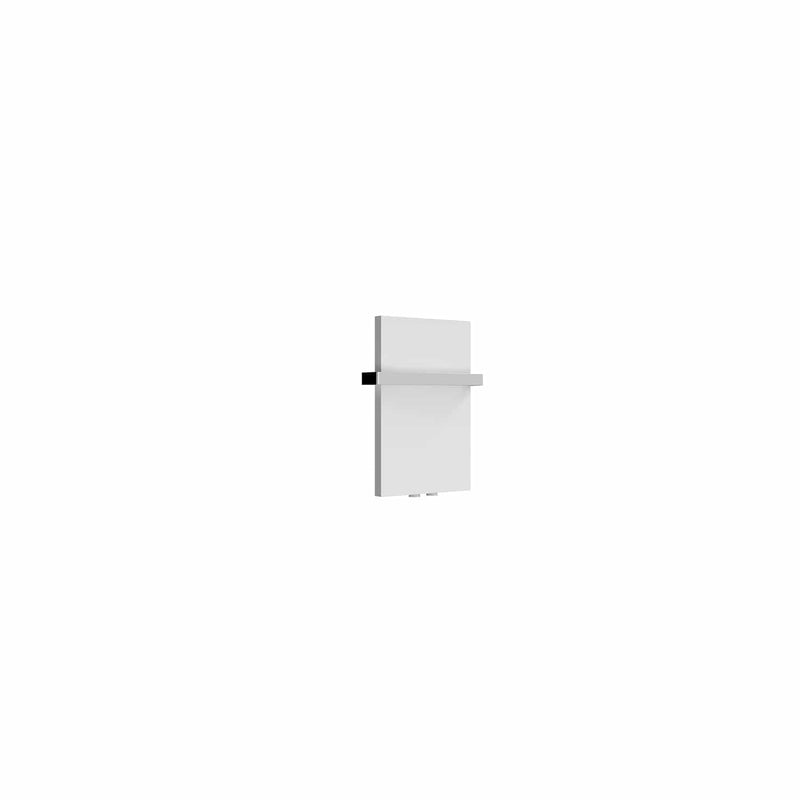

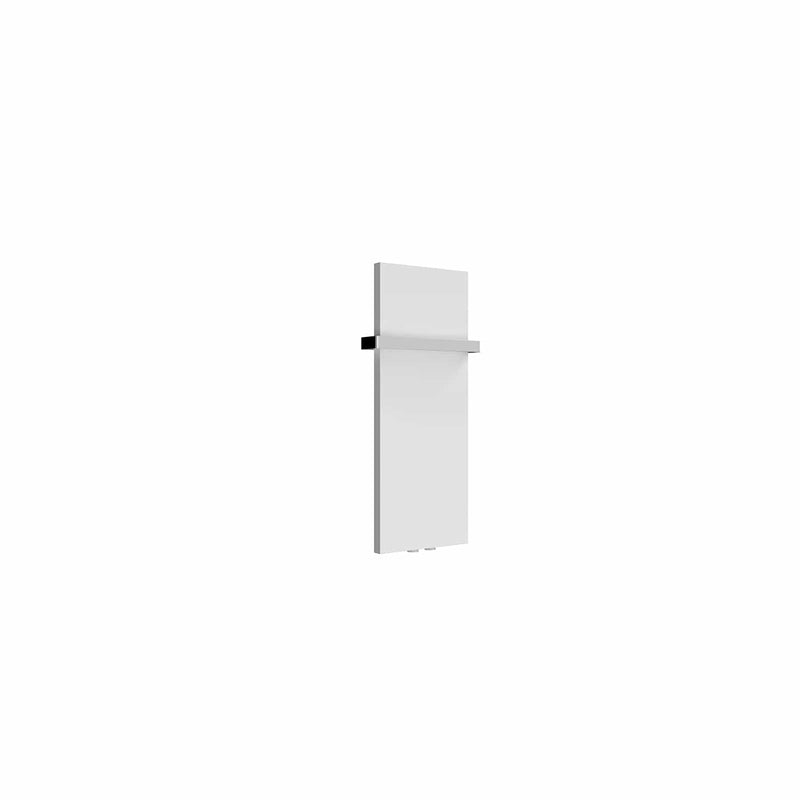

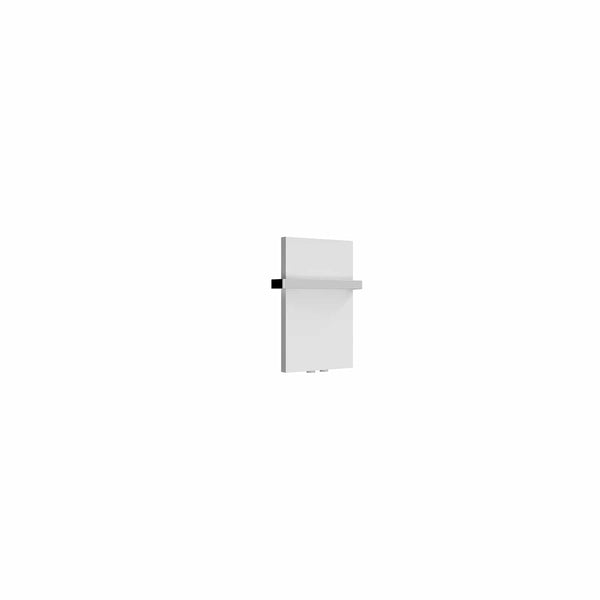

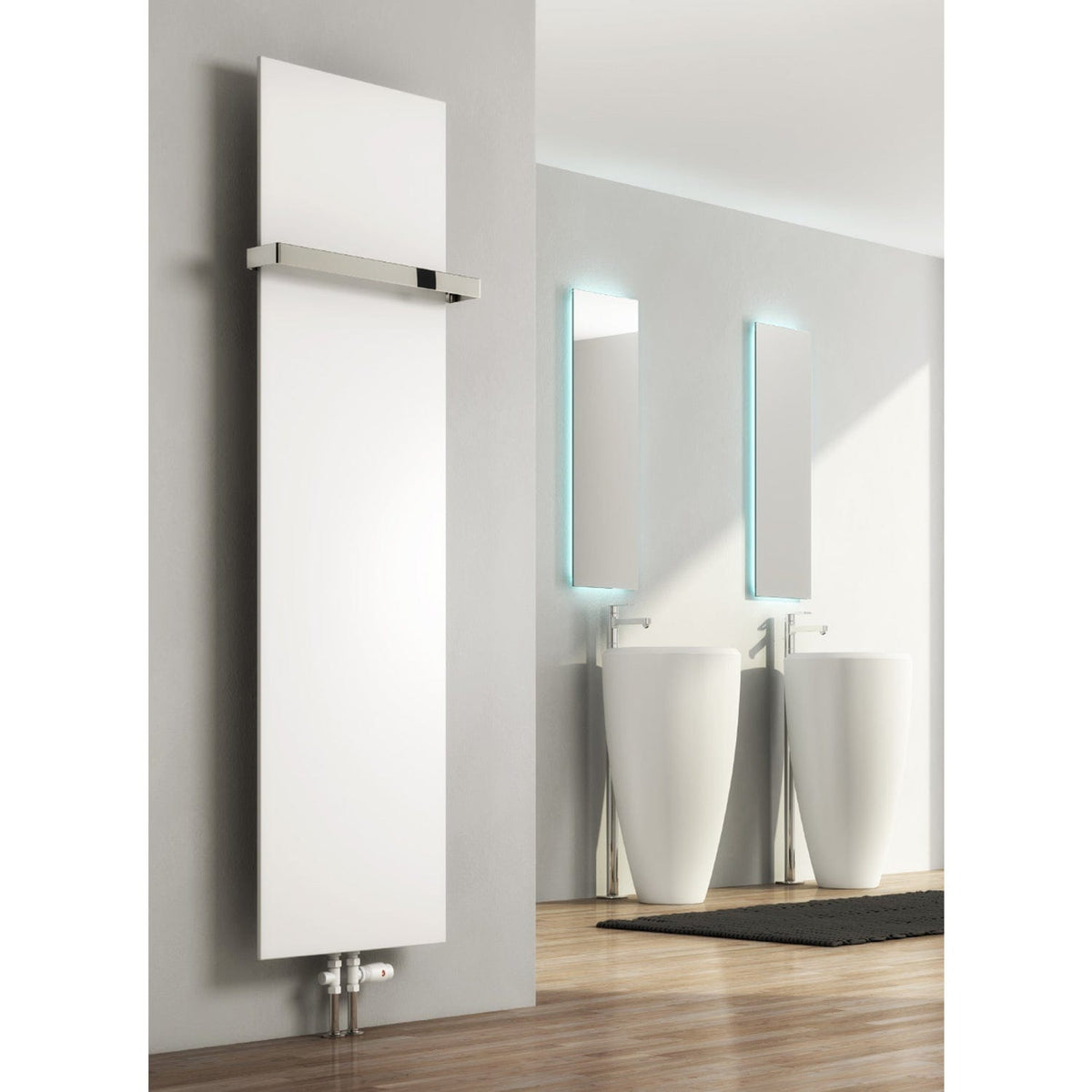

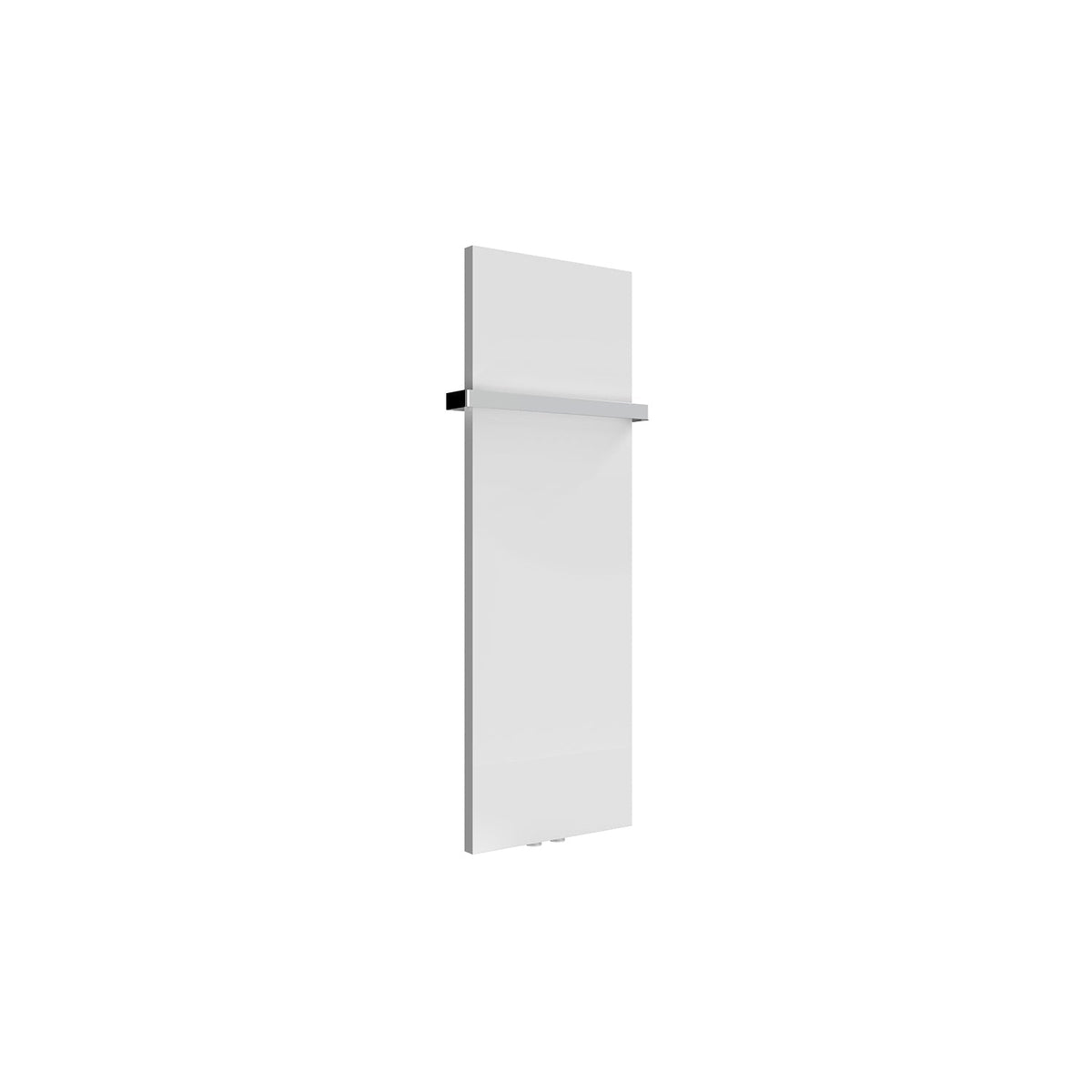

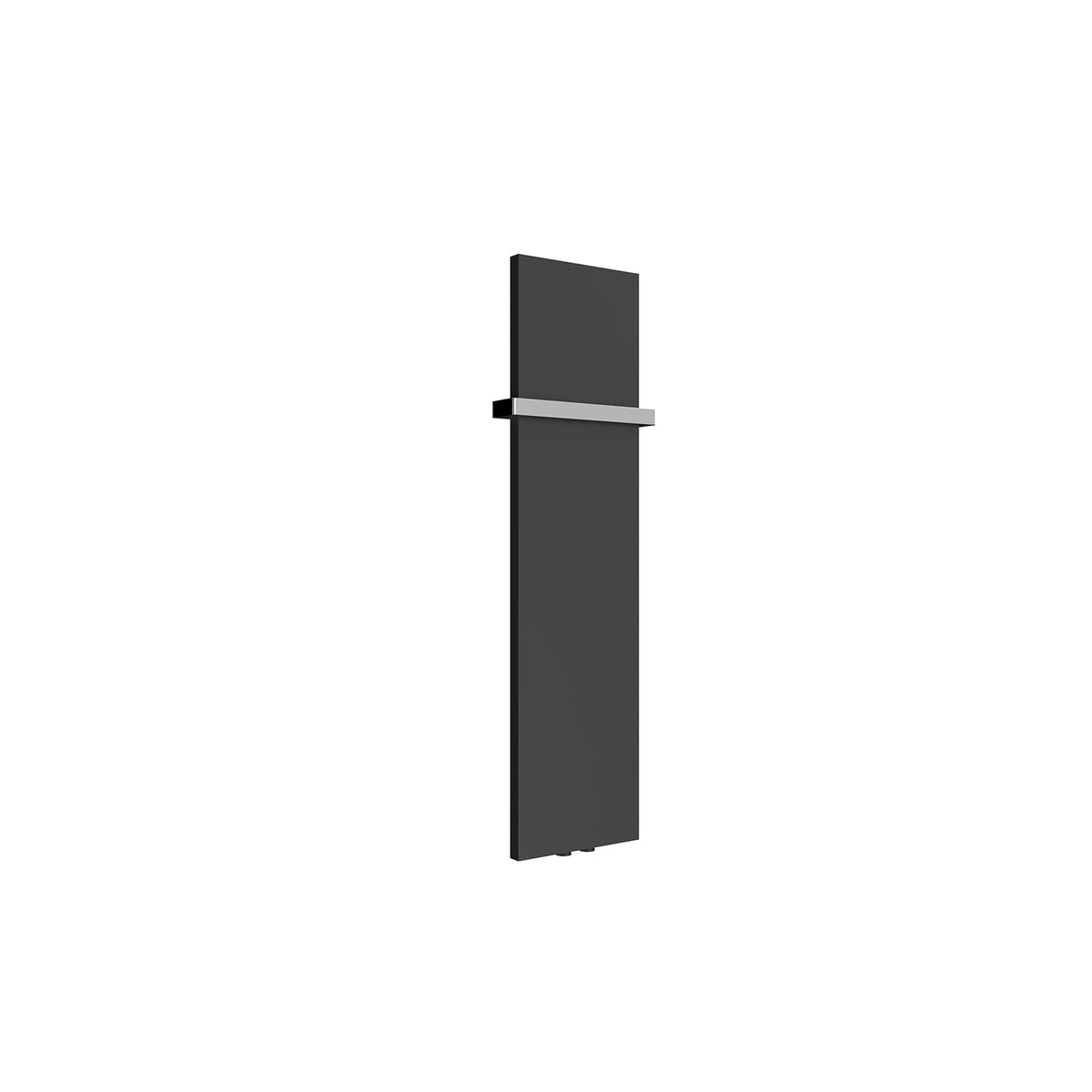

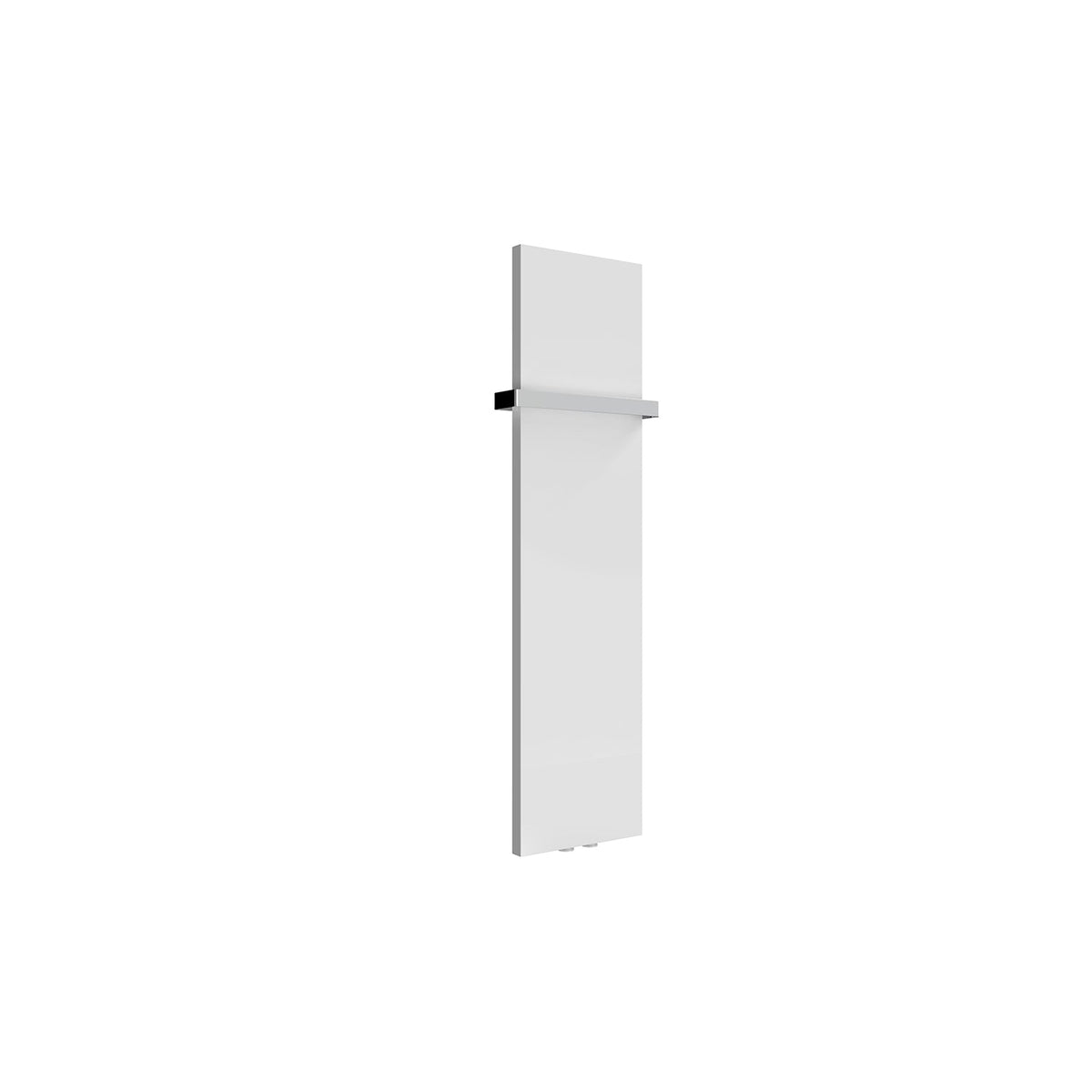

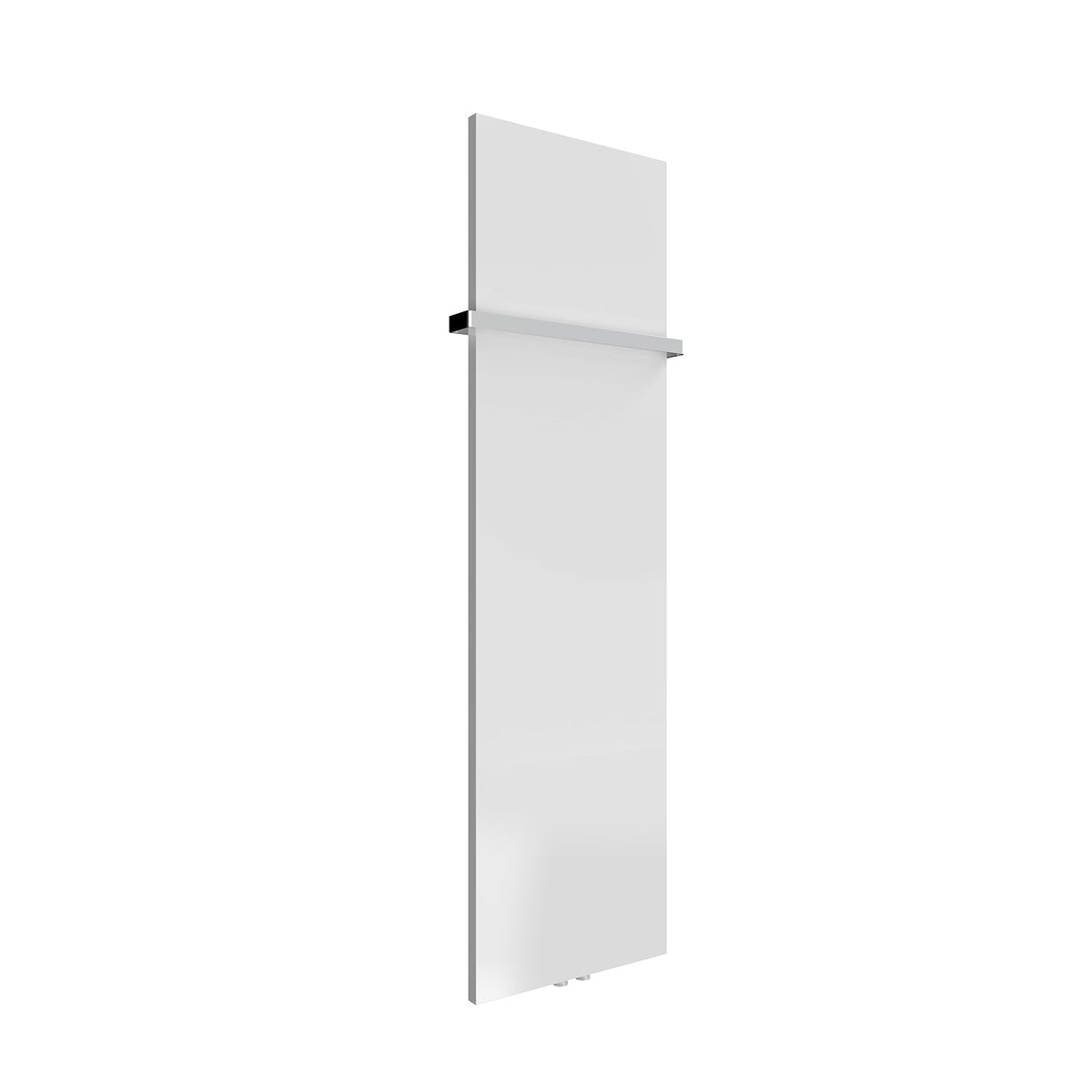

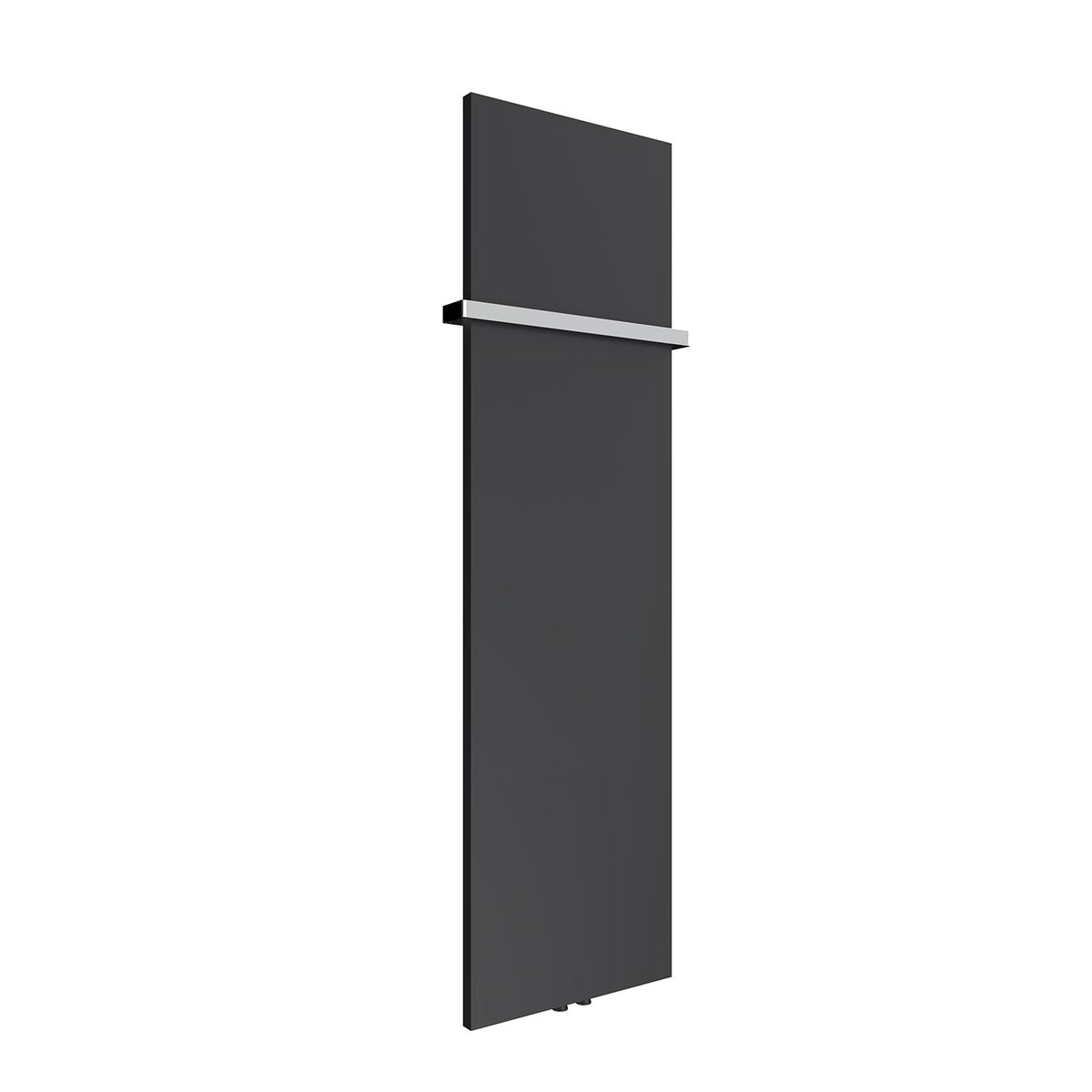

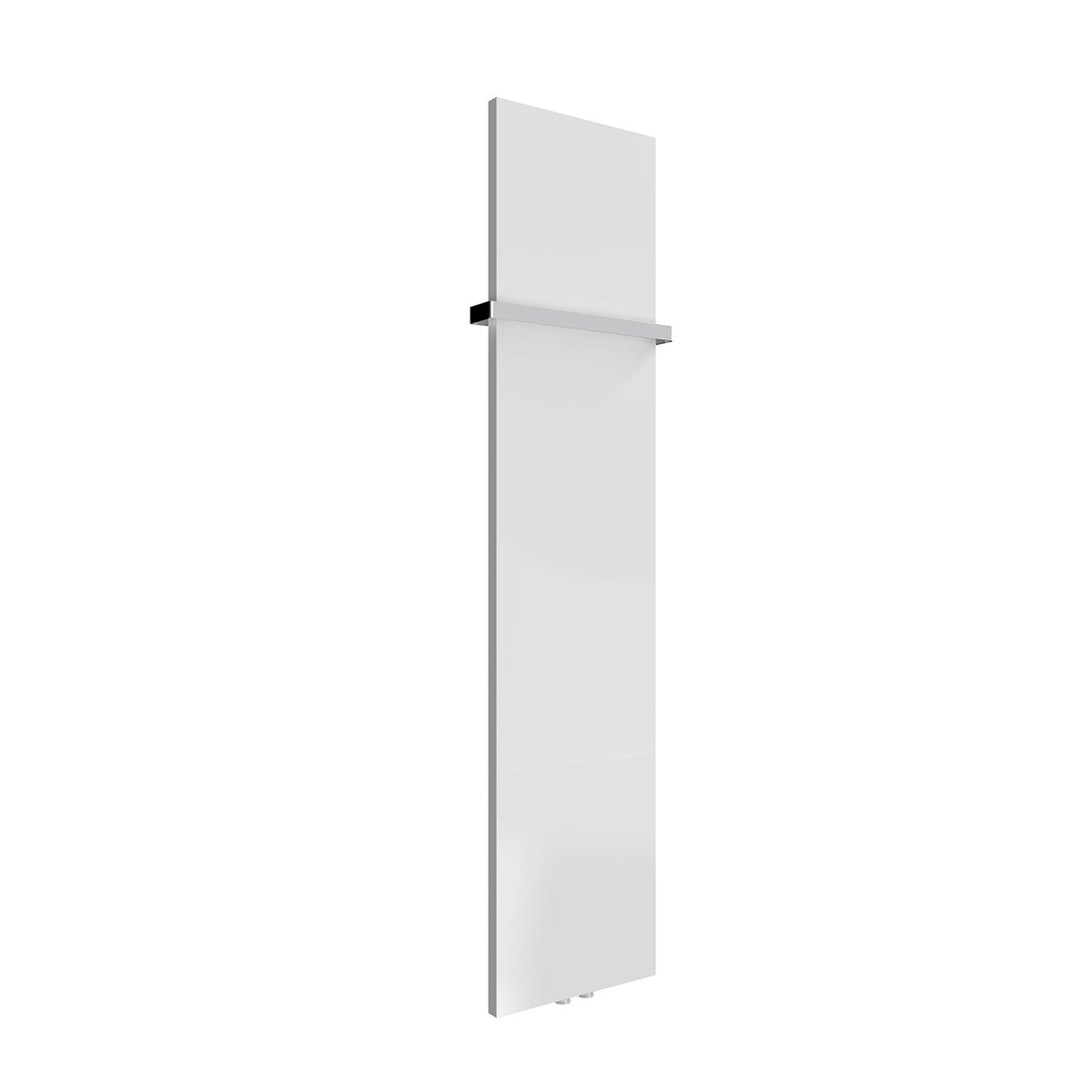

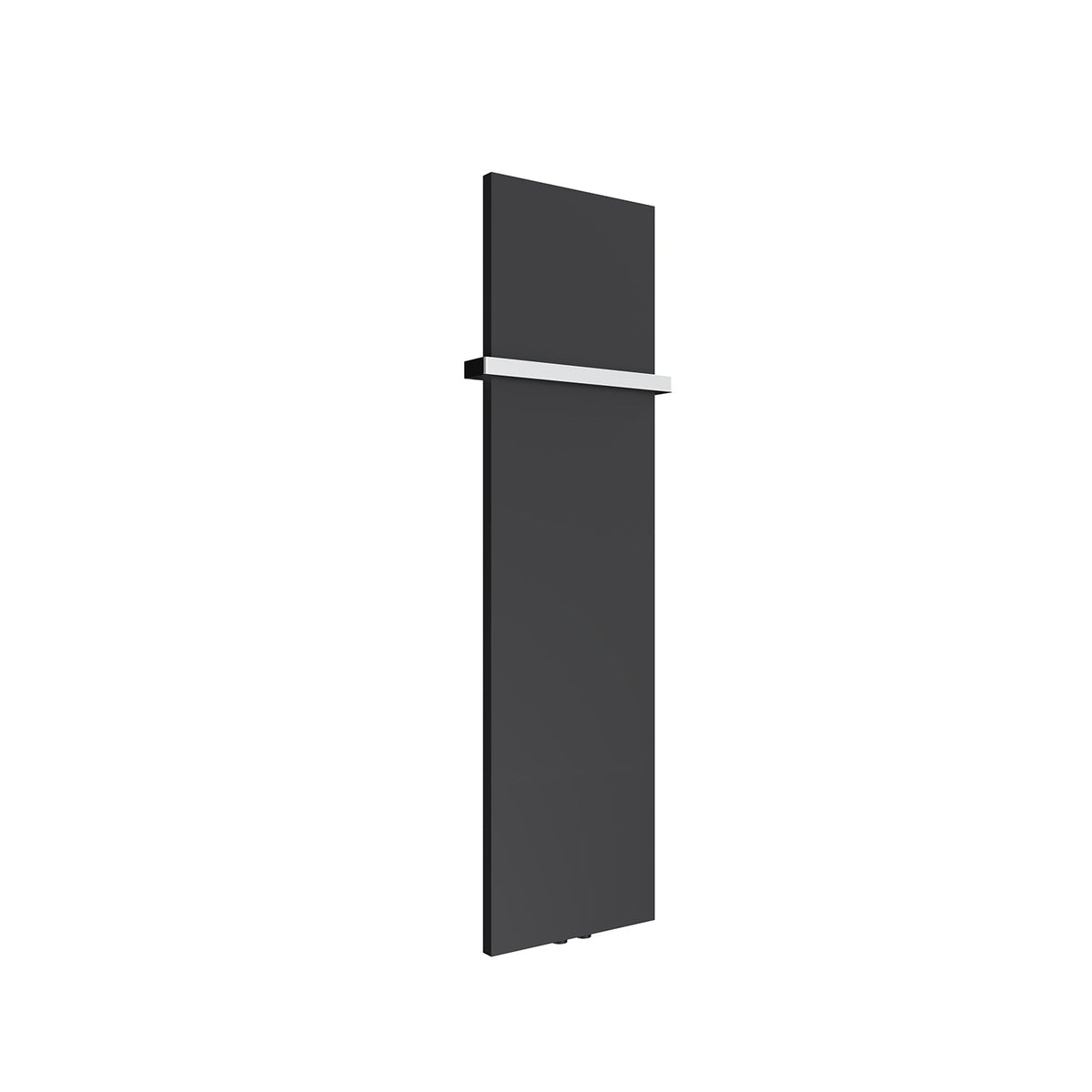

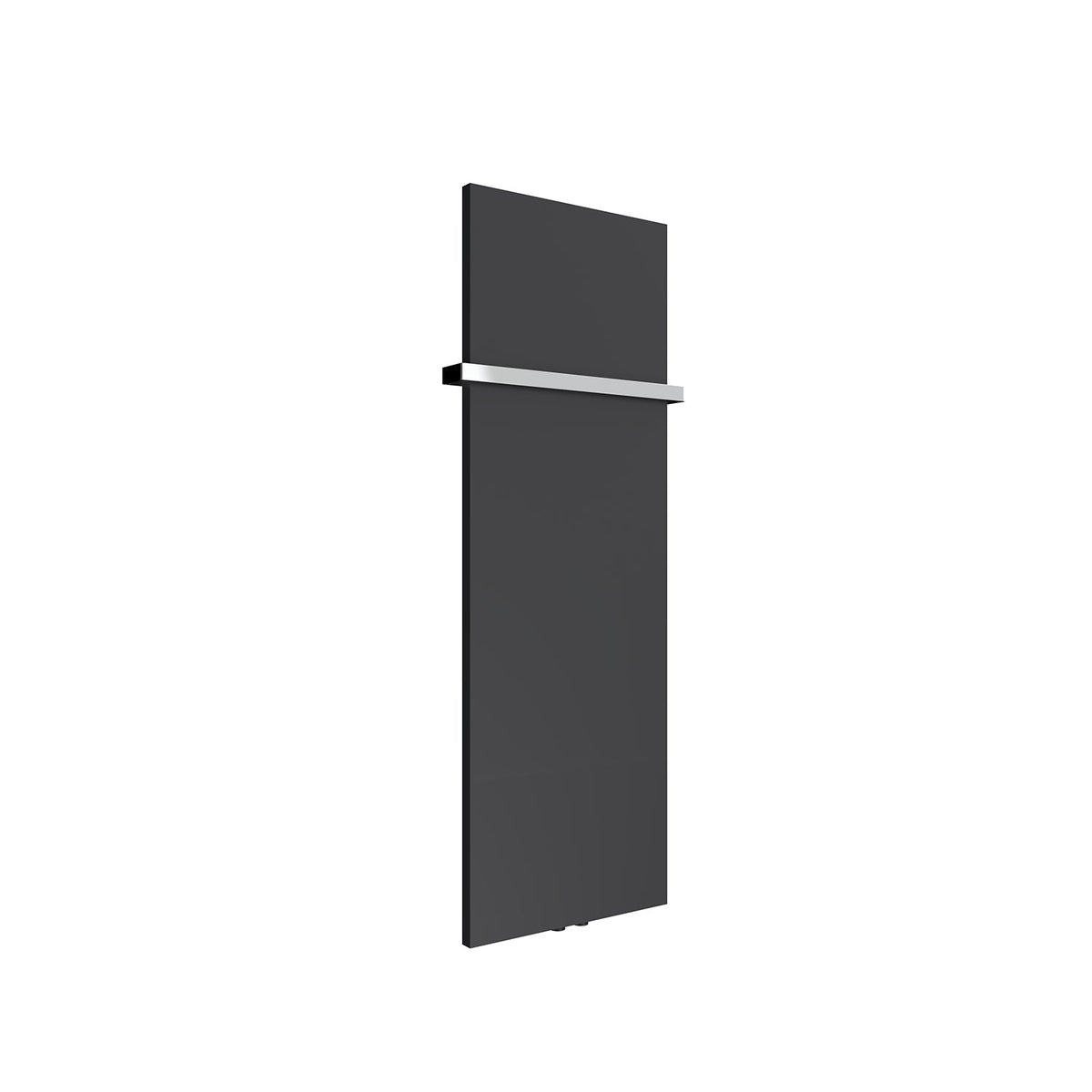

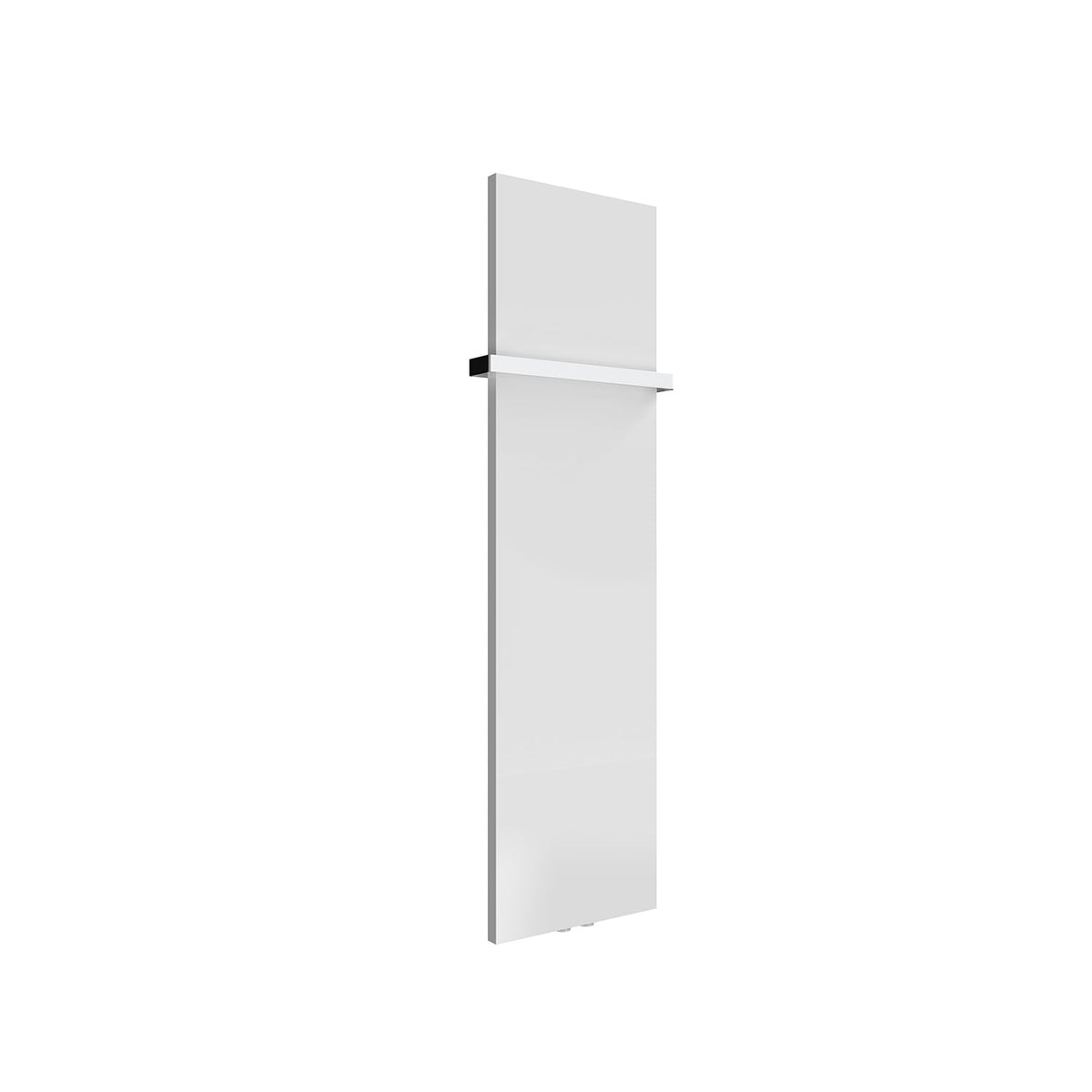

Reina Slimline Vertical Designer Radiator

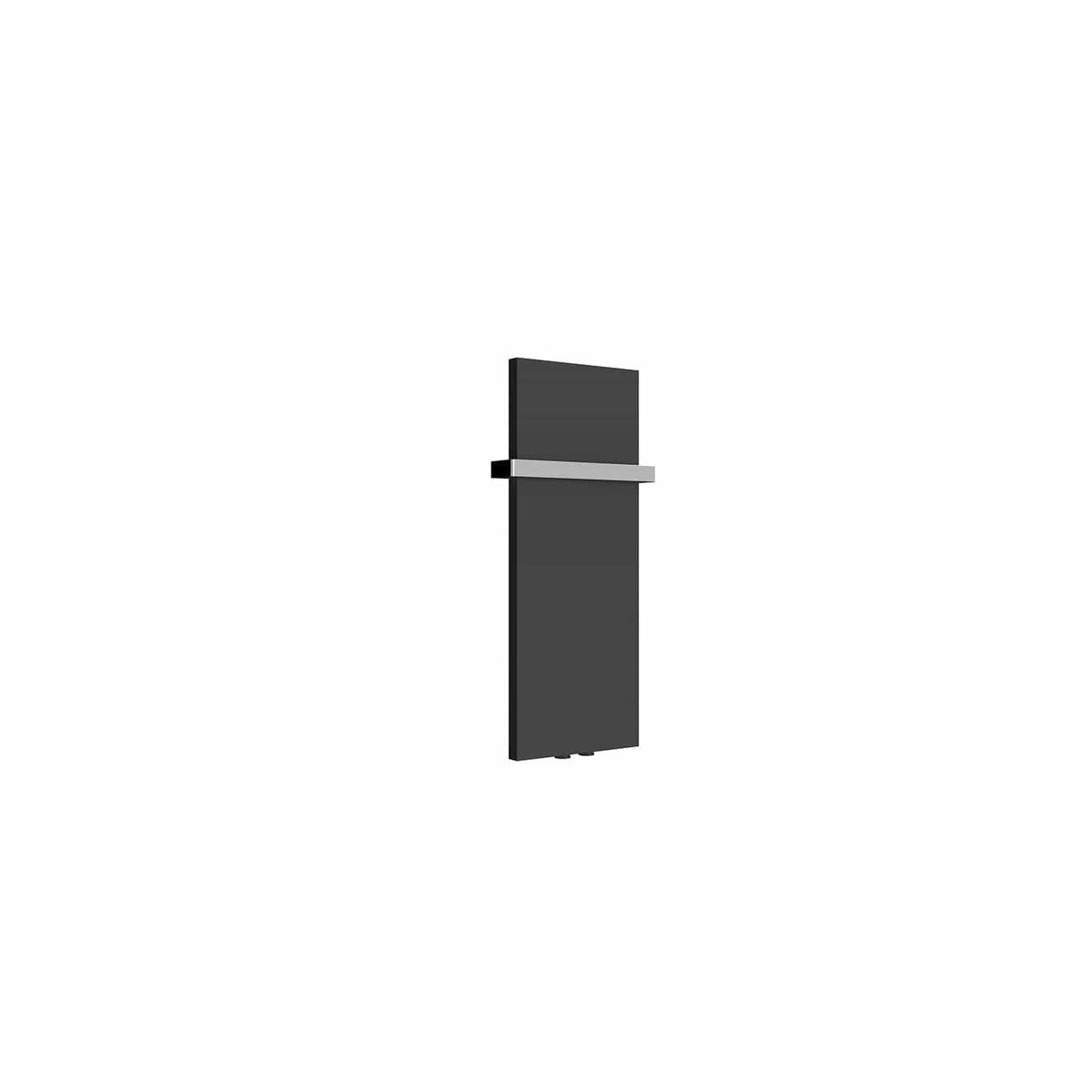

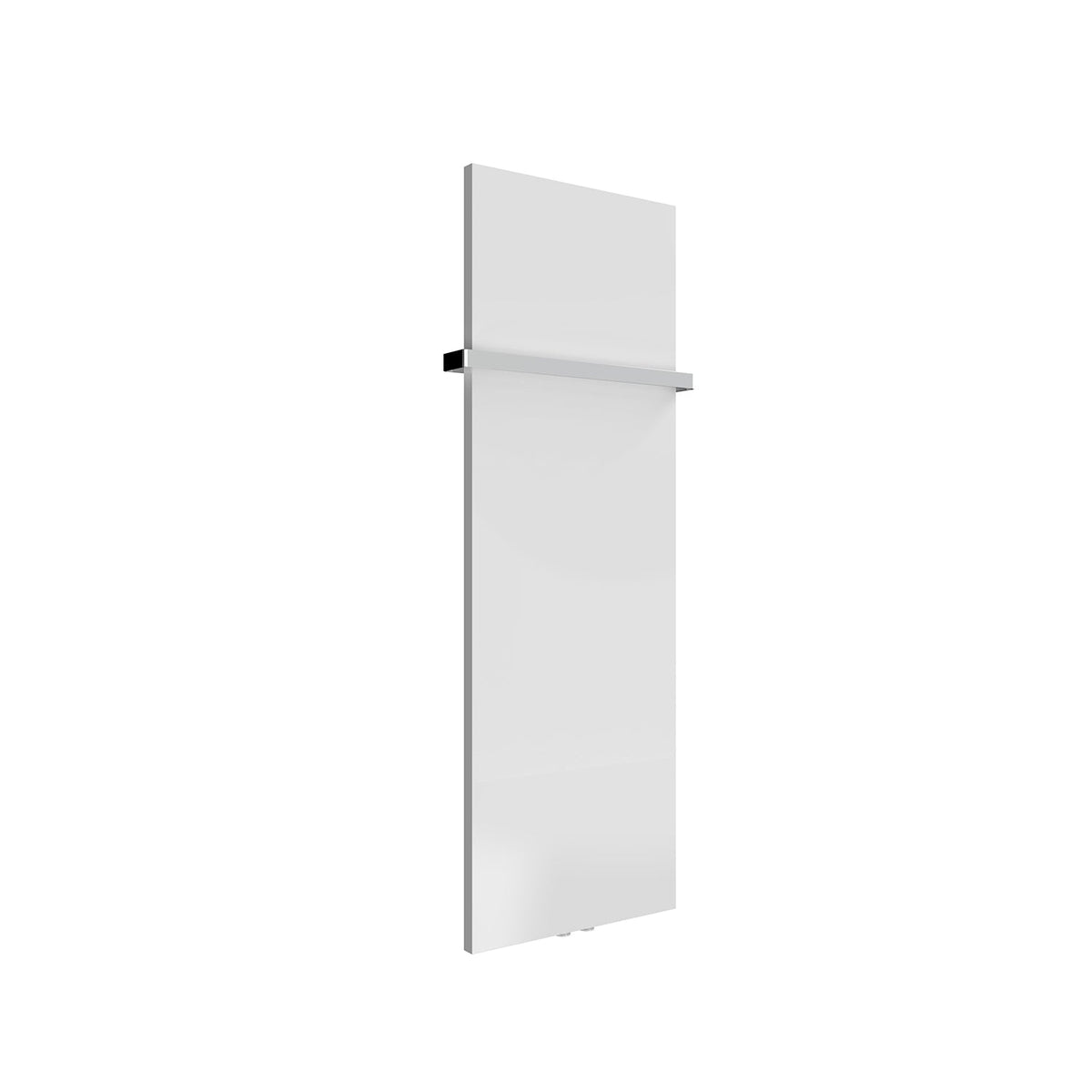

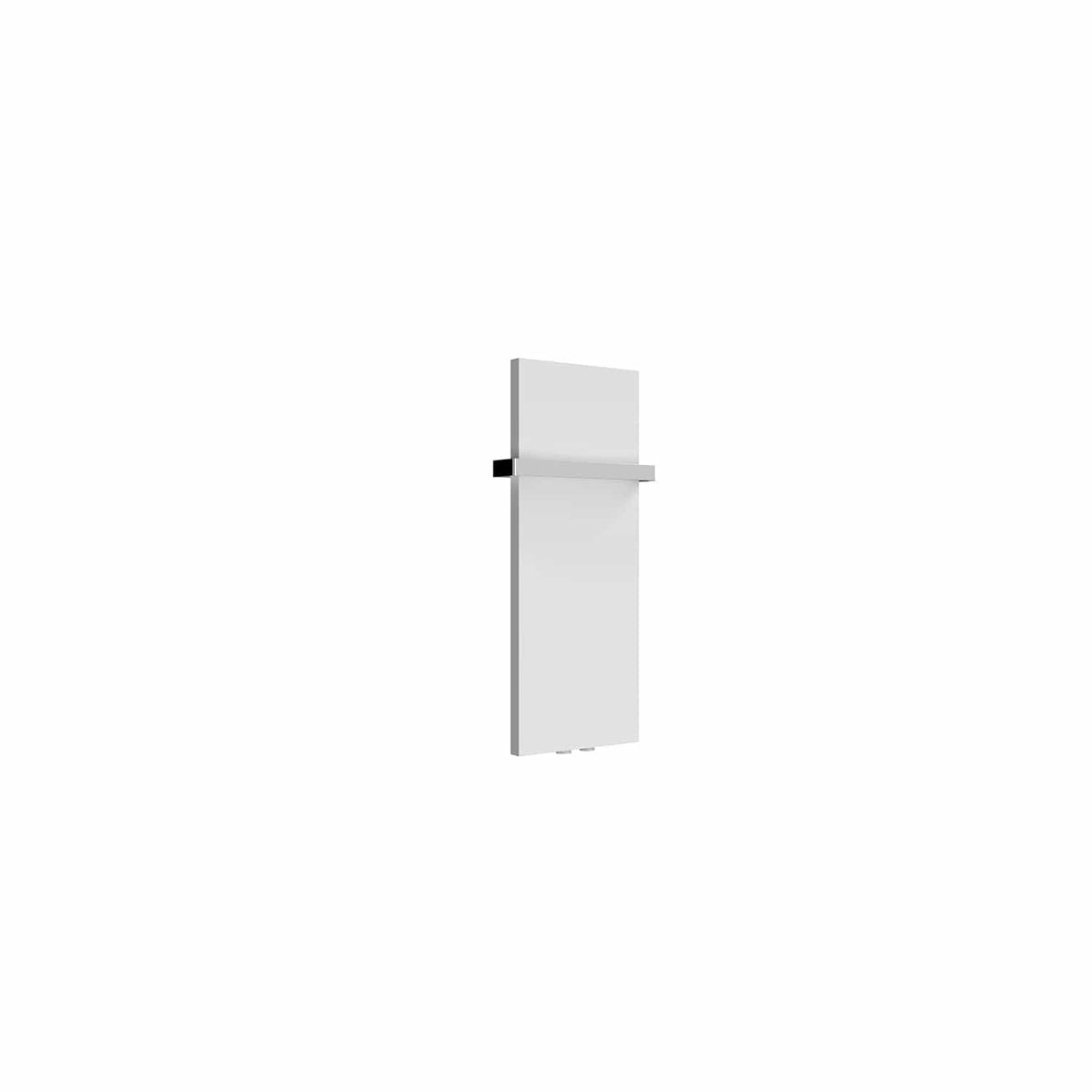

Reina Slimline Vertical Designer Radiator with Anthracite and White Finishes

The contemporary Slimline is available in different sizes, from 470, 770, 1170, 1470 or 1770mm high and 300, 400, 500mm Wide

Usage : Central Heating only
5 Years Manufacturers Warranty
High efficiency Steel Construction.
High Quality standard
Suitable for any room
Elegant and contemporary in appearance

Overall Height mm	Dimension Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Outputs ΔT 70°C
Overall Height mm	Dimension Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts

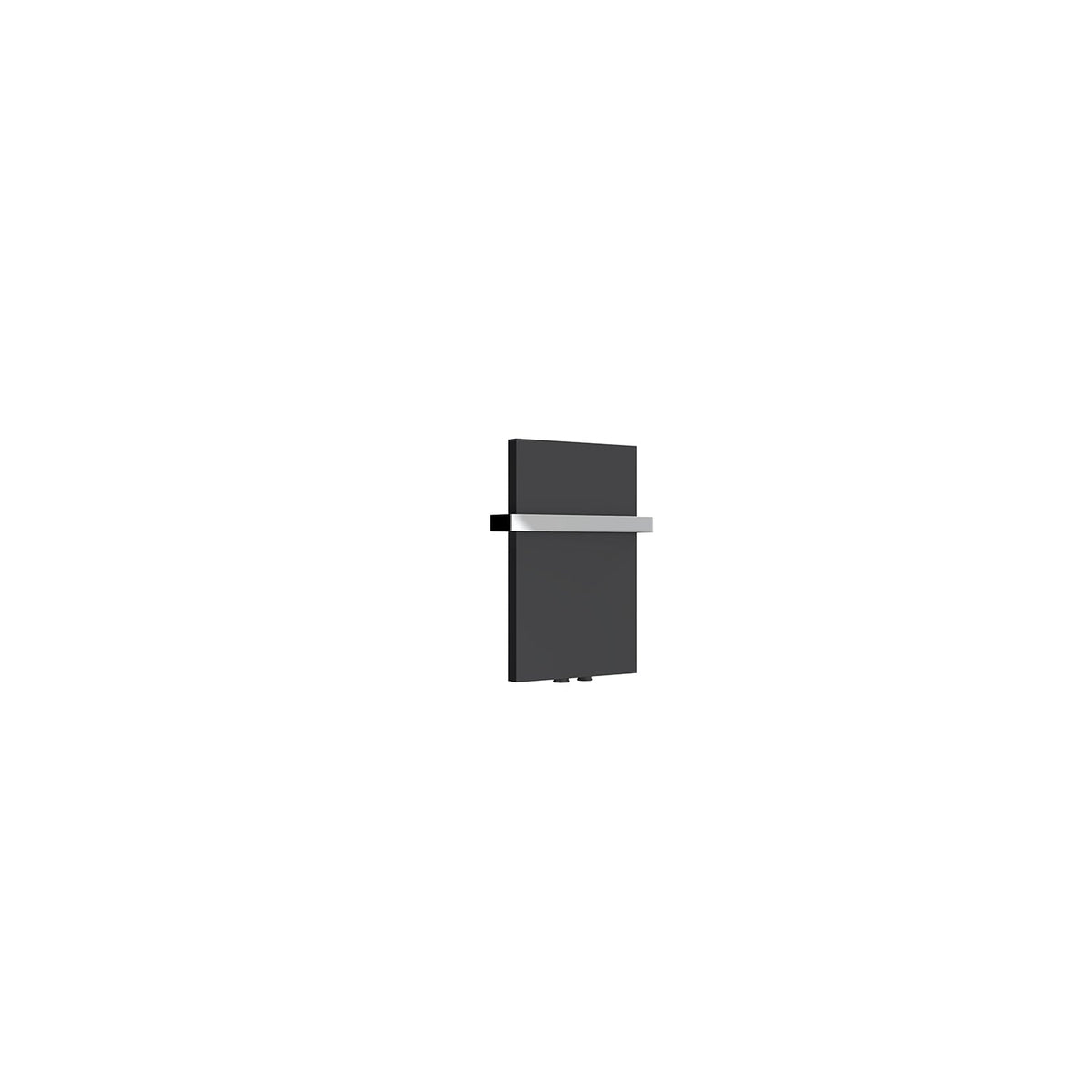

470	300	50	30-55	62-87	C	977	287
770	300	50	30-55	62-87	C	1605	471
1170	300	50	30-55	62-87	C	2441	716
1170	400	50	30-55	62-87	C	3254	954

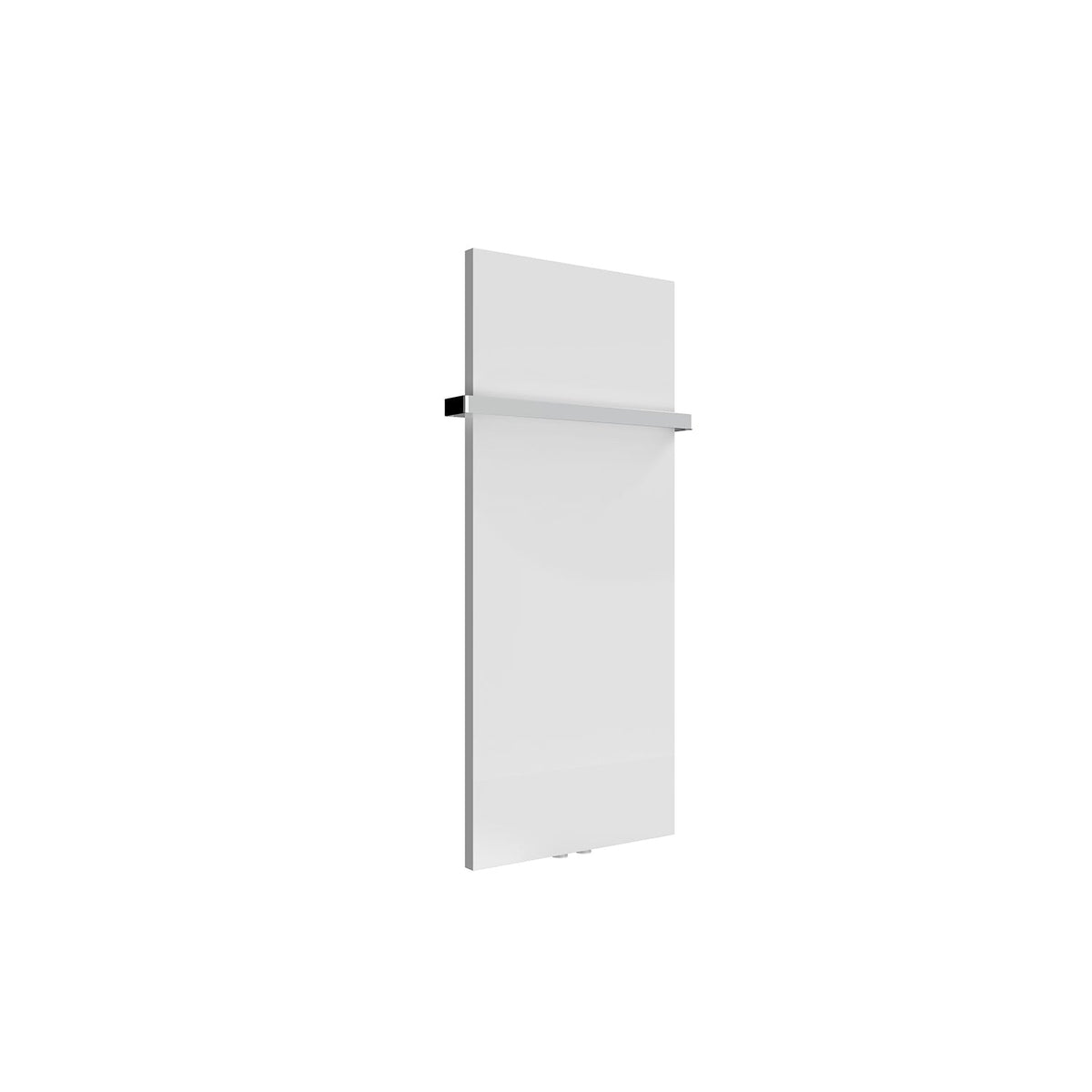

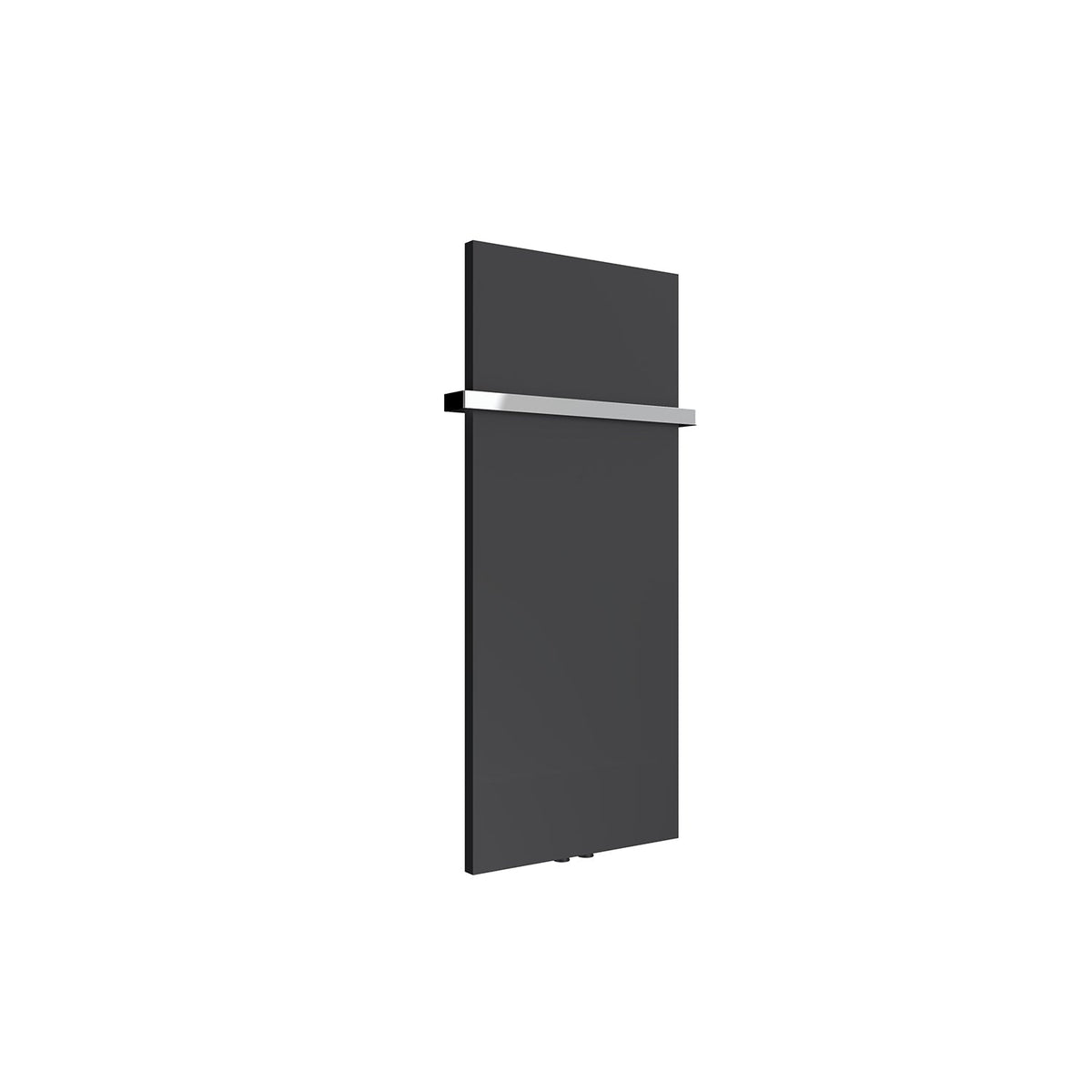

1170	500	50	30-55	62-87	C	4066	1192

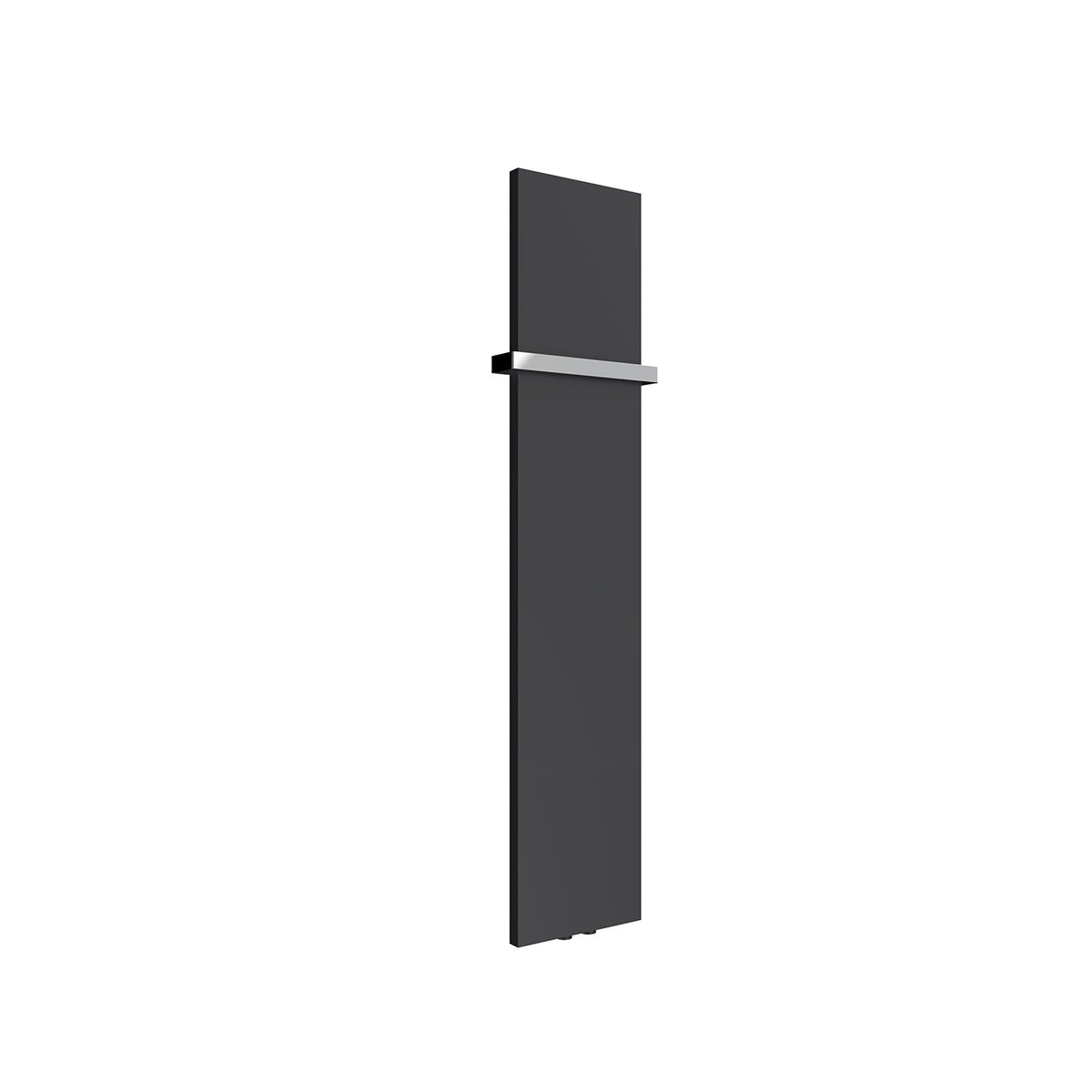

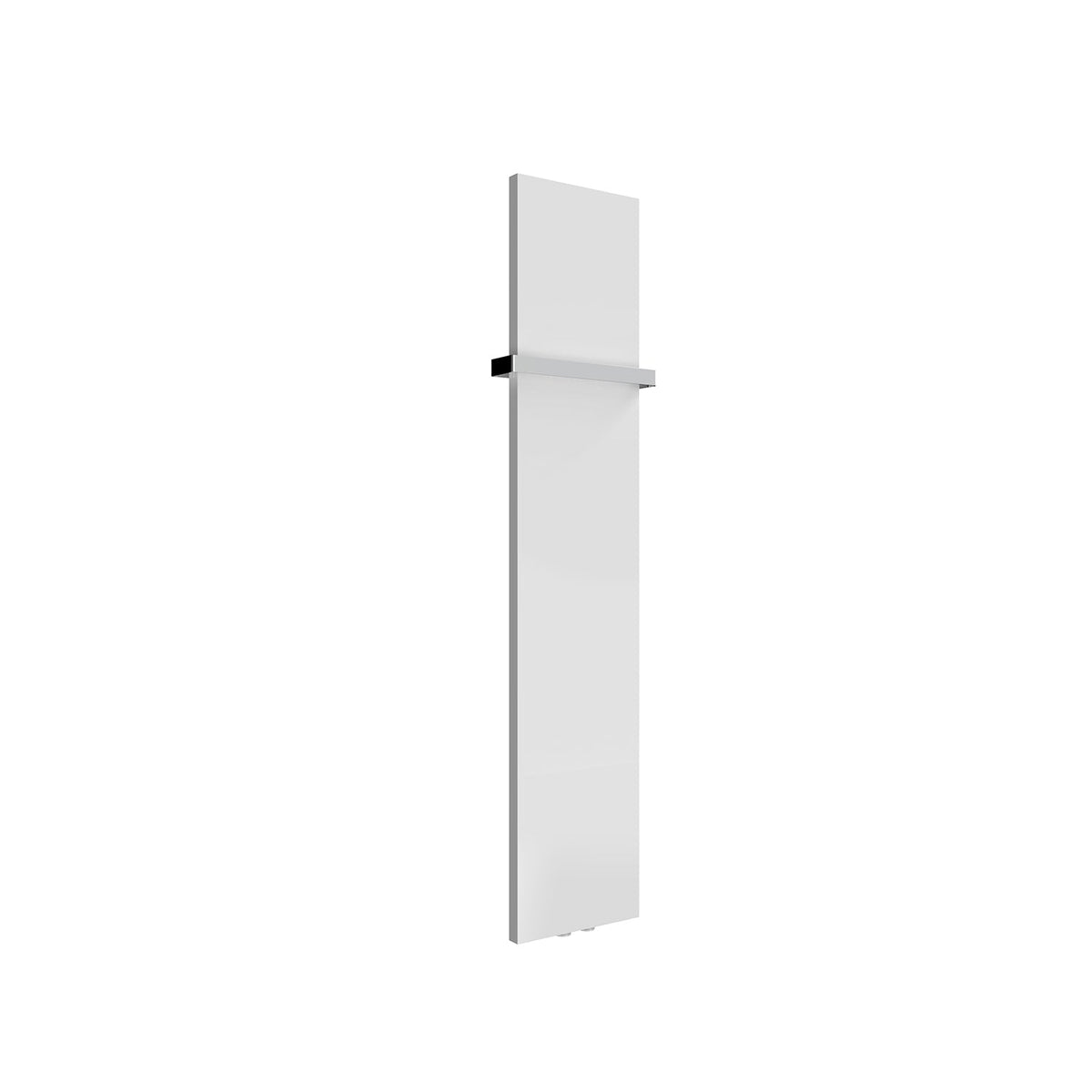

1470	300	50	30-55	62-87	C	3069	900
1470	400	50	30-55	62-87	C	4089	1199
1470	500	50	30-55	62-87	C	5113	1499

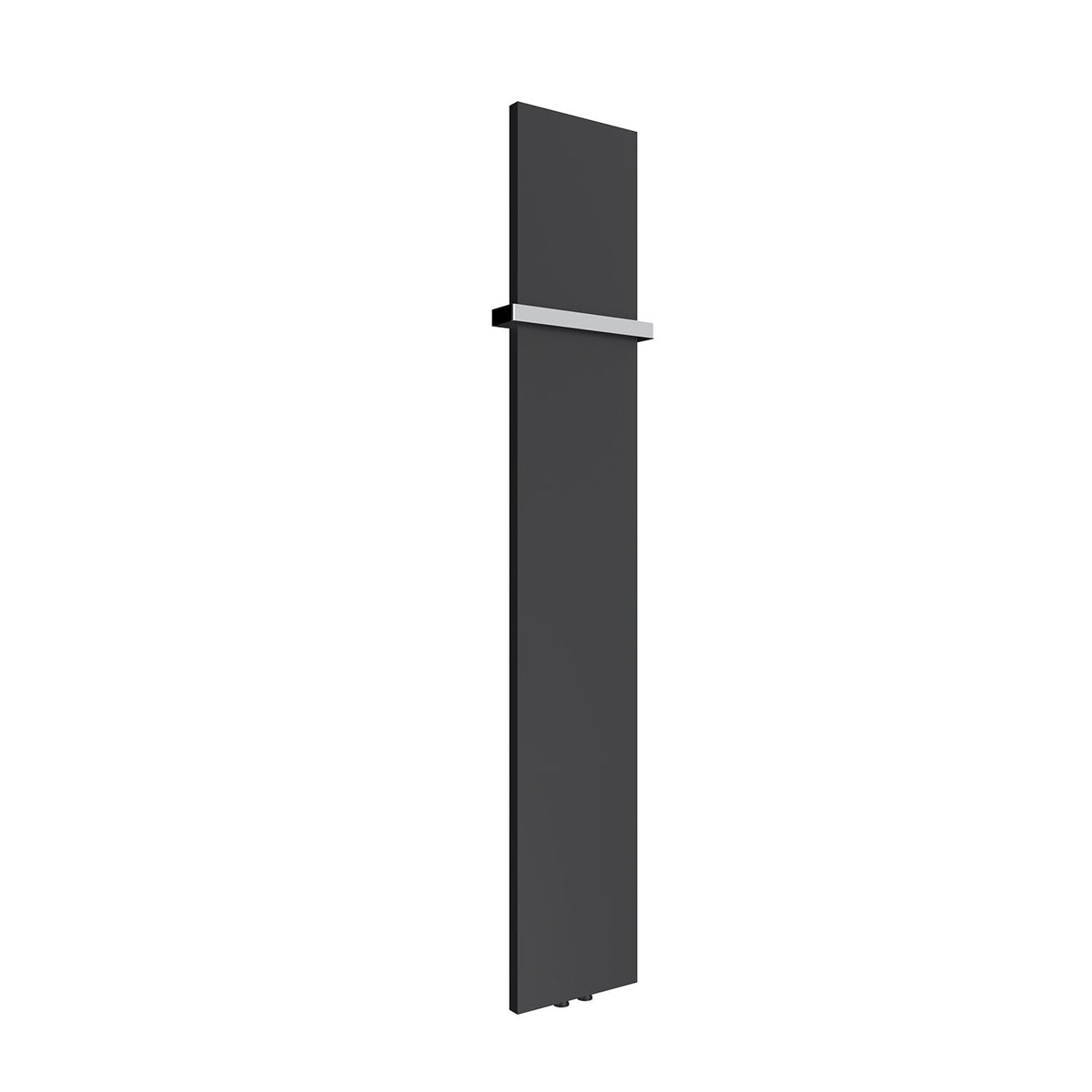

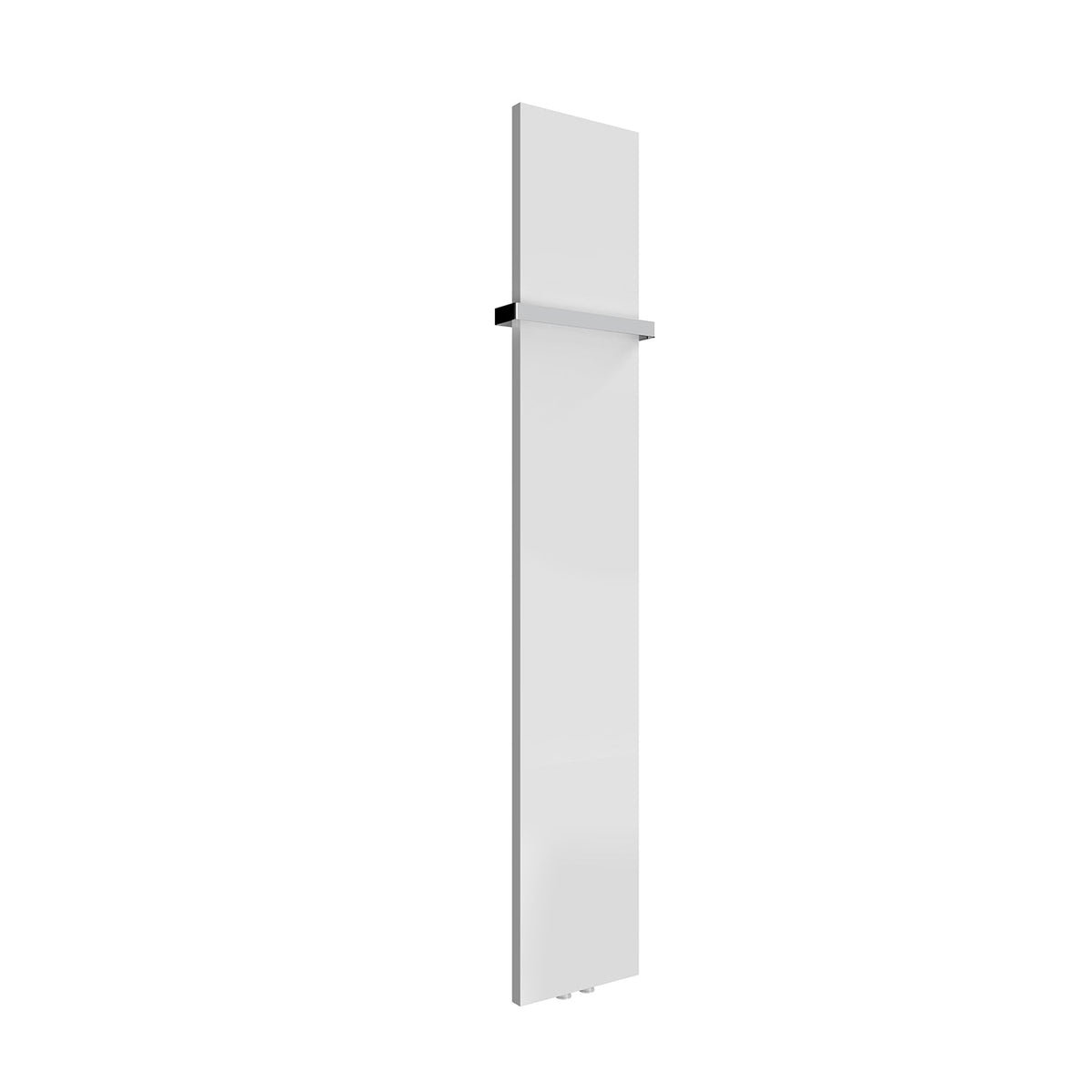

1770	300	50	30-55	62-87	C	3694	1083
1770	400	50	30-55	62-87	C	4923	1444
1770	500	50	30-55	62-87	C	6154	1805

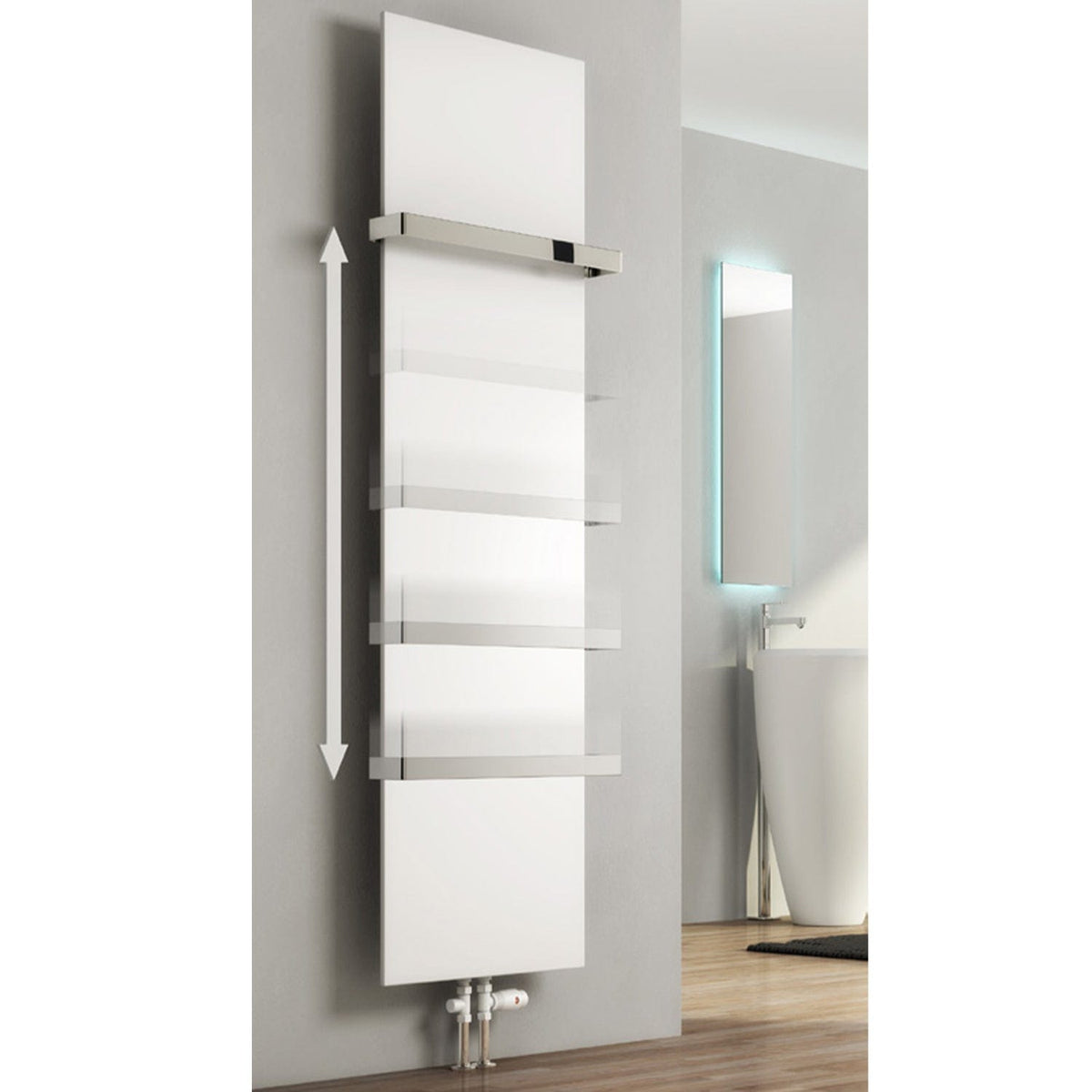

SLIMLINE CHROME 300/400/500 TOWEL BAR

C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly

Installation Guide

Which valve fits your pipework?

The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.

Valve	Choose it when	Price	Product page
Straight inlineFloor pipes	Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them.	£14.99	View the straight inline valve
AngledWall pipes	Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you.	£14.99	View the angled valve
CornerWall pipes	Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way.	£19.99	View the corner valve

A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why

Finish the installation

The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.

Accessory	What it does	Price	Product page
Chrome cover caps (pair)	Caps the bleed and blanking plugs so the top of the rail looks finished	£2.49	View product : Chrome cover caps (pair)
Talon Snappit pipe covers	Clips around exposed pipe to hide it — no glue, no cutting	From £5.99	View product : Talon Snappit pipe covers
Towel rail pegs (pair)	Clip-on pegs add hanging space, fitted by hand	£9.99	View product : Towel rail pegs (pair)
