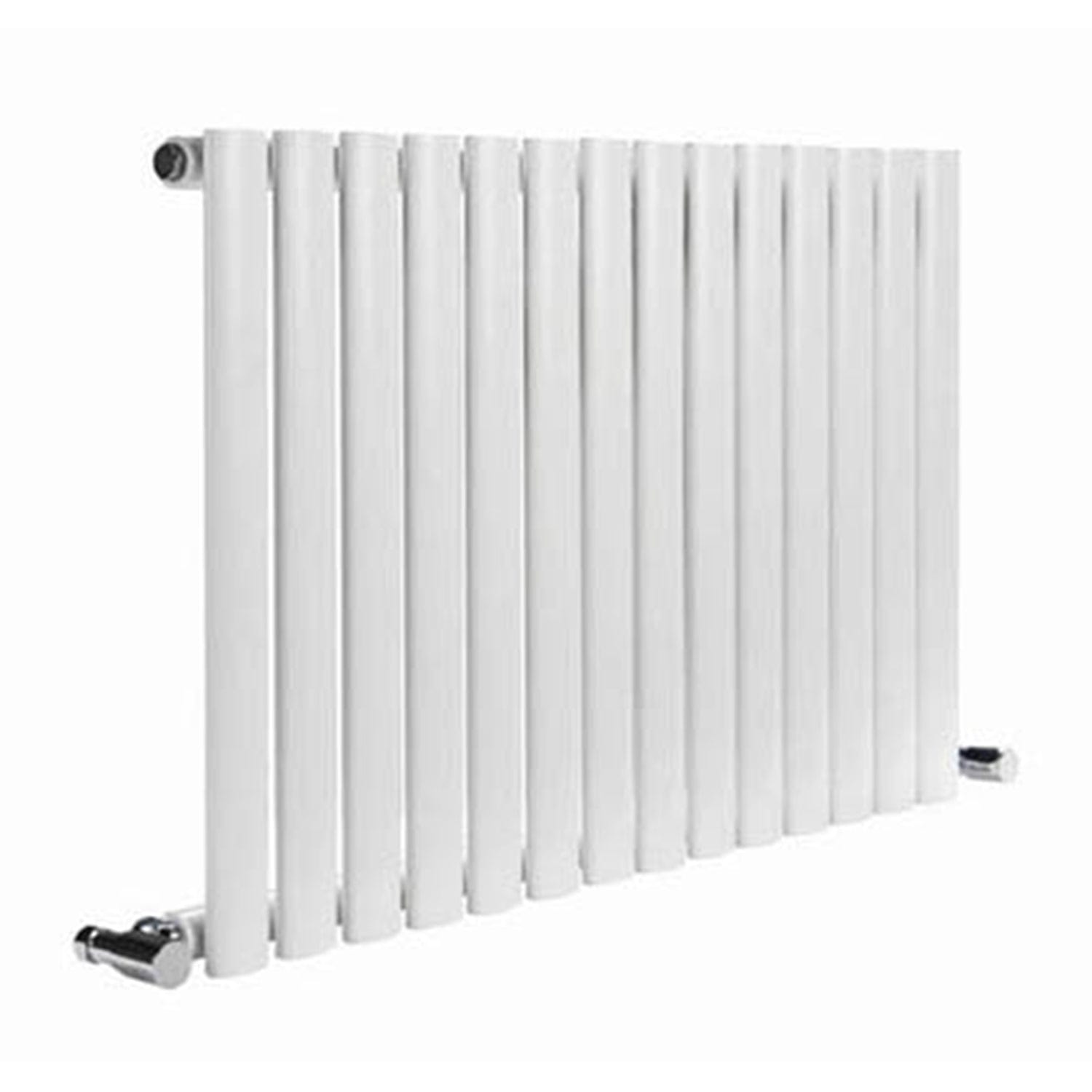

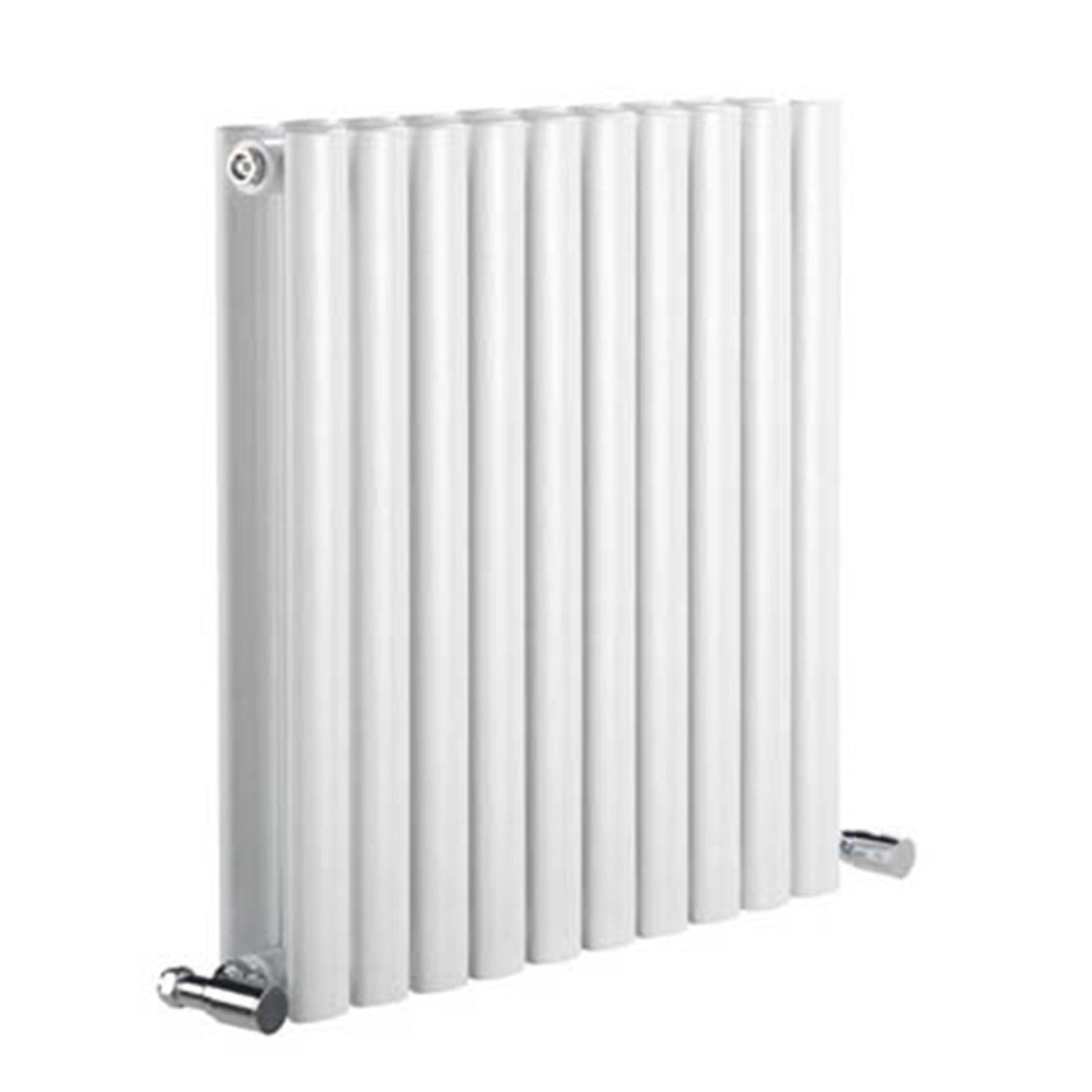

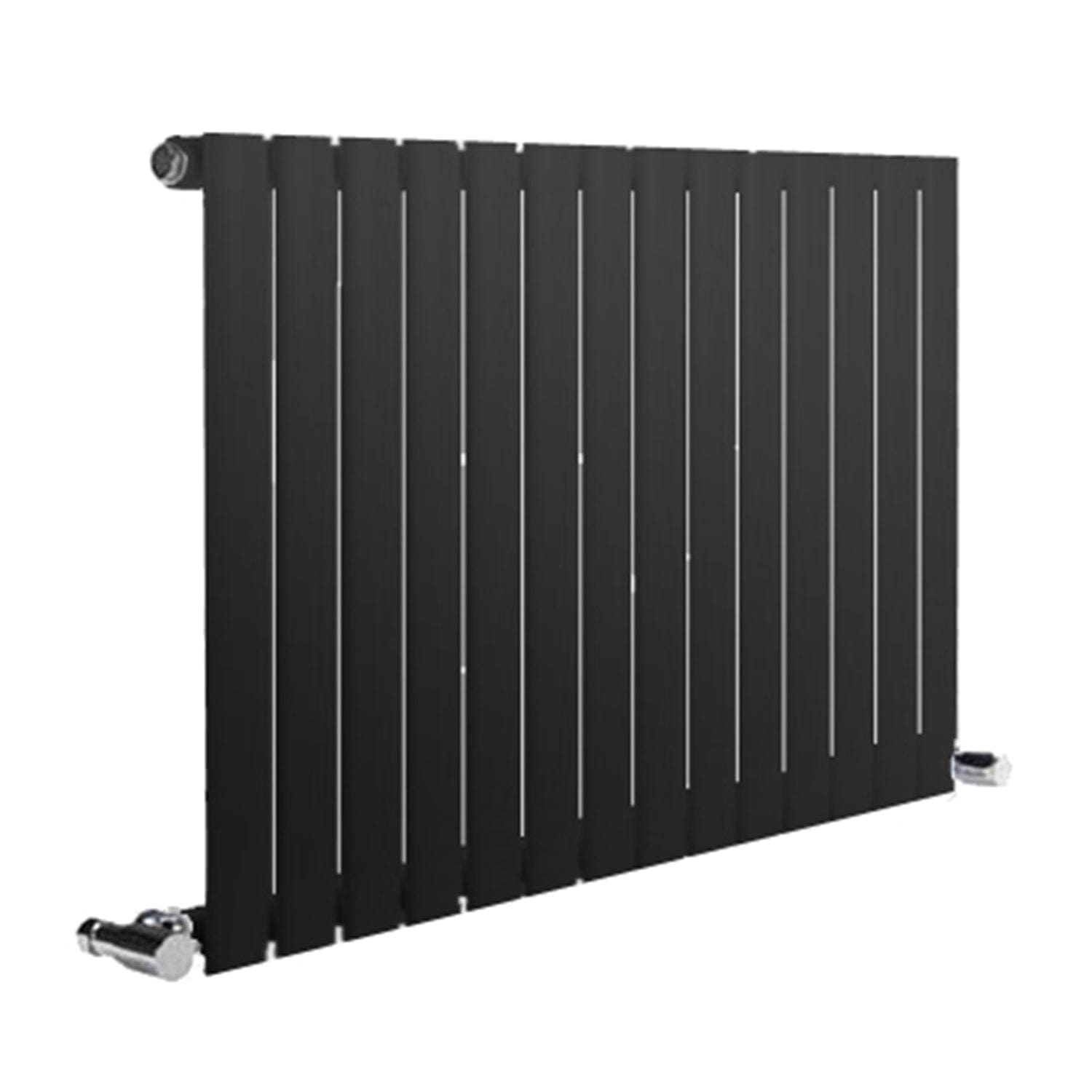

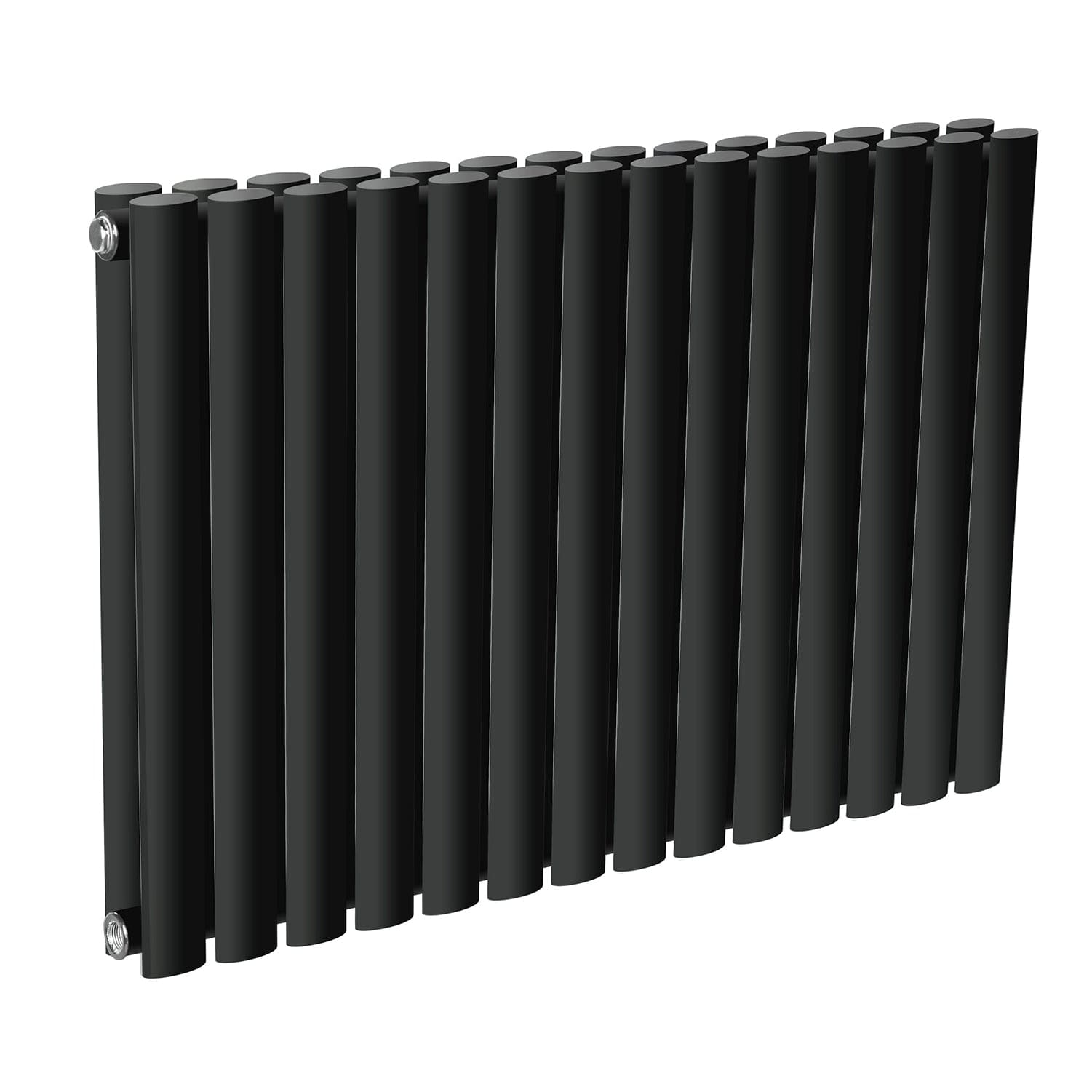

Reina Neva Horizontal White & Anthracite Designer Radiator

Reina Neva Horizontal White and Anthracite Designer Steel Radiator

Anthracite, black and white finishes available

550mm high and 413mm, 590mm, 826mm, 1003mm or 1180mm Wide options

Plain and simple, the Neva range is staple of Reina's radiator catalogue

5 year guarantee
Usage: Central Heating, Electric Only or Dual Fuel
In addition Neva Radiators also come in a Vertical range.

Neva Horizontal

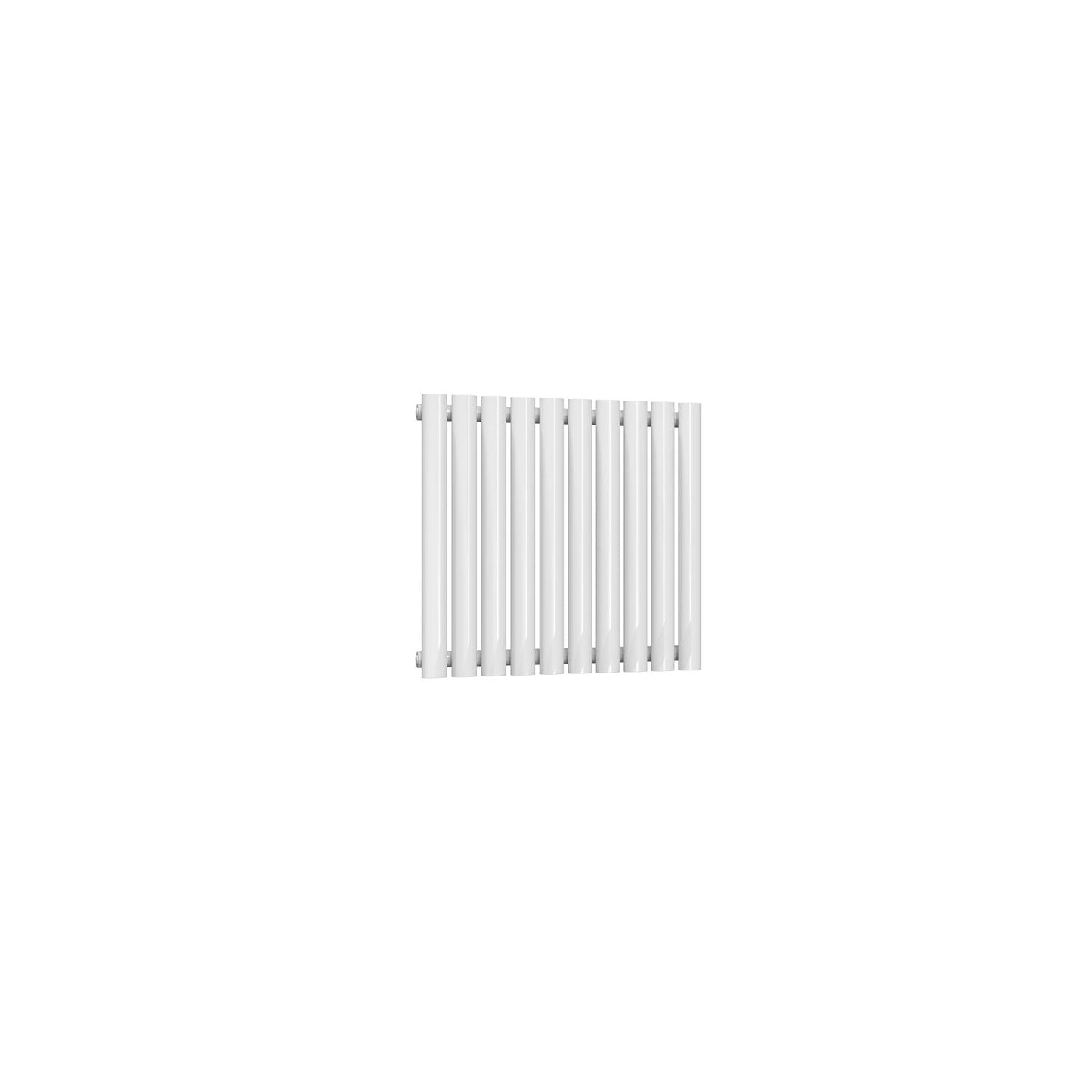

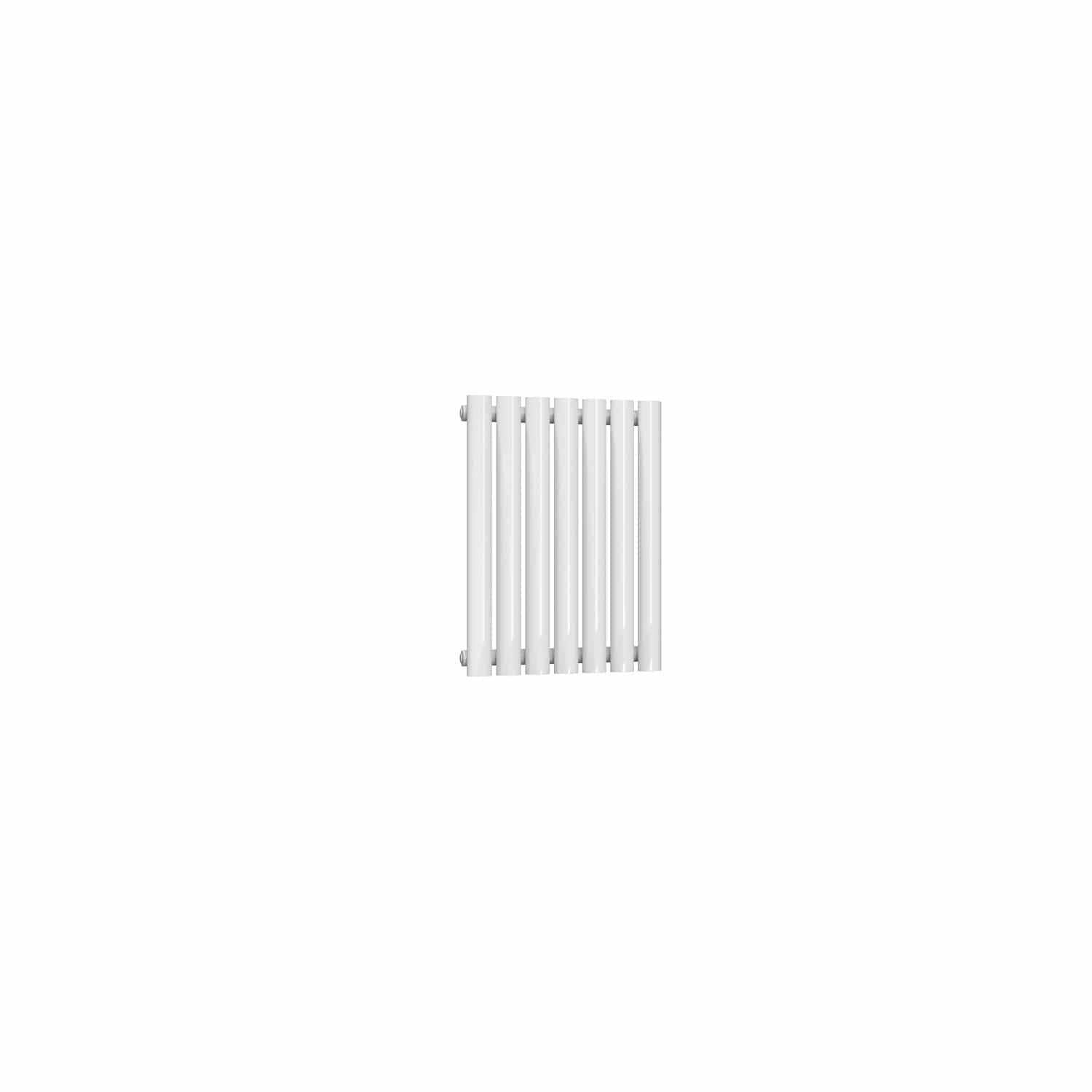

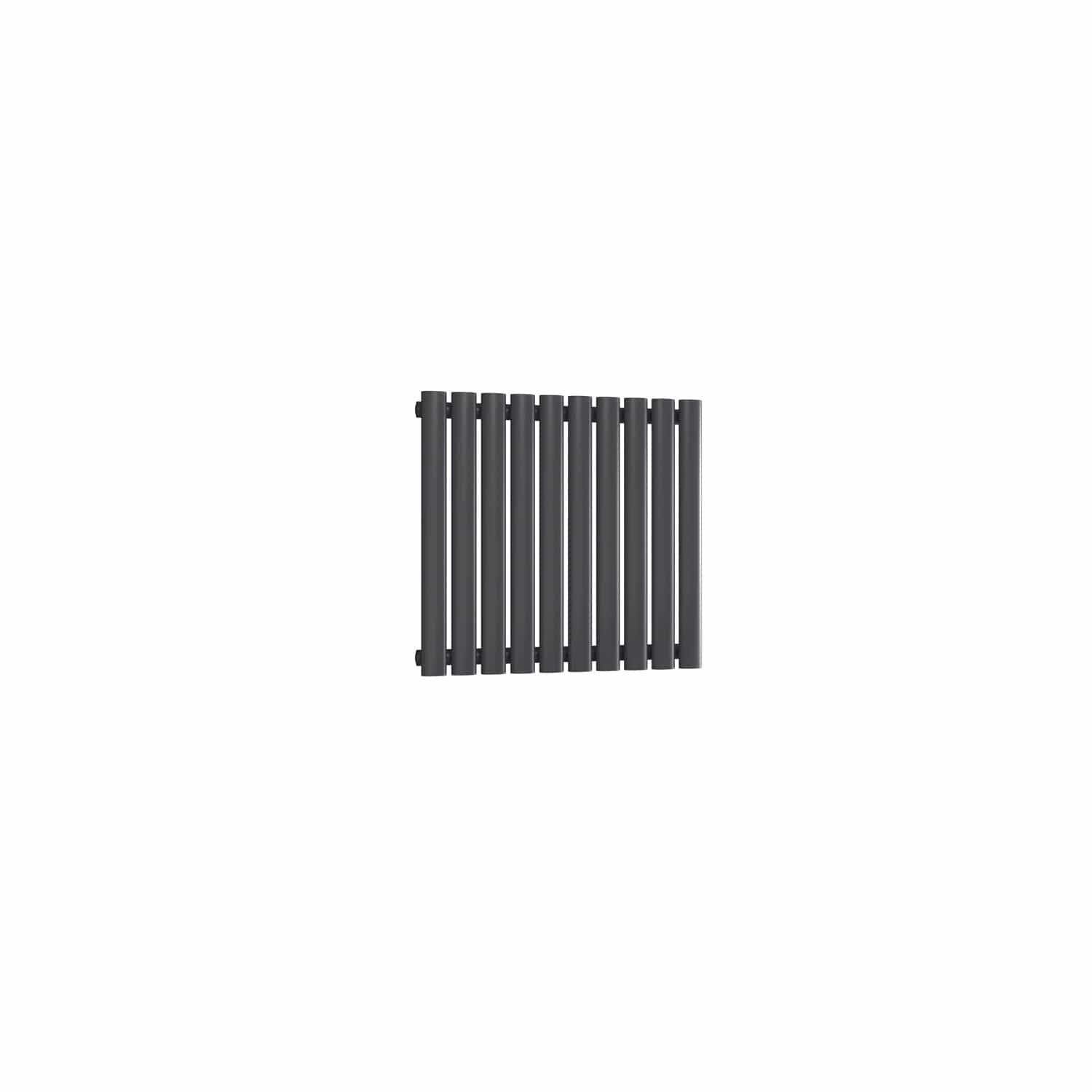

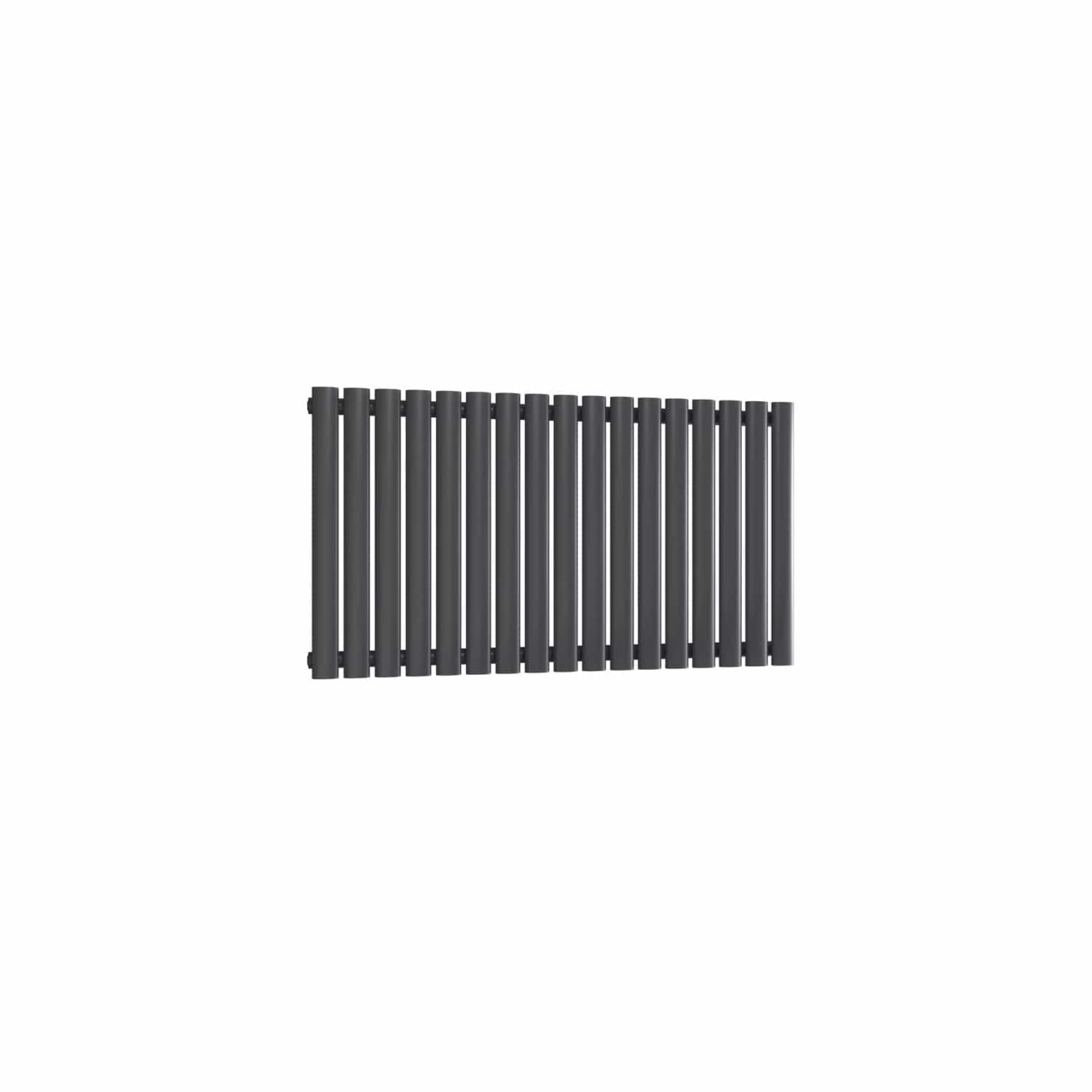

Single

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts

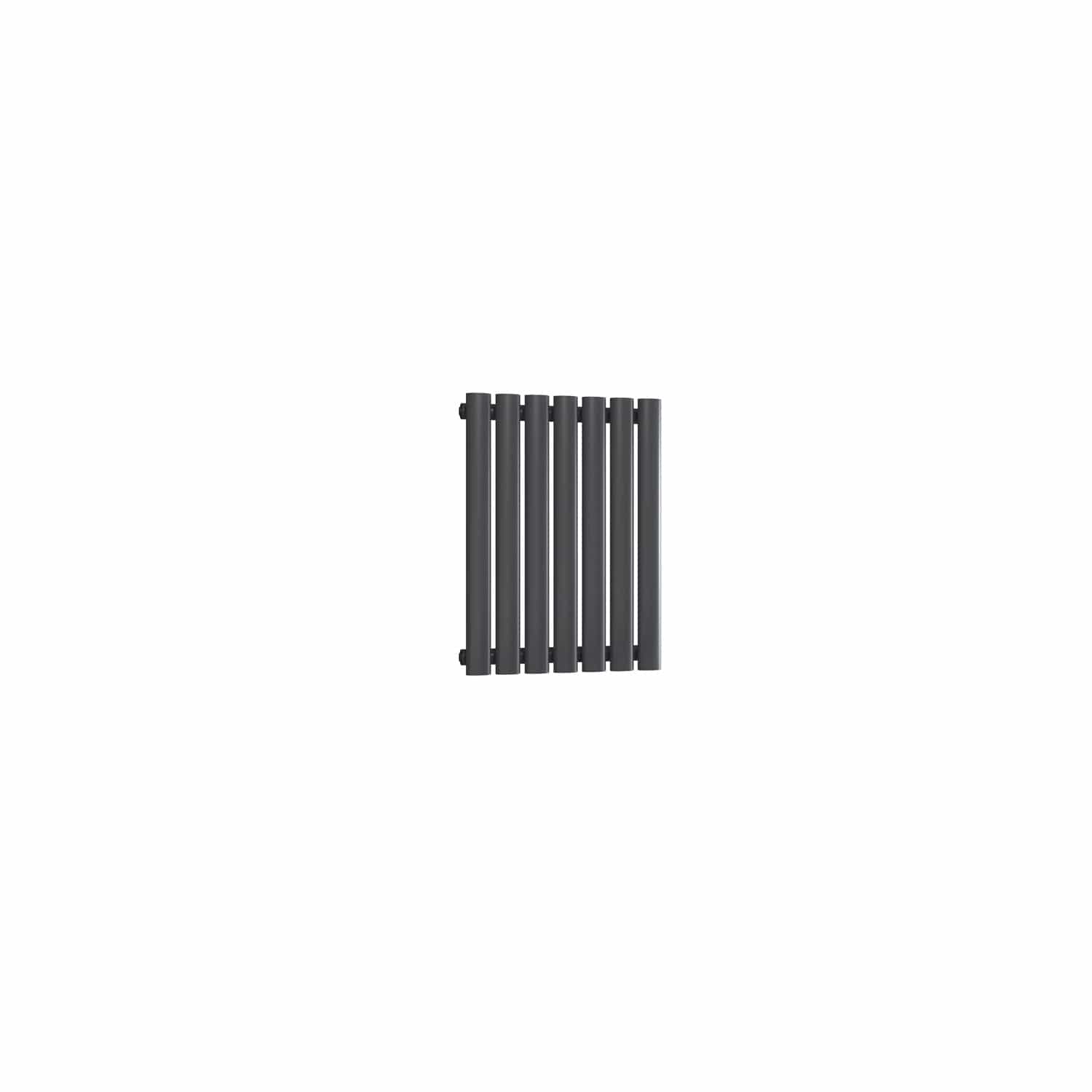

550	413	413	65	103	C/E/D	1447	424

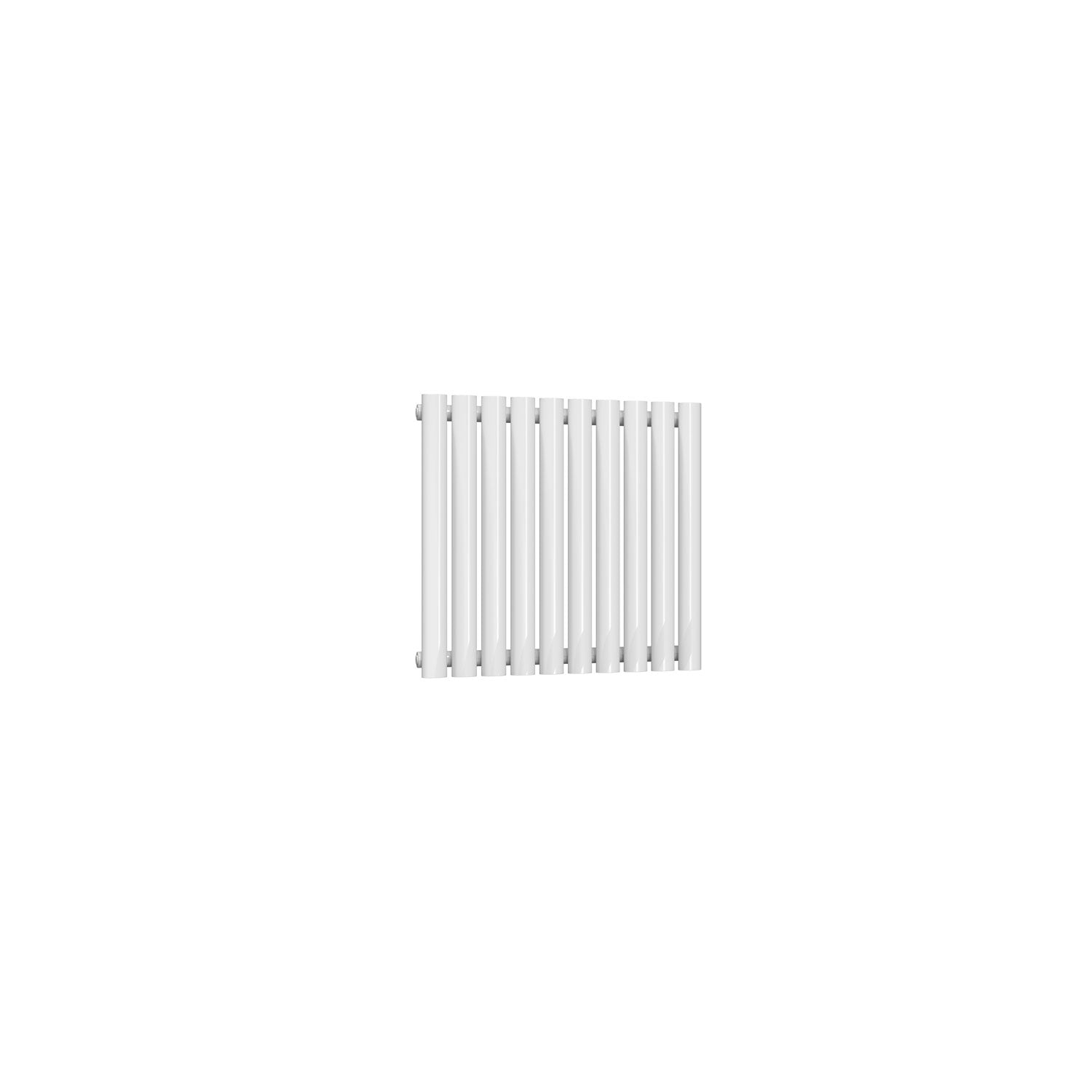

550	590	590	65	103	C/E/D	2066	606

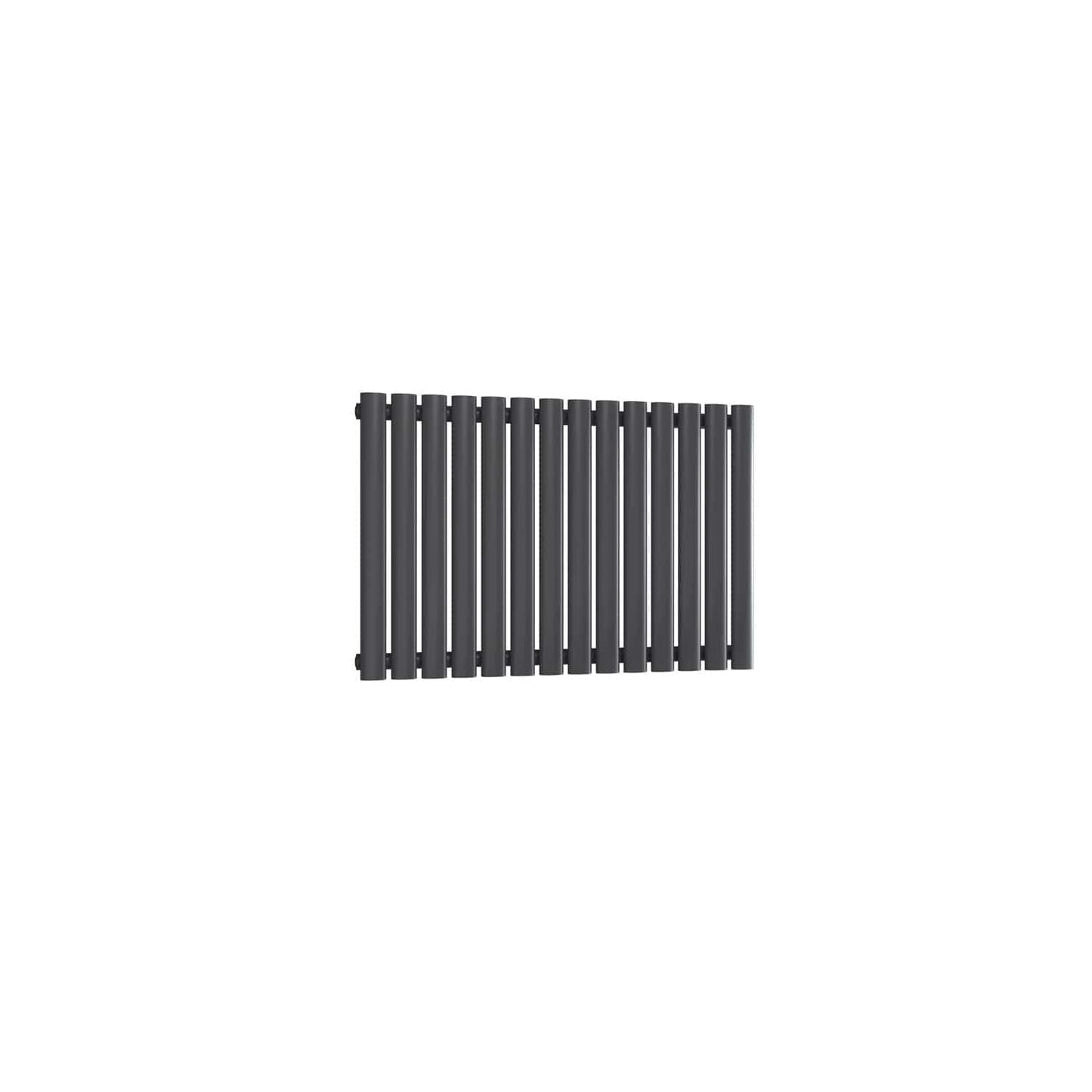

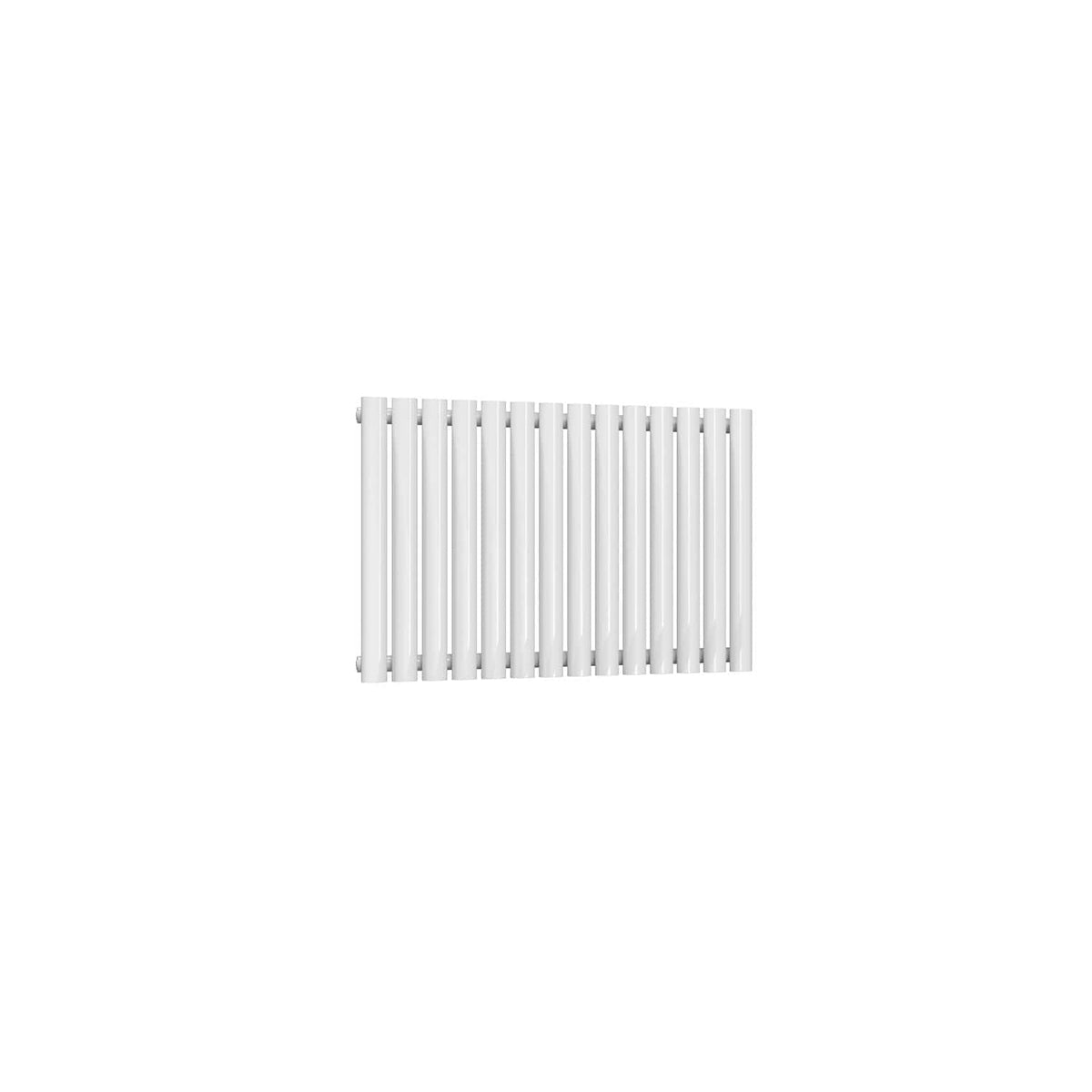

550	826	826	65	103	C/E/D	2907	852

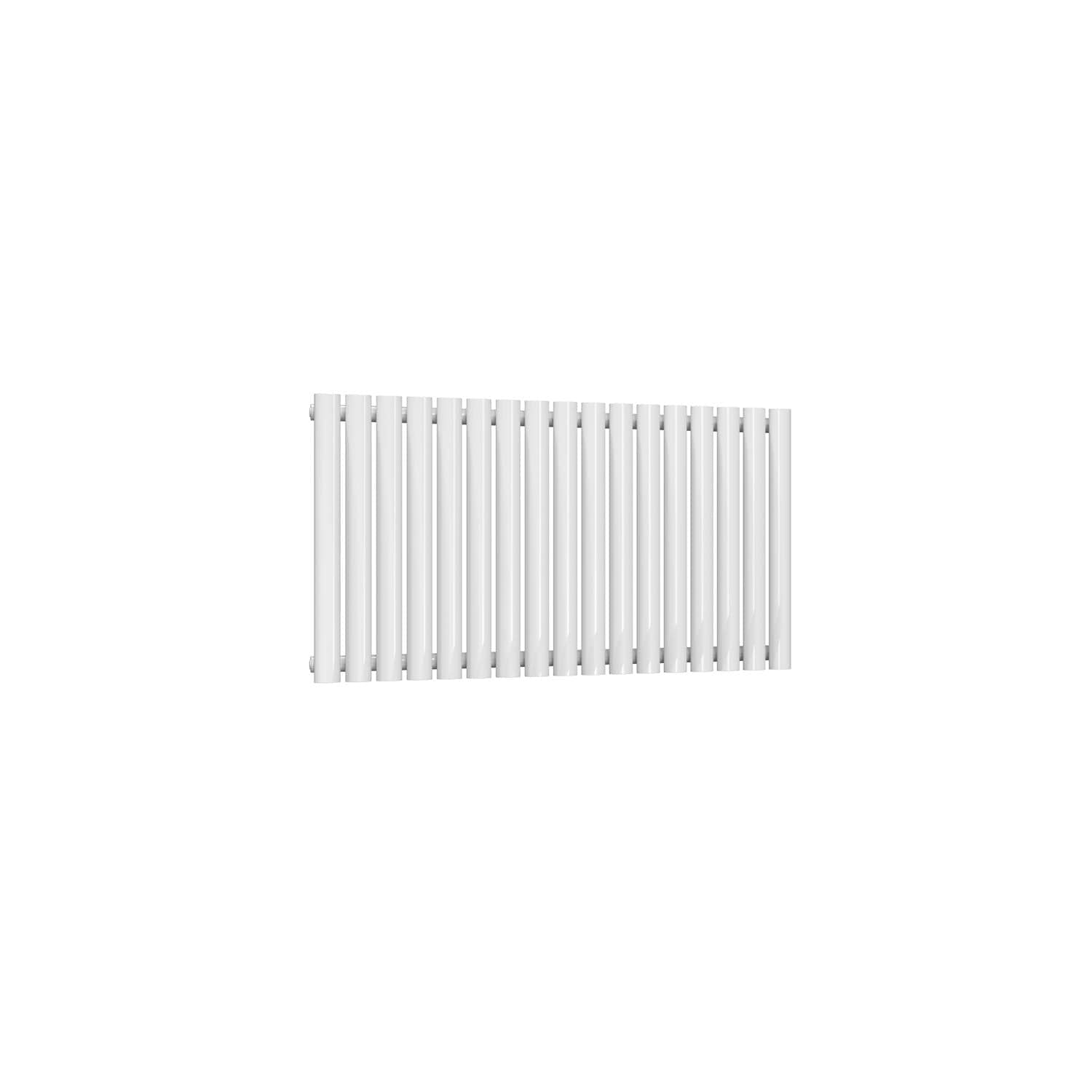

550	1003	1003	65	103	C/E/D	3512	1030

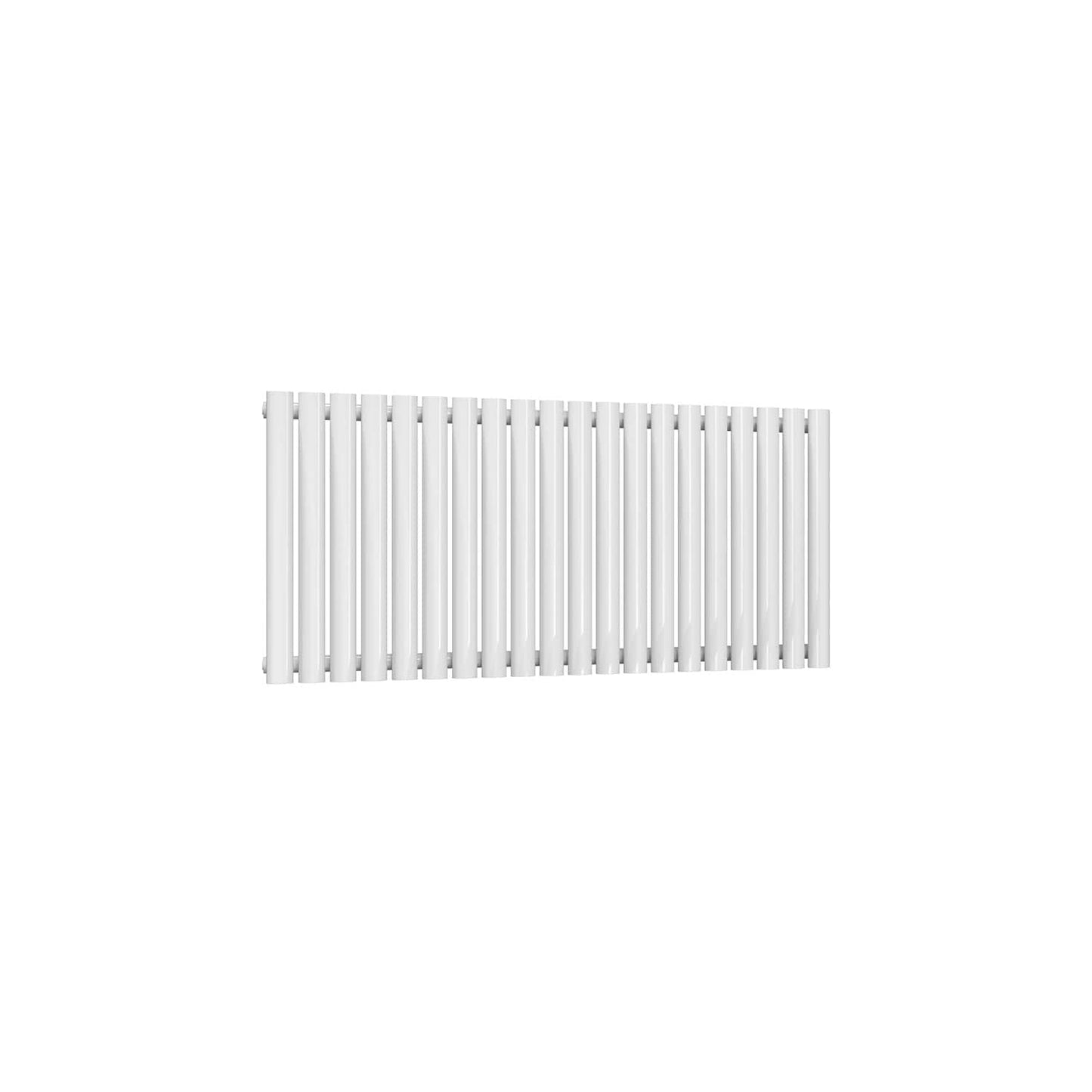

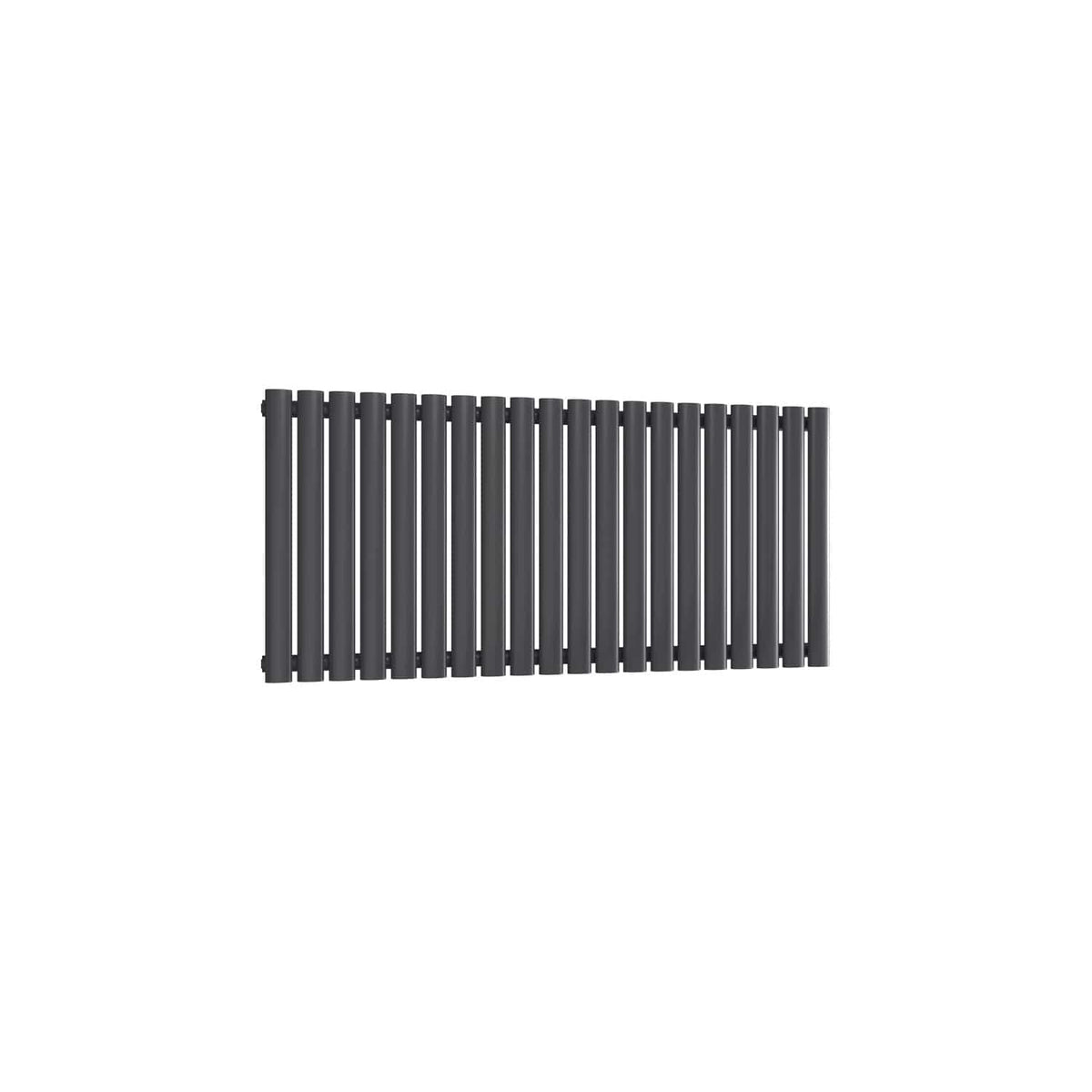

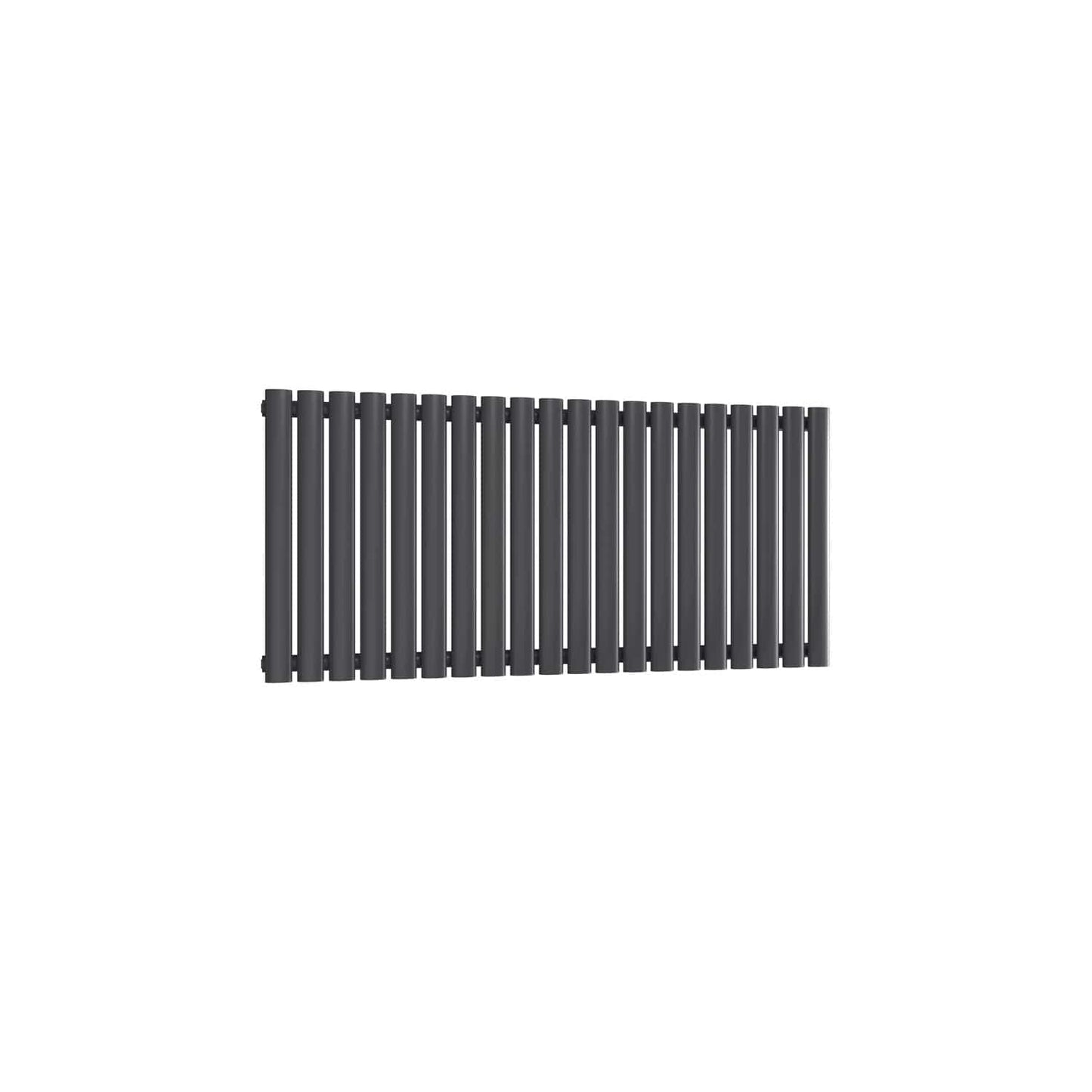

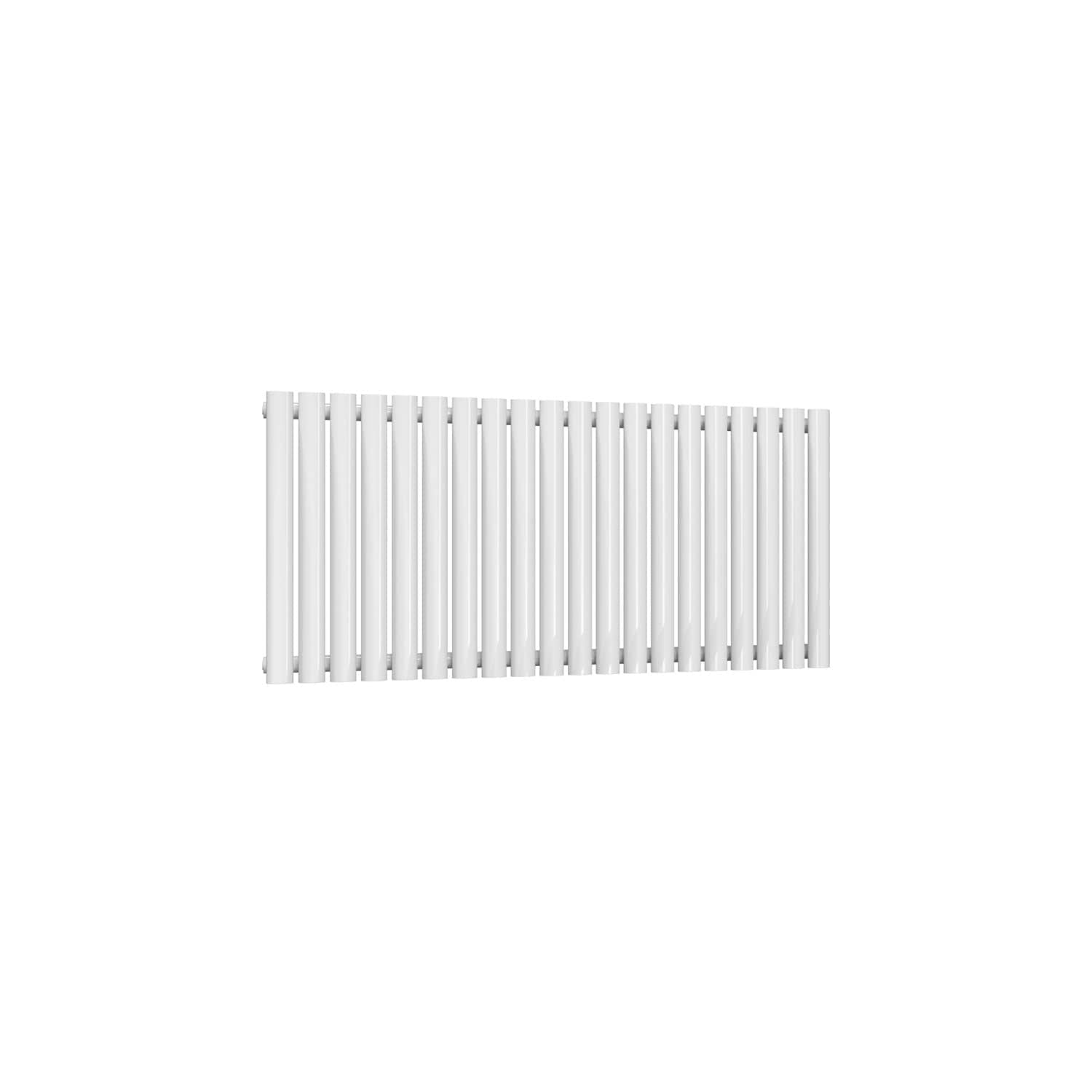

550	1180	1180	65	103	C/E/D	4131	1211

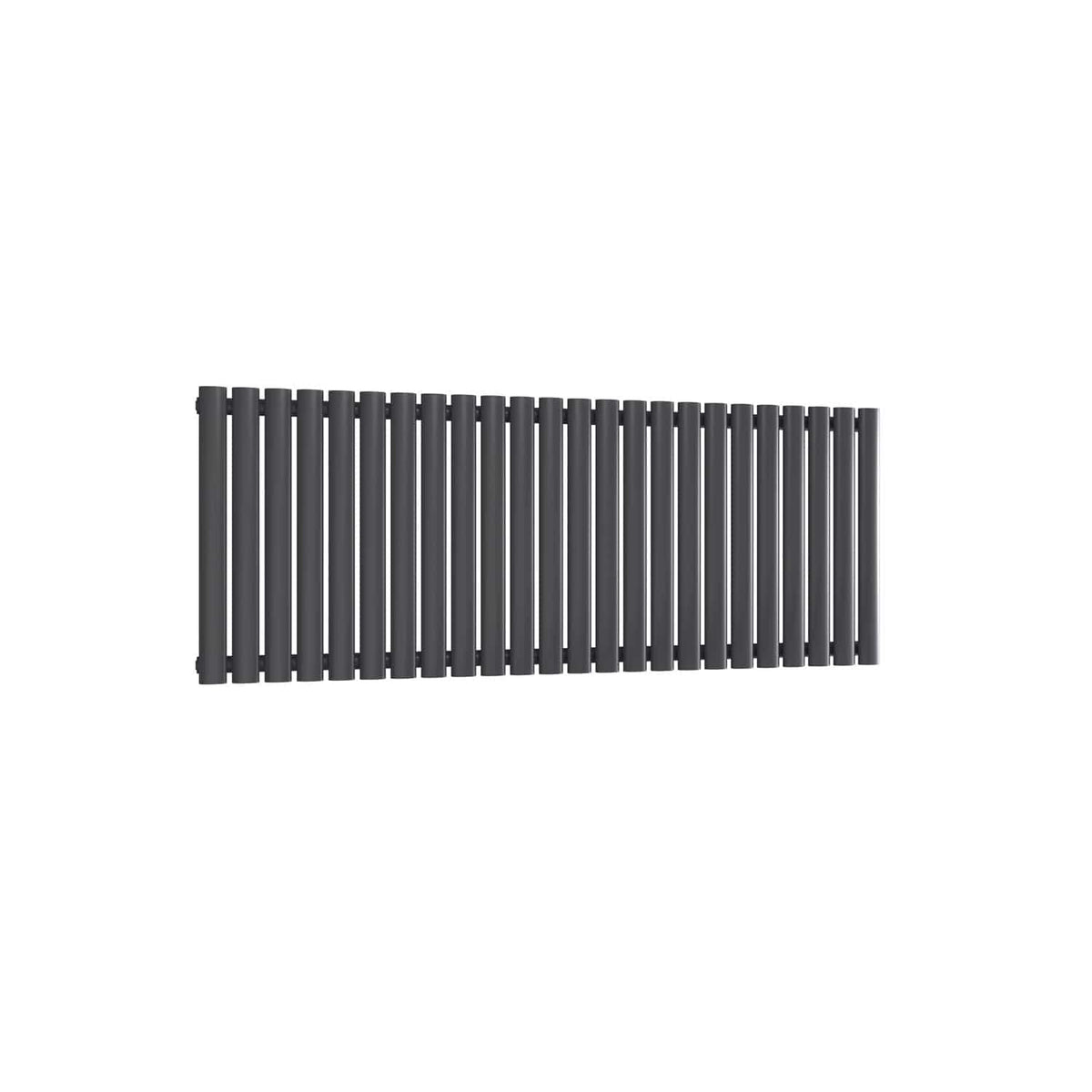

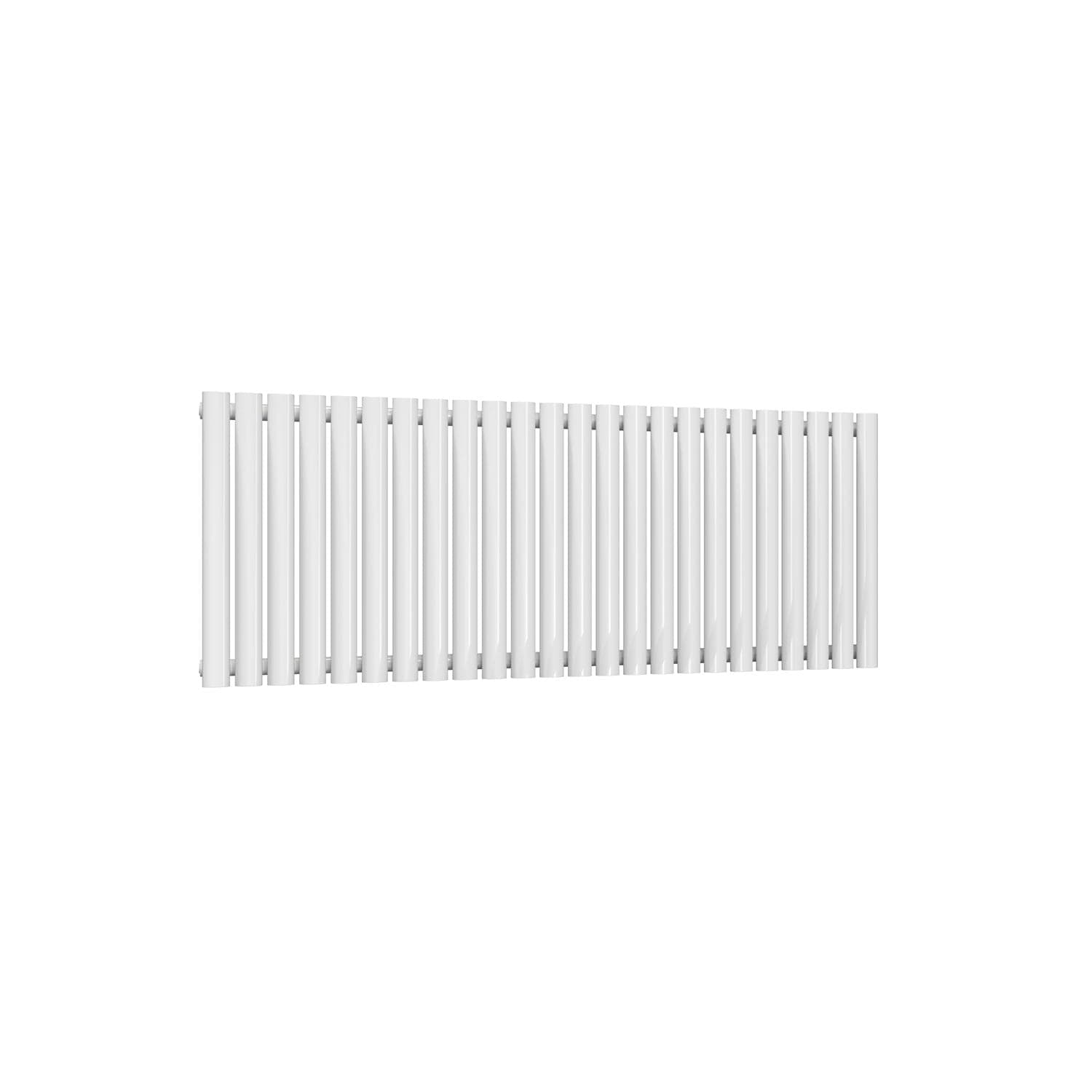

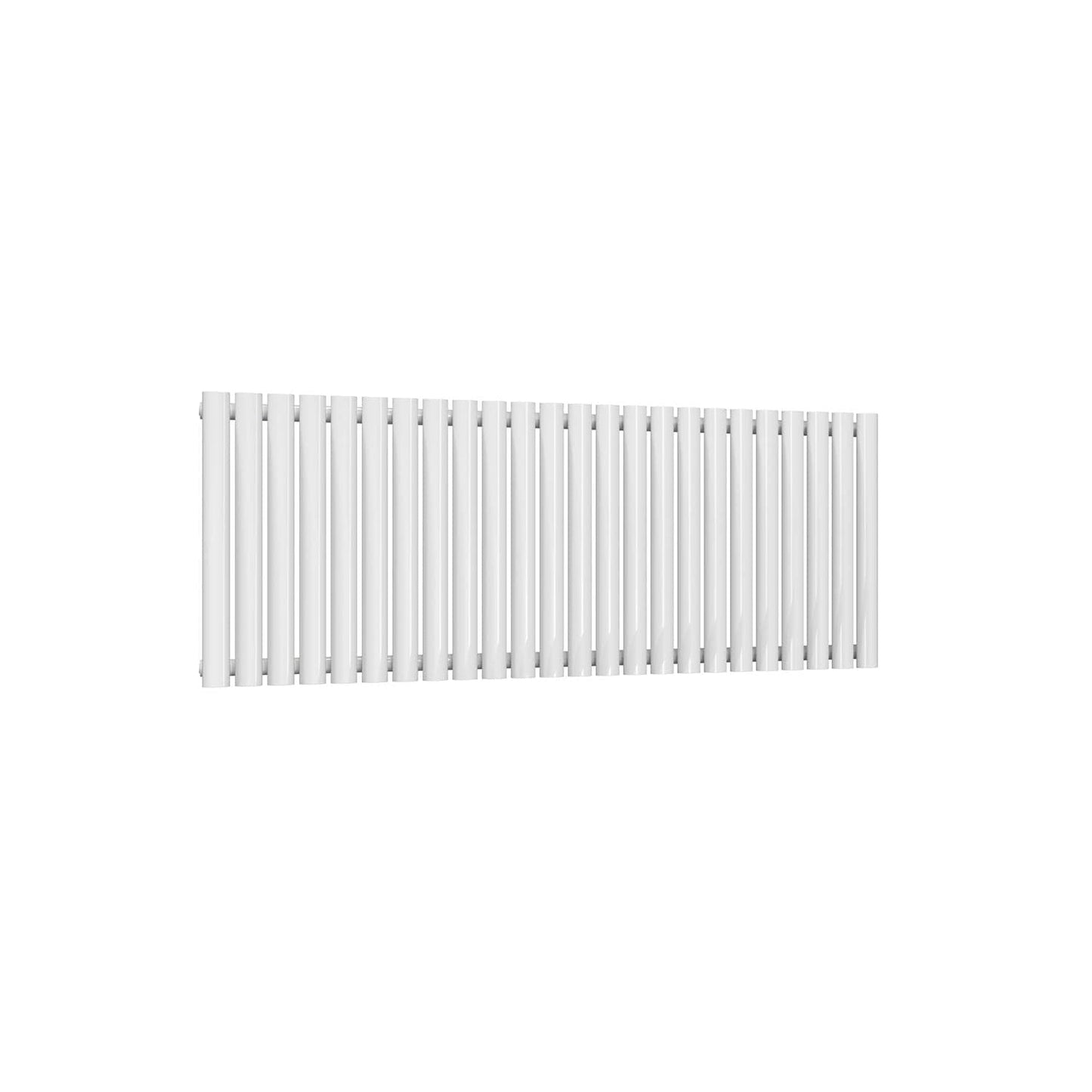

550	1416	1416	65	103	C/E/D	4957	1454

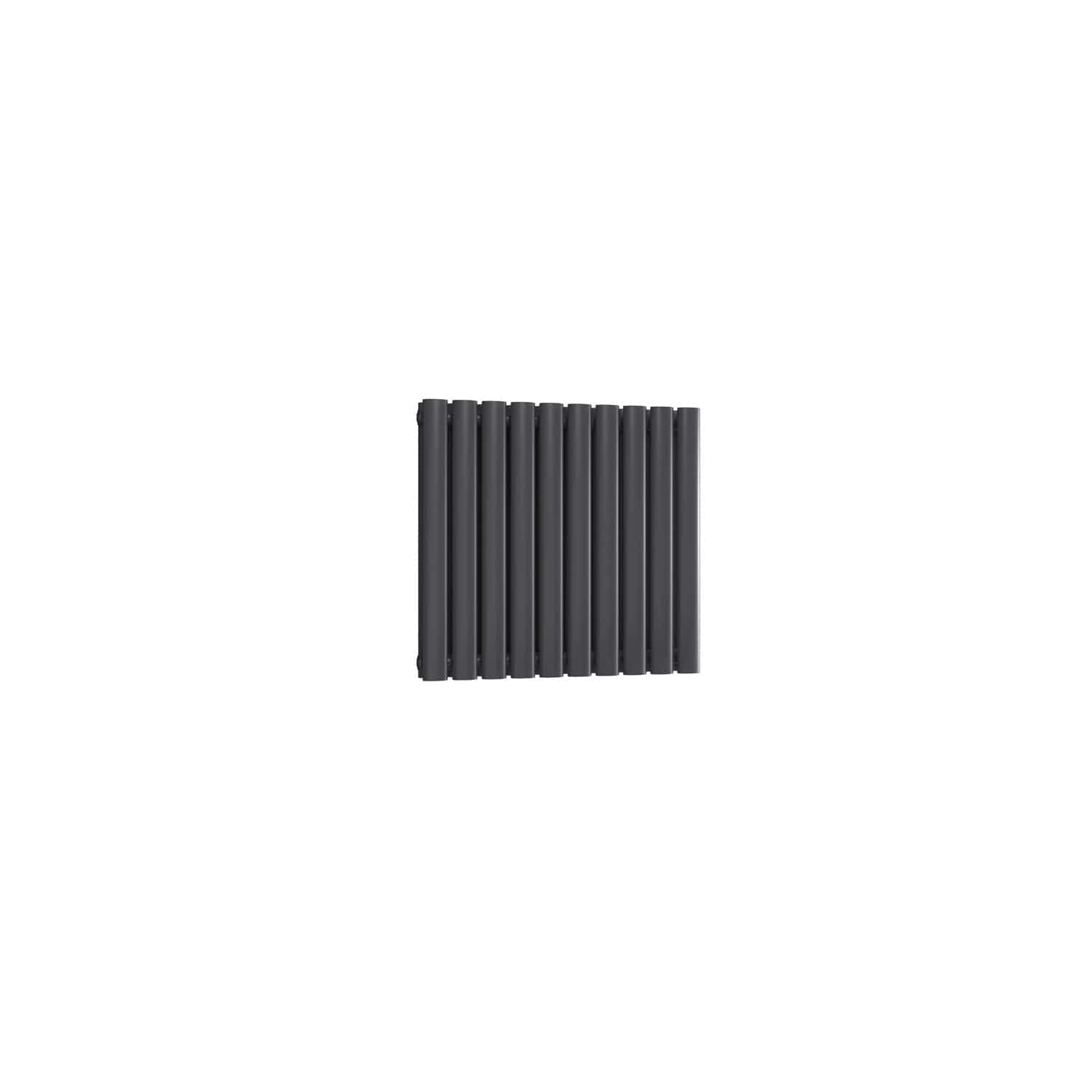

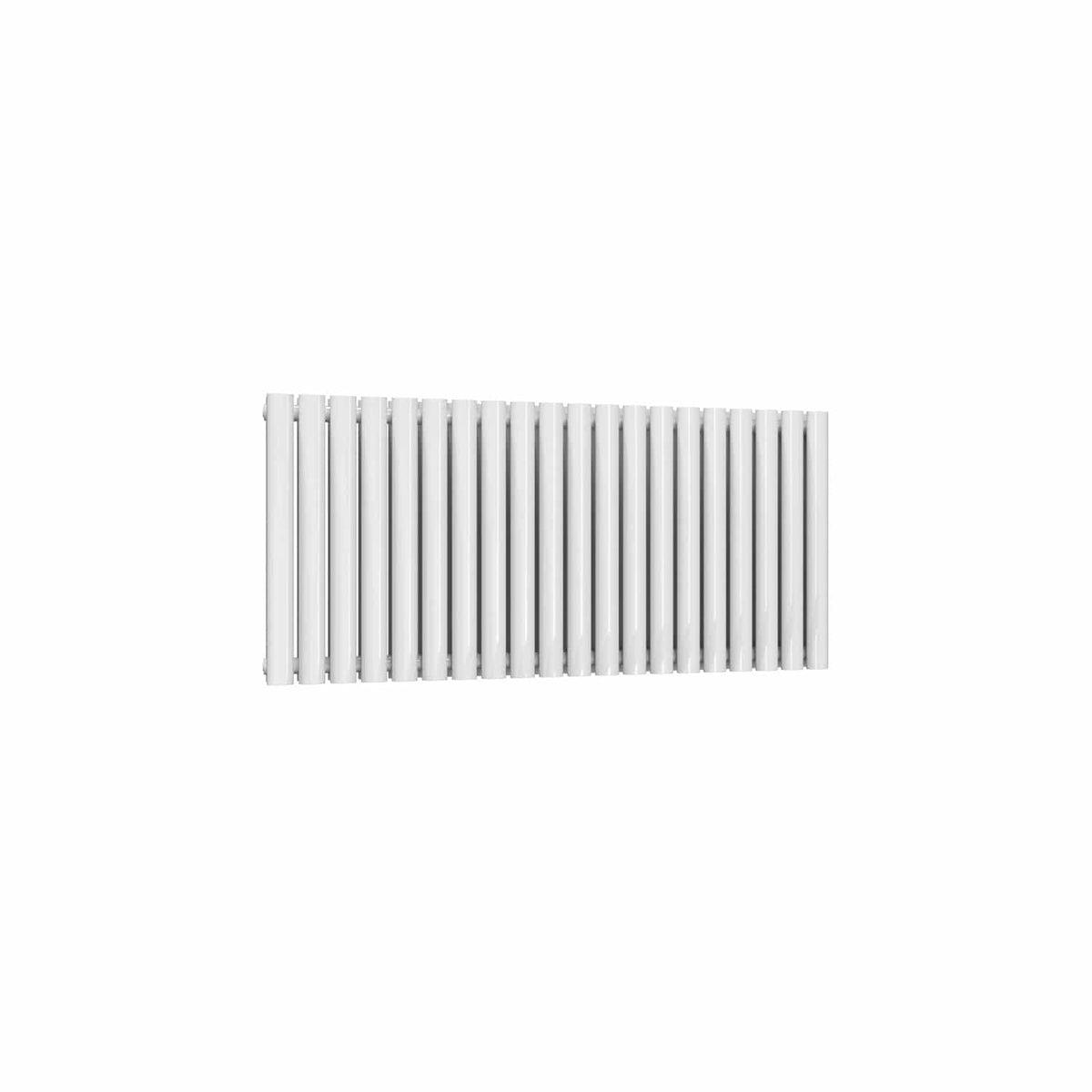

Double

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts
550	413	413	65	103	C/E/D	2315	679

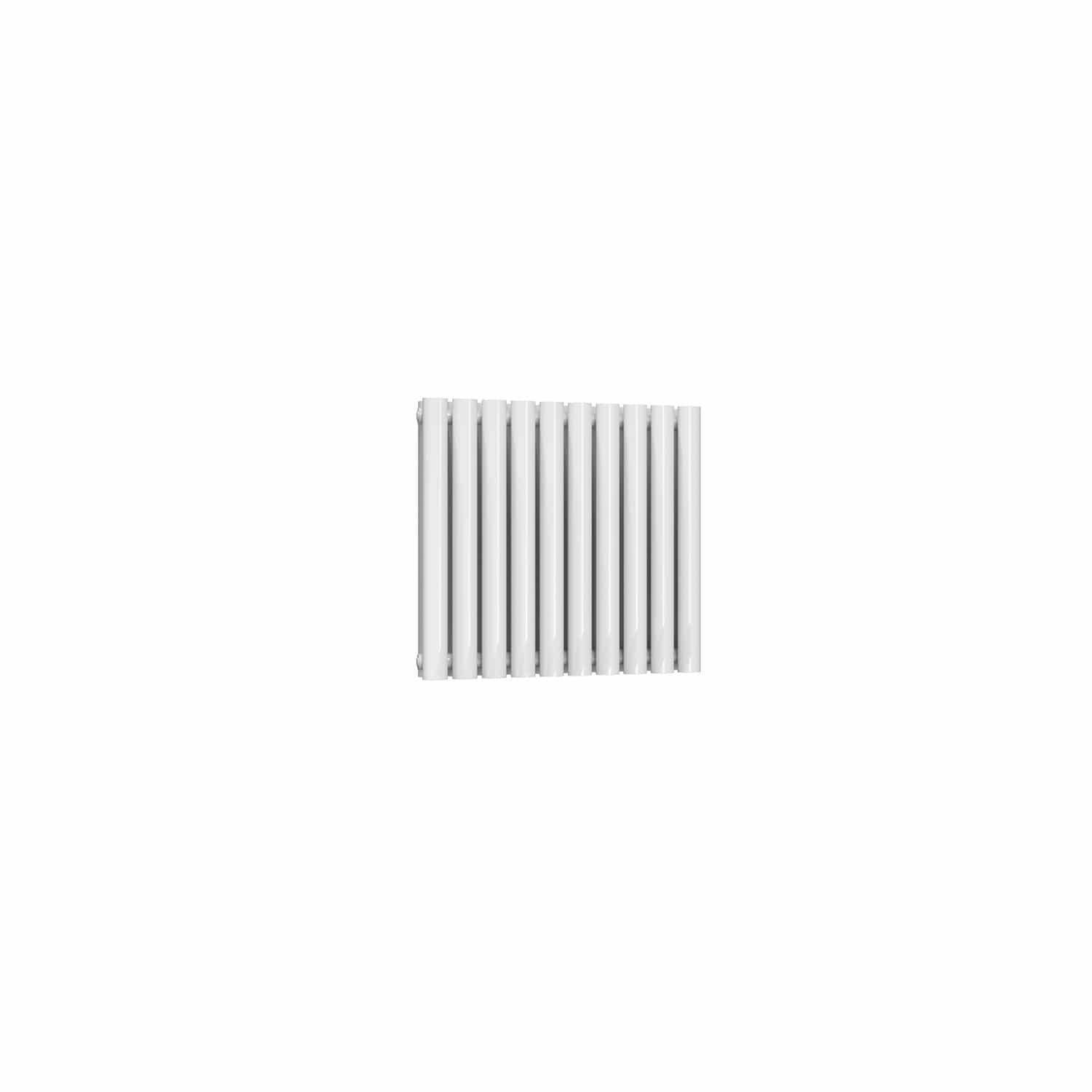

550	590	590	65	103	C/E/D	3306	969

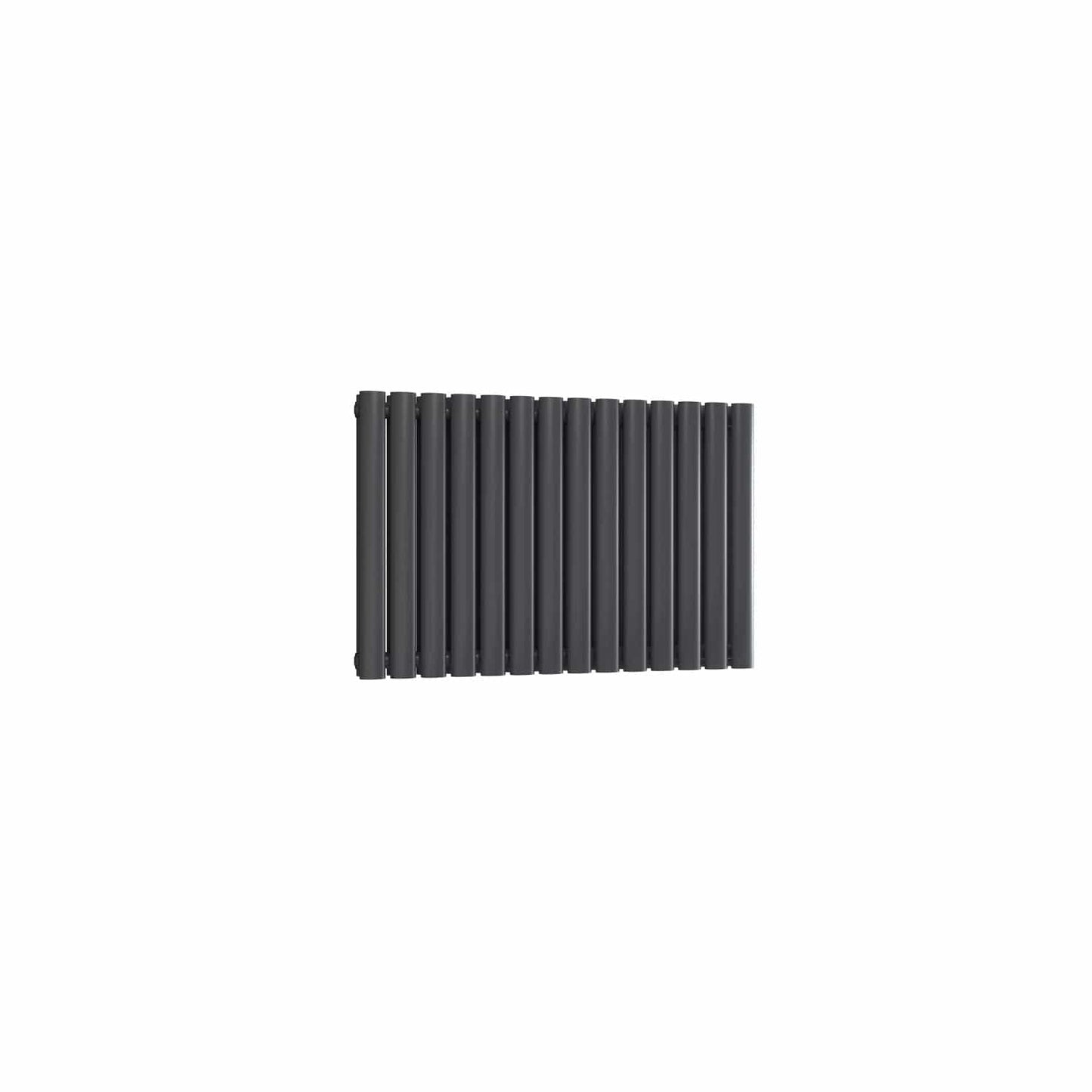

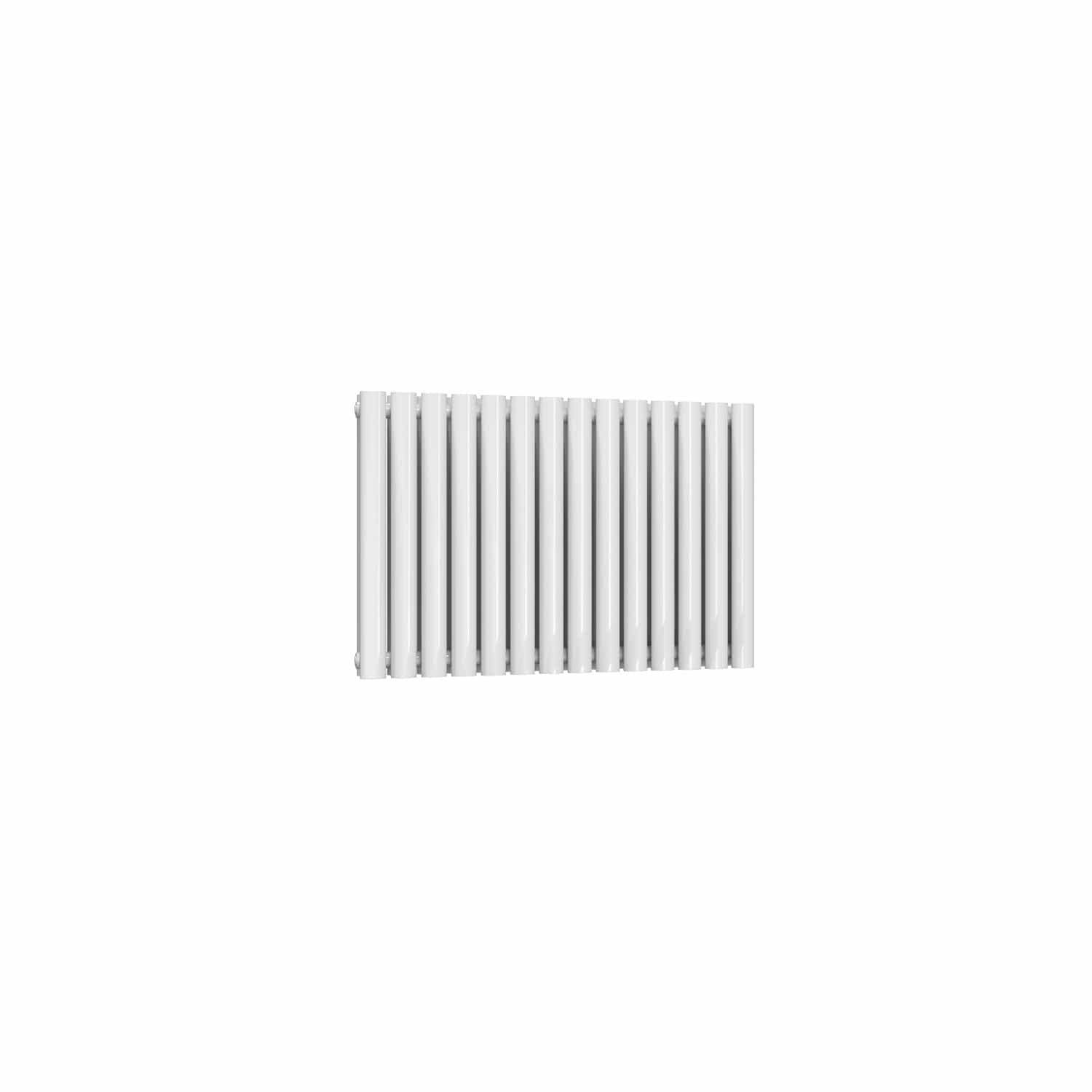

550	826	826	65	103	C/E/D	4651	1364

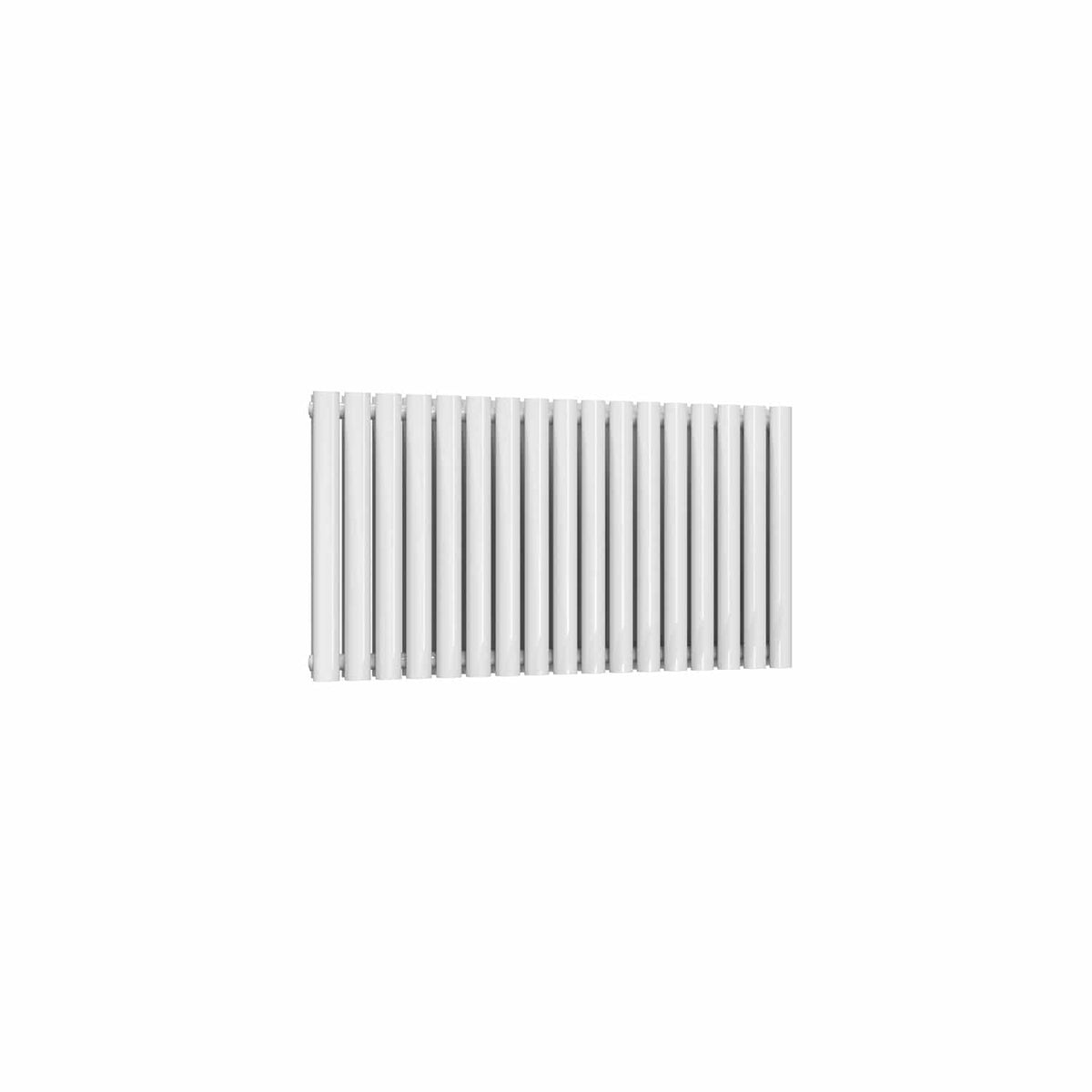

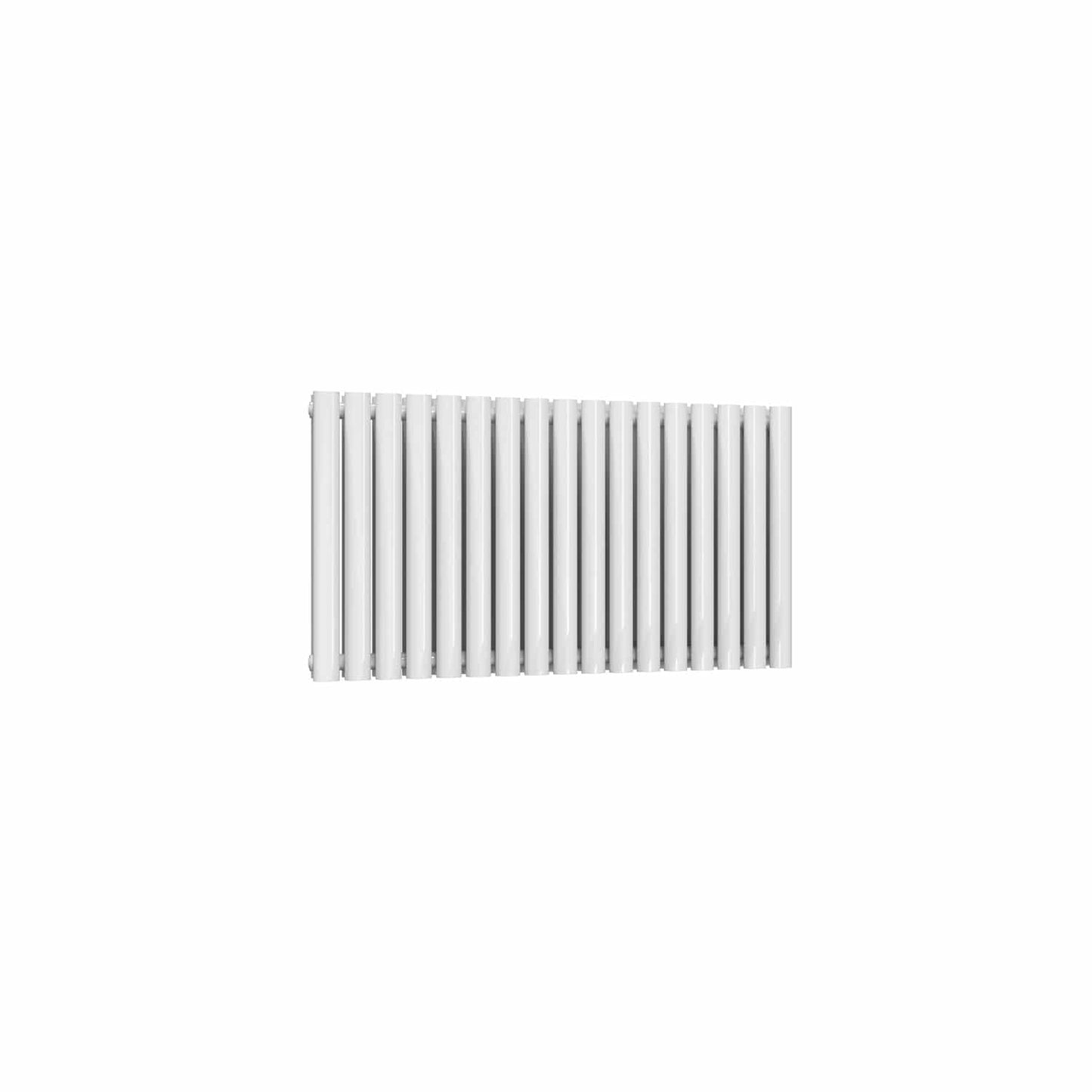

550	1003	1003	65	103	C/E/D	5619	1648

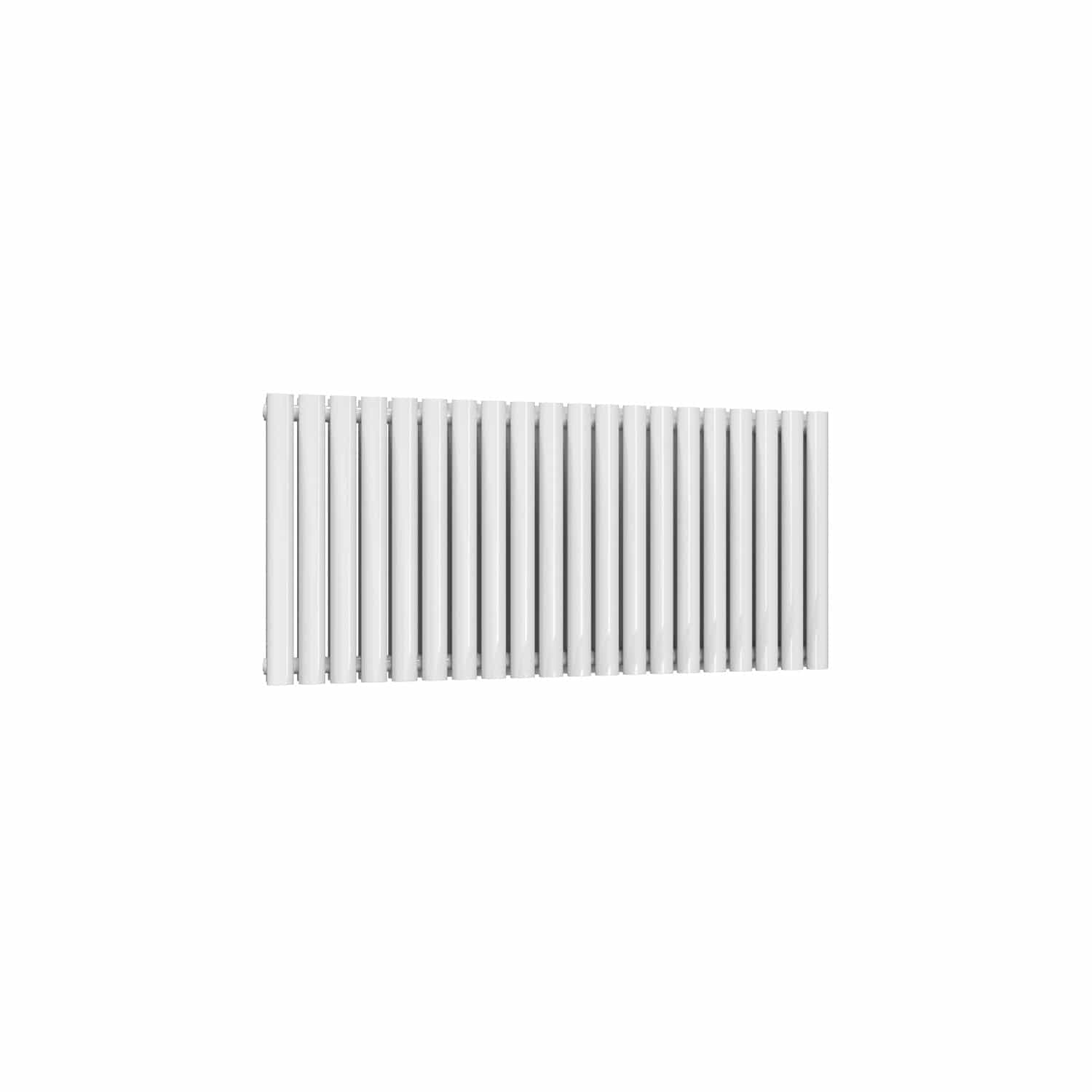

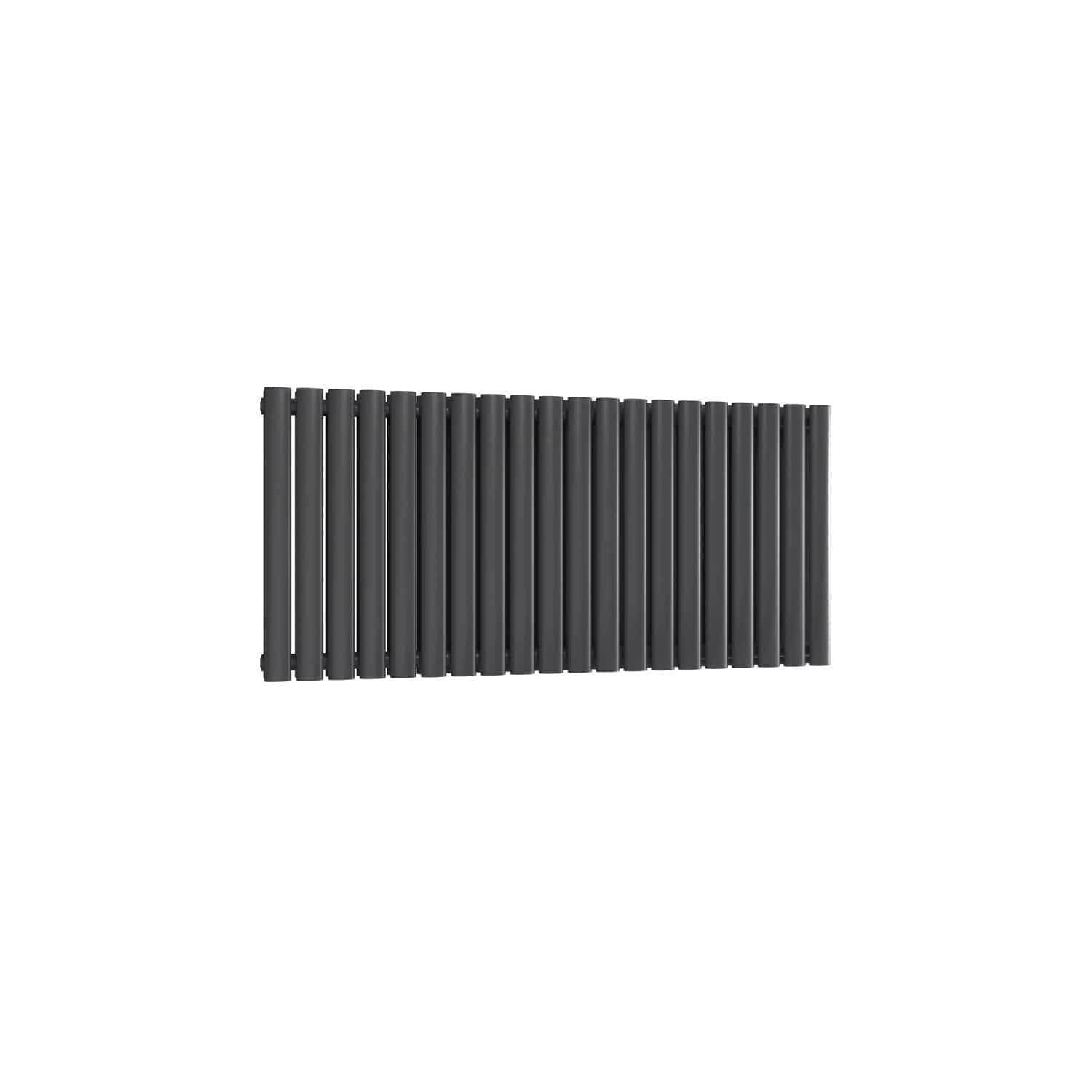

550	1180	1180	65	103	C/E/D	6610	1938

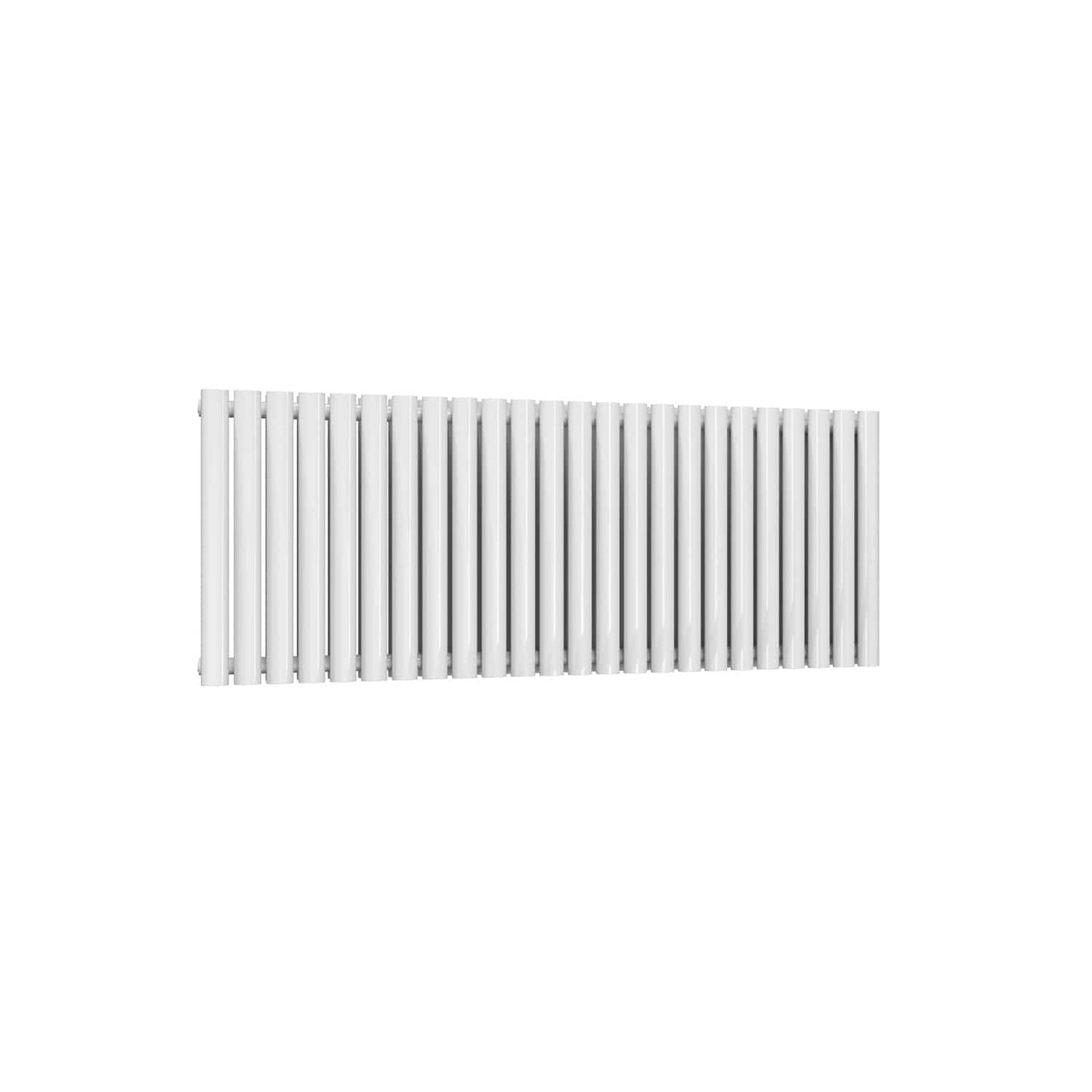

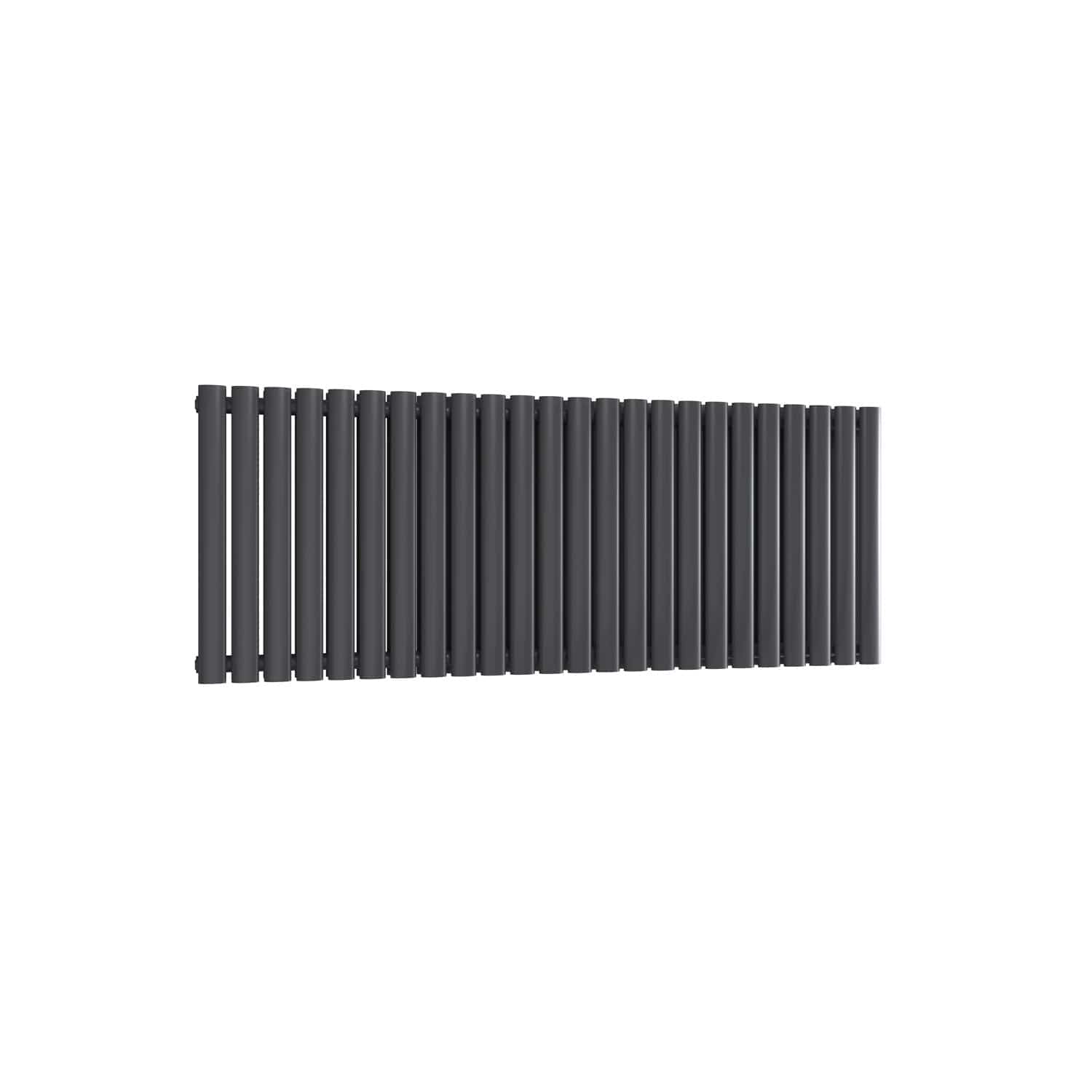

550	1416	1416	65	103	C/E/D	7931	2326

C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly

Reina Neva Horizontal Fitting Manual Instructions

Which valve fits your pipework?

The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.

Valve	Choose it when	Price	Product page
Straight inlineFloor pipes	Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them.	£14.99	View the straight inline valve
AngledWall pipes	Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you.	£14.99	View the angled valve
CornerWall pipes	Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way.	£19.99	View the corner valve

A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why

Finish the installation

The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.

Accessory	What it does	Price	Product page
Chrome cover caps (pair)	Caps the bleed and blanking plugs so the top of the rail looks finished	£2.49	View product : Chrome cover caps (pair)
Talon Snappit pipe covers	Clips around exposed pipe to hide it — no glue, no cutting	From £5.99	View product : Talon Snappit pipe covers
Towel rail pegs (pair)	Clip-on pegs add hanging space, fitted by hand	£9.99	View product : Towel rail pegs (pair)
