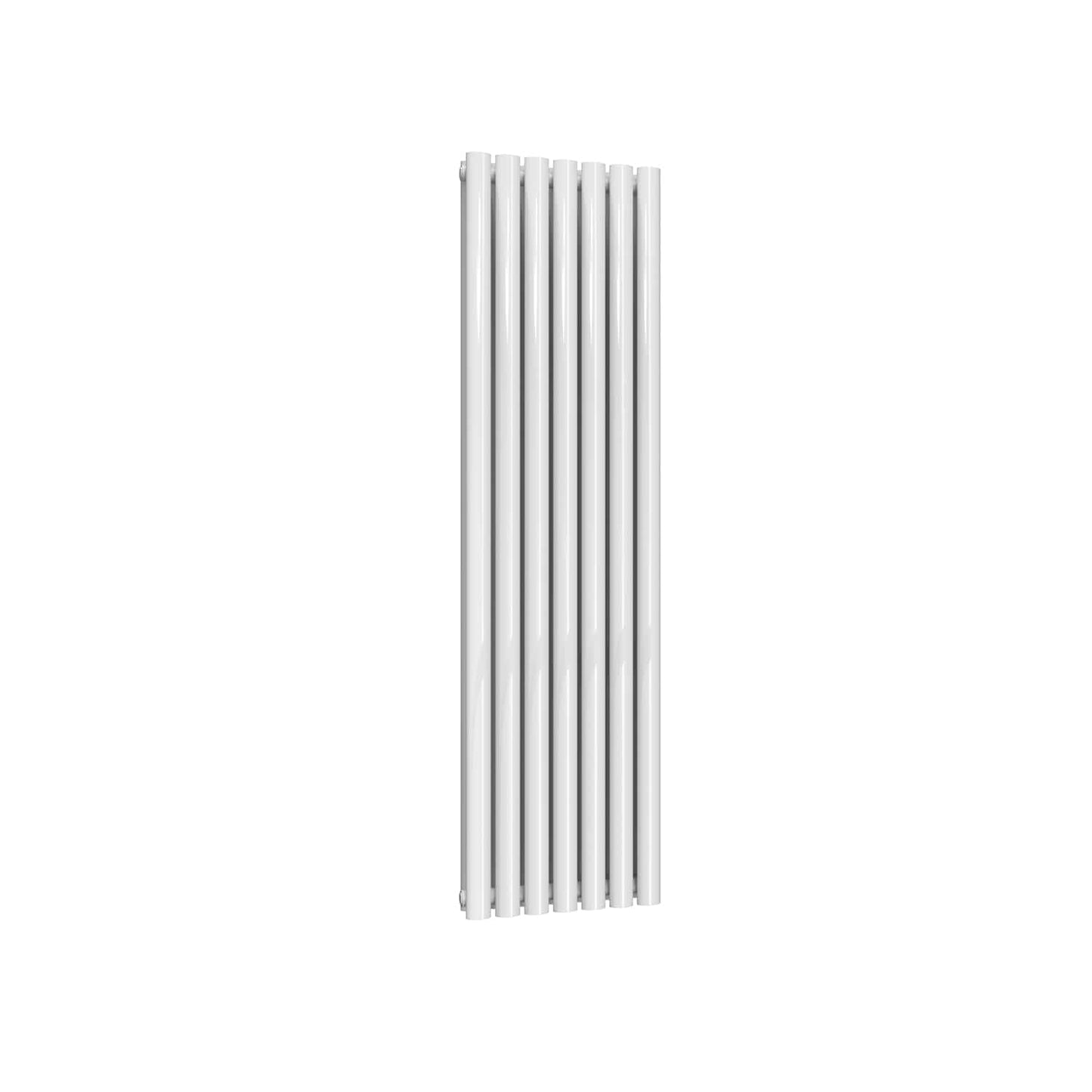

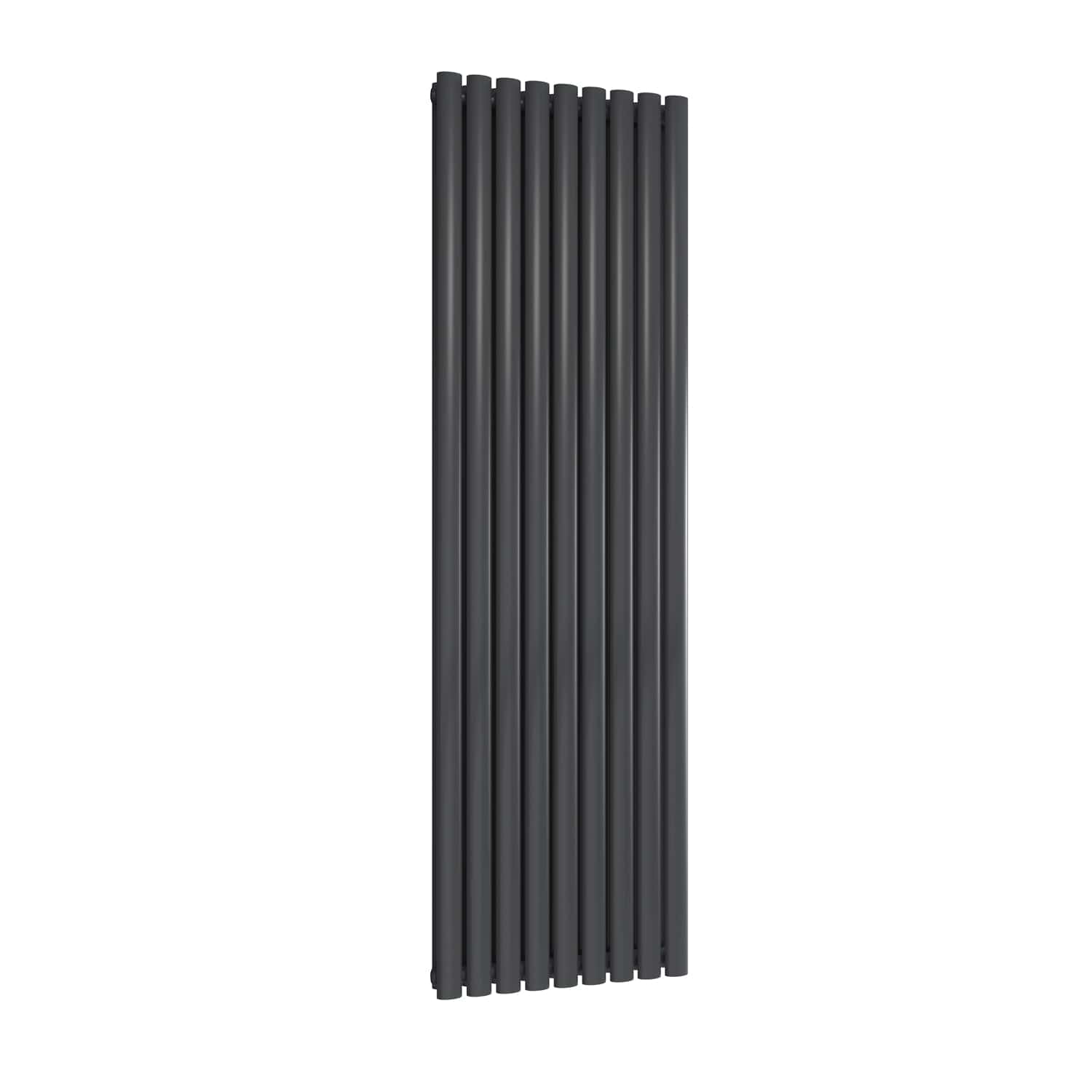

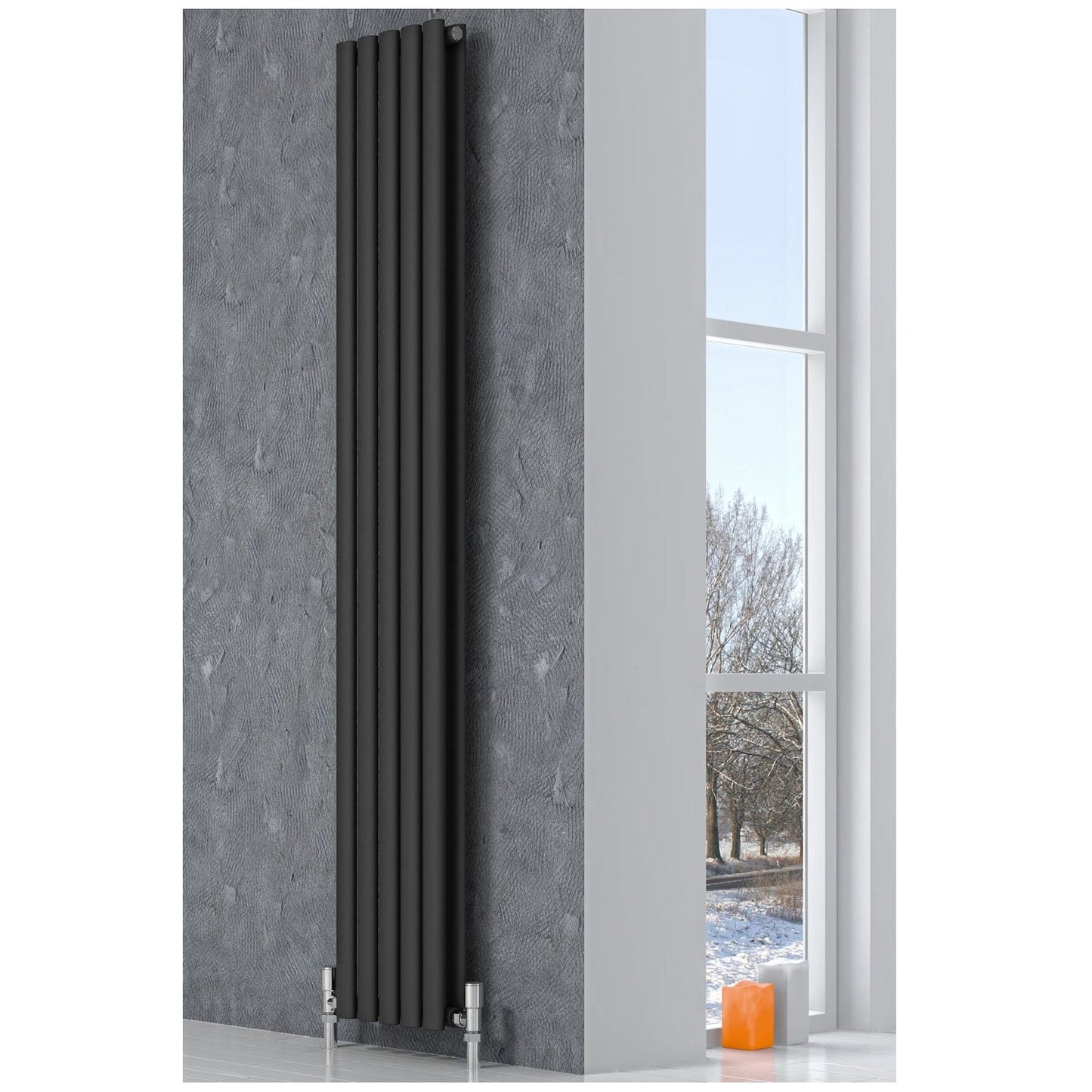

Reina Neva Designer Vertical Steel Radiator
Reina Neva Designer Vertical Steel Radiator
- 5118 BTUHeat output
- 10 yrWarranty
- Free over £200 · £9.99 below
- Order by 2pm
- 30-day returns
Frequently bought together

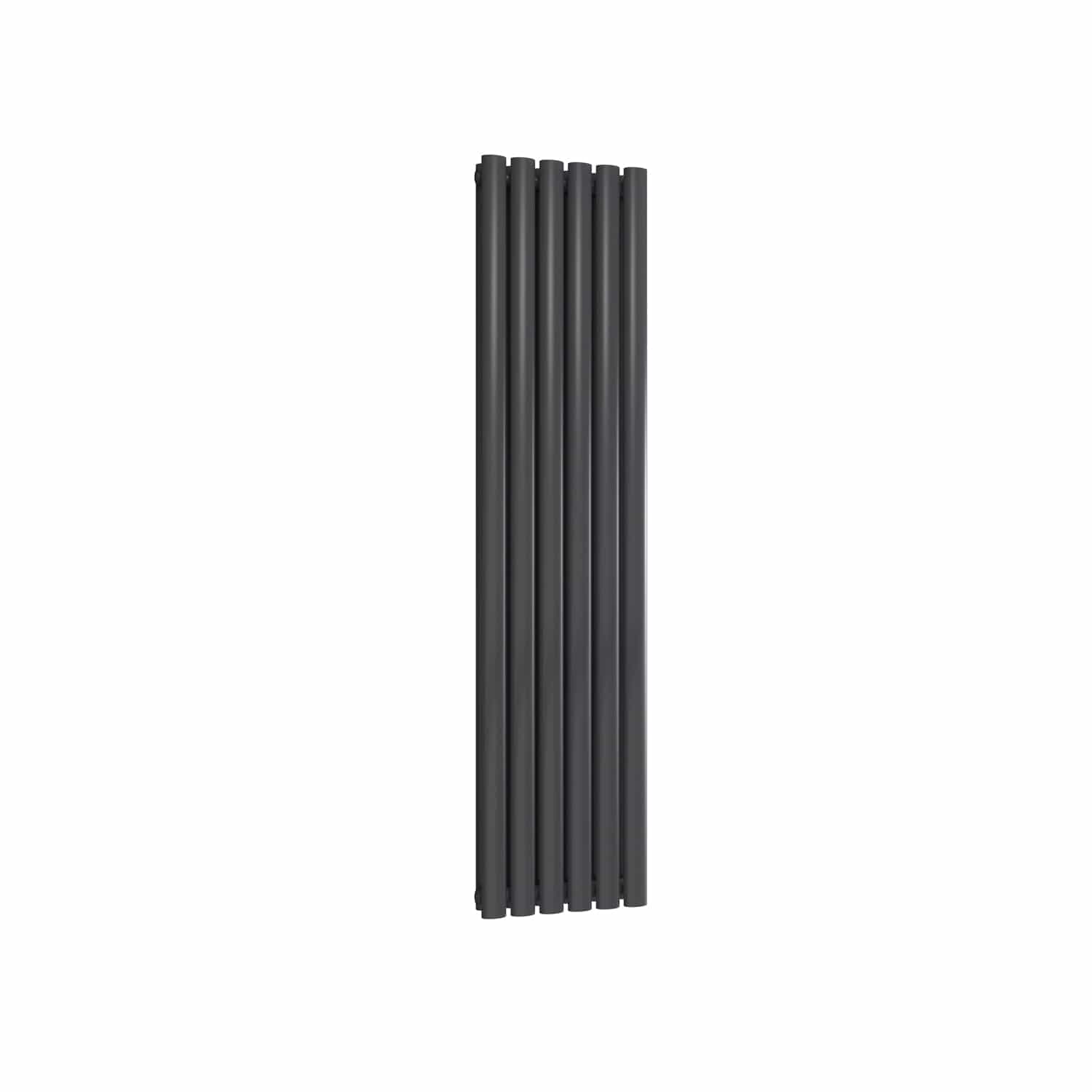

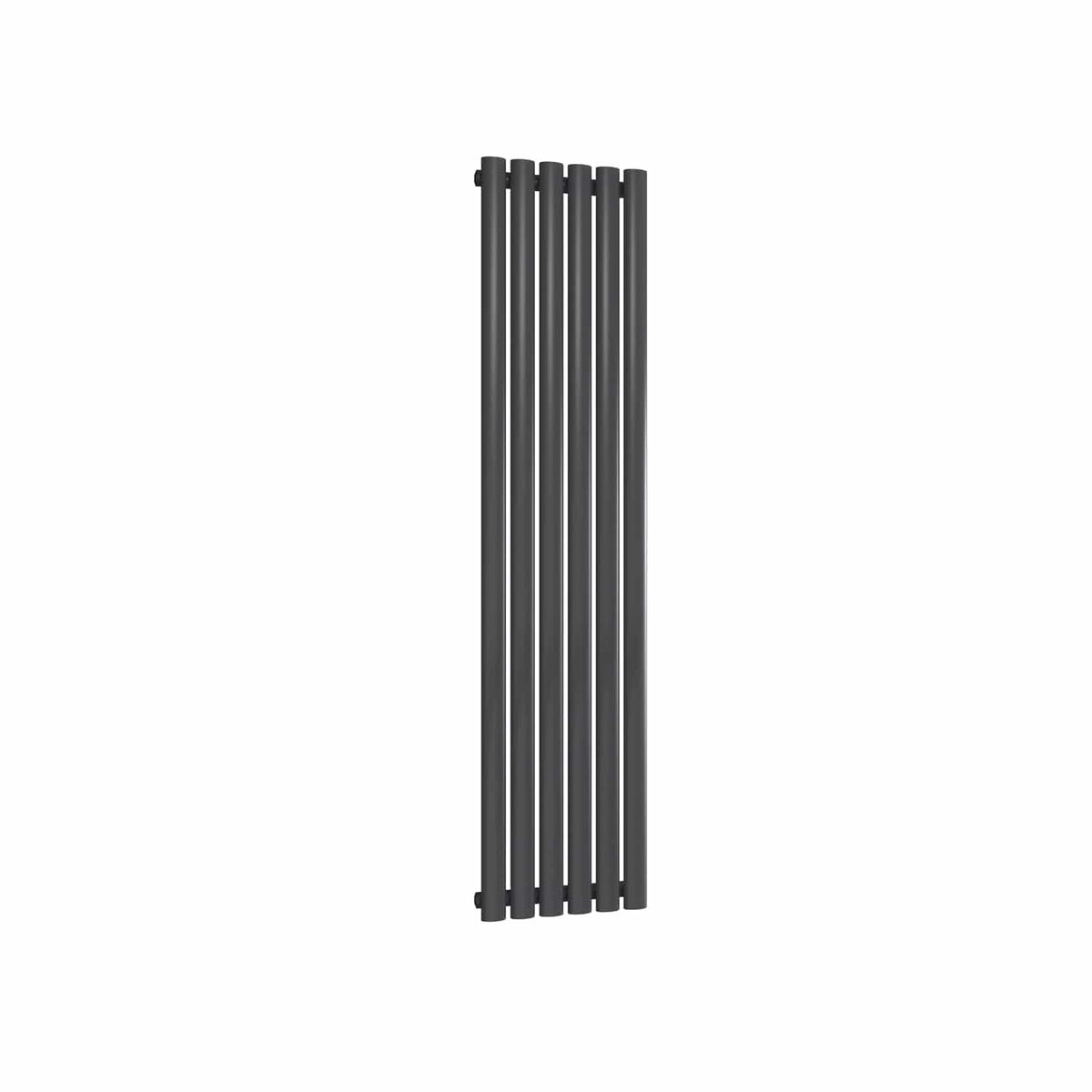

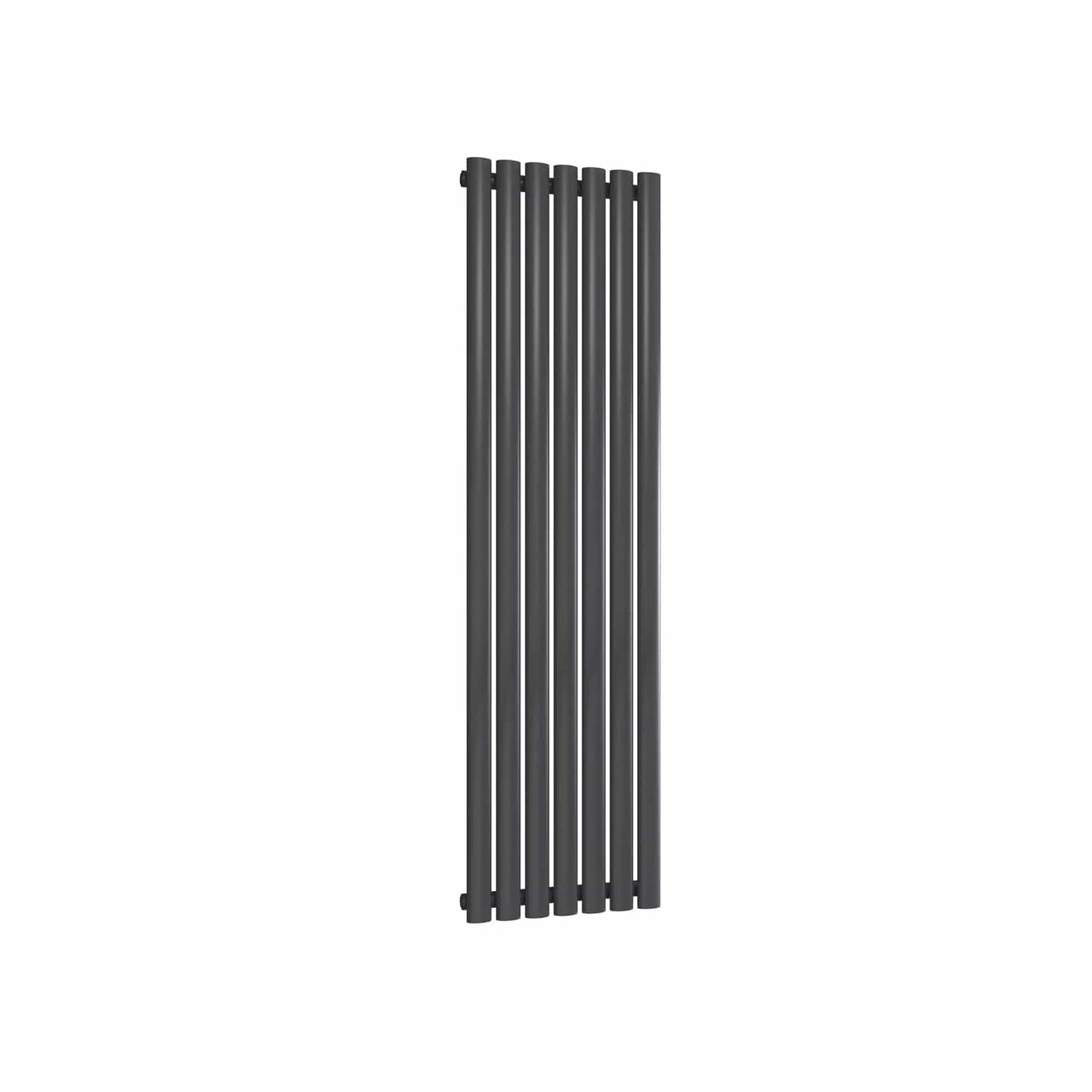

Reina Neva Designer Vertical Steel RadiatorThe Reina Neva Anthracite Vertical Designer Radiators are made using superior quality steel and is built to last long and comes with an impressive heat output to quickly warm up the entire room. Anthracite Vertical Radiators are very versatile and don't take up much real estate on the wall, allowing them to fit into small spaces while providing the warmth you need. The tubes are oval in shape and are powder coated to deliver an exquisite contemporary appeal. This equipment comes supplied with brackets necessary to wall-mount it.

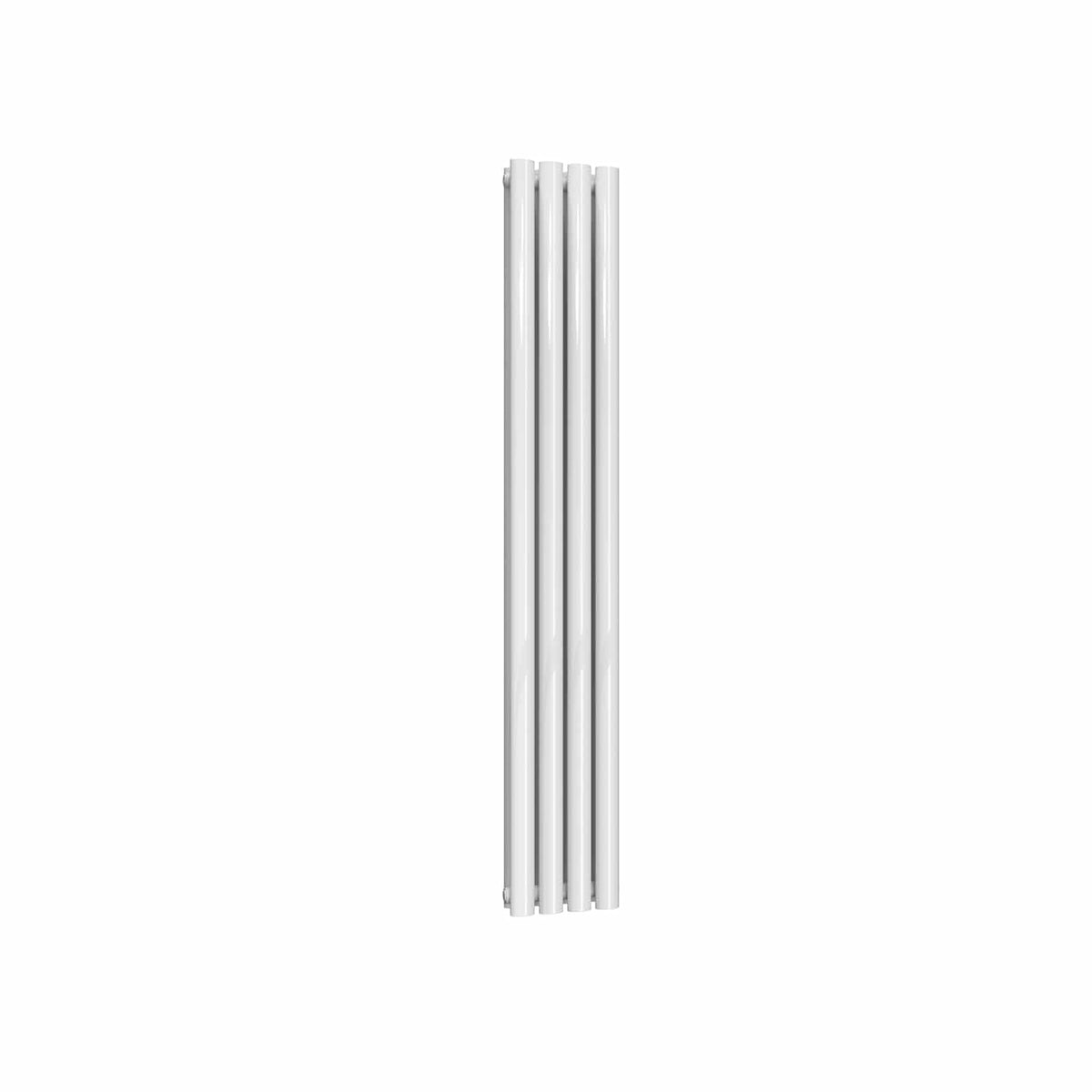

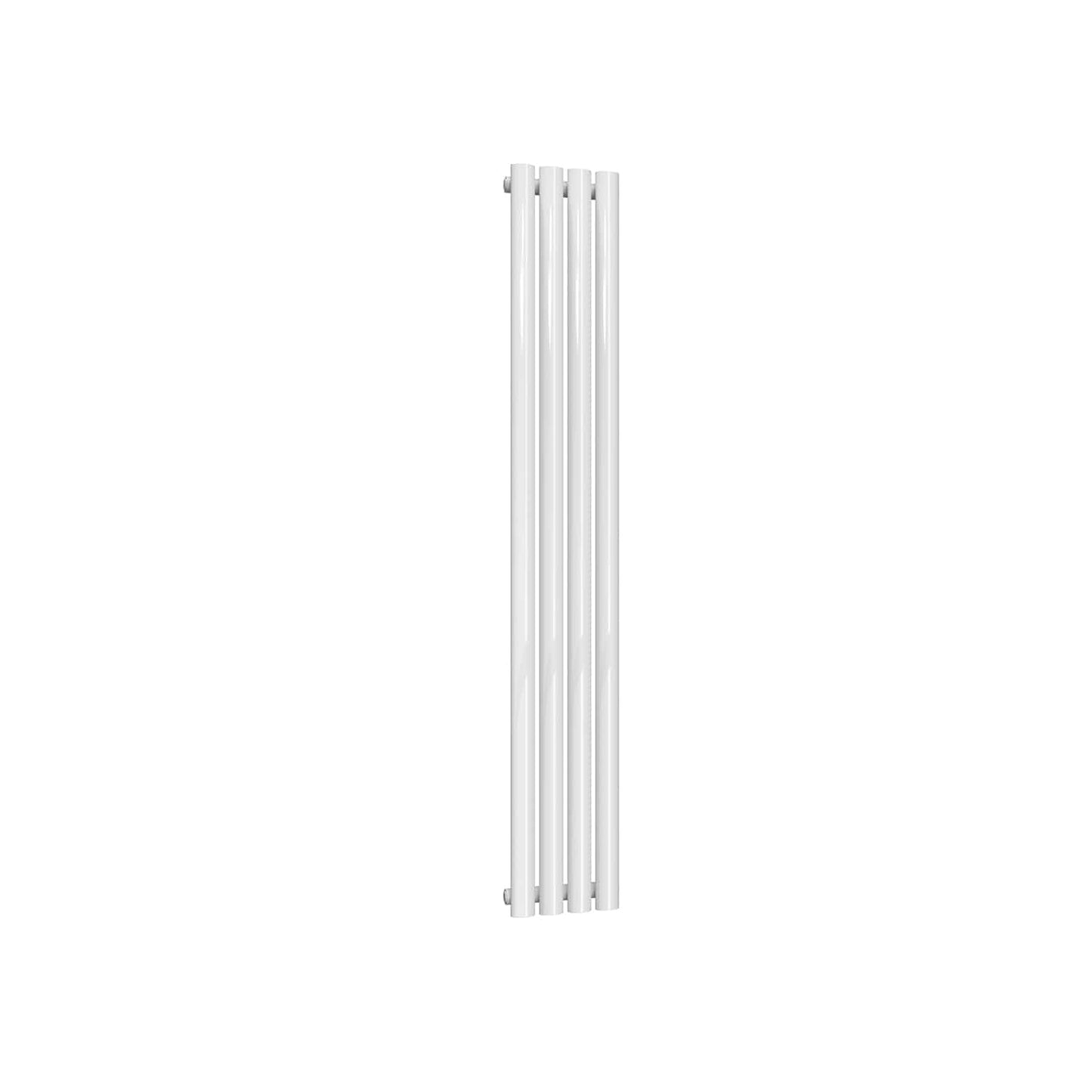

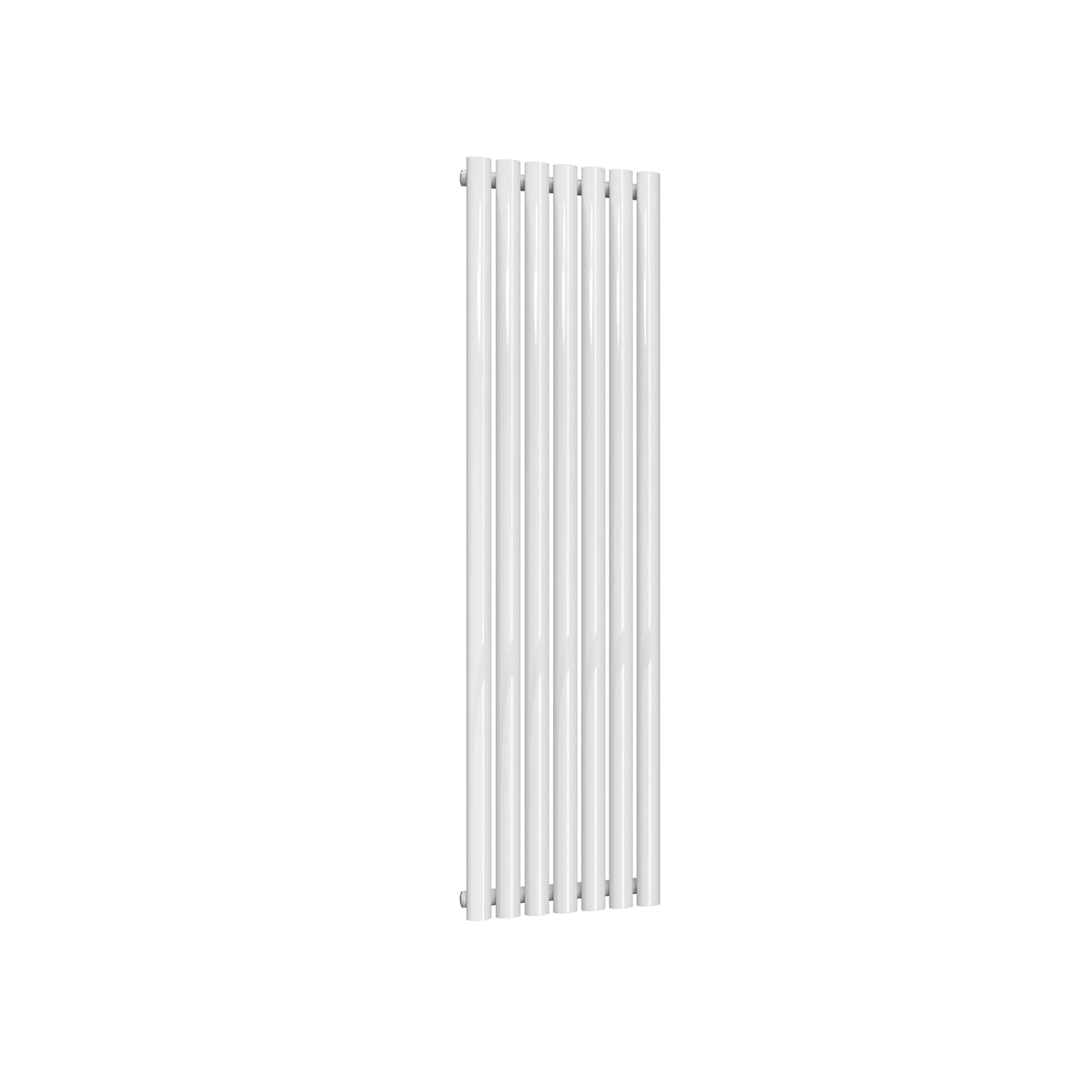

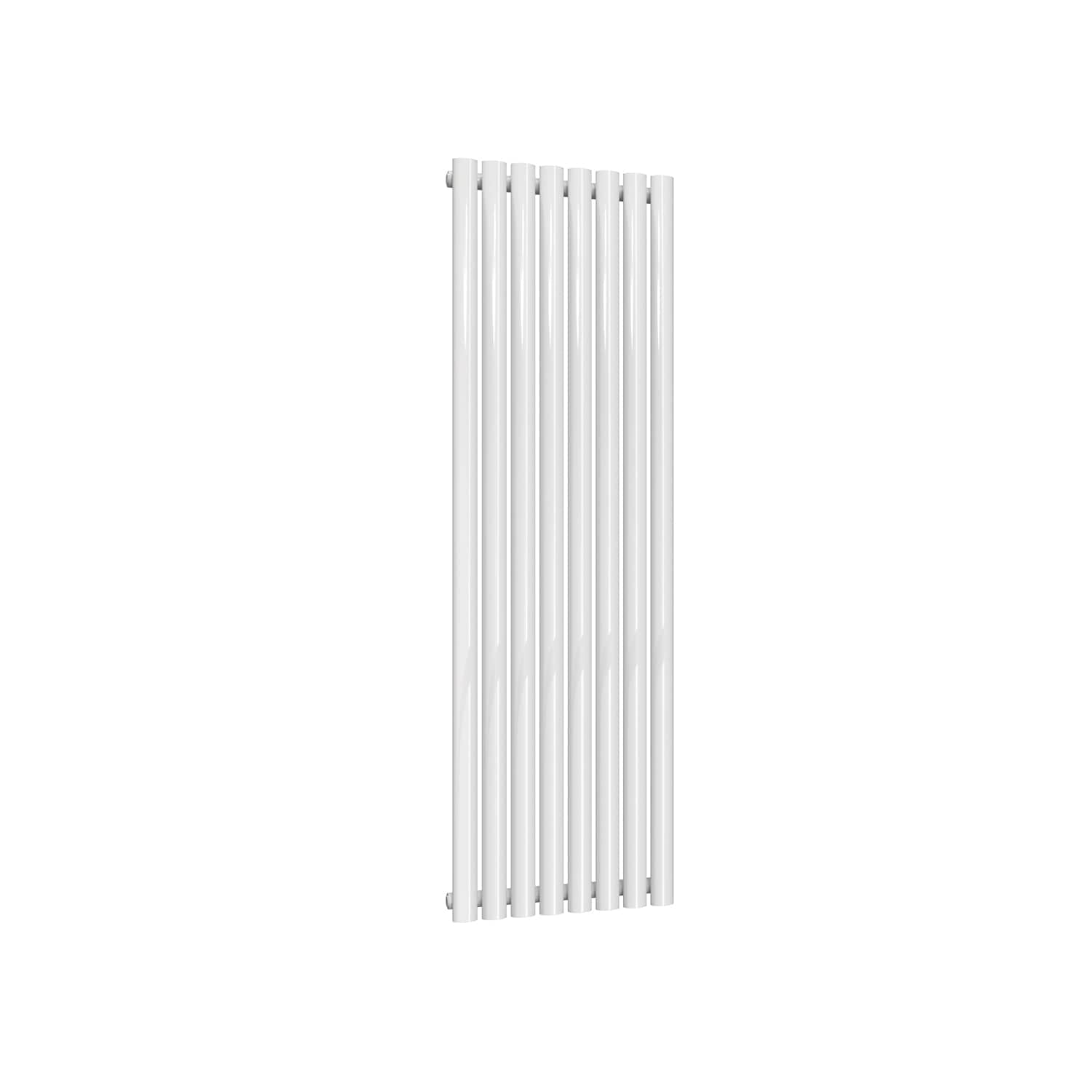

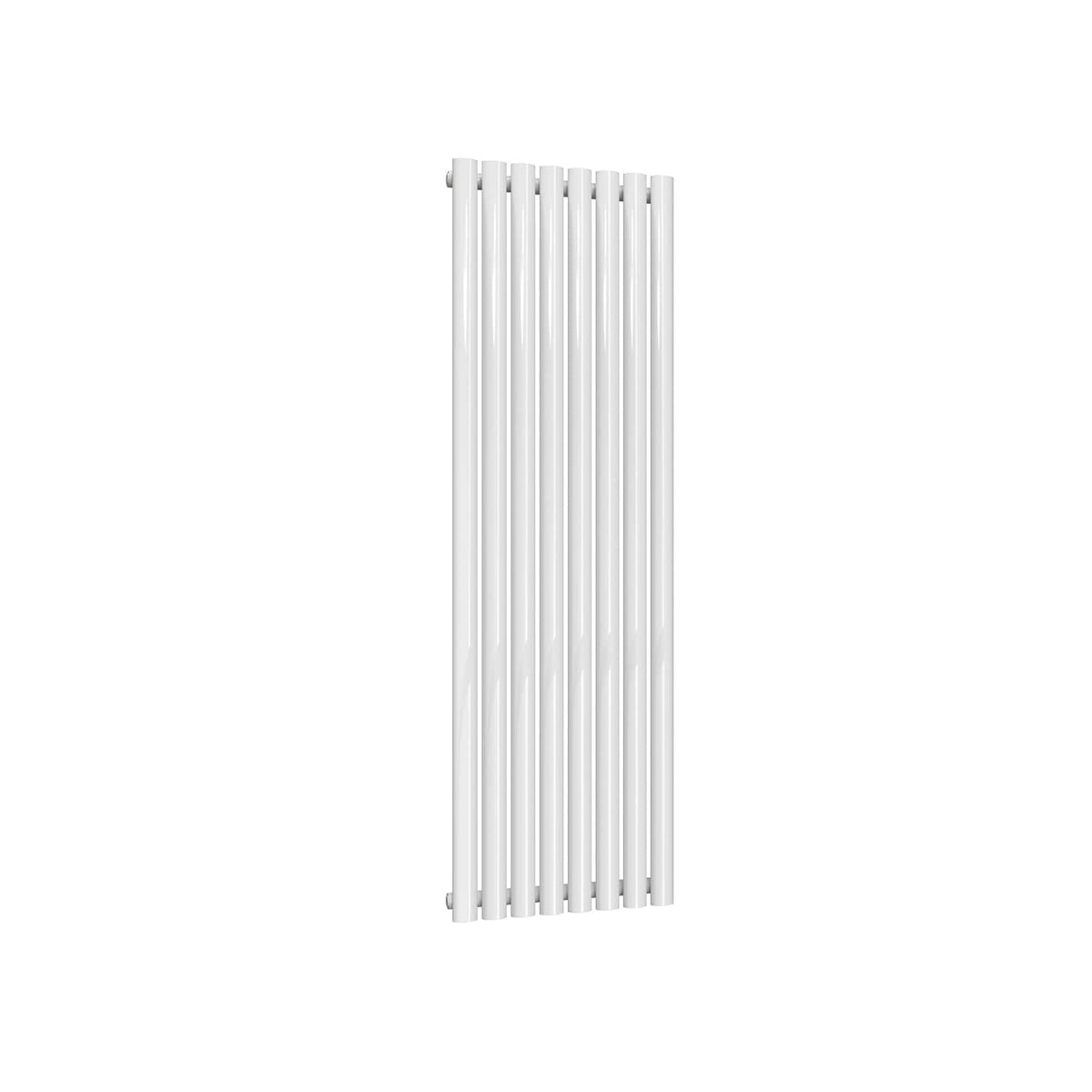

Anthracite and White finish available
Plain and simple, the Neva range is staple of Reina's radiator catalogue
- 5 year guarantee
- Please note that the Black and White colours are a gloss finish

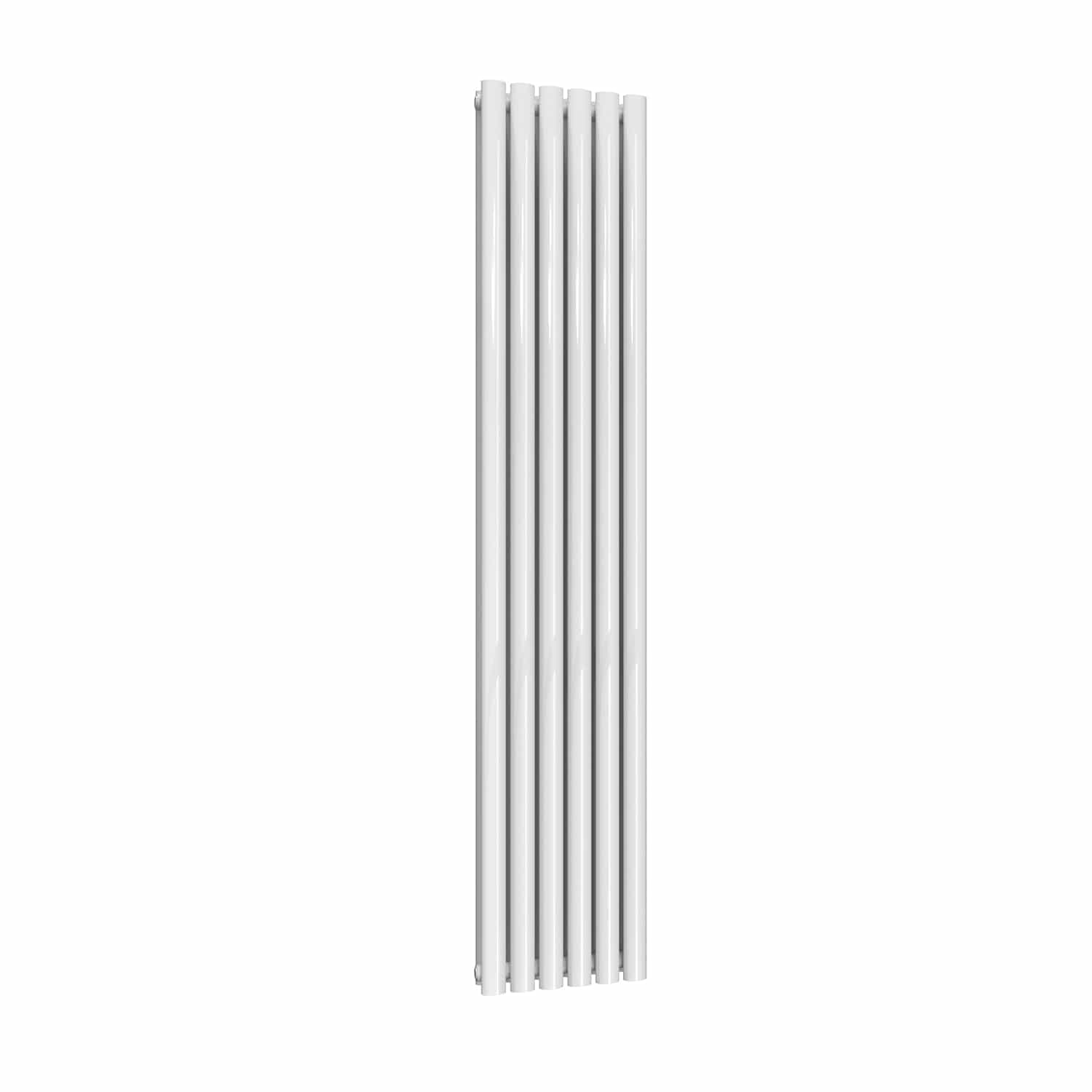

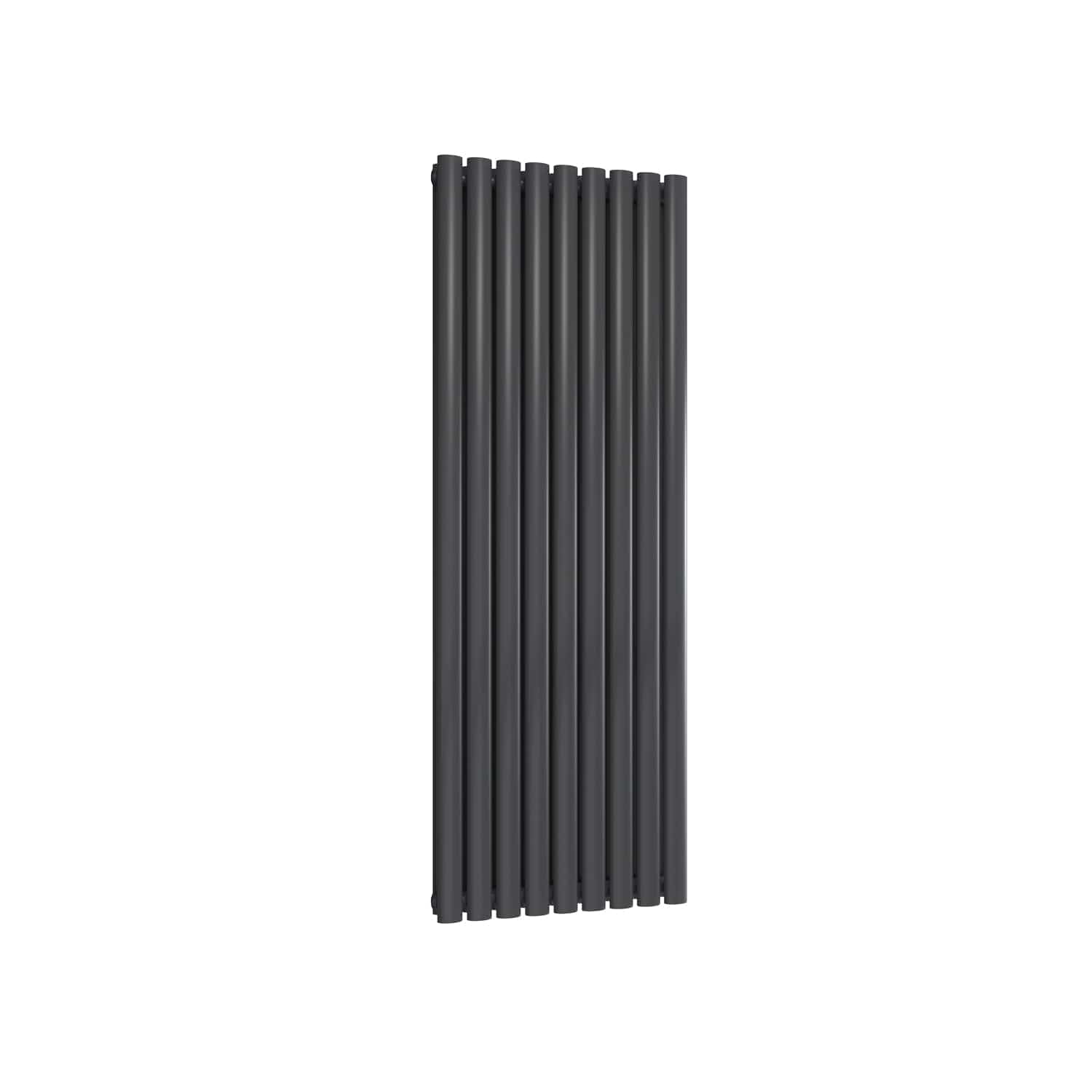

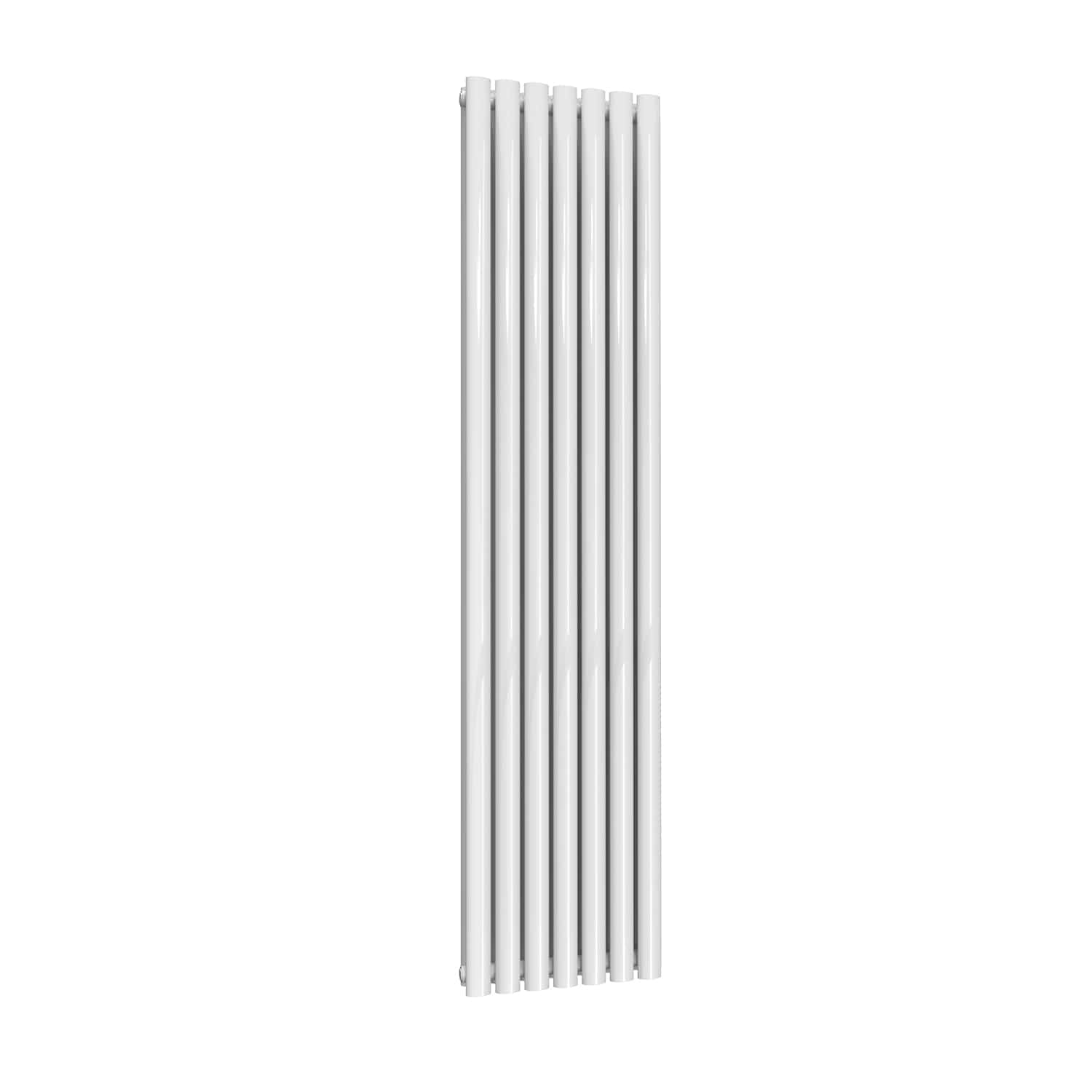

- This is the doubled configuration of the Neva which features a second set of identical piping behind the first, but it is also available in a singled configuration with only one set for a variety of heat outputs
- Neva Vertical Radiators can be rotated through 90° to be mounted horizontally, please ask sales either by telephone or through the contact us page for the horizontal mounting bracket kit
- In addition Neva Radiators also come in a horizontal range.
Installation Manual Download Link

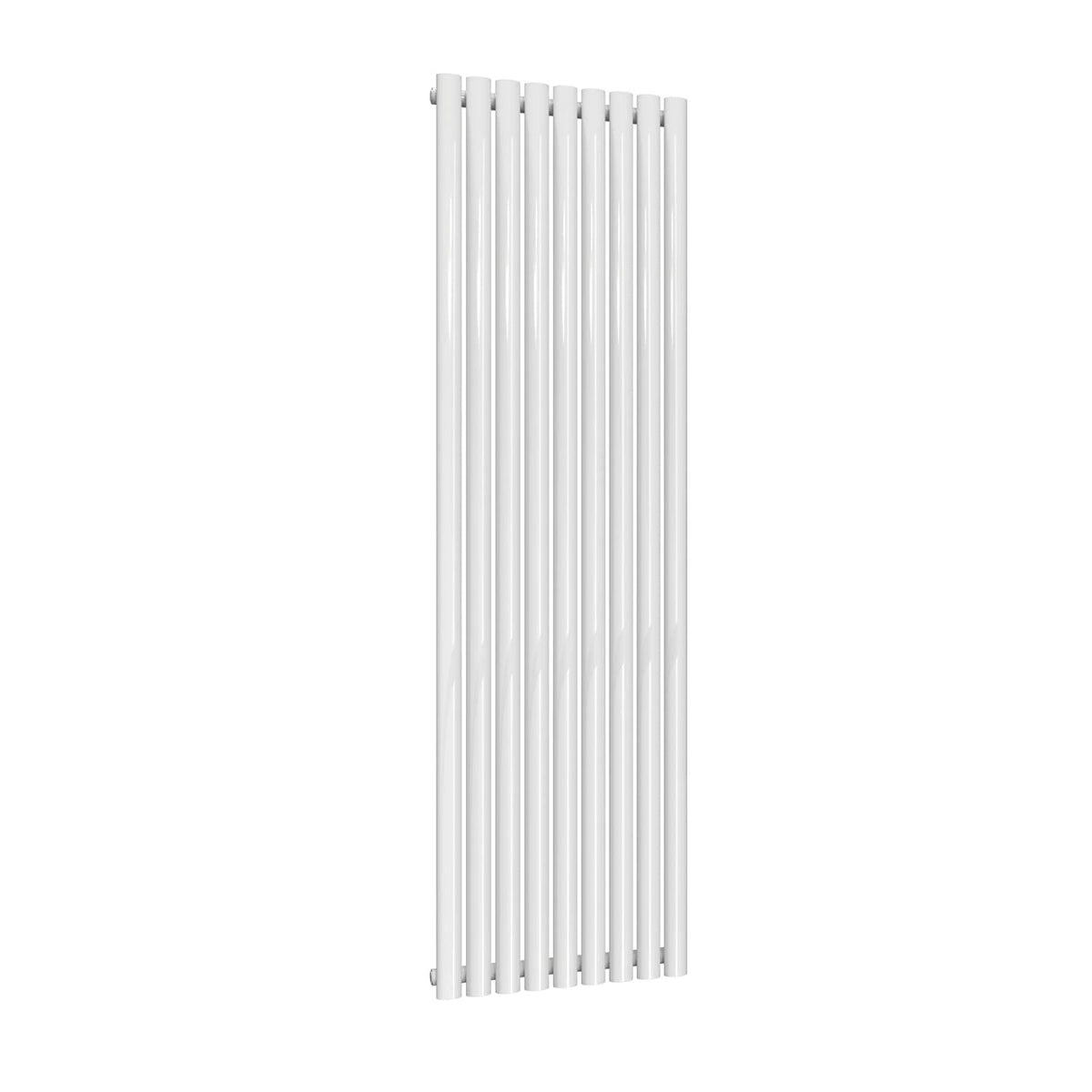

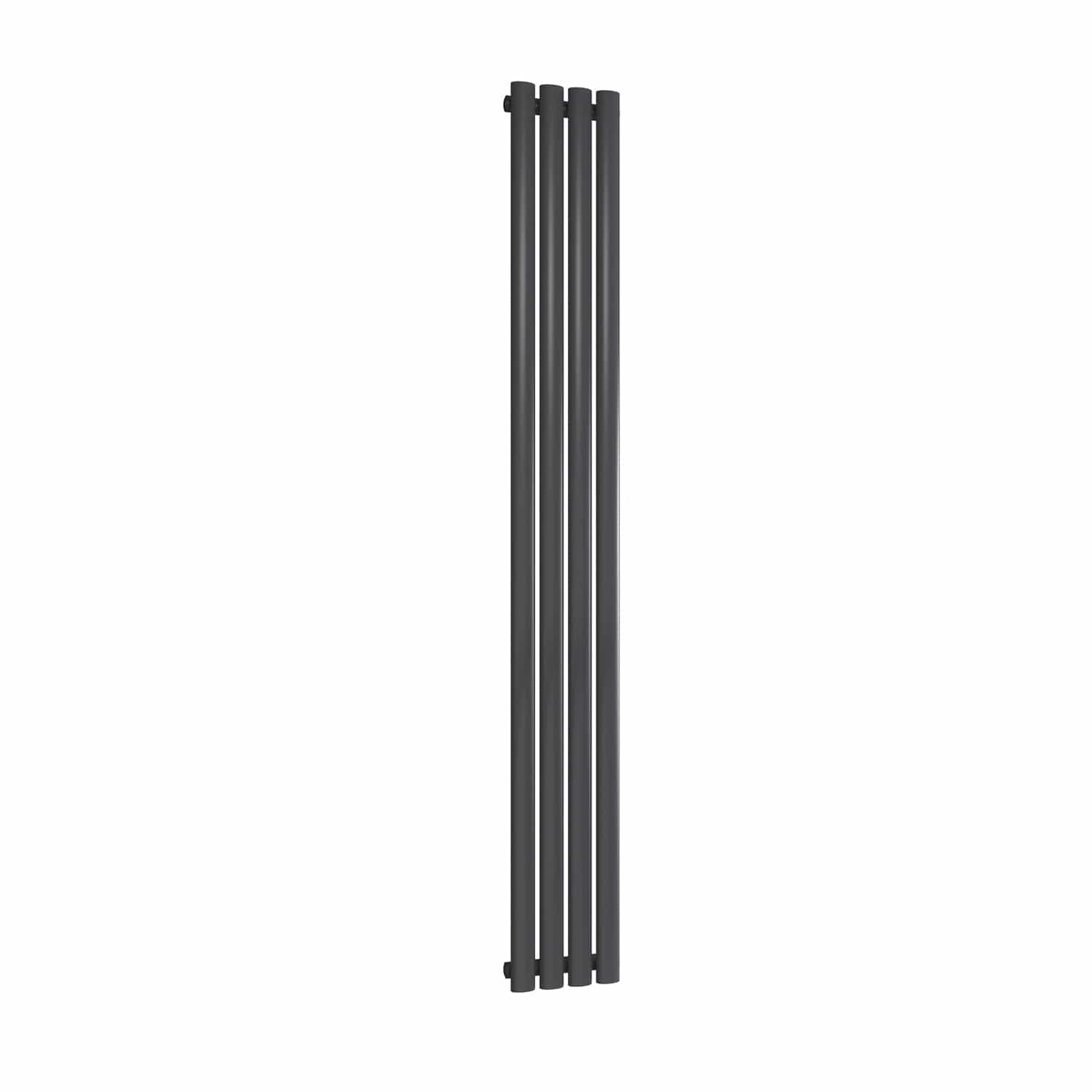

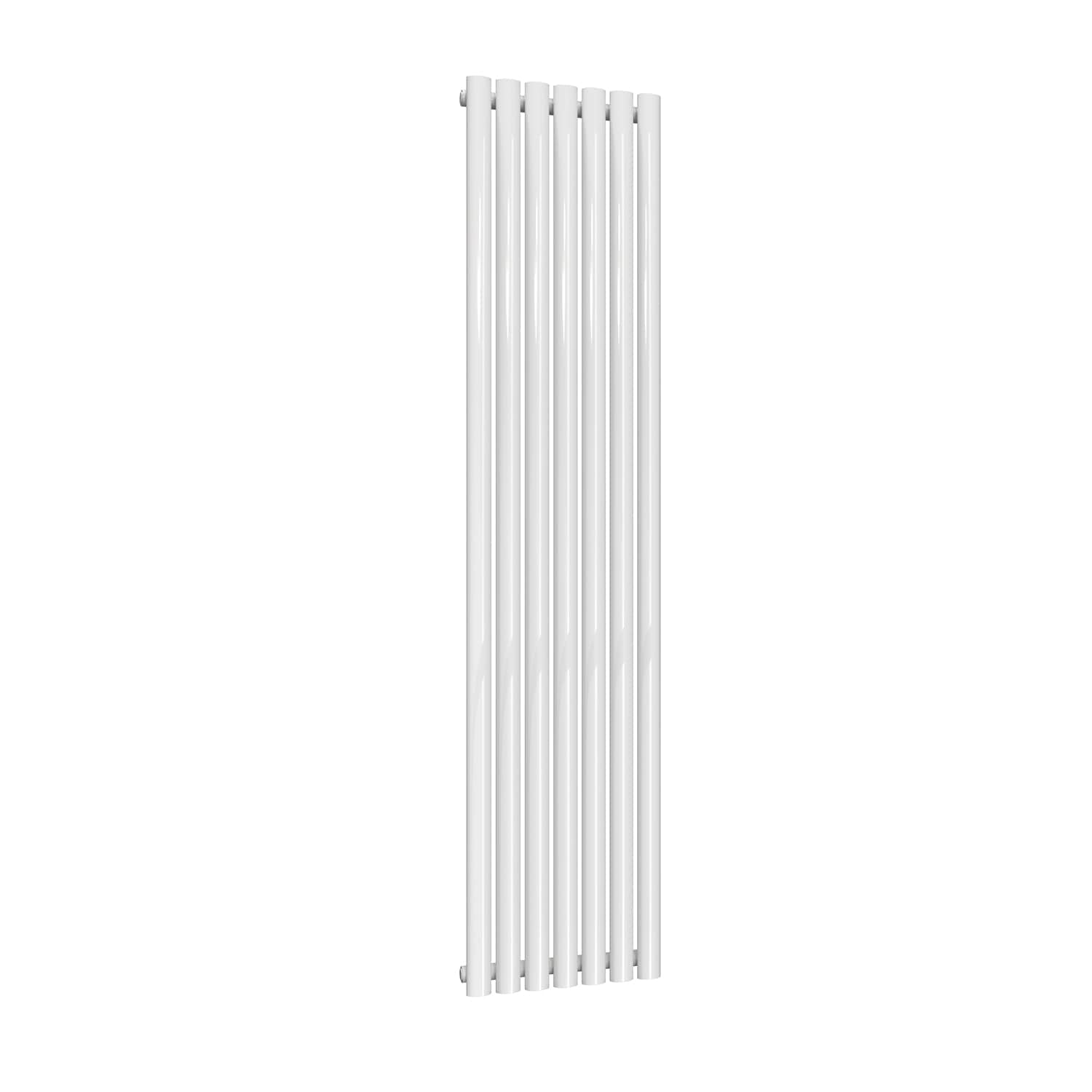

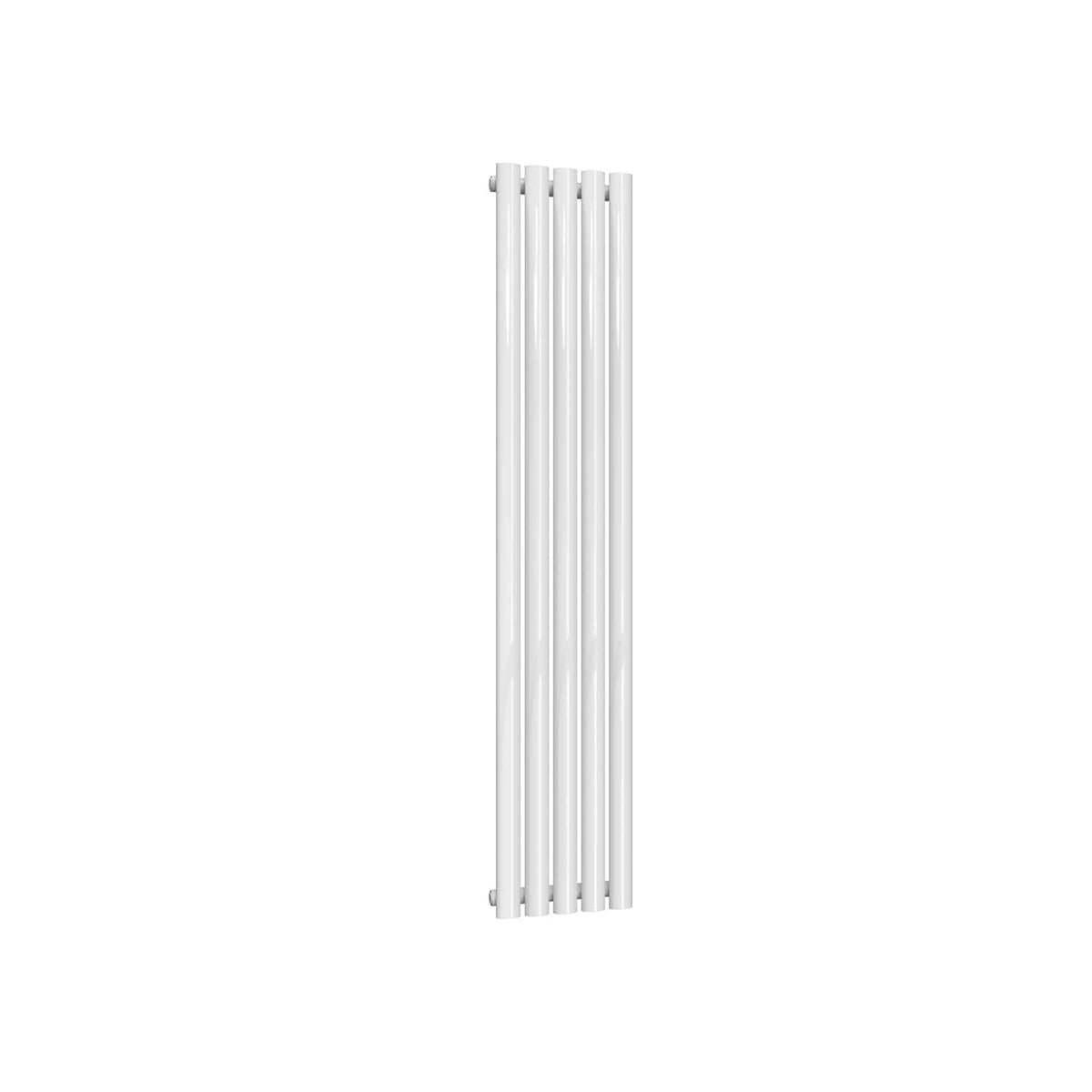

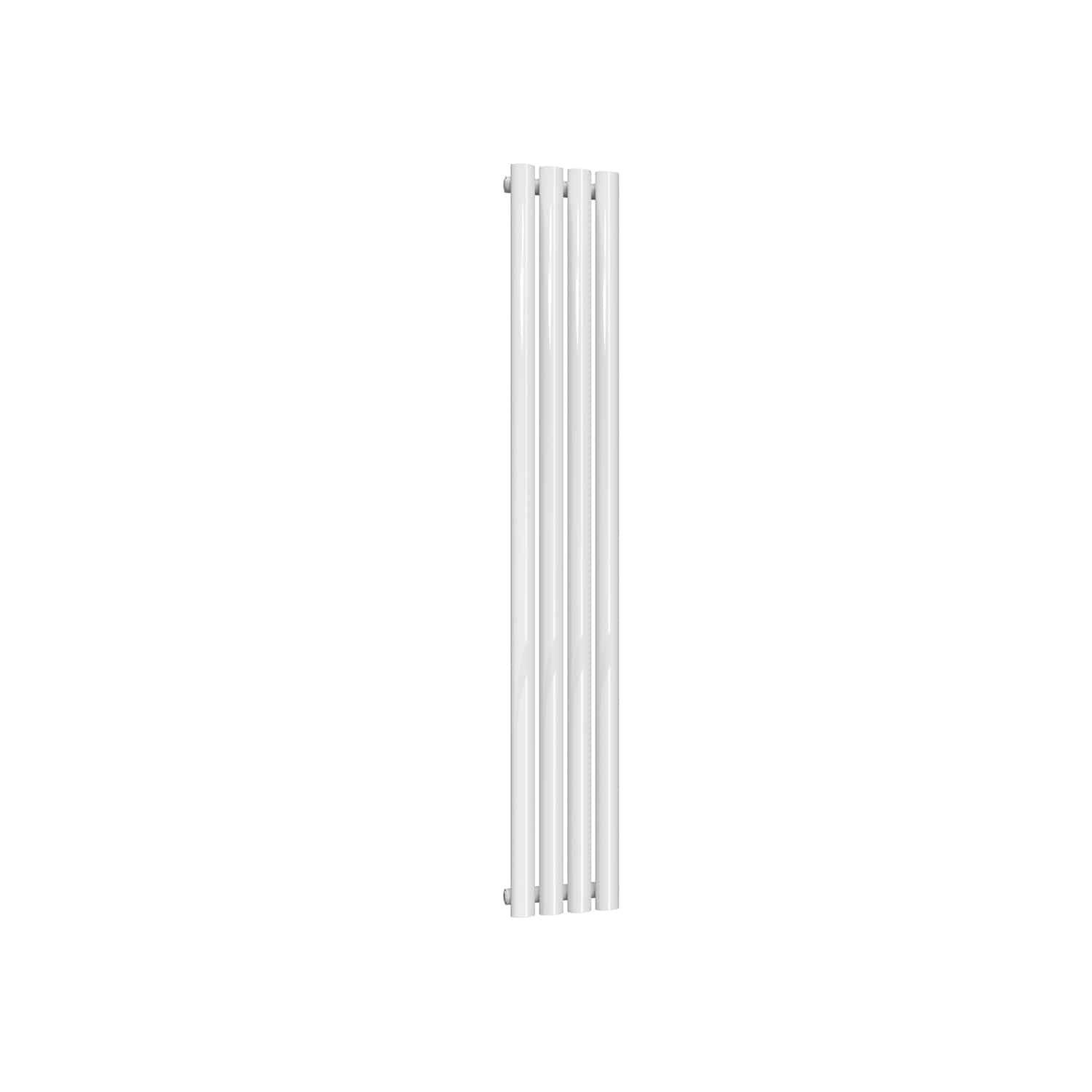

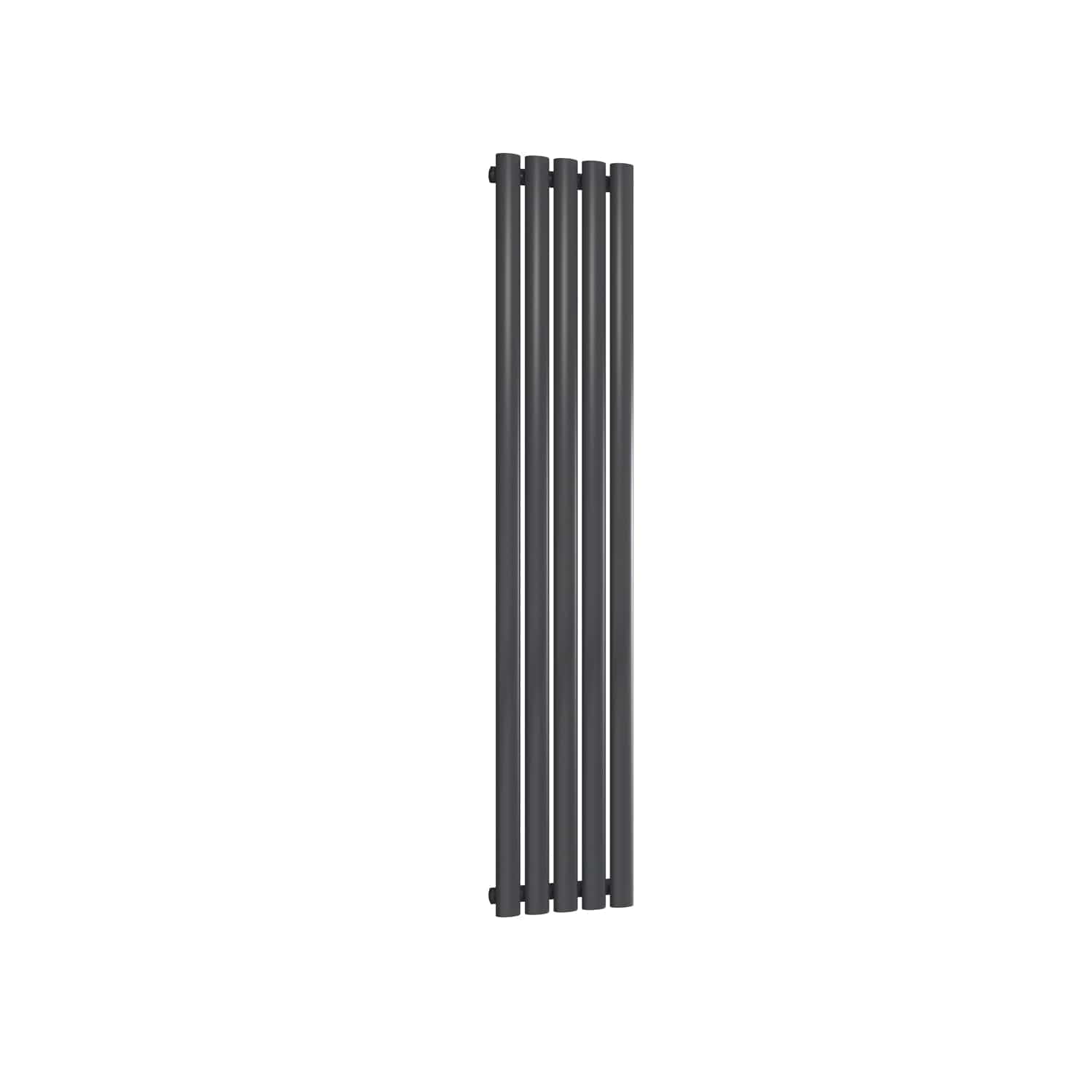

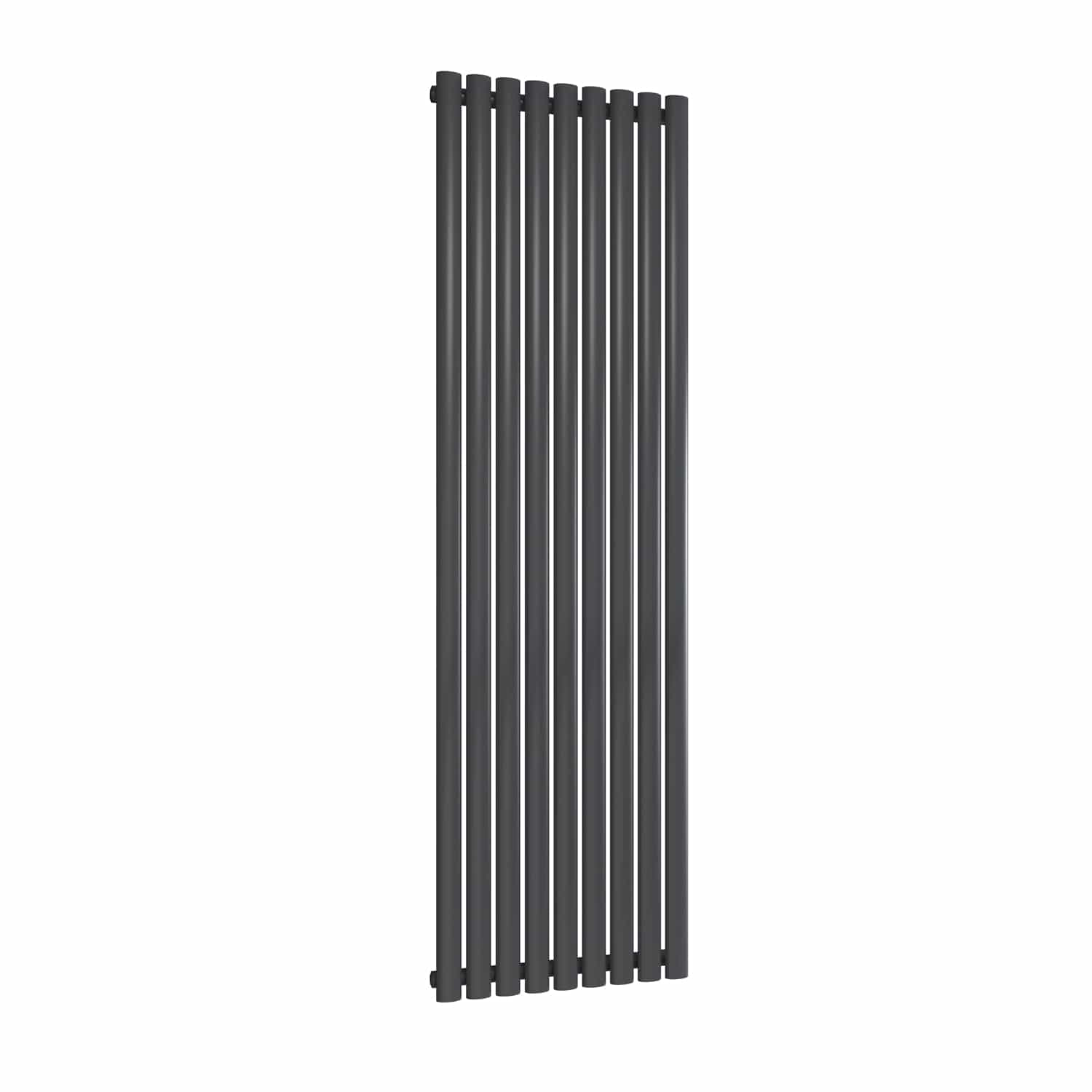

NEVA VERTICAL SINGLE
| Overall Height mm |
Dimension Width mm |
Pipe Centres mm |
Wall to Pipe Centres mm |
Wall Distance mm |
Fuel Type |
Heat Outputs ΔT 70°C |
|
| Btu | Watts | ||||||
| 1500 | 236 | 236 | 65 | 103 | C | 2265 | 664 |
| 1500 | 295 | 295 | 65 | 103 | C | 2816 | 826 |

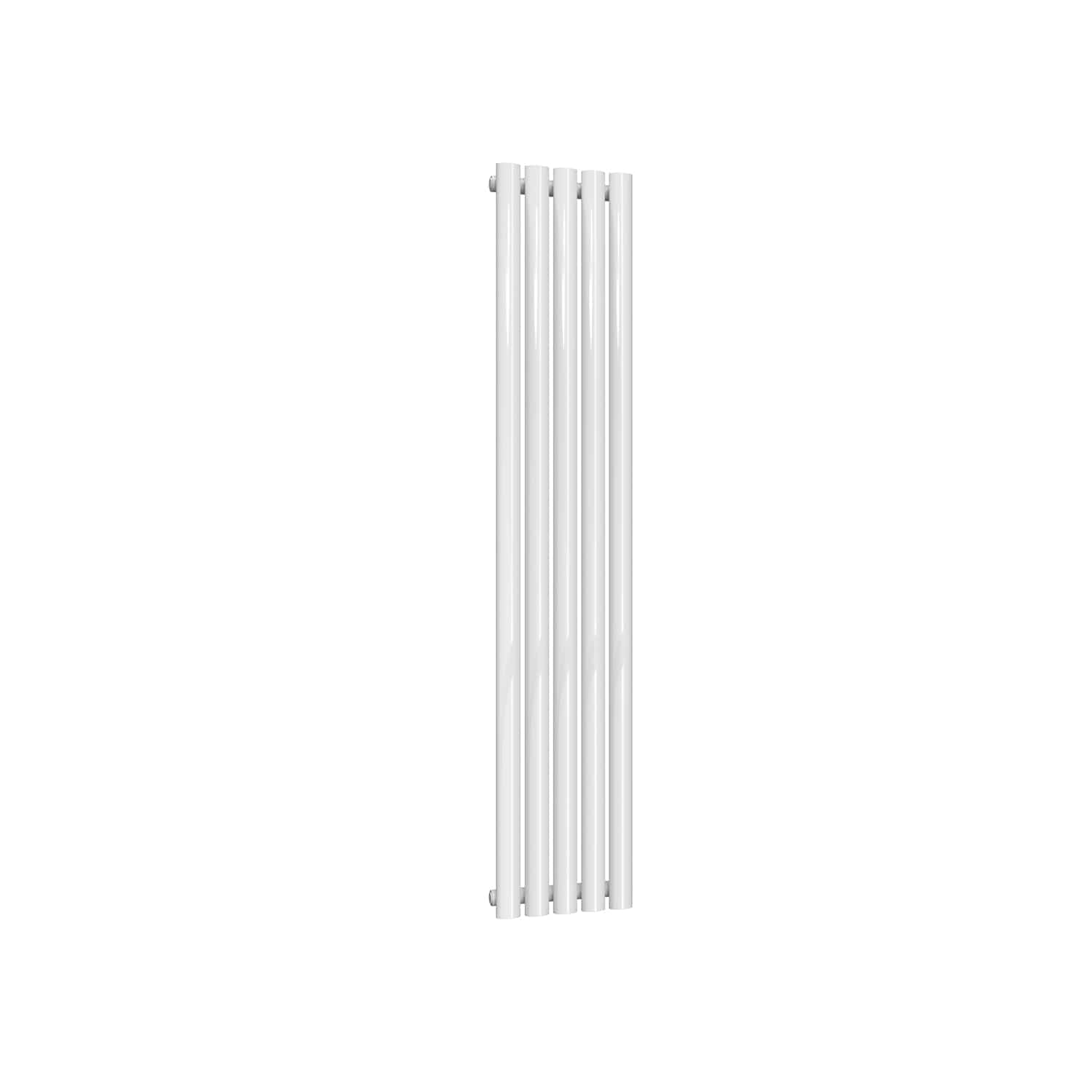

| 1500 | 354 | 354 | 65 | 103 | C | 3380 | 991 |
| 1500 | 413 | 413 | 65 | 103 | C | 3944 | 1157 |
| 1500 | 472 | 472 | 65 | 103 | C | 4508 | 1322 |

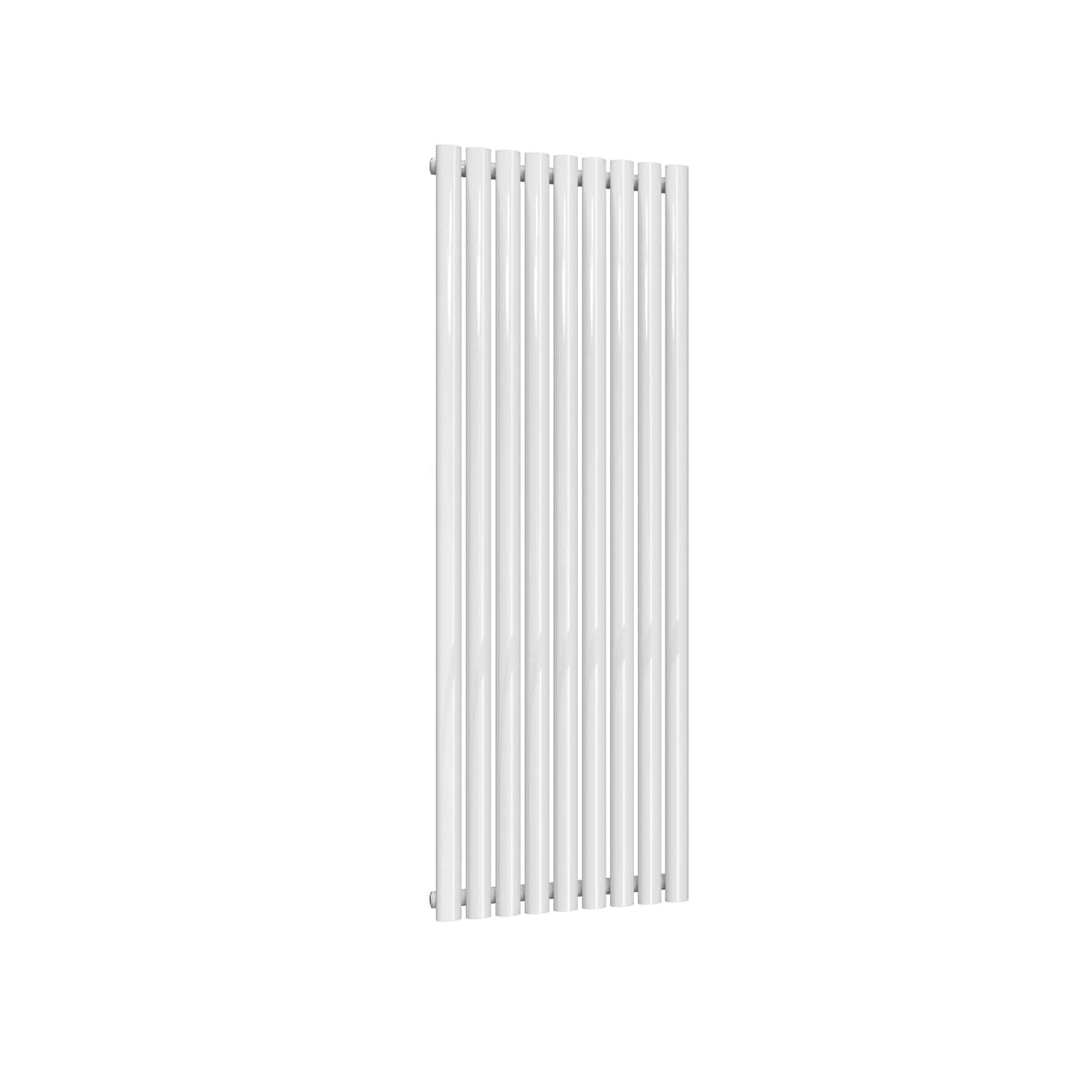

| 1500 | 531 | 531 | 65 | 103 | C | 5070 | 1487 |

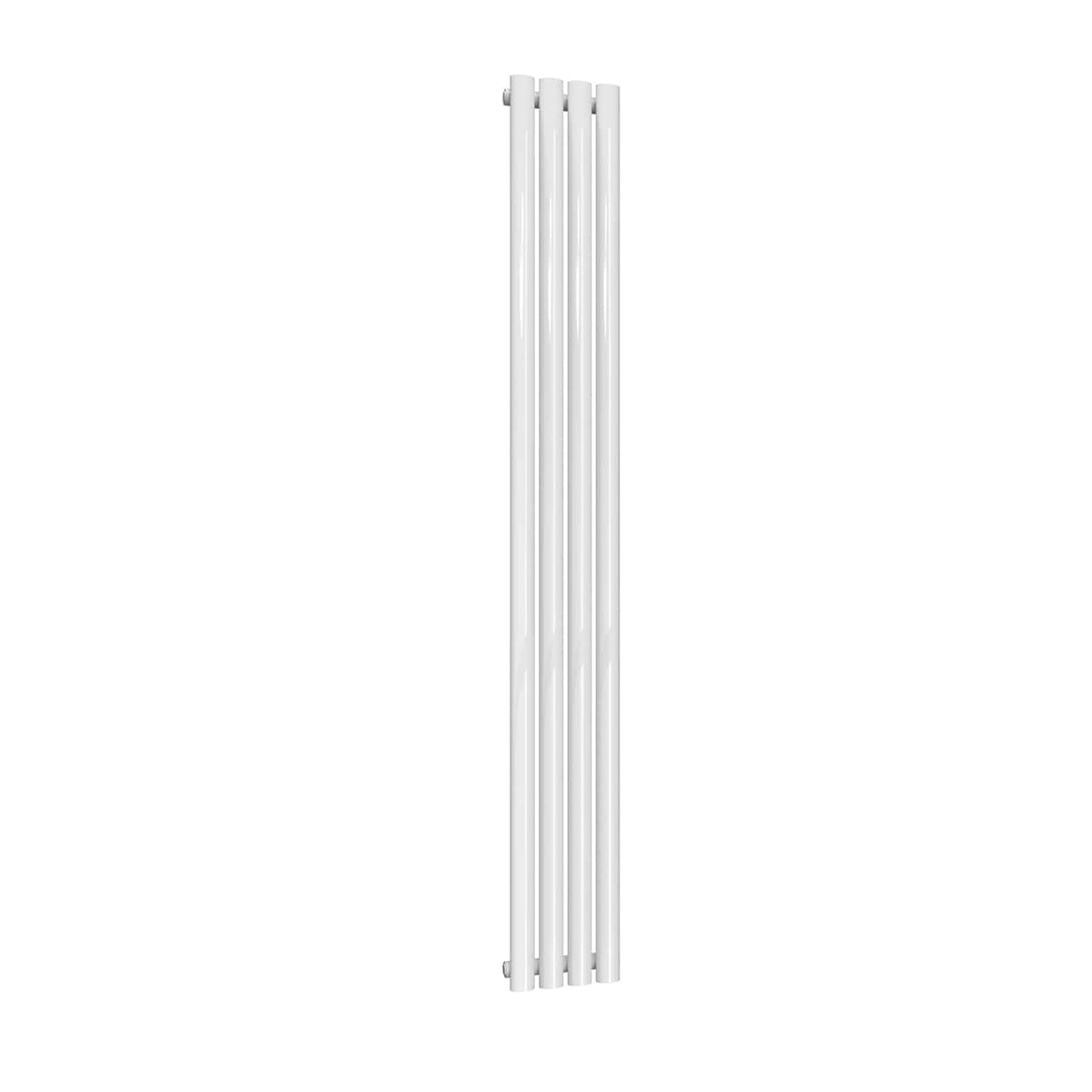

| 1800 | 236 | 236 | 65 | 103 | C | 2717 | 797 |
| 1800 | 295 | 295 | 65 | 103 | C | 3380 | 991 |
| 1800 | 354 | 354 | 65 | 103 | C | 4055 | 1189 |

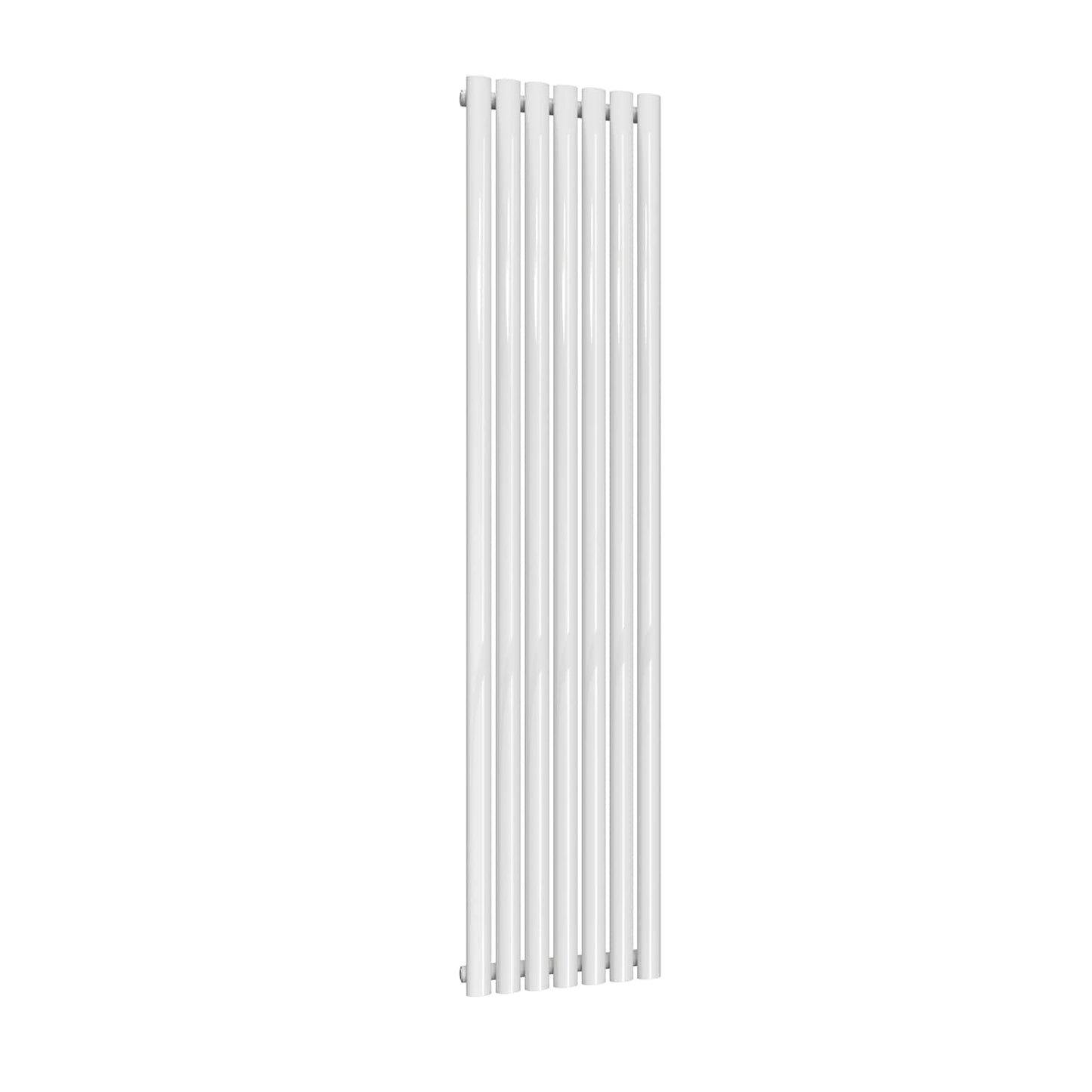

| 1800 | 413 | 413 | 65 | 103 | C | 4732 | 1388 |

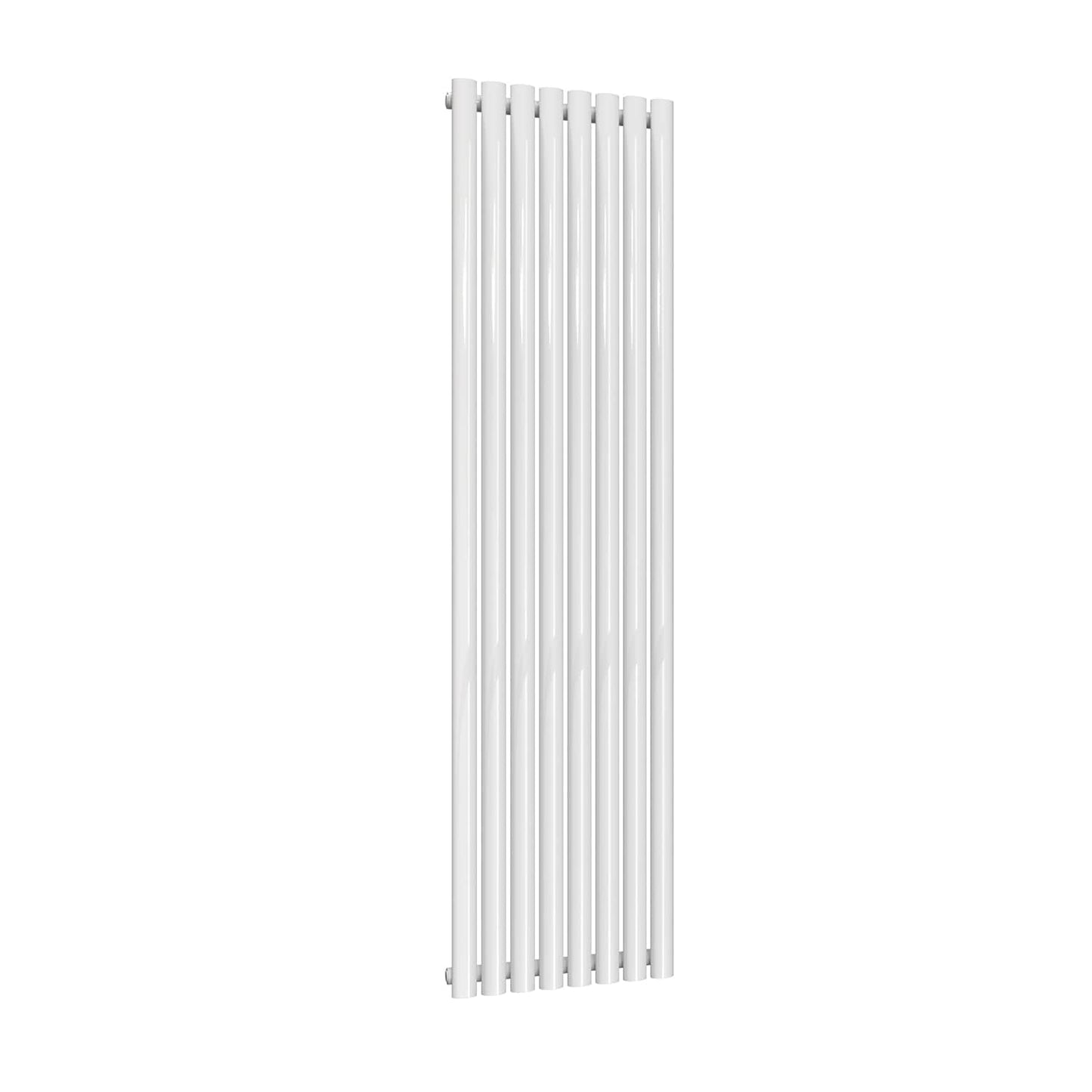

| 1800 | 472 | 472 | 65 | 103 | C | 5408 | 1586 |

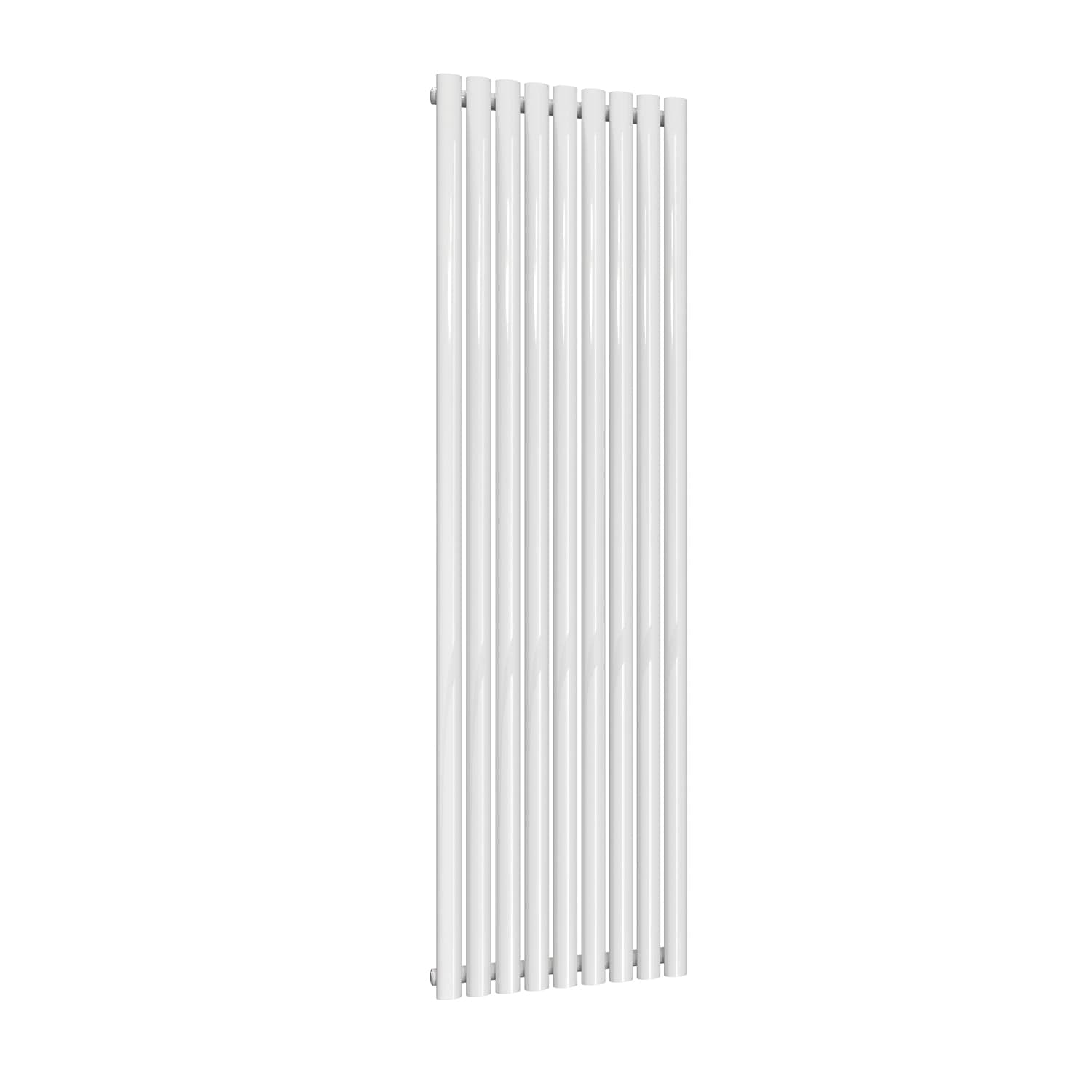

| 1800 | 531 | 531 | 65 | 103 | C | 6884 | 2019 |

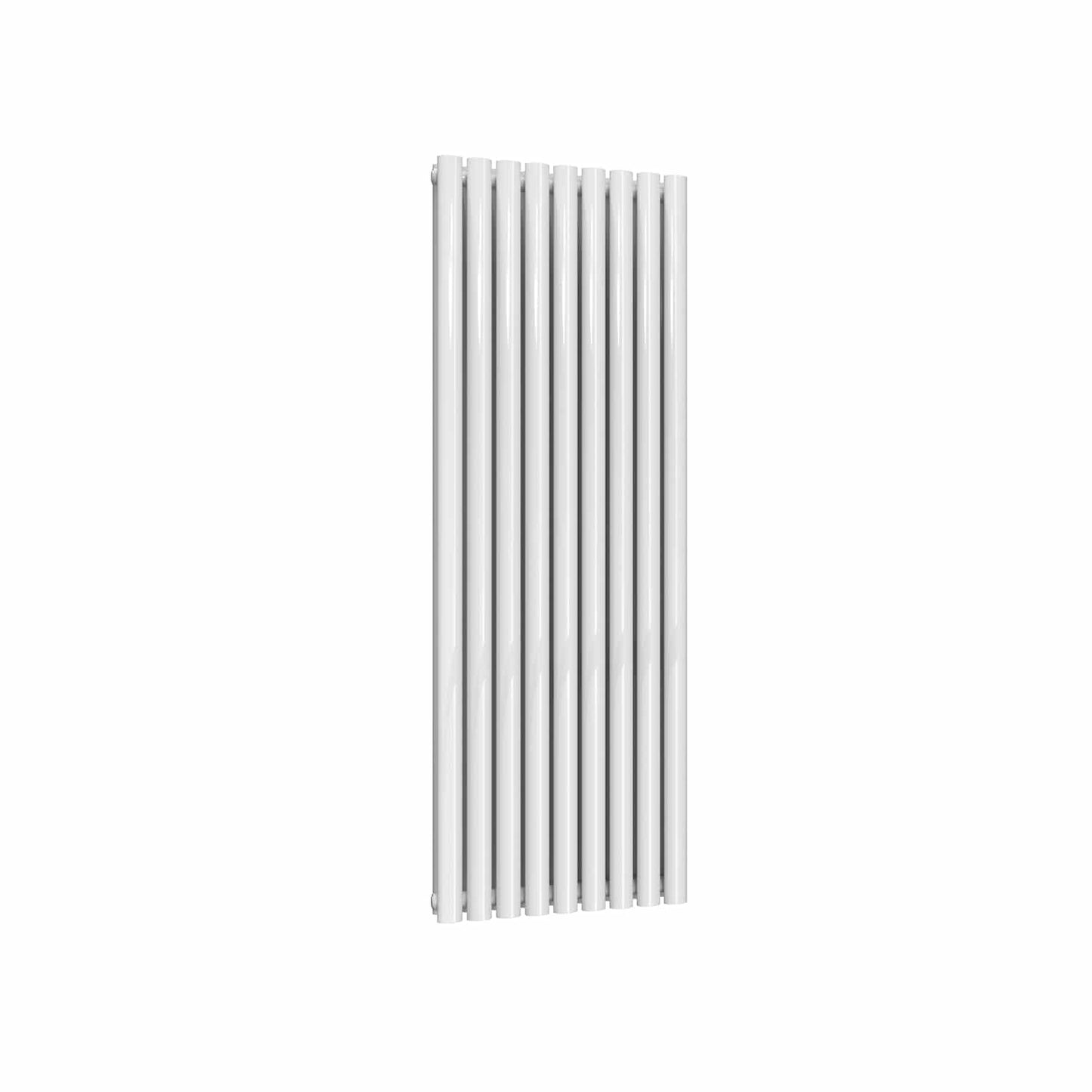

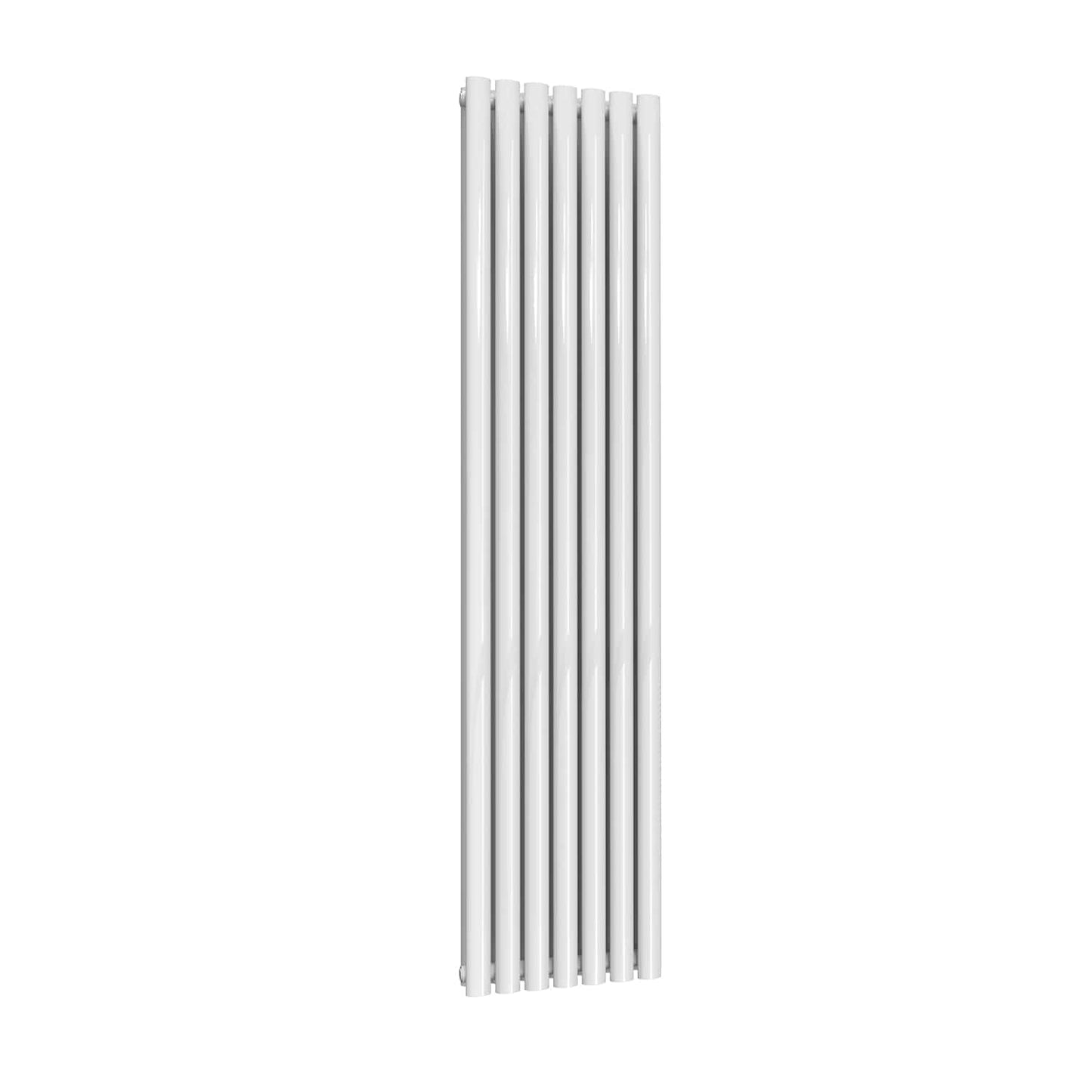

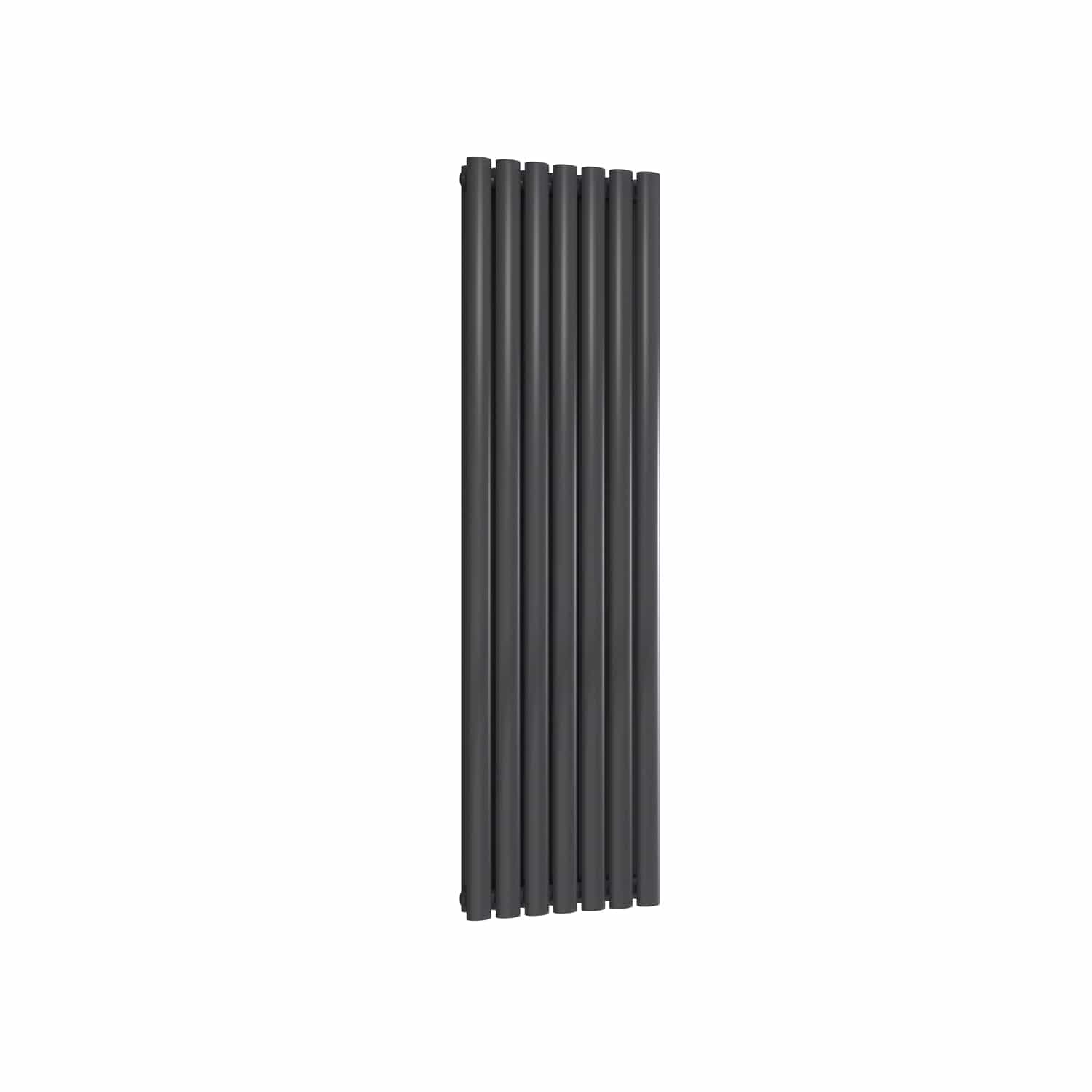

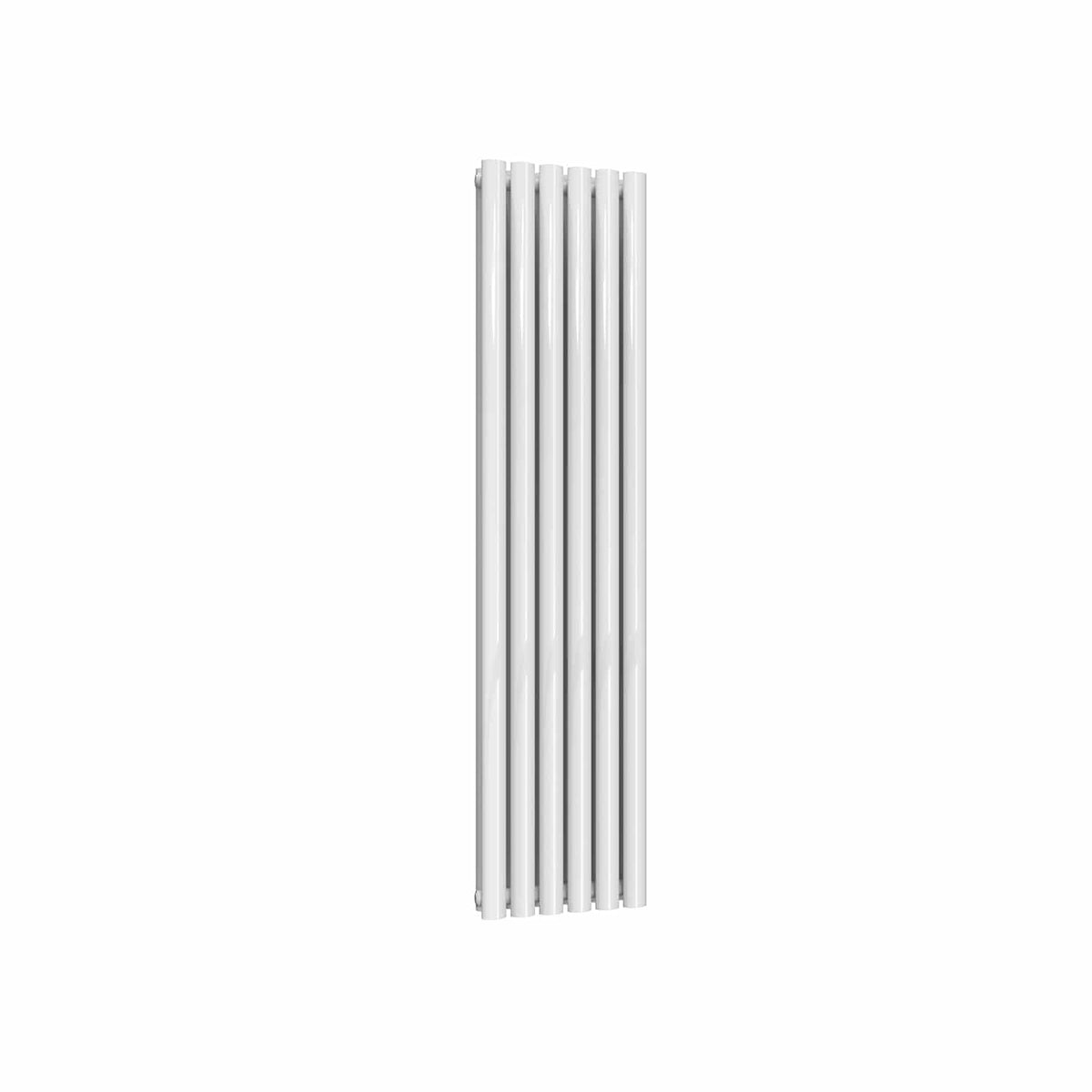

NEVA VERTICAL DOUBLE
| Overall Height mm |
Dimension Width mm |
Pipe Centres mm |
Wall to Pipe Centres mm |
Wall Distance mm |
Fuel Type |
Heat Outputs ΔT 70°C |
|
| Btu | Watts | ||||||
| 1500 | 236 | 236 | 65 | 103 | C | 3420 | 1003 |
| 1500 | 295 | 295 | 65 | 103 | C | 4252 | 1247 |
| 1500 | 354 | 354 | 65 | 103 | C | 5104 | 1497 |
| 1500 | 413 | 413 | 65 | 103 | C | 5955 | 1746 |

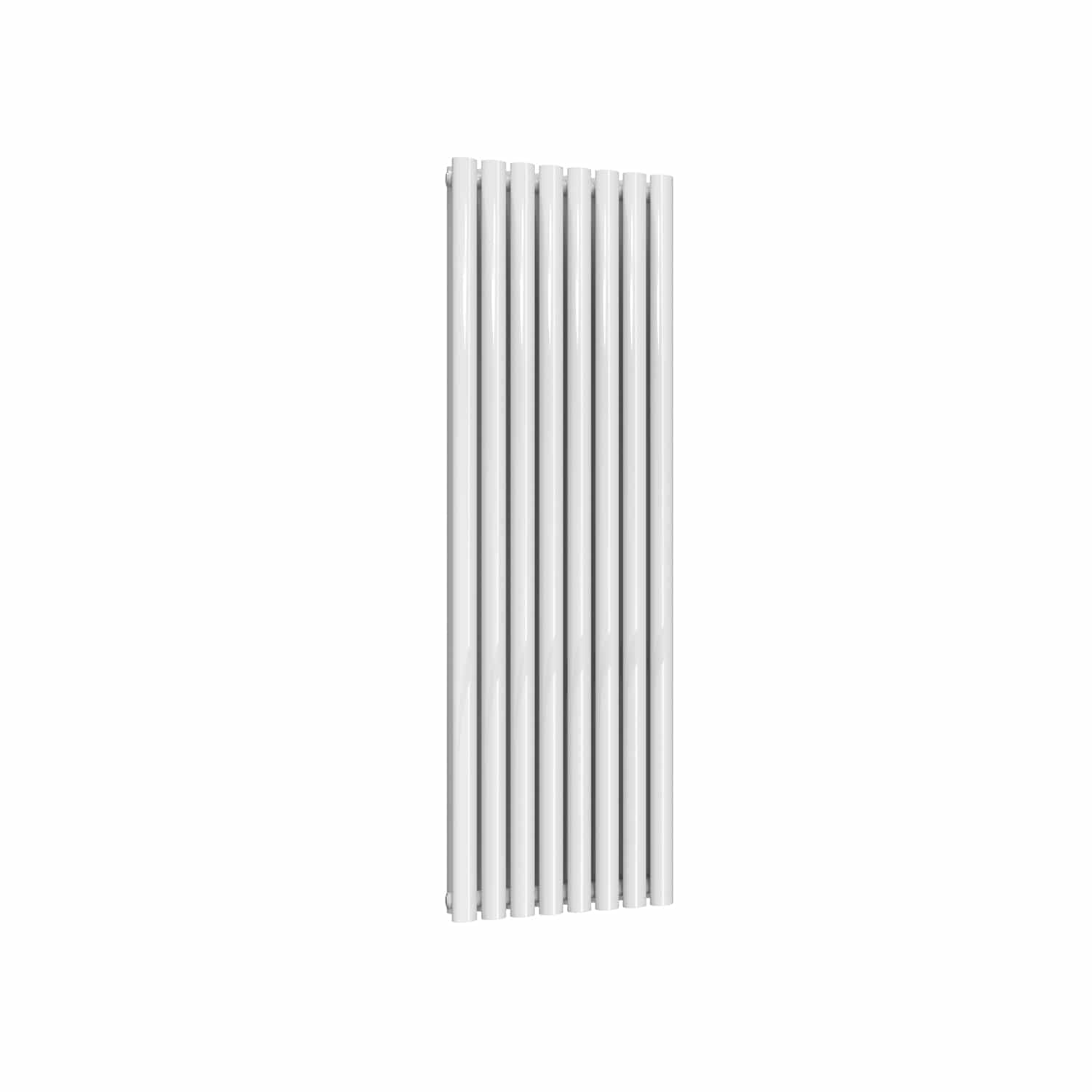

| 1500 | 472 | 472 | 65 | 103 | C | 6807 | 1996 |
| 1500 | 531 | 531 | 65 | 103 | C | 7656 | 2245 |
| 1800 | 236 | 236 | 65 | 103 | C | 4103 | 1203 |

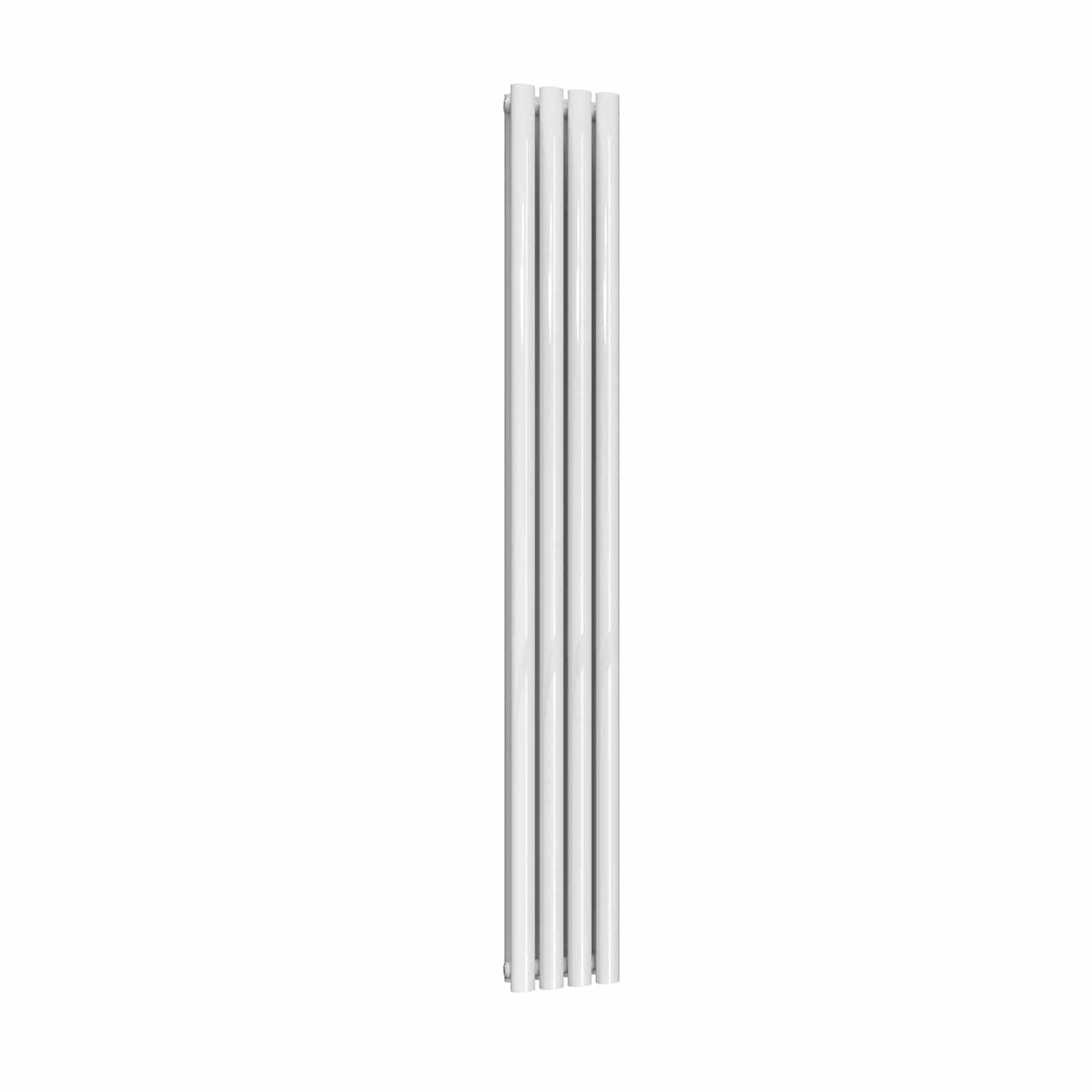

| 1800 | 295 | 295 | 65 | 103 | C | 5104 | 1497 |

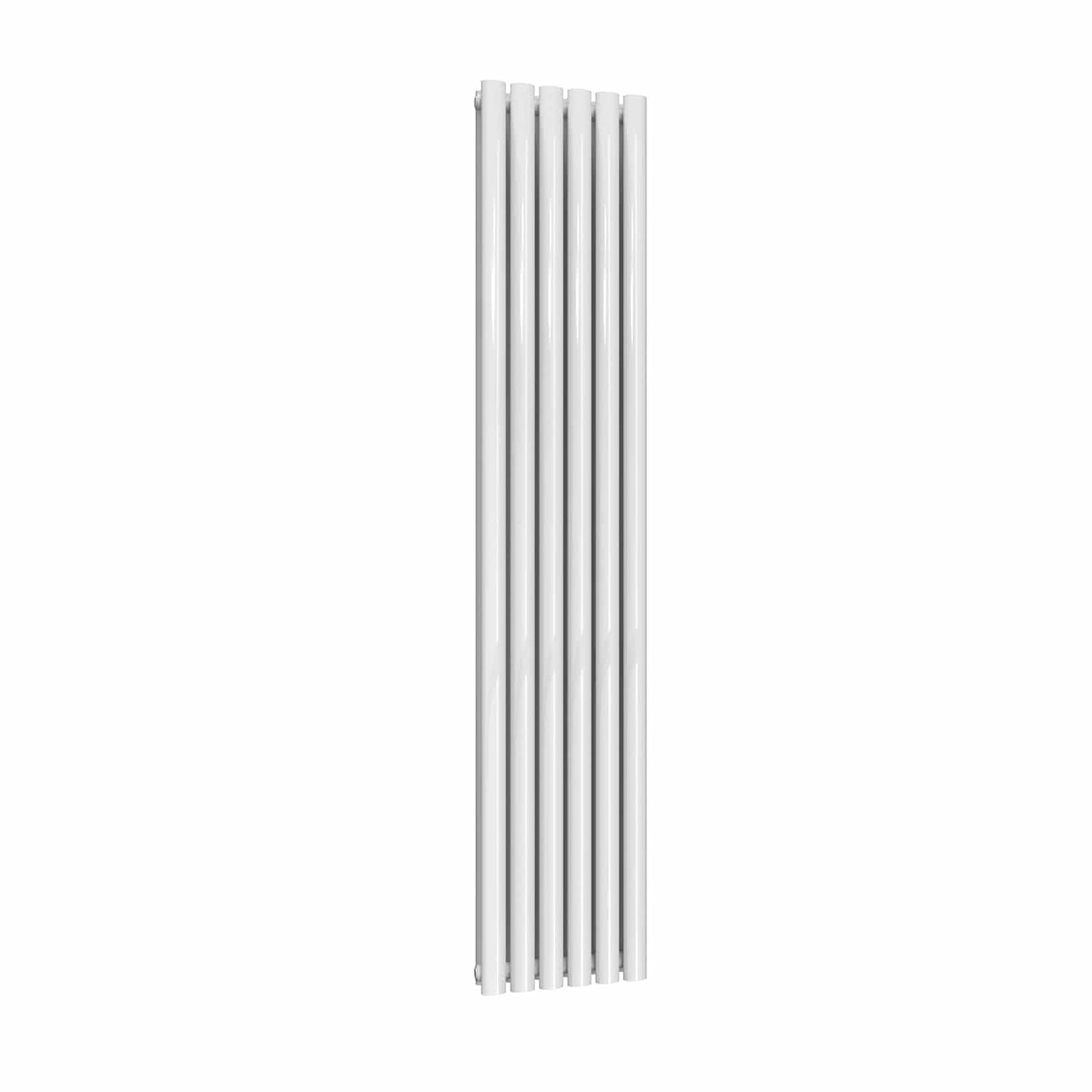

| 1800 | 354 | 354 | 65 | 103 | C | 6123 | 1796 |
| 1800 | 413 | 413 | 65 | 103 | C | 7145 | 2095 |

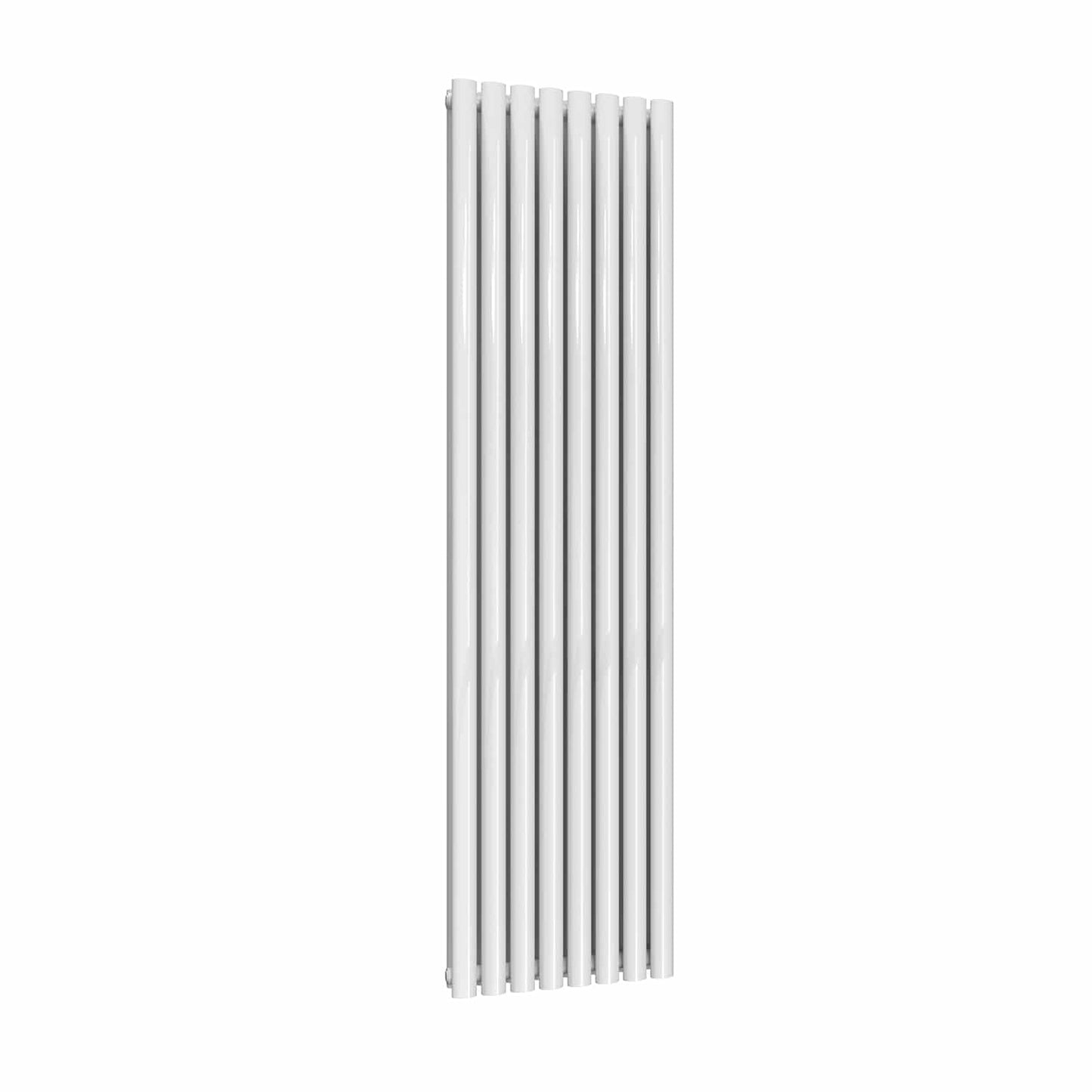

| 1800 | 472 | 472 | 65 | 103 | C | 8166 | 2395 |
| 1800 | 531 | 531 | 65 | 103 | C | 9187 | 2694 |
C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly
Need help choosing? Message us or give us a ring.
Which valve fits your pipework?
The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.
| Valve | Choose it when | Price | Product page |
|---|---|---|---|
Straight inlineFloor pipes
|
Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them. | £14.99 | View the straight inline valve |
AngledWall pipes
|
Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you. | £14.99 | View the angled valve |
CornerWall pipes
|
Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way. | £19.99 | View the corner valve |
A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why
Still unsure? See the full valve range
Finish the installation
The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.
| Accessory | What it does | Price | Product page |
|---|---|---|---|
Chrome cover caps (pair)
|
Caps the bleed and blanking plugs so the top of the rail looks finished | £2.49 | View product : Chrome cover caps (pair) |
Talon Snappit pipe covers
|
Clips around exposed pipe to hide it — no glue, no cutting | From £5.99 | View product : Talon Snappit pipe covers |
Towel rail pegs (pair)
|
Clip-on pegs add hanging space, fitted by hand | £9.99 | View product : Towel rail pegs (pair) |
Fitting it yourself? See all accessories
