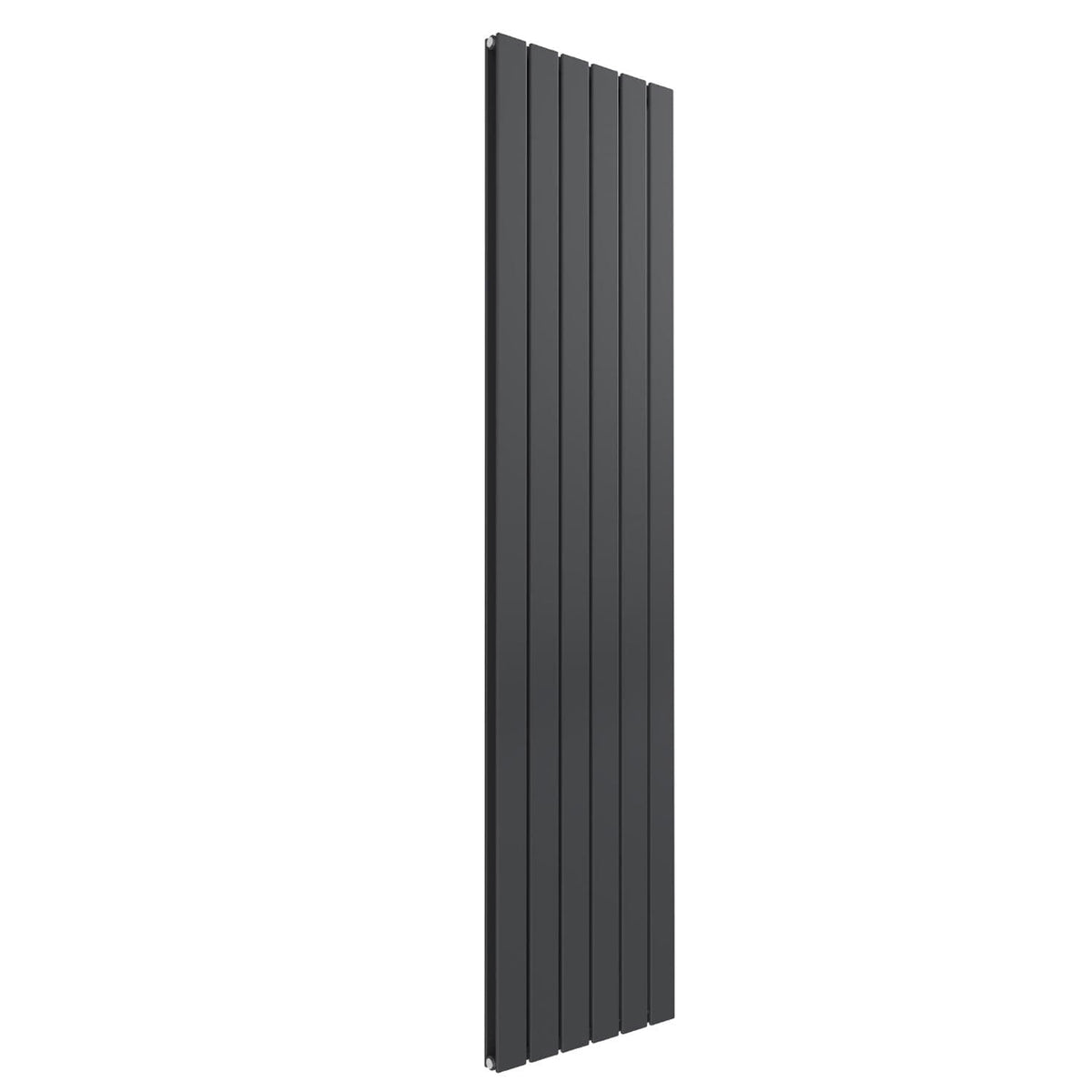

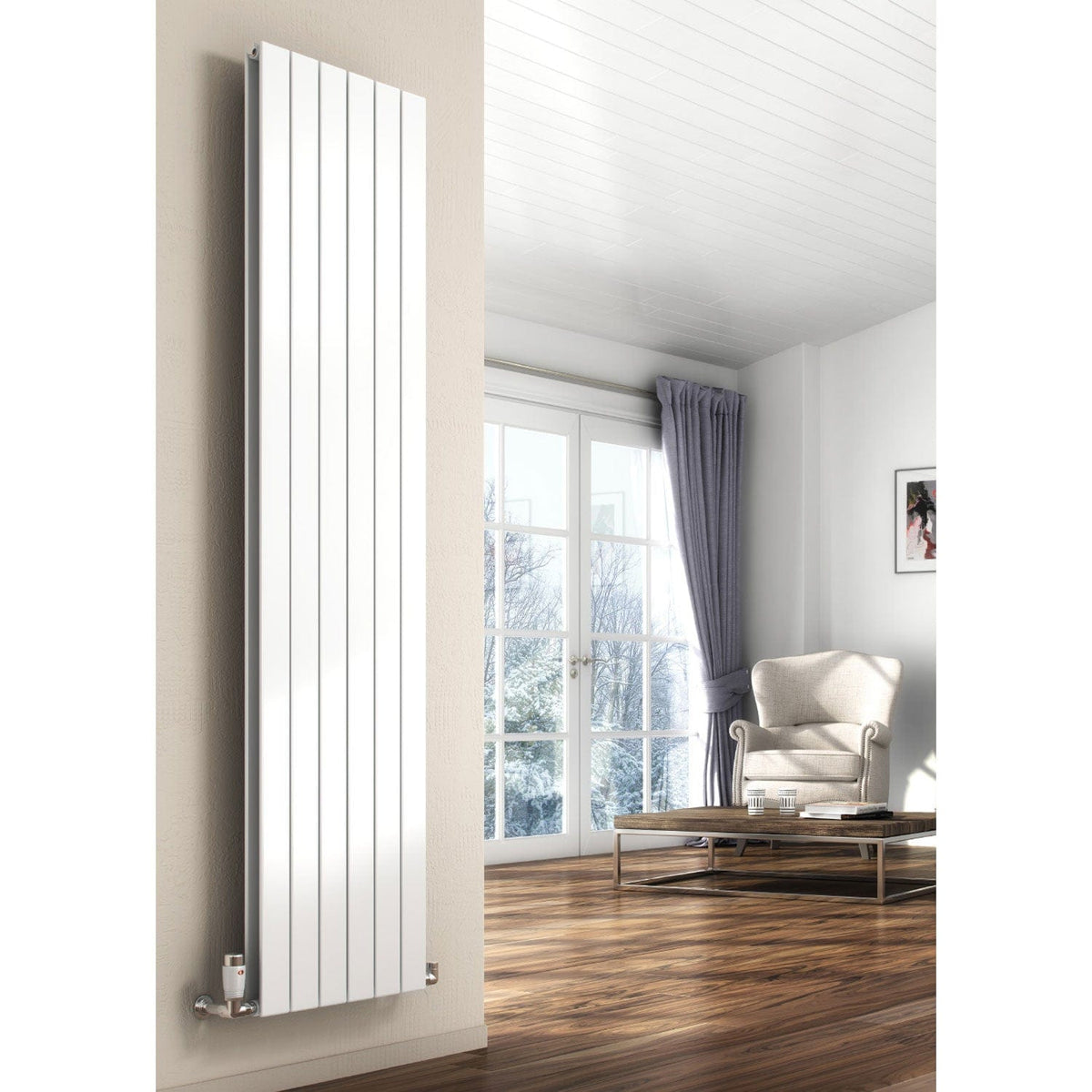

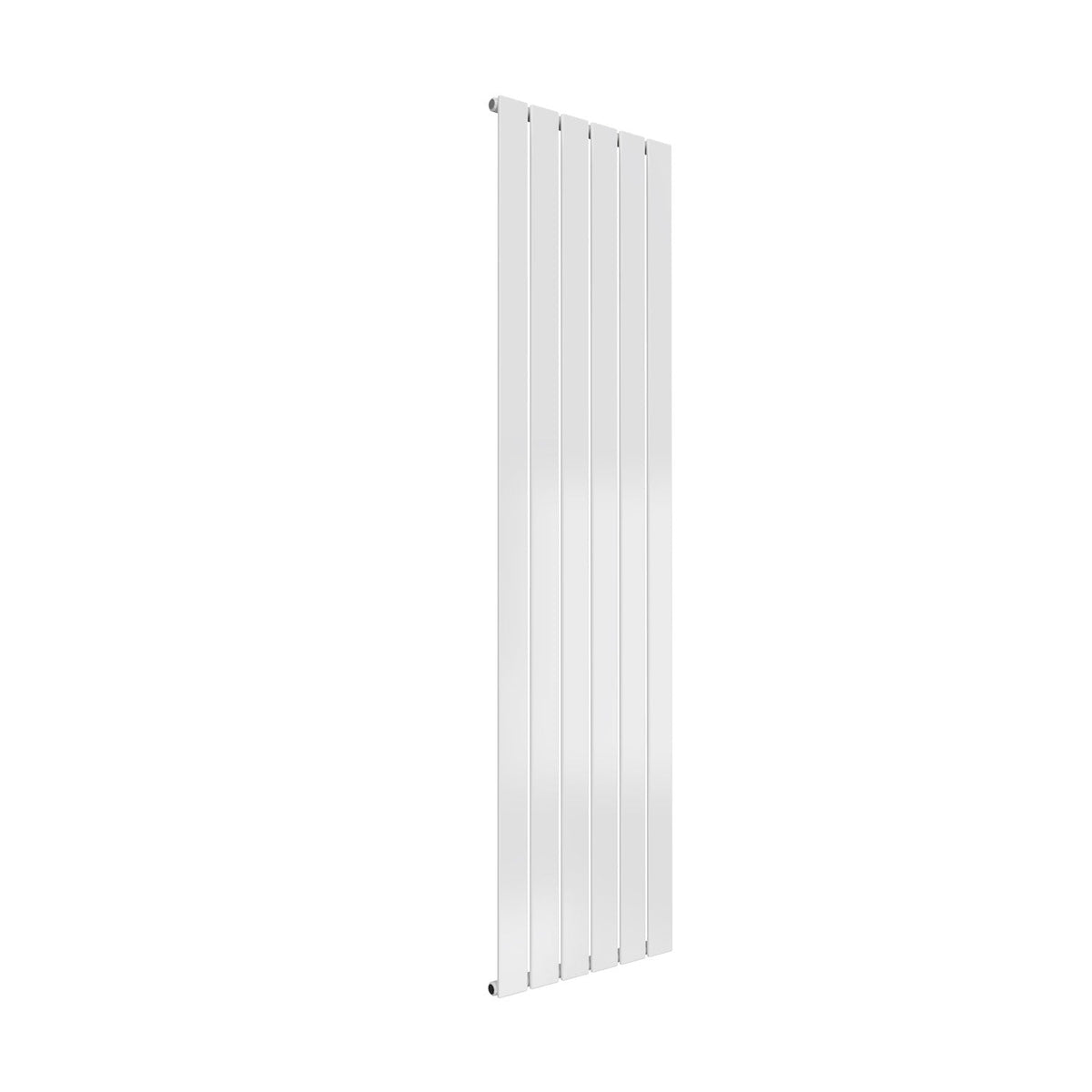

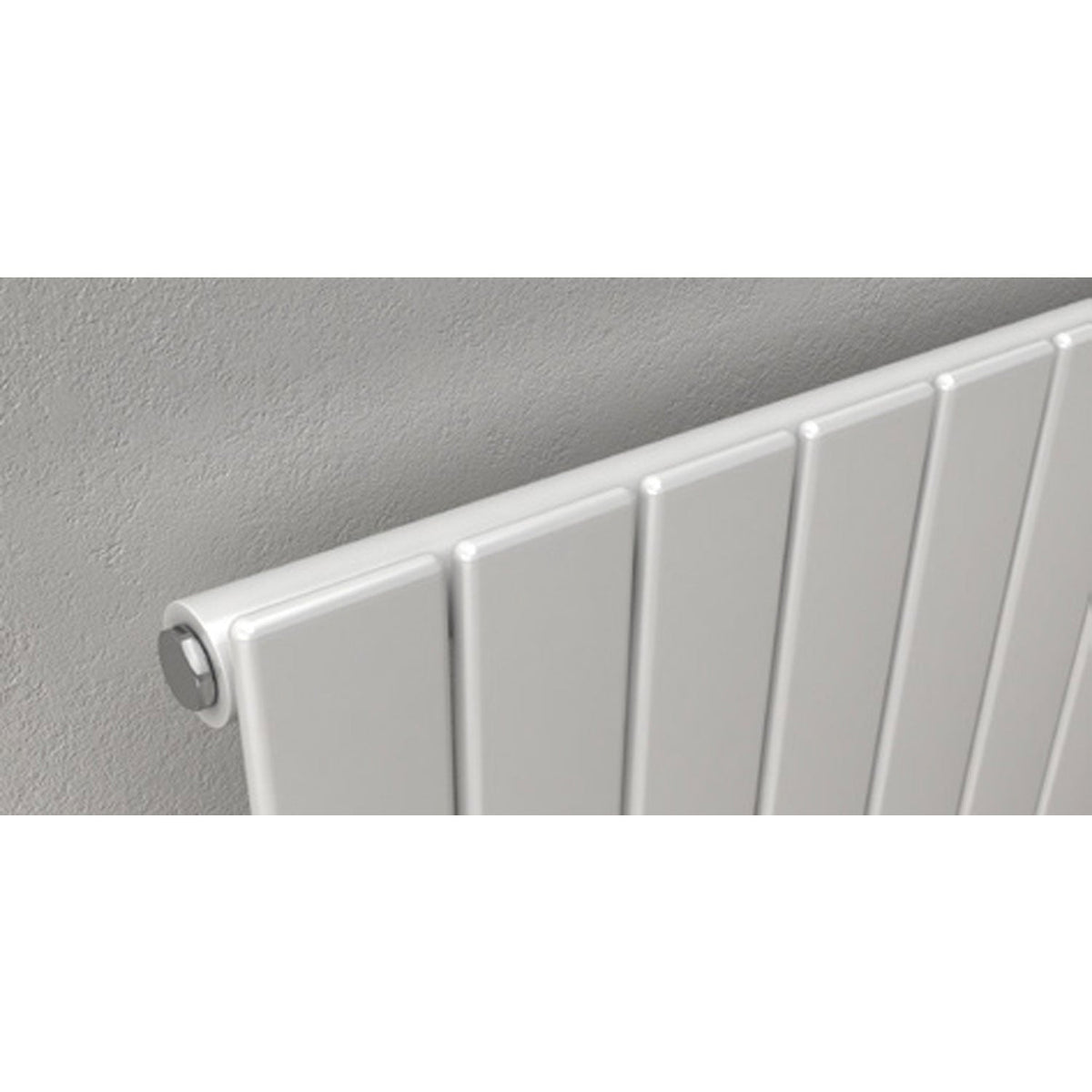

Reina Flat Designer Vertical Steel Radiator

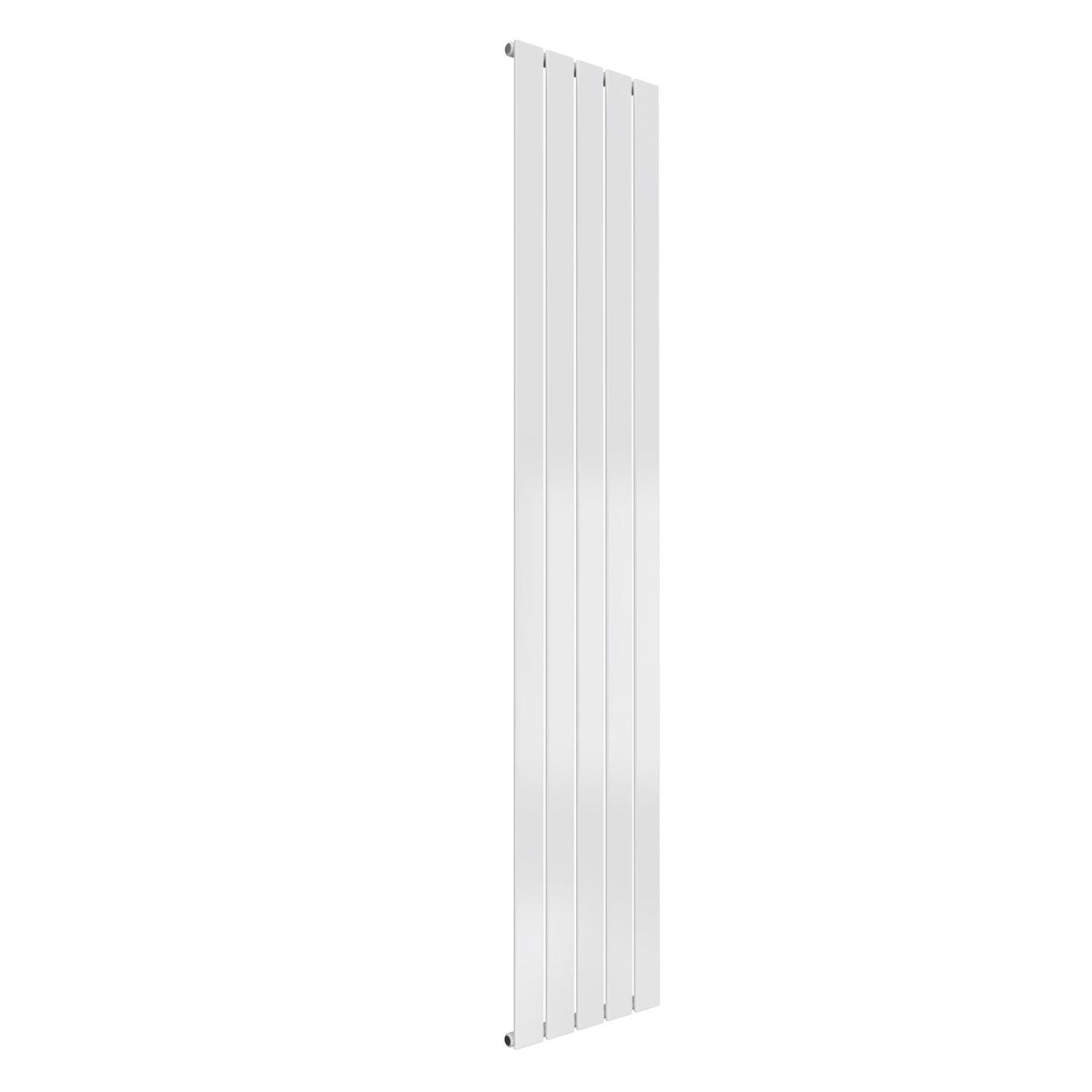

The Reina Flat Single Panel White Designer Vertical radiators are made using superior quality steel and is built to last long and comes with an impressive heat output to quickly warm up the entire room. Manufactured from mild steel, this stylish radiator is beautifully finished in anthracite for a contemporary look. Flat Vertical Single Panel Radiator is ideal for any modern and contemporary interior with its minimalist flat paneled design. Available in white finish, these flat vertical radiators are one of many stunning designs from Reina. Comes with a 5 years guarantee from the manufacturer.

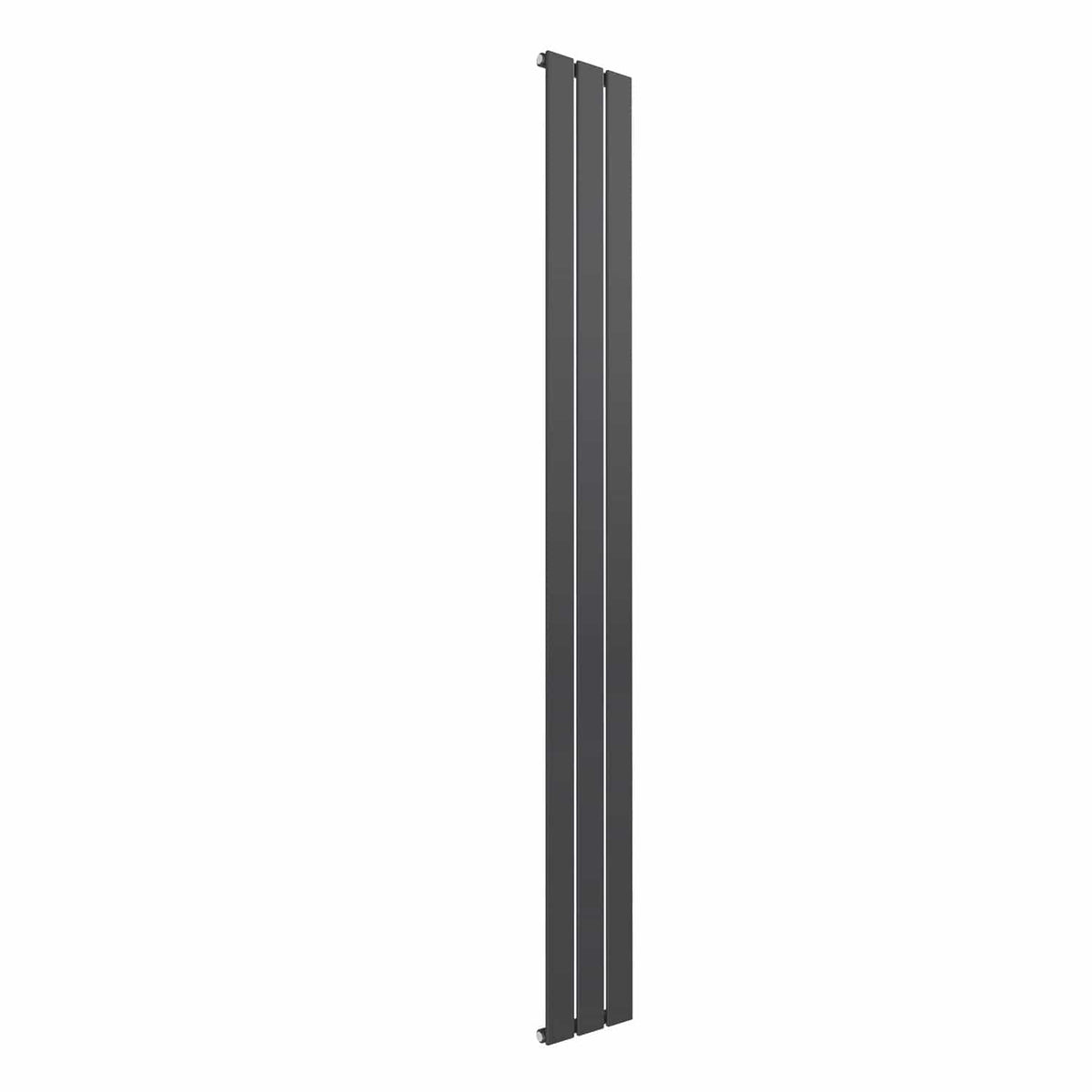

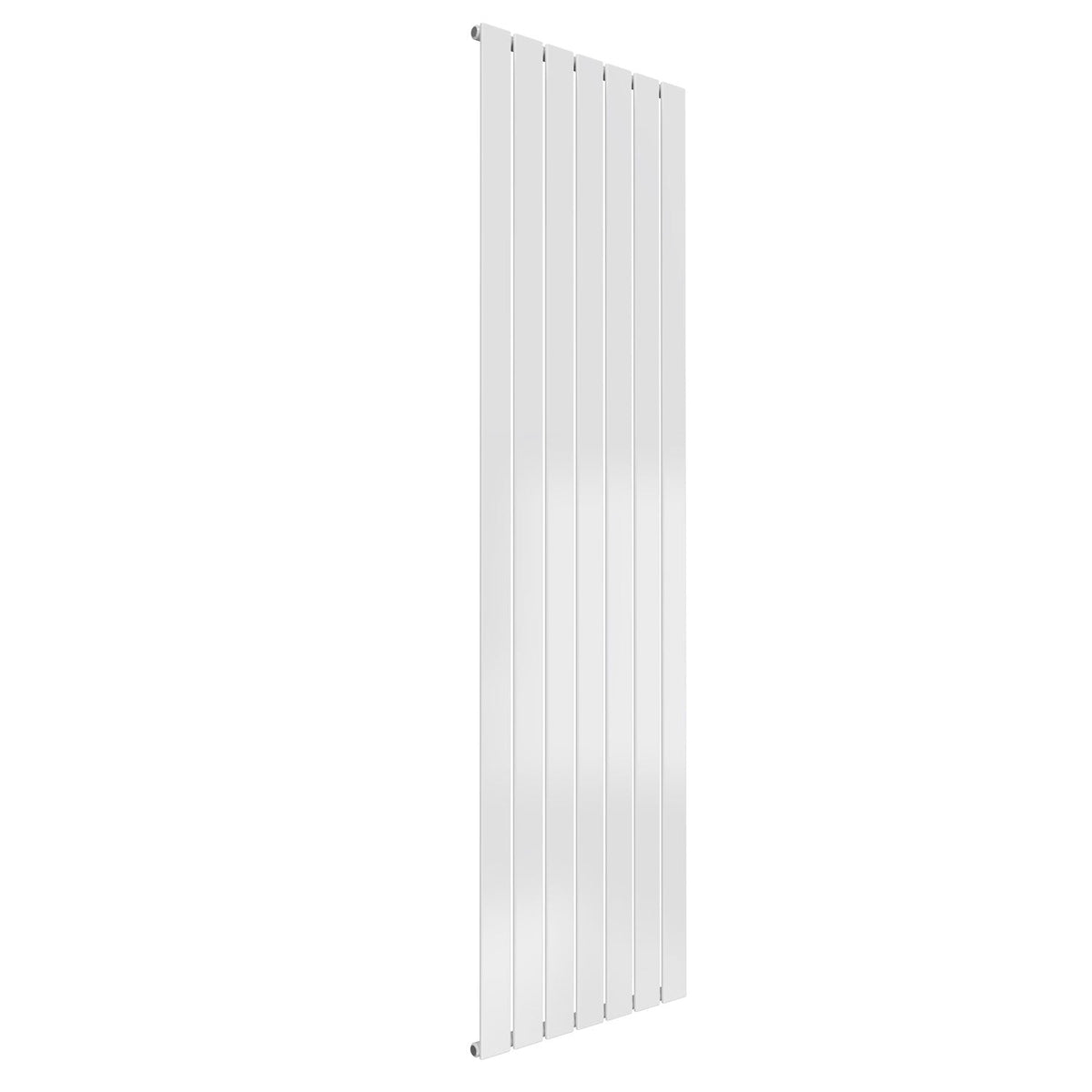

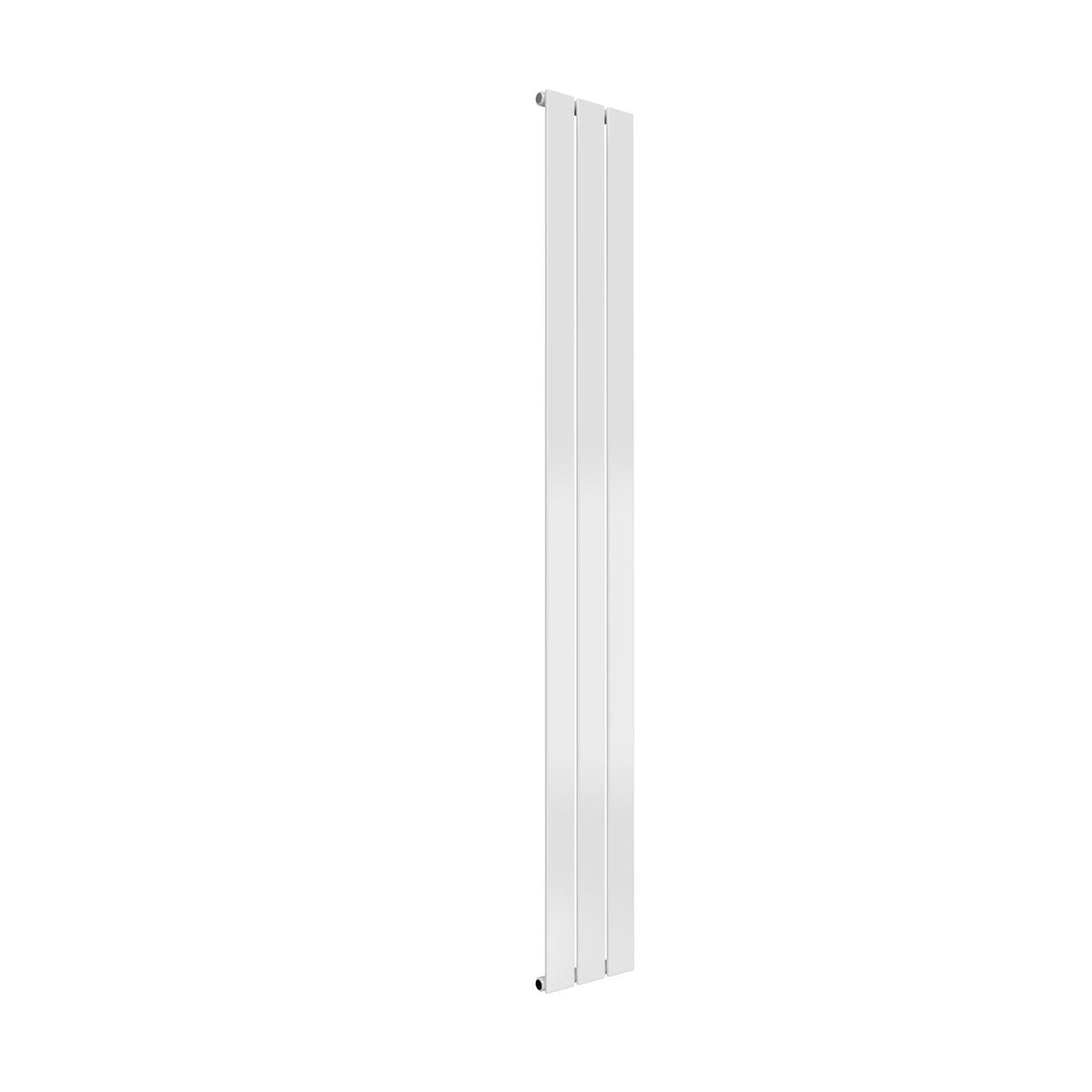

1800 or 1600 mm High and 218 , 292 , 366 , 440 or 514 mm Wide

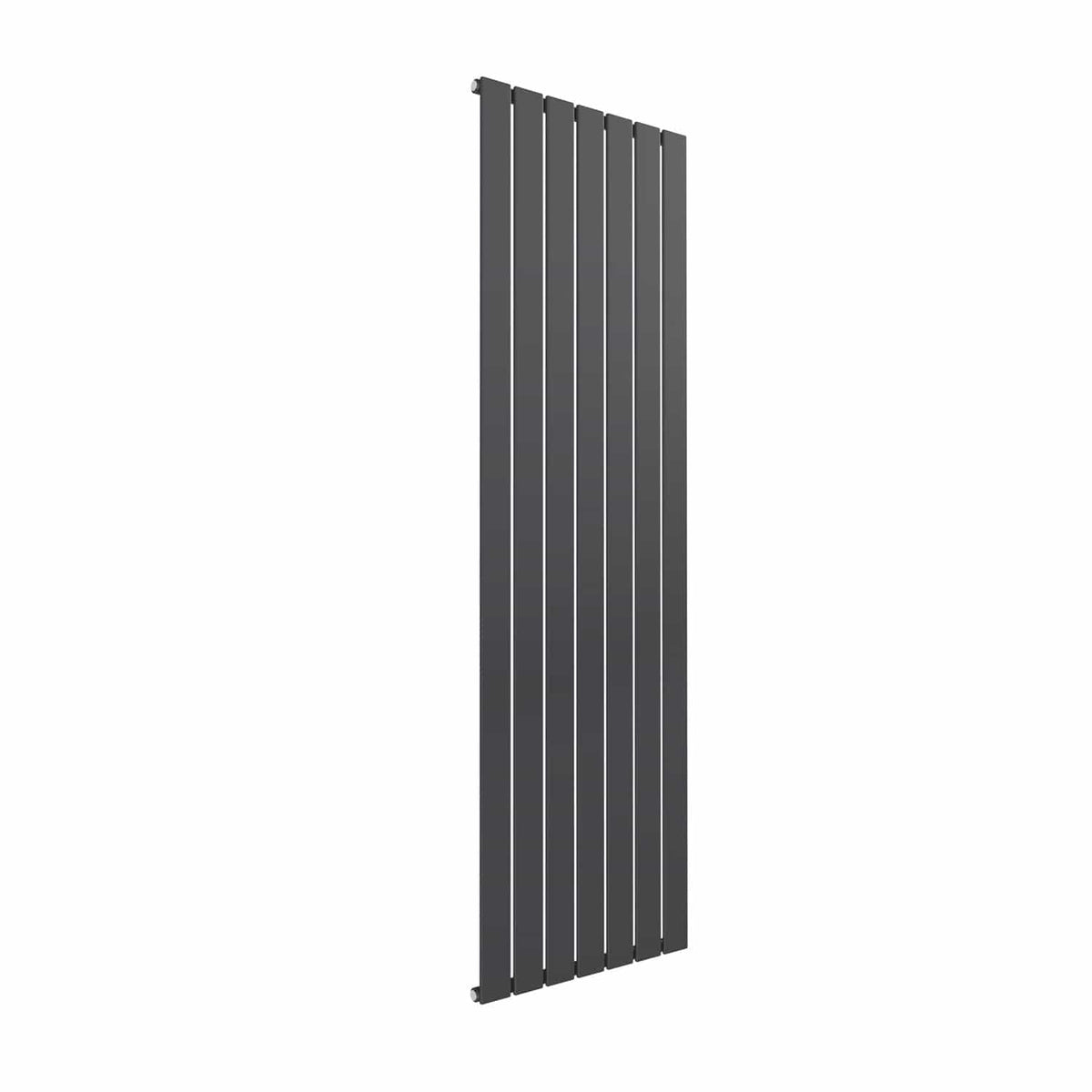

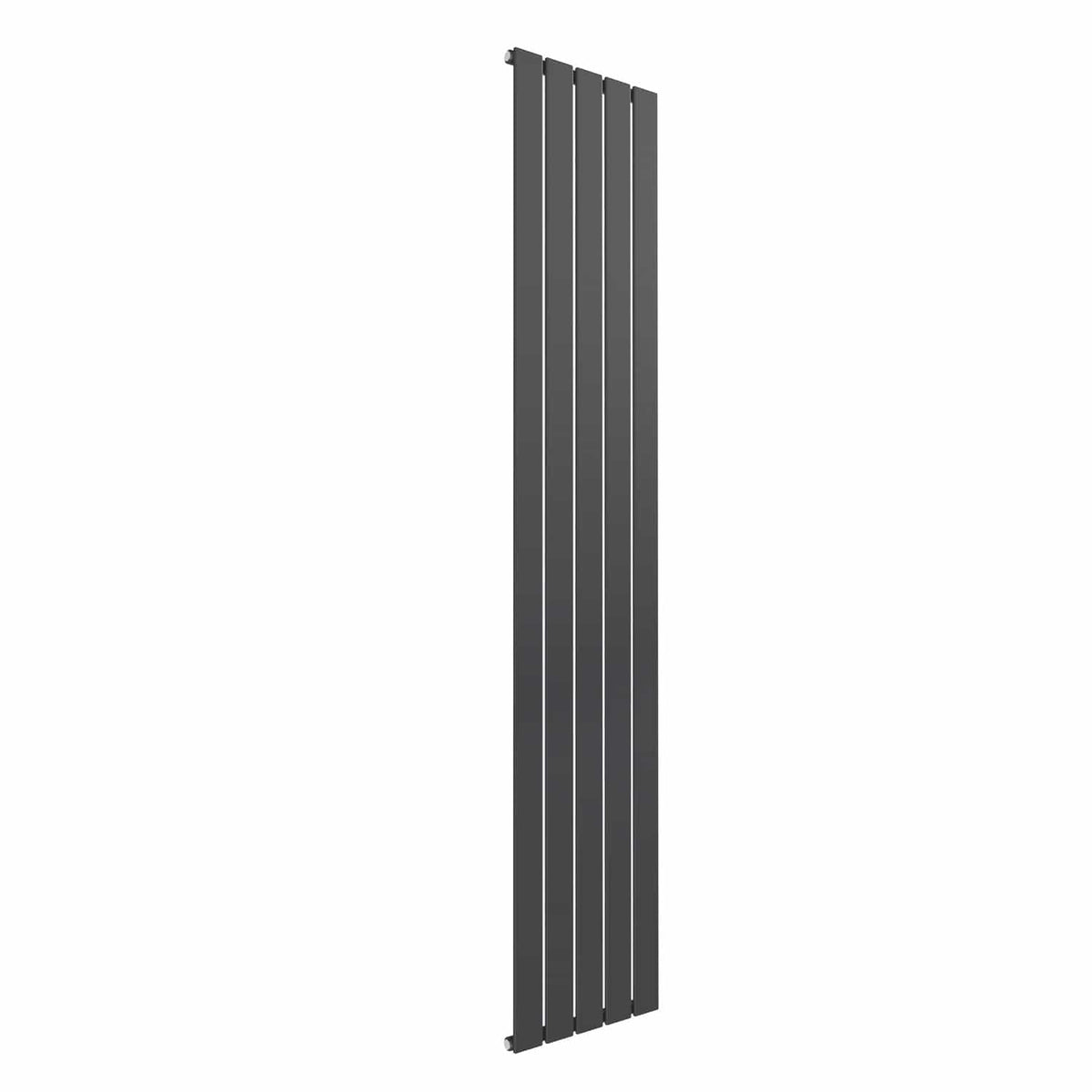

Anthracite and White finish available

The Flat Verticla is the simplest of all the Reina models with a minimalist design.

5 years guarantee
Usage: Central Heating Only
Made from steel

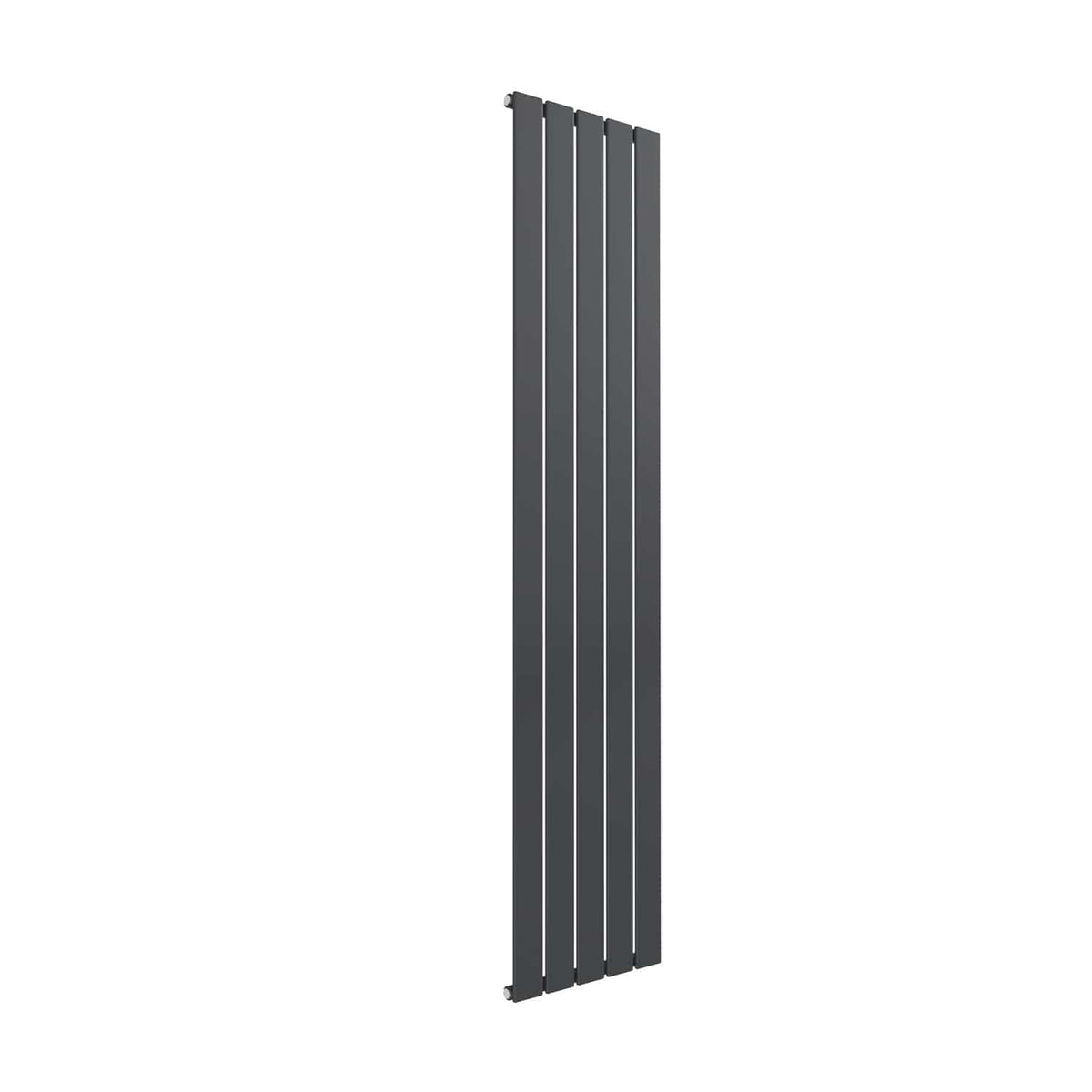

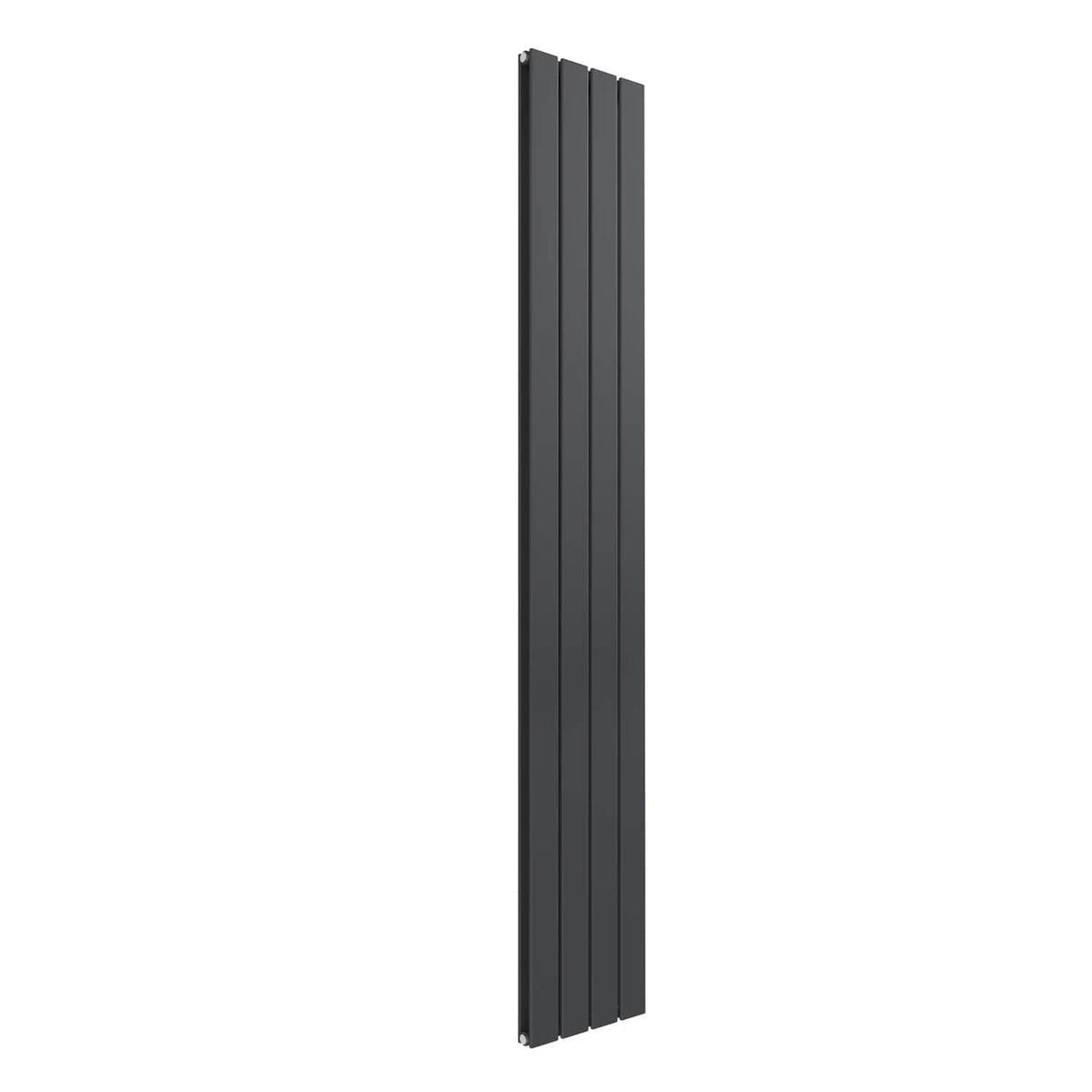

This also comes as a single or double versions

Installation Instructions Download Link

Flat Vertical

Single

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts
1600	218	218	39	68	C	2113	620
1600	292	292	39	68	C	2818	826
1600	366	366	39	68	C	3522	1033
1600	440	440	39	68	C	4226	1239
1600	514	514	39	68	C	4930	1446
1800	218	218	39	68	C	2378	697
1800	292	292	39	68	C	3171	930
1800	366	366	39	68	C	3962	1162
1800	440	440	39	68	C	4755	1394
1800	514	514	39	68	C	5549	1627

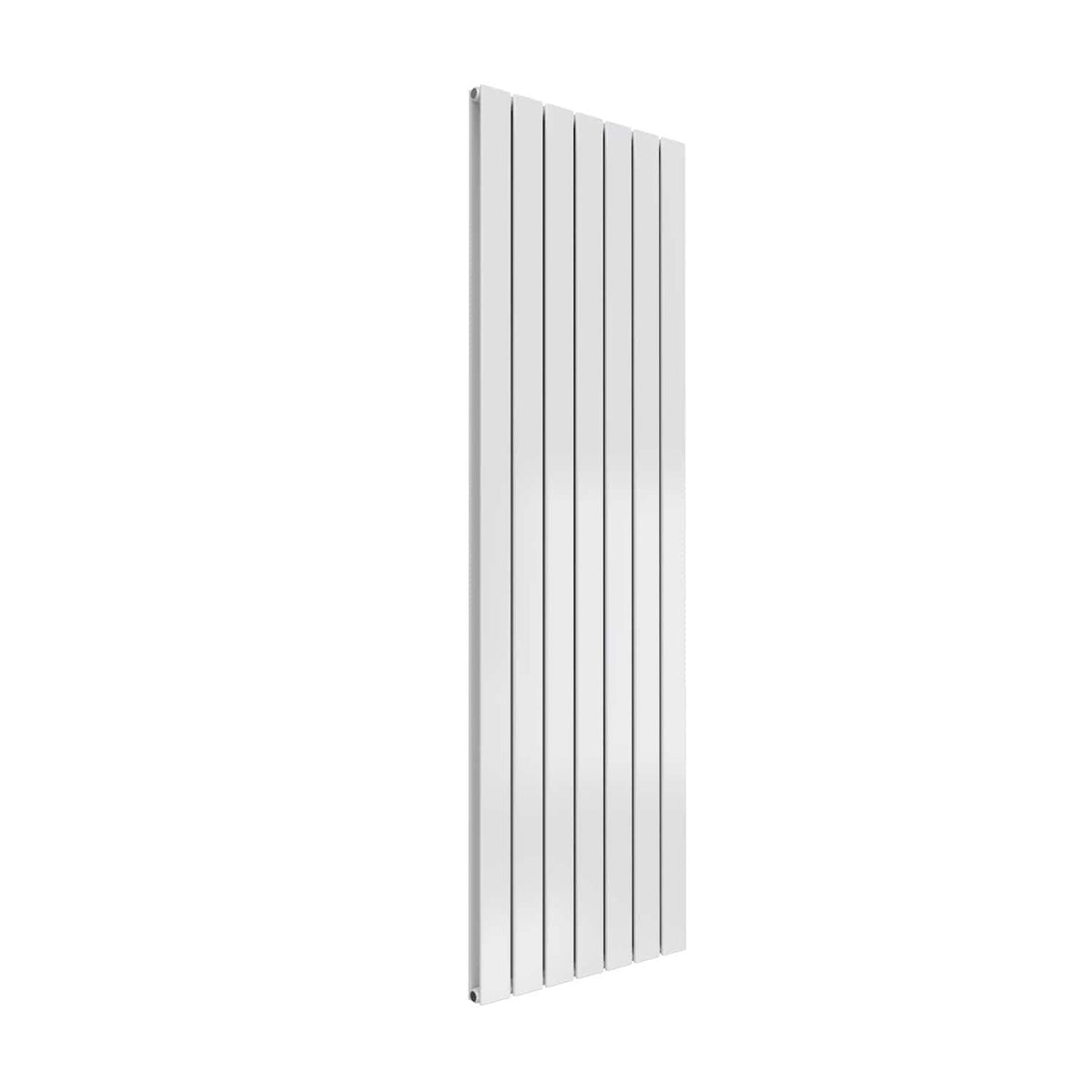

Double

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts
1600	218	218	64	93	C	2684	787
1600	292	292	64	93	C	3578	1049
1600	366	366	64	93	C	4509	1322
1600	440	440	64	93	C	5509	1616
1600	514	514	64	93	C	6311	1851
1800	218	218	64	93	C	3092	907
1800	292	292	64	93	C	4123	1209
1800	366	366	64	93	C	5191	1522
1800	440	440	64	93	C	6230	1827
1800	514	514	64	93	C	7268	2131

C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly

Which valve fits your pipework?

The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.

Valve	Choose it when	Price	Product page
Straight inlineFloor pipes	Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them.	£14.99	View the straight inline valve
AngledWall pipes	Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you.	£14.99	View the angled valve
CornerWall pipes	Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way.	£19.99	View the corner valve

A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why

Finish the installation

The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.

Accessory	What it does	Price	Product page
Chrome cover caps (pair)	Caps the bleed and blanking plugs so the top of the rail looks finished	£2.49	View product : Chrome cover caps (pair)
Talon Snappit pipe covers	Clips around exposed pipe to hide it — no glue, no cutting	From £5.99	View product : Talon Snappit pipe covers
Towel rail pegs (pair)	Clip-on pegs add hanging space, fitted by hand	£9.99	View product : Towel rail pegs (pair)
