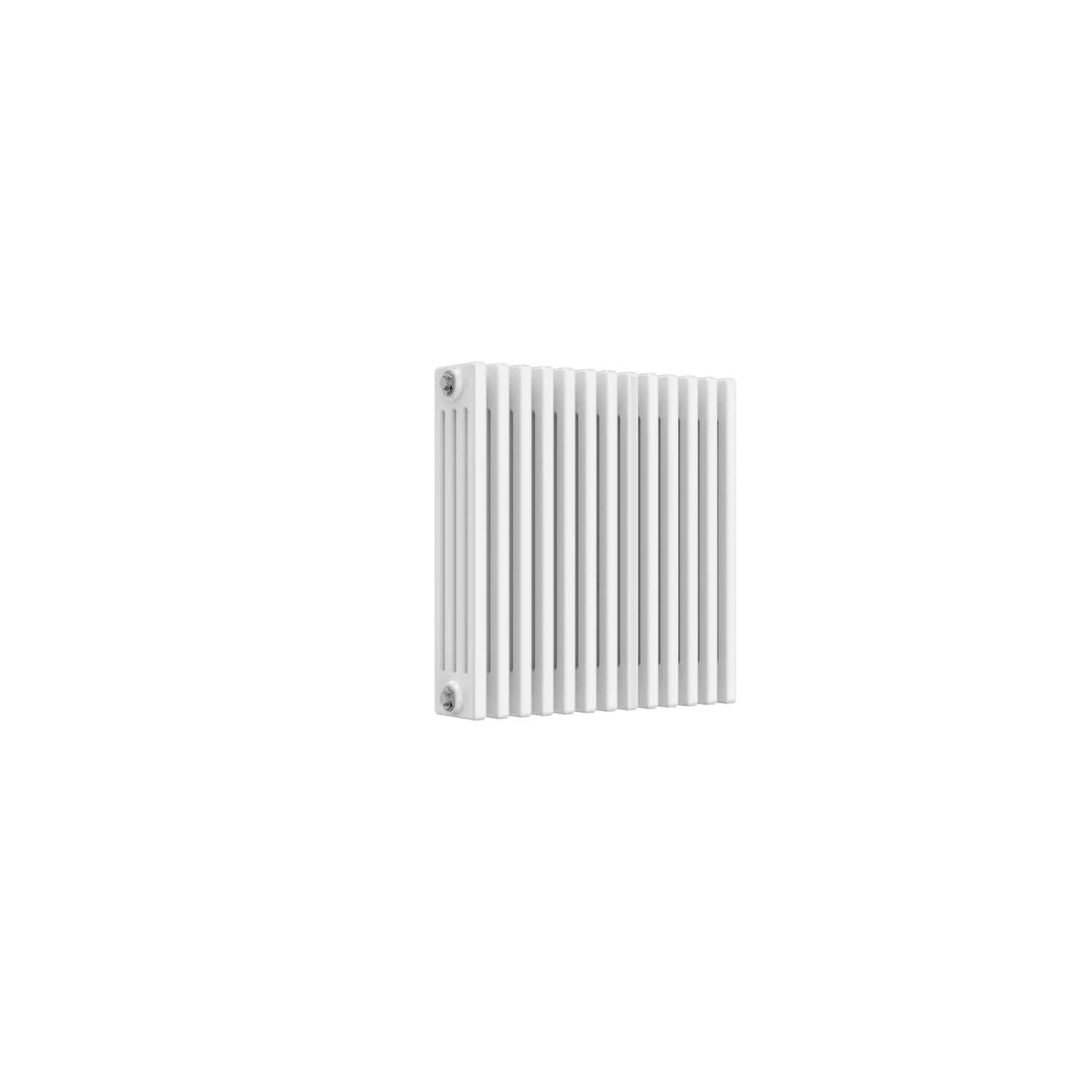

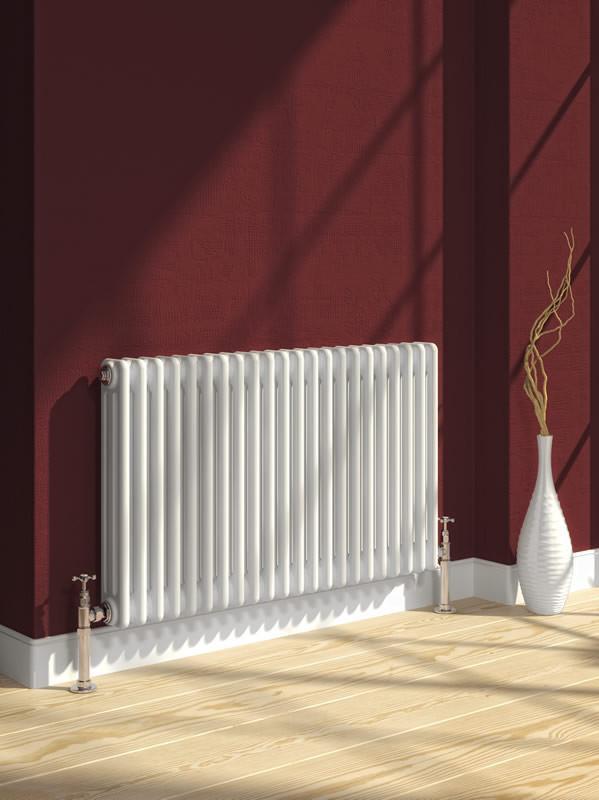

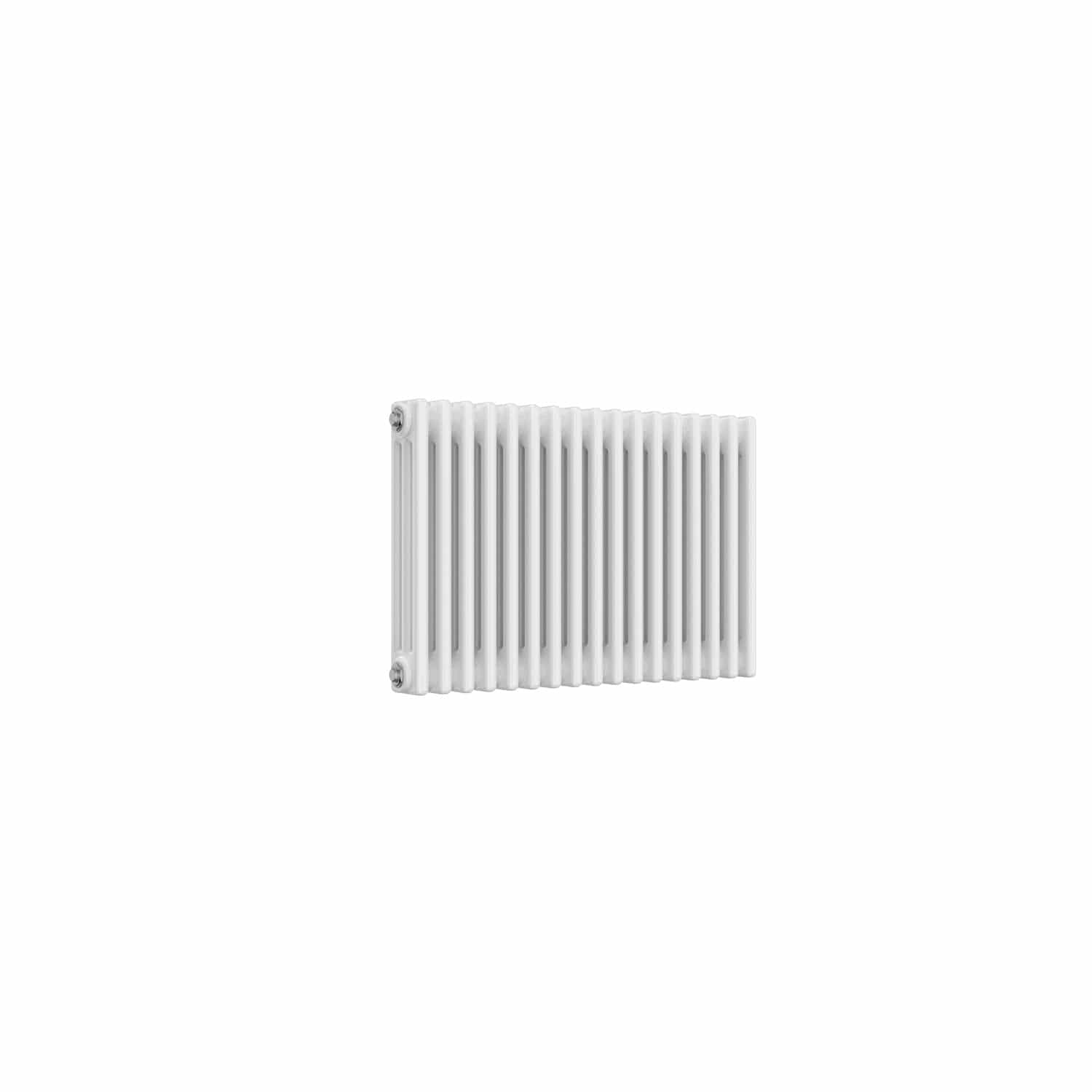

Reina Designer White Colona Traditional Horizontal Radiator

The Reina Colona 2 , 3 or 4 Column Radiator comes from the popular range of classic column radiators from Reina Design, one of the market-leaders in designer heating. This 2 , 3 or 4 column vertical model would look the part in any traditional home, providing a stylish alternative to a standard panel radiator with all the elegance of an old school cast iron model.

Usage : Central Heating , Electric or Dual Fuel
5 Years Manufacturers Warranty
High Quality standard
Floor Standing Feets Available (Sold Separately )
Suitable for any room
Elegant and contemporary in appearance

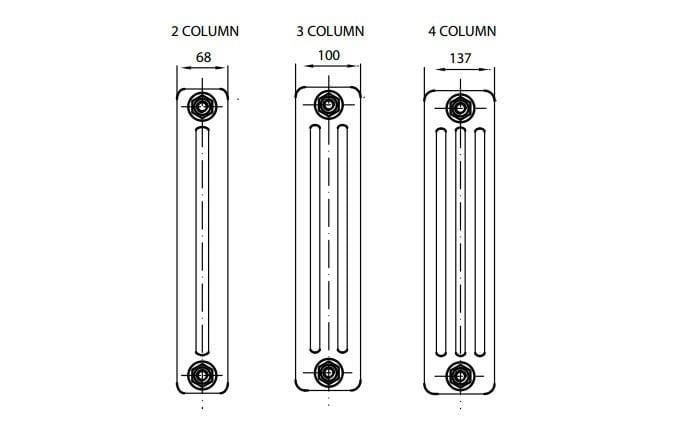

Colona Horizontal

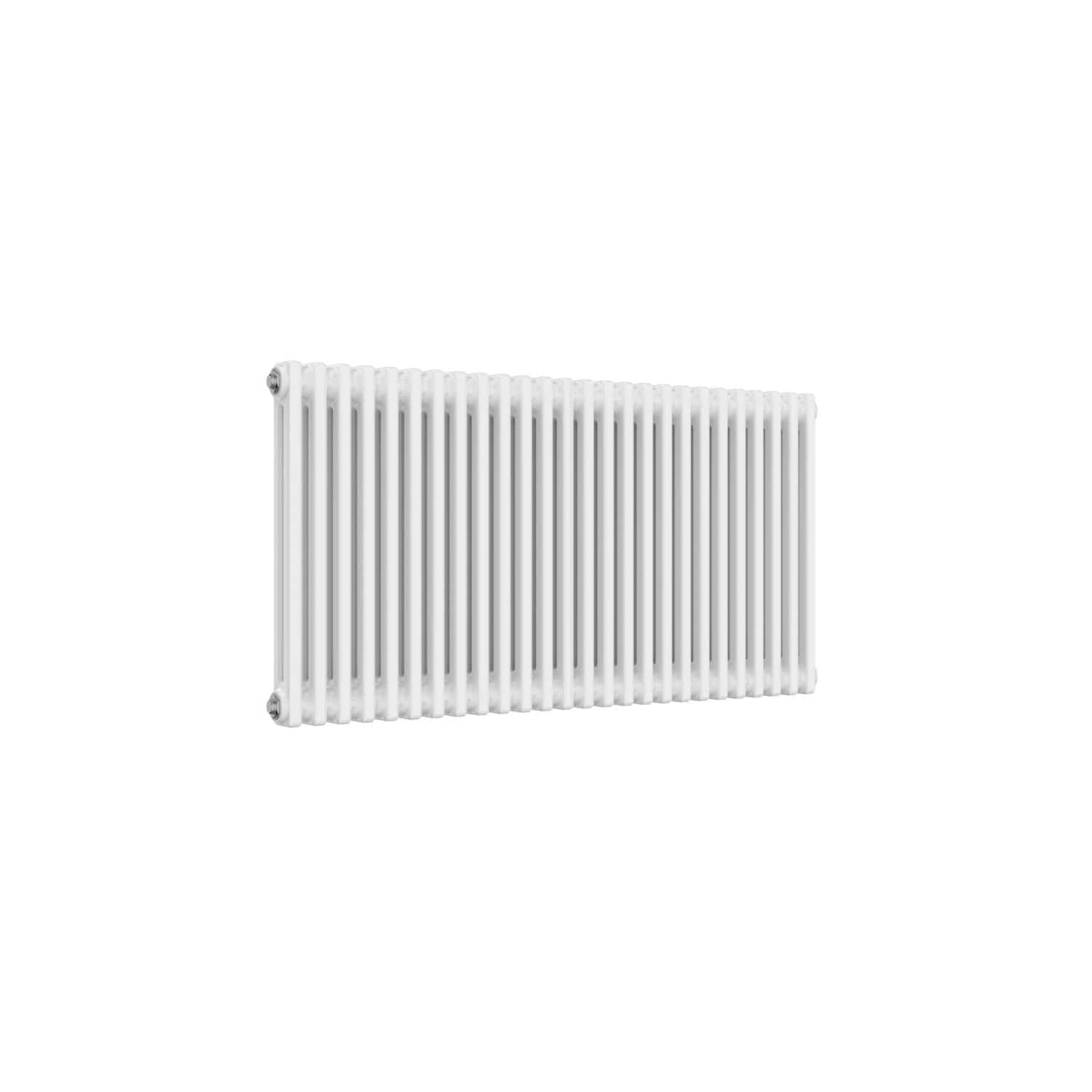

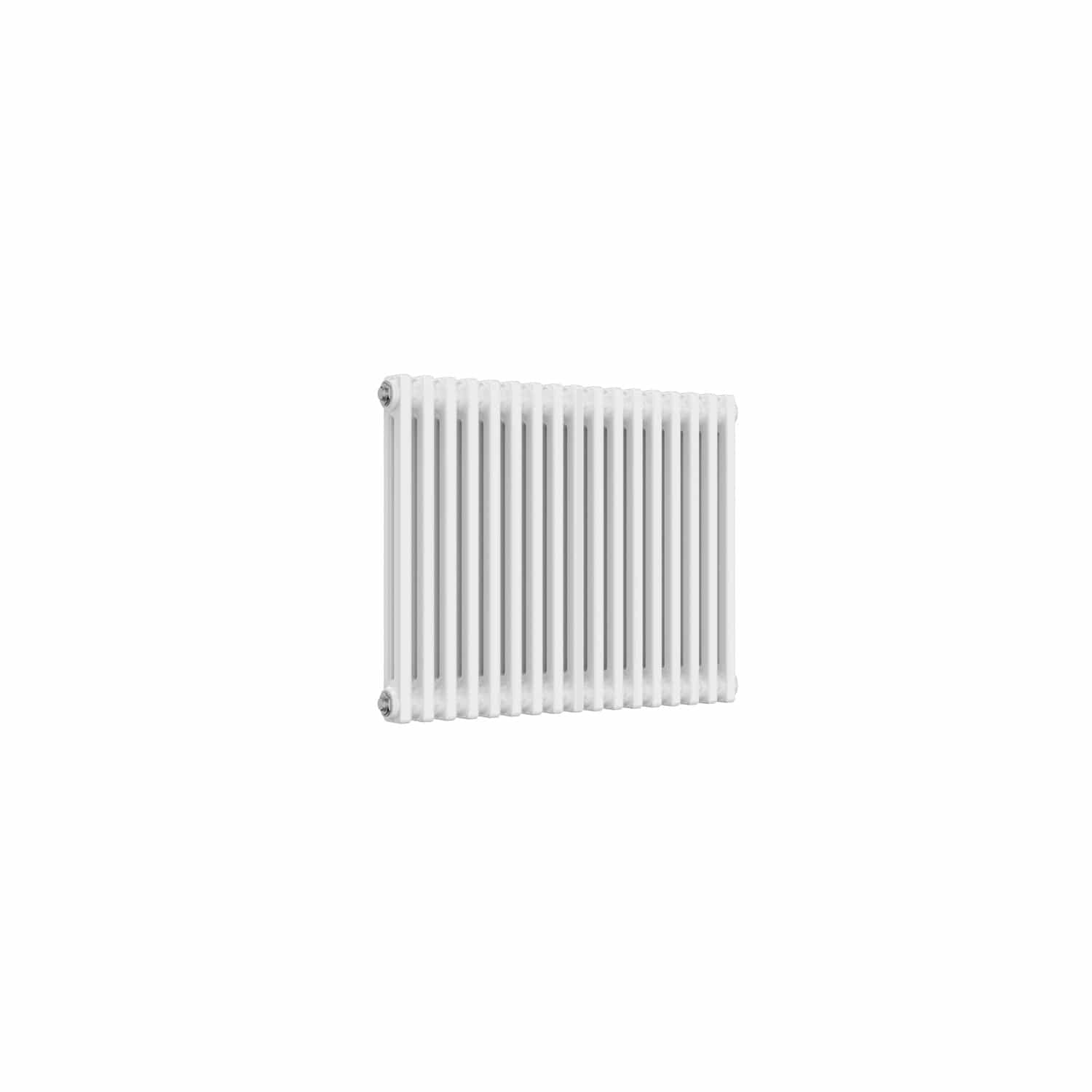

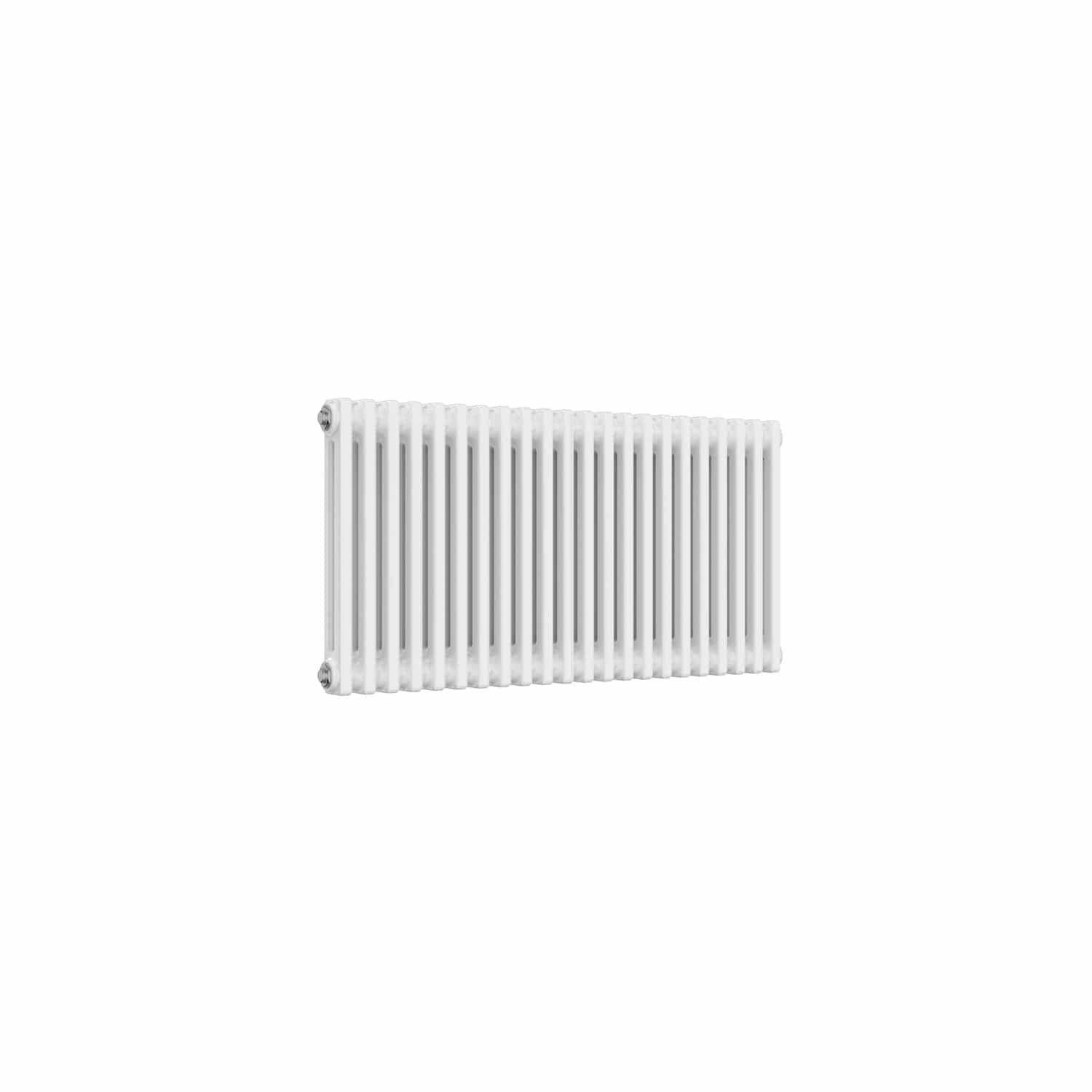

2 Column

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts
500	605	605	66	98	C/E/D	2540	745

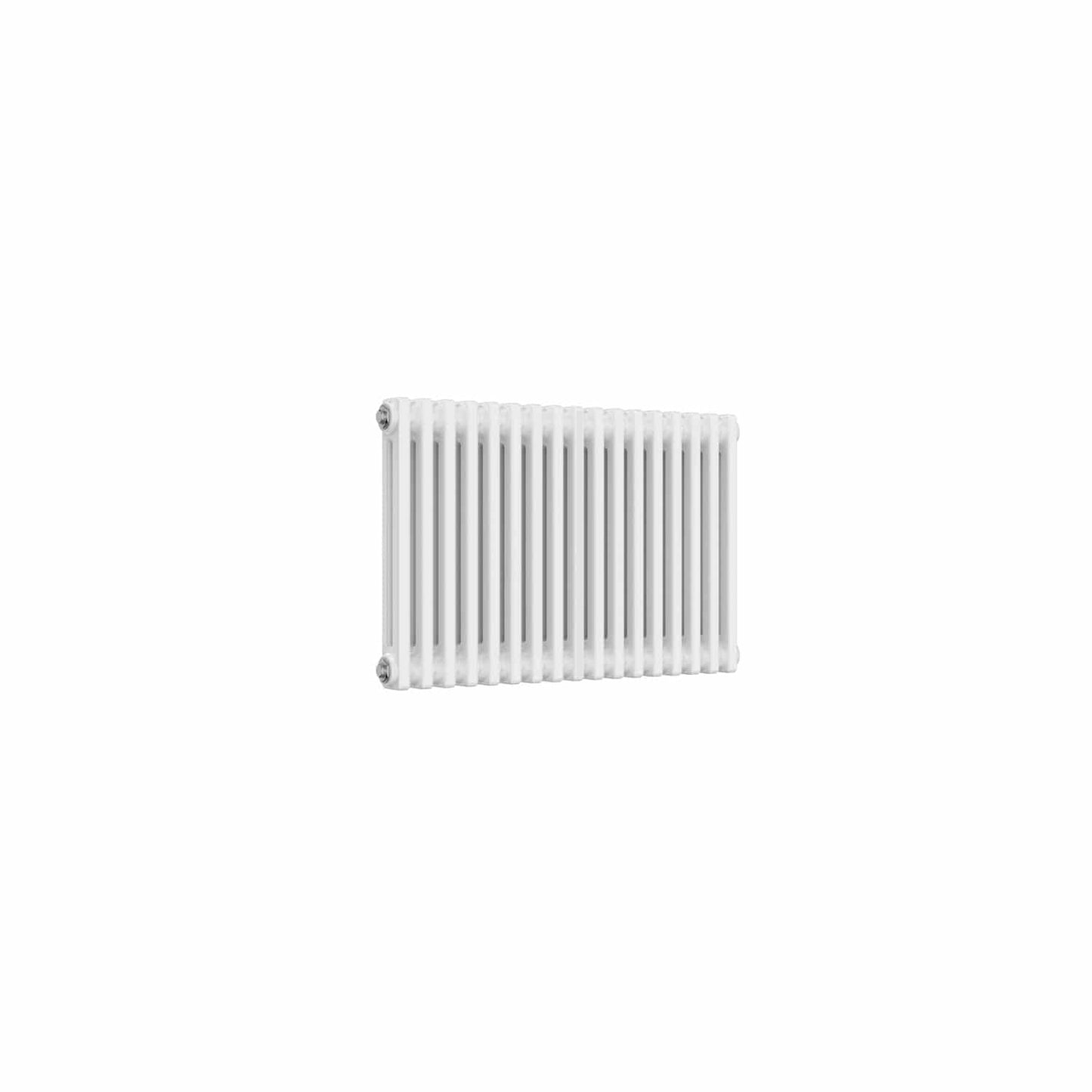

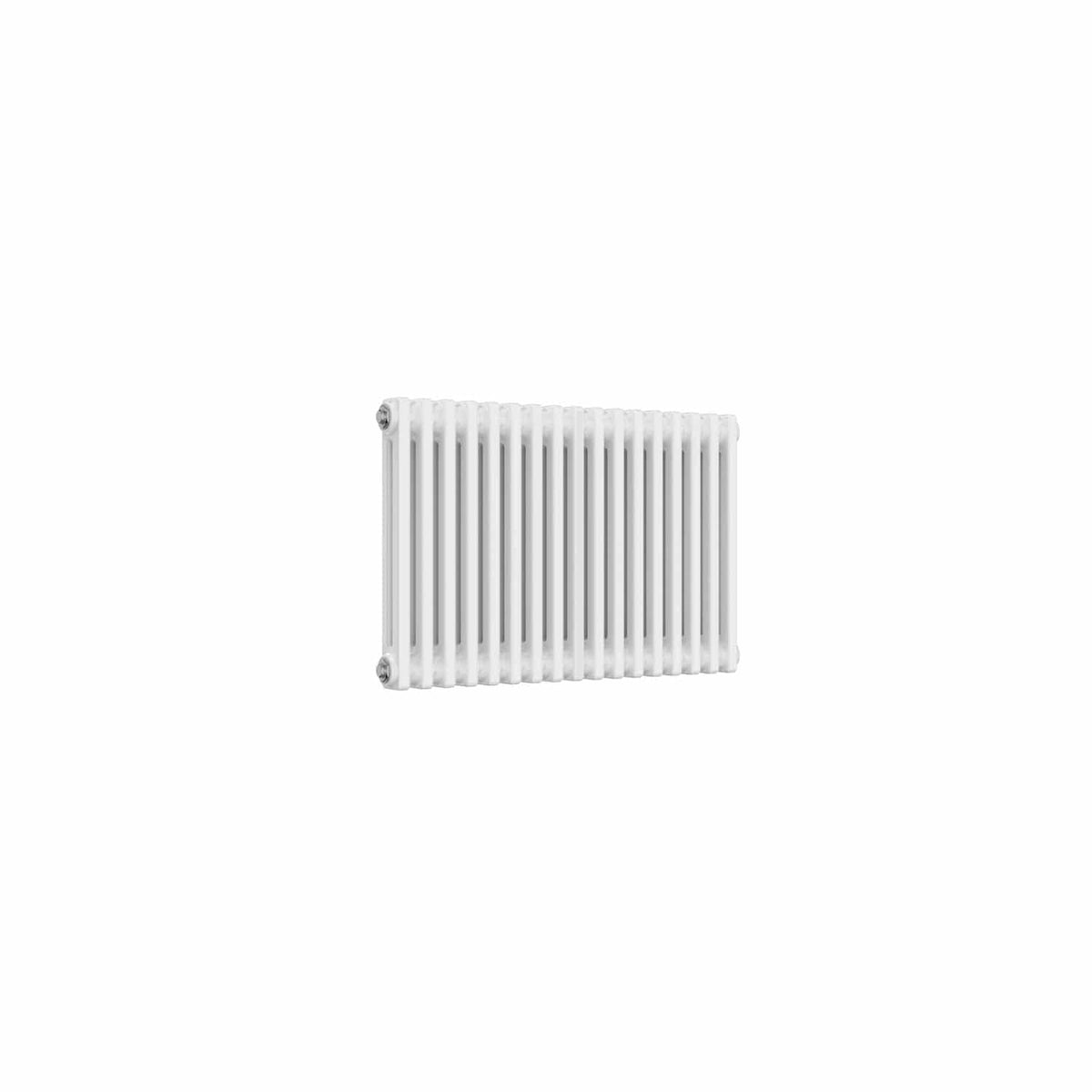

500	785	785	66	98	C/E/D	3223	945
500	1010	1010	66	98	C/E/D	4300	1261

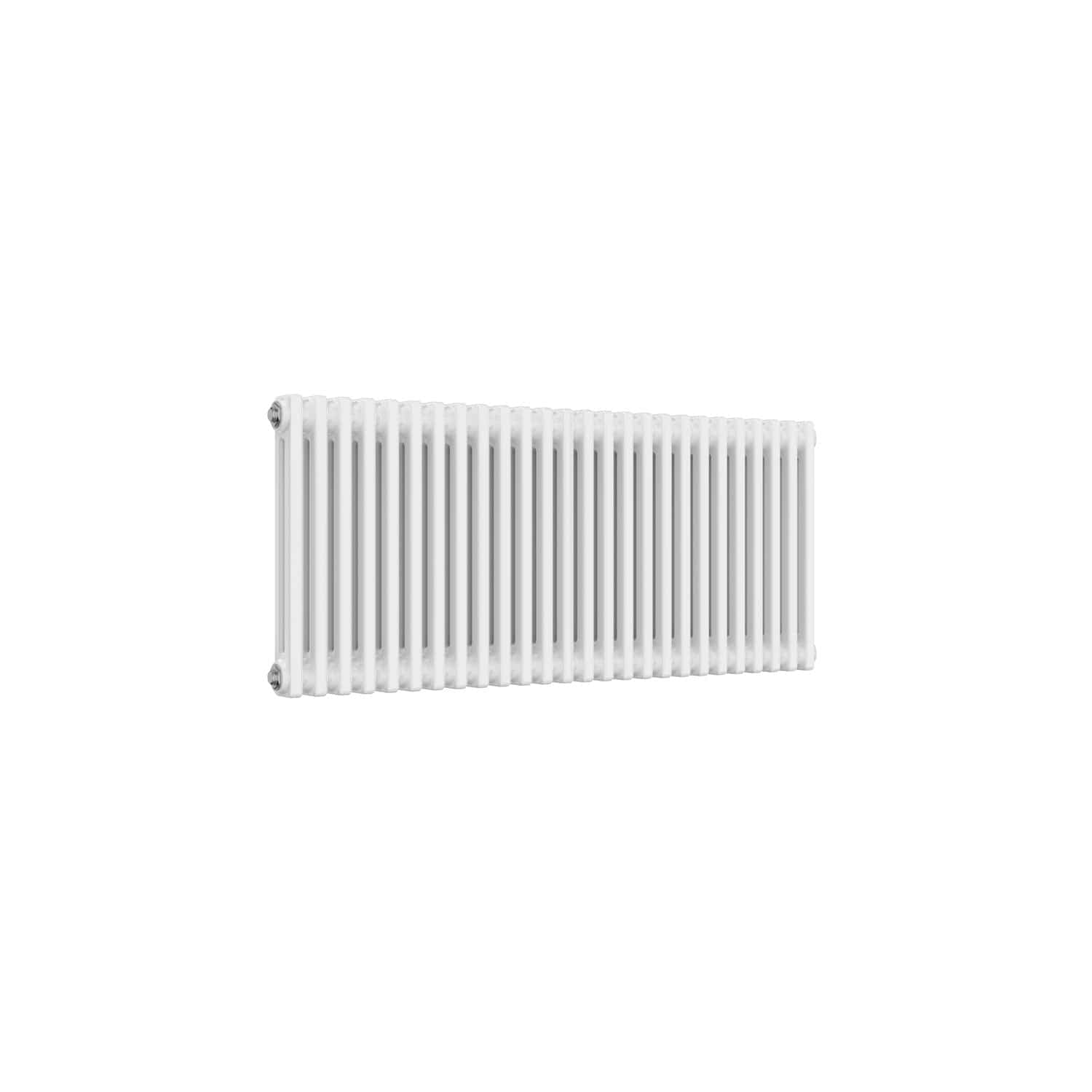

500	1190	1190	66	98	C/E/D	5081	1490

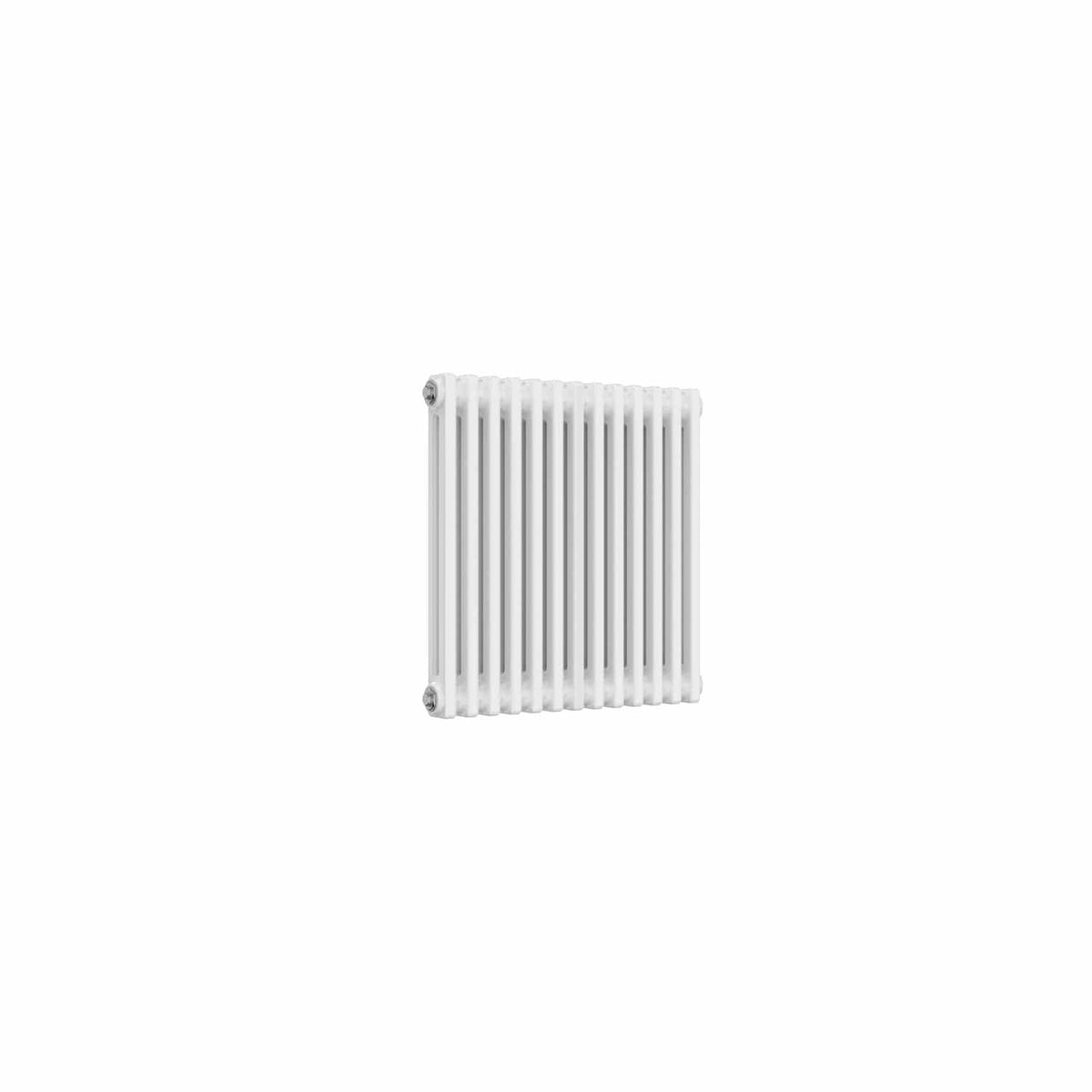

600	605	605	66	98	C/E/D	3022	886
600	785	785	66	98	C/E/D	3951	1159

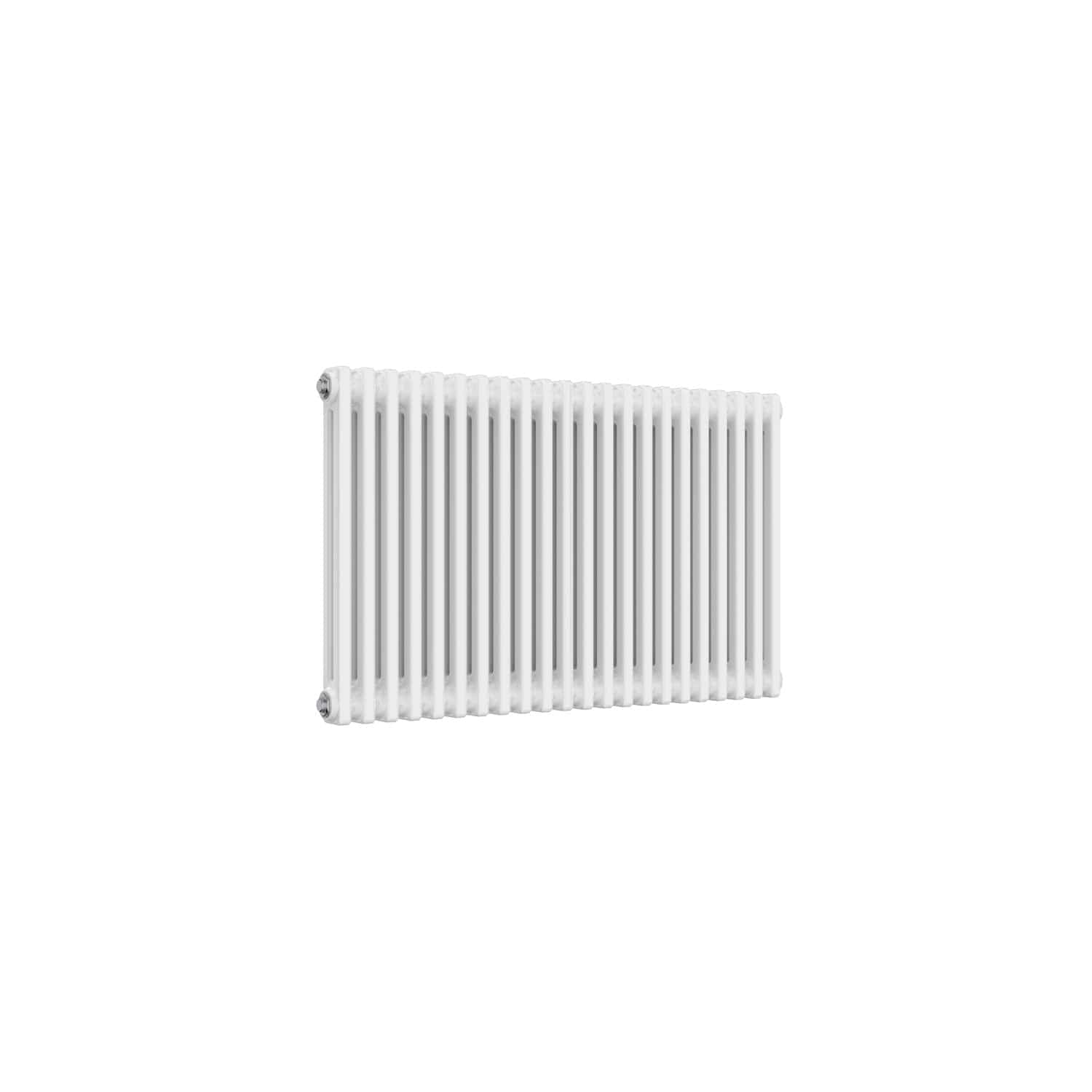

600	1010	1010	66	98	C/E/D	5112	1499

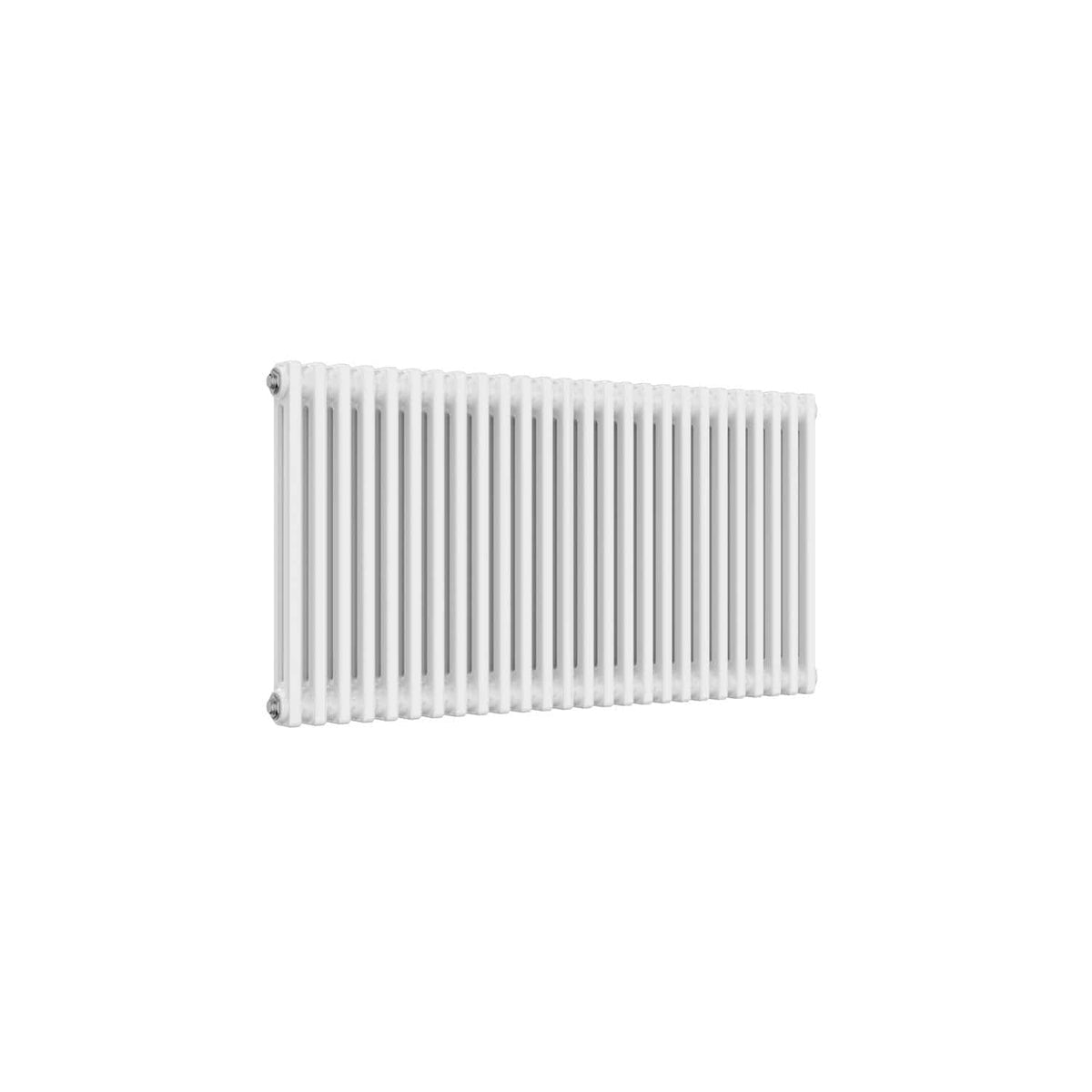

600	1190	1190	66	98	C/E/D	6043	1772

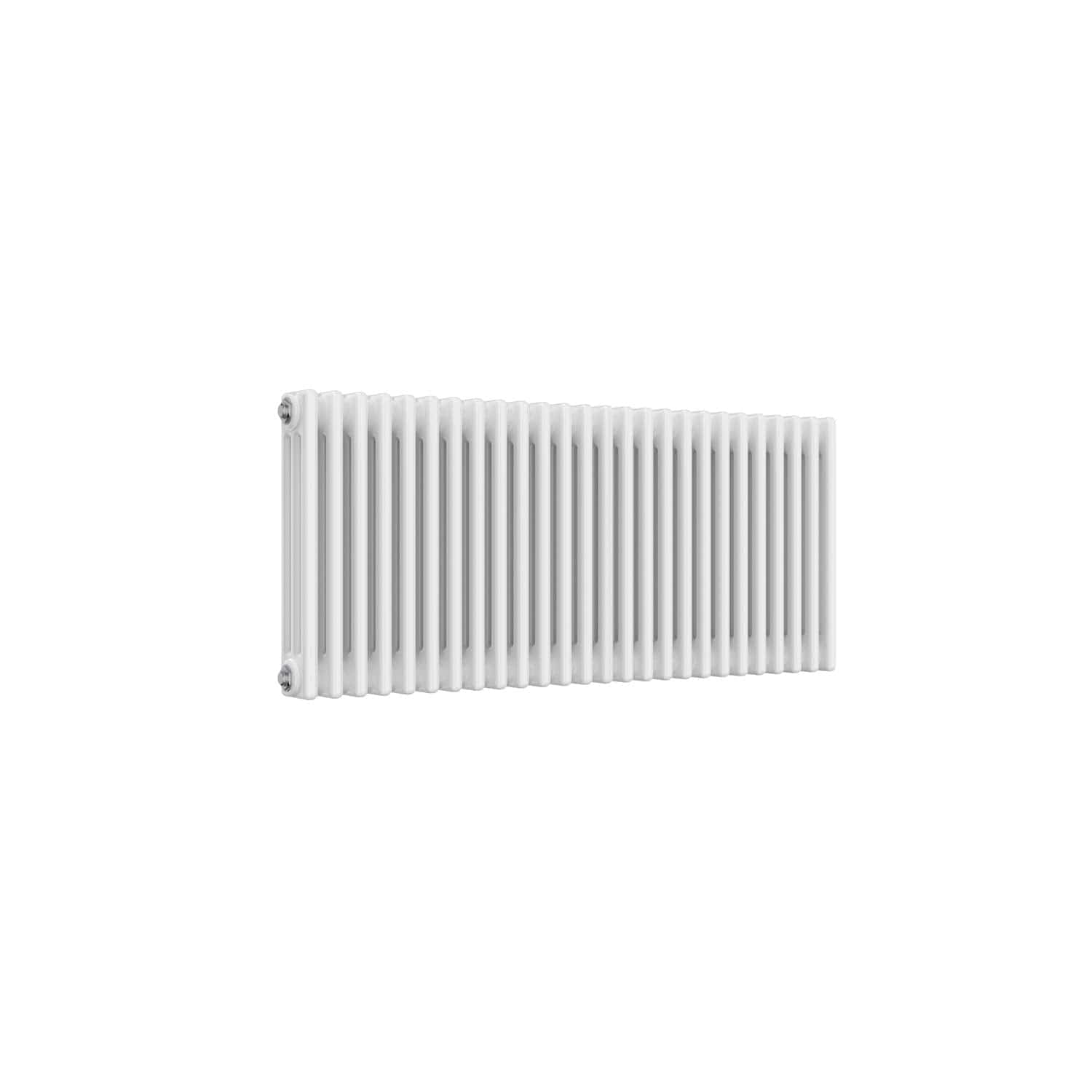

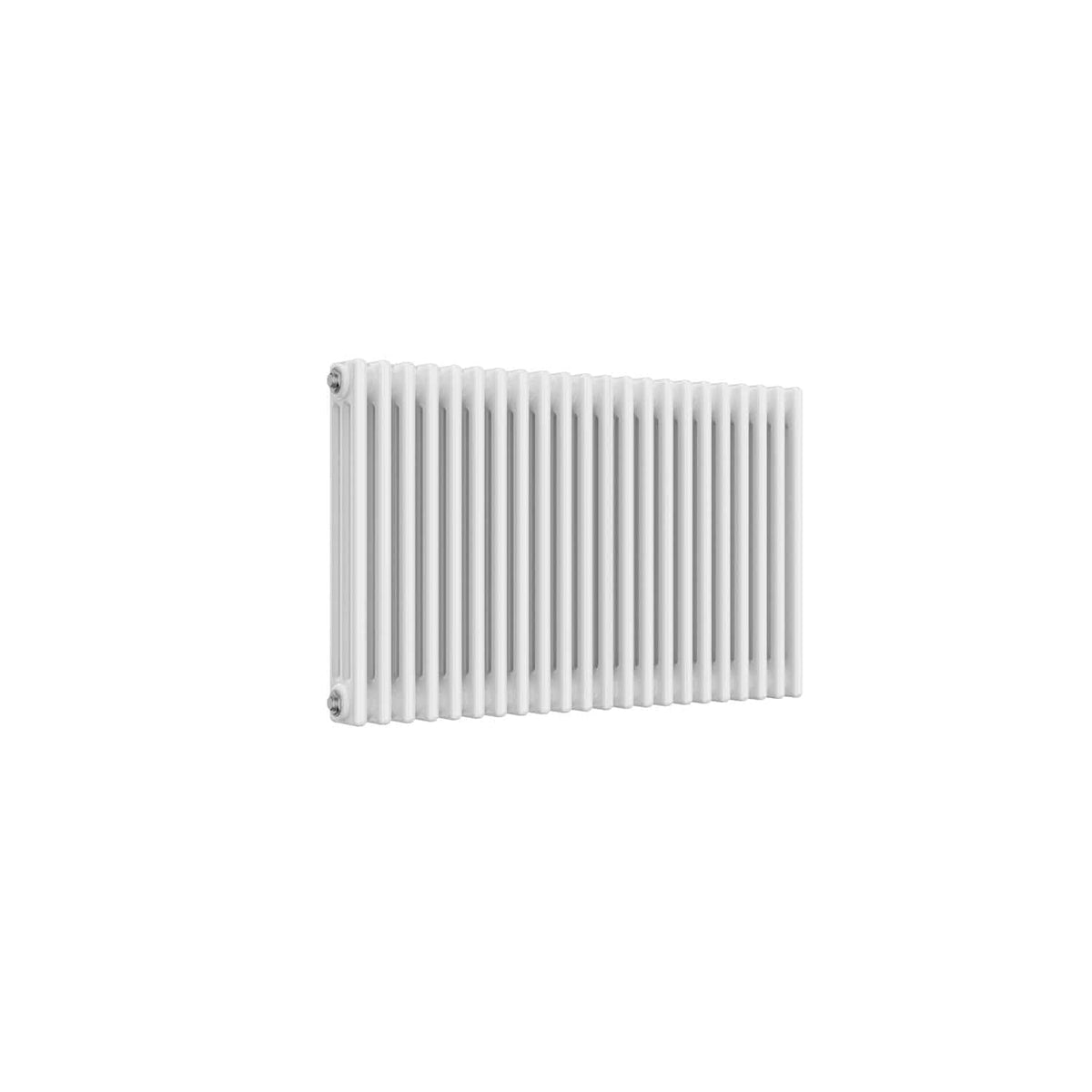

3 Column

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts

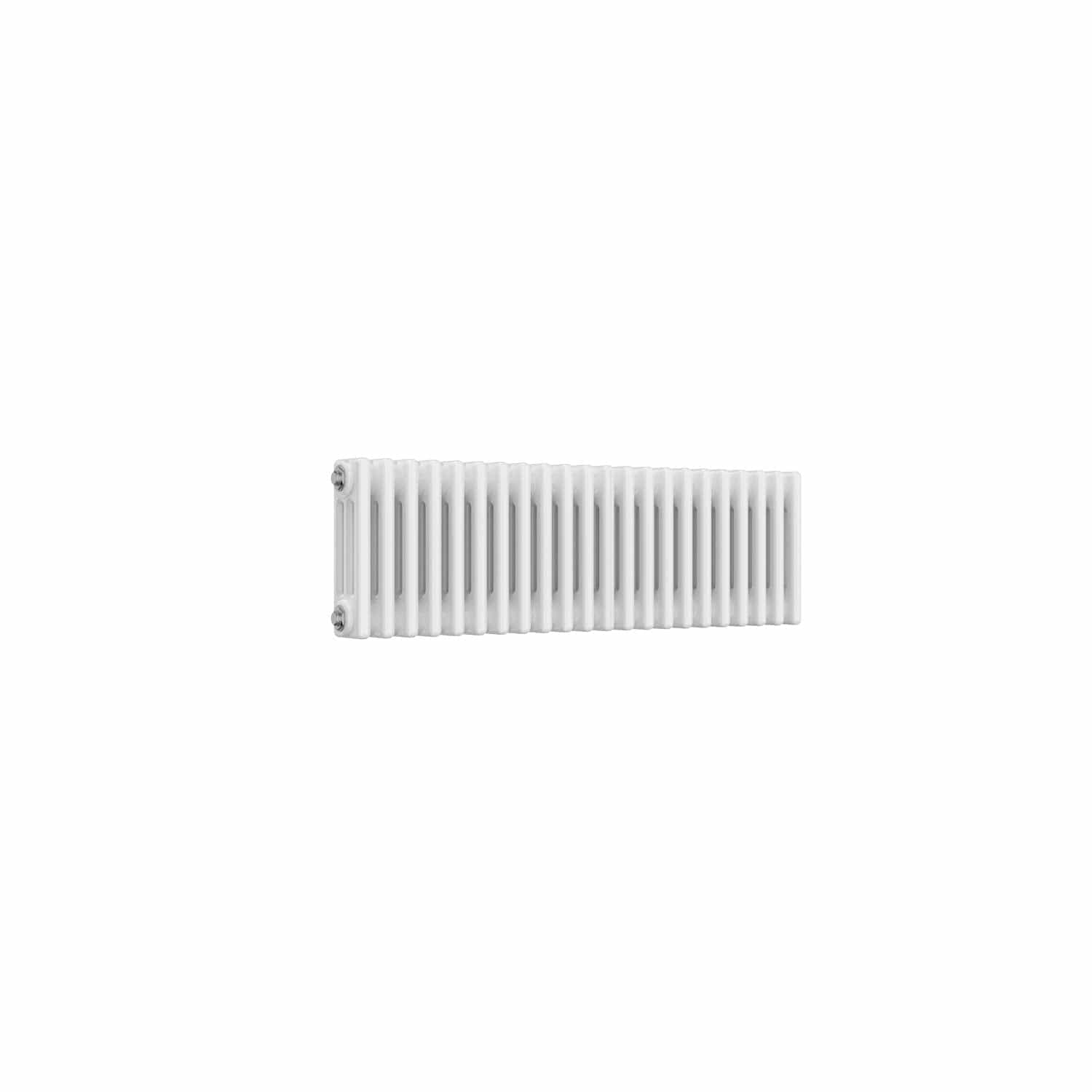

300	1010	1010	68	118	C/E/D	3603	1057

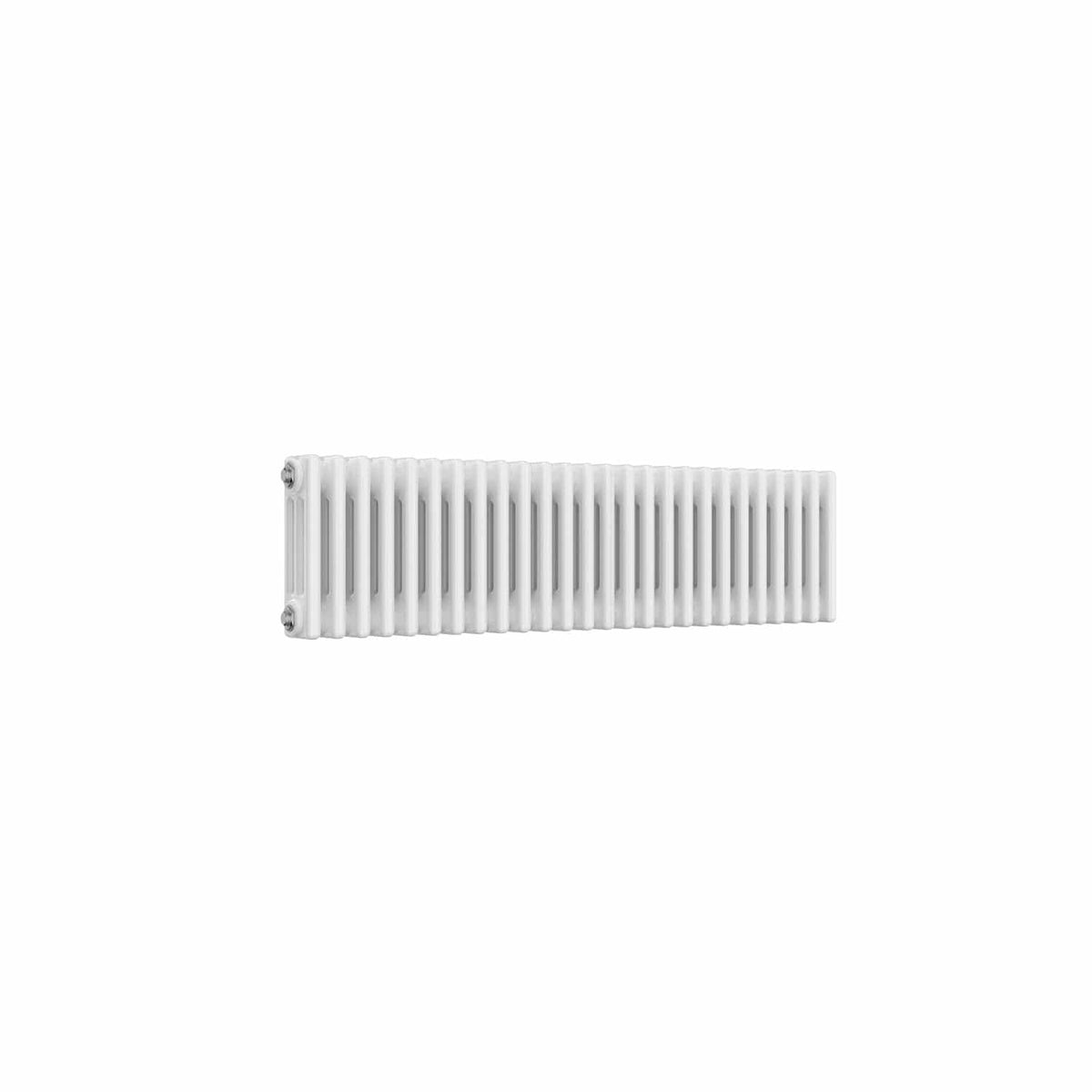

300	1190	1190	68	118	C/E/D	4257	1248

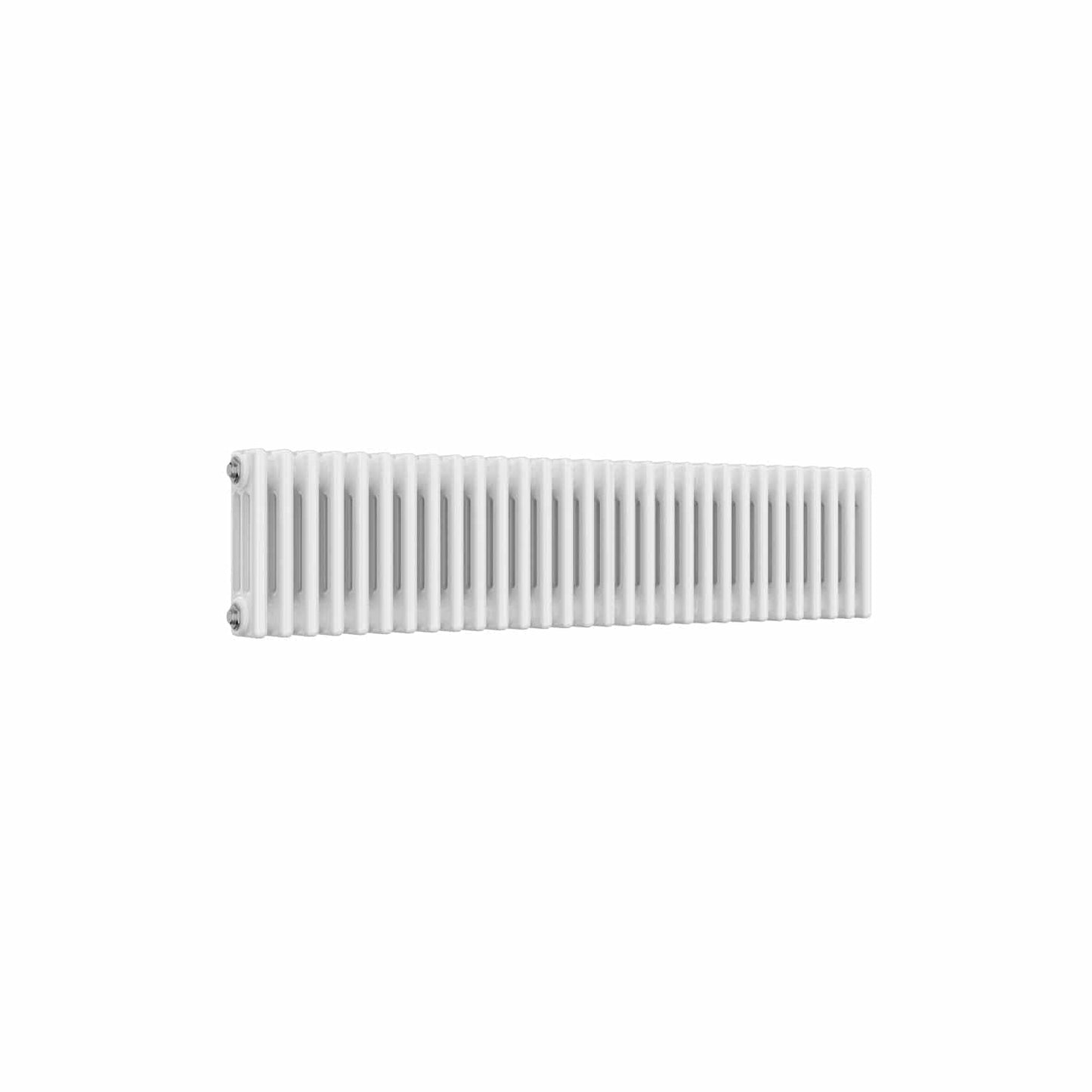

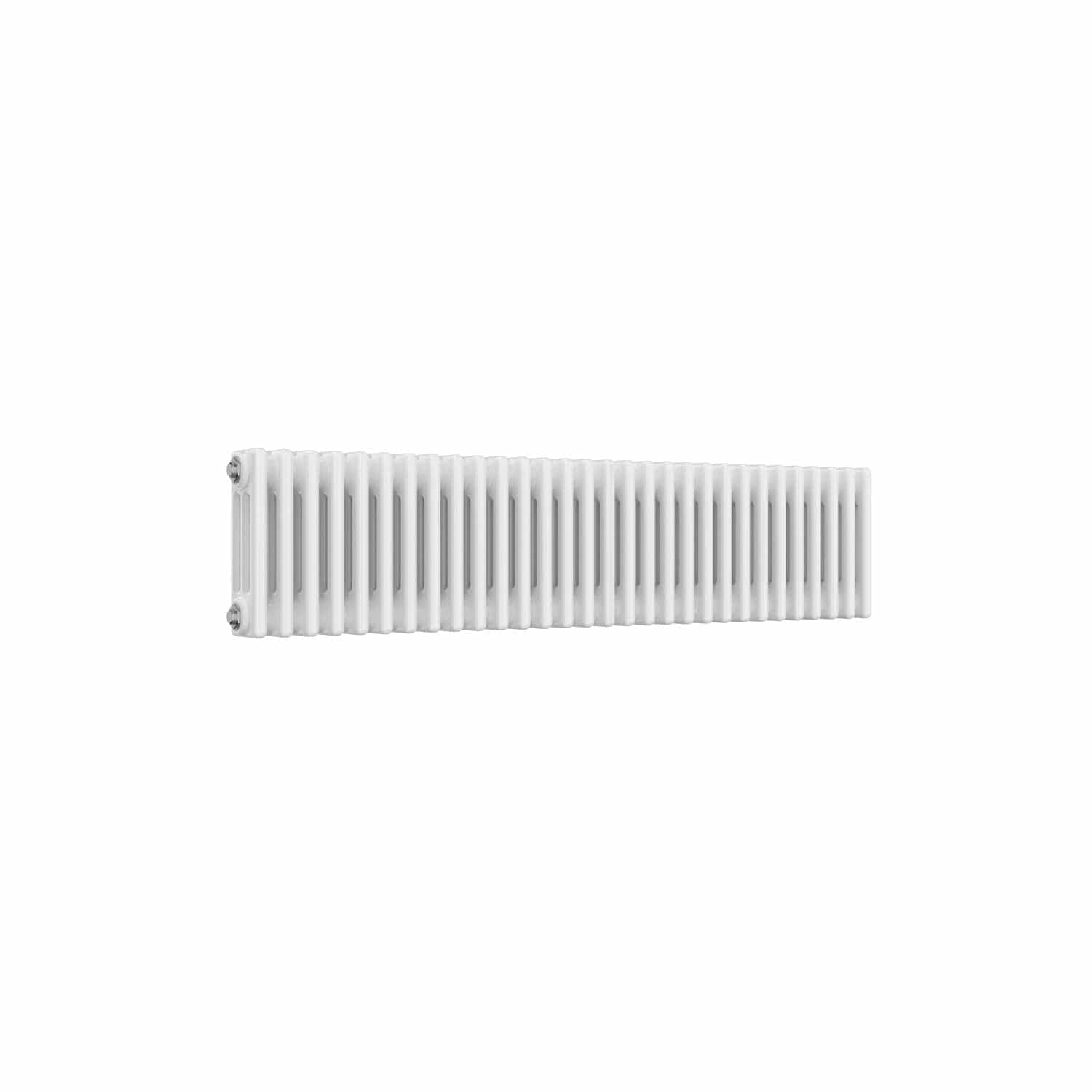

300	1370	1370	68	118	C/E/D	4912	1440

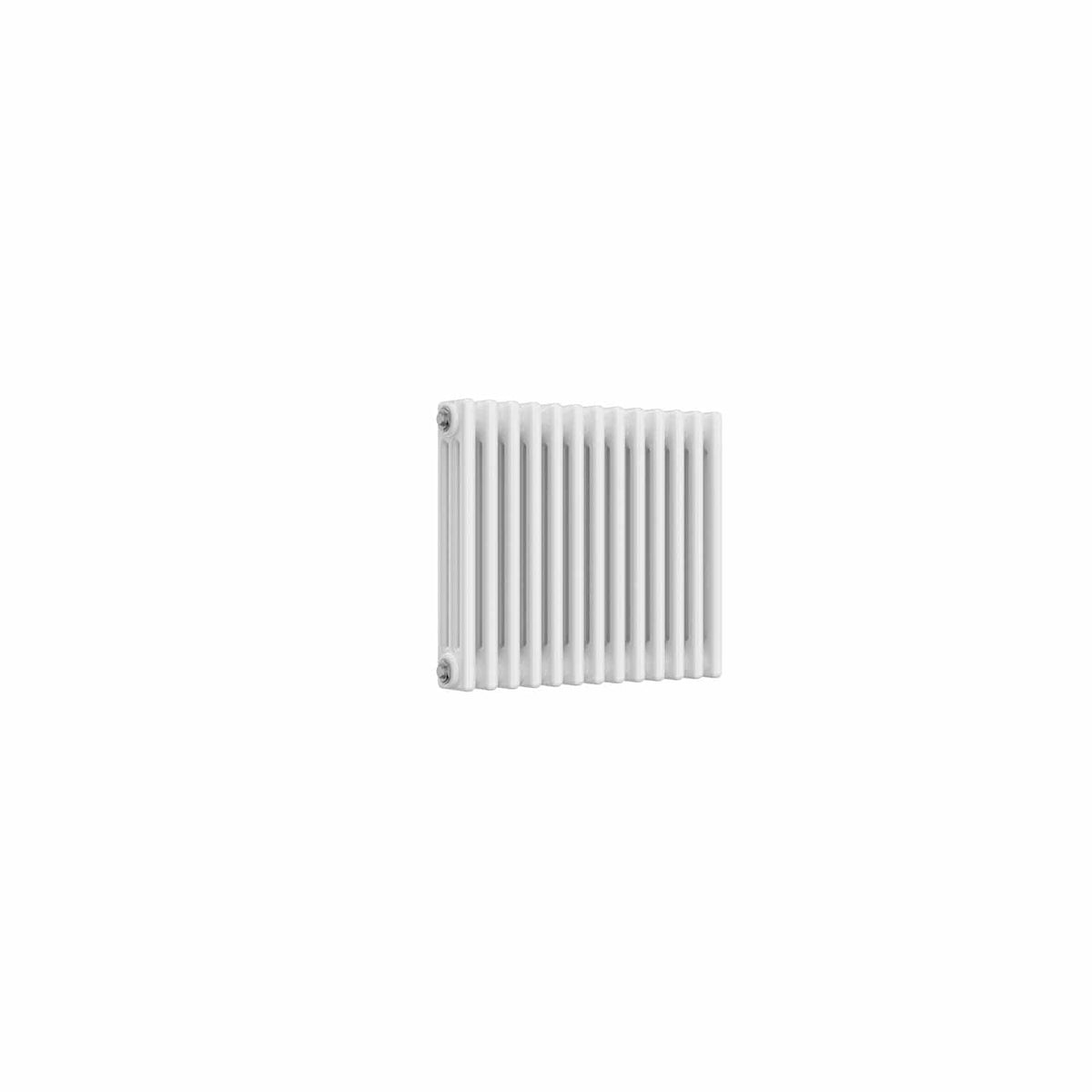

500	605	605	68	118	C/E/D	3501	1027
500	785	785	68	118	C/E/D	4579	1343
500	1010	1010	68	118	C/E/D	4926	1445

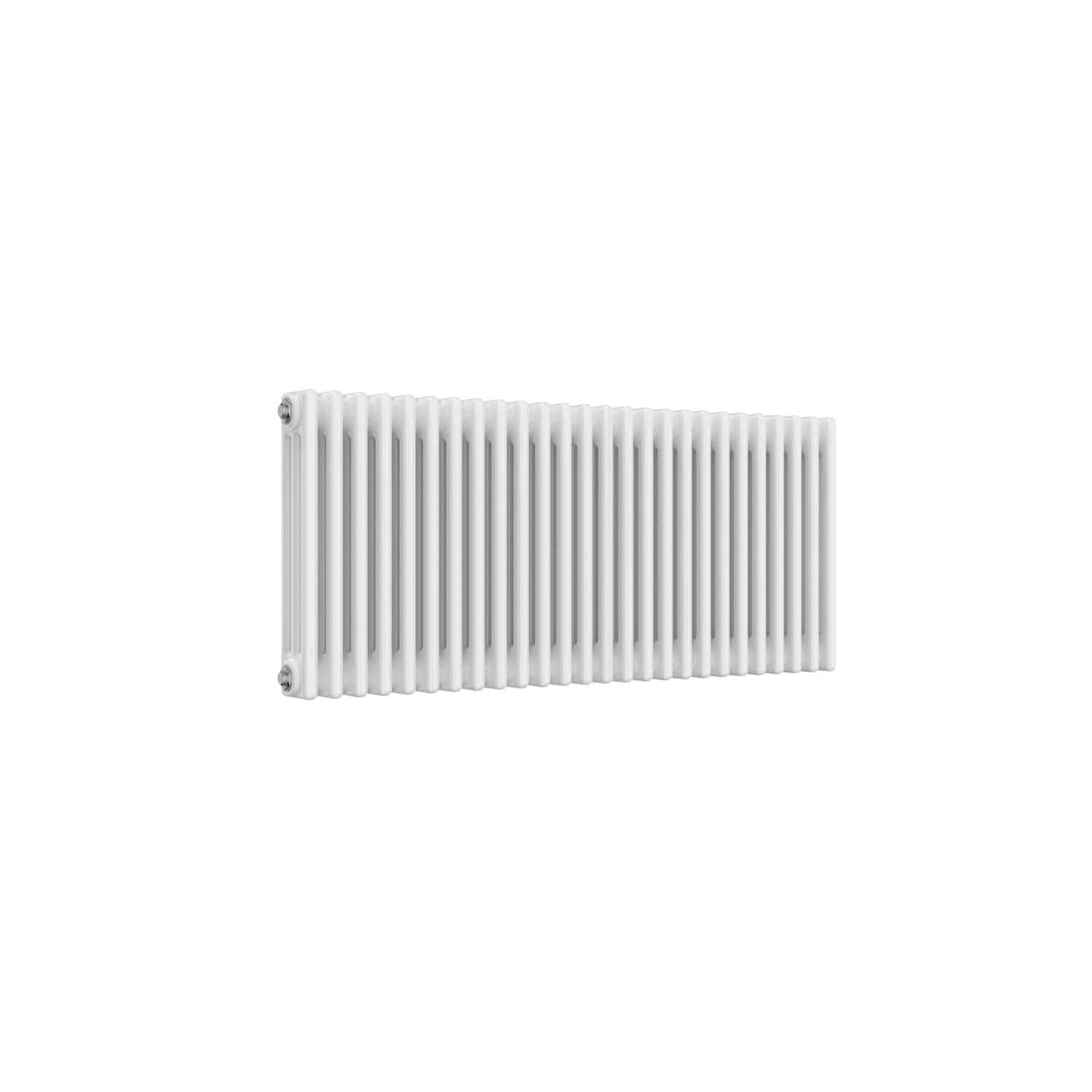

500	1190	1190	68	118	C/E/D	7005	2054

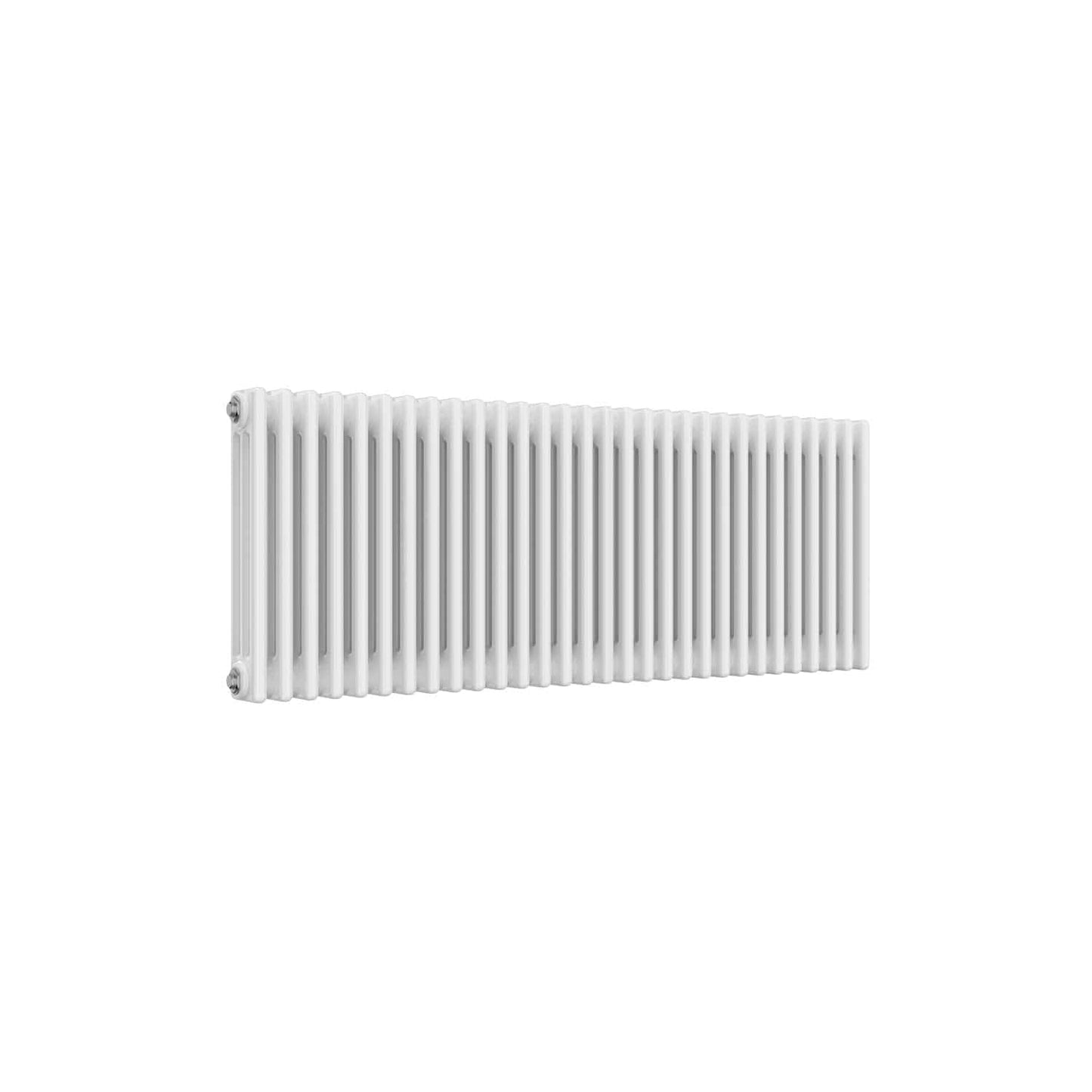

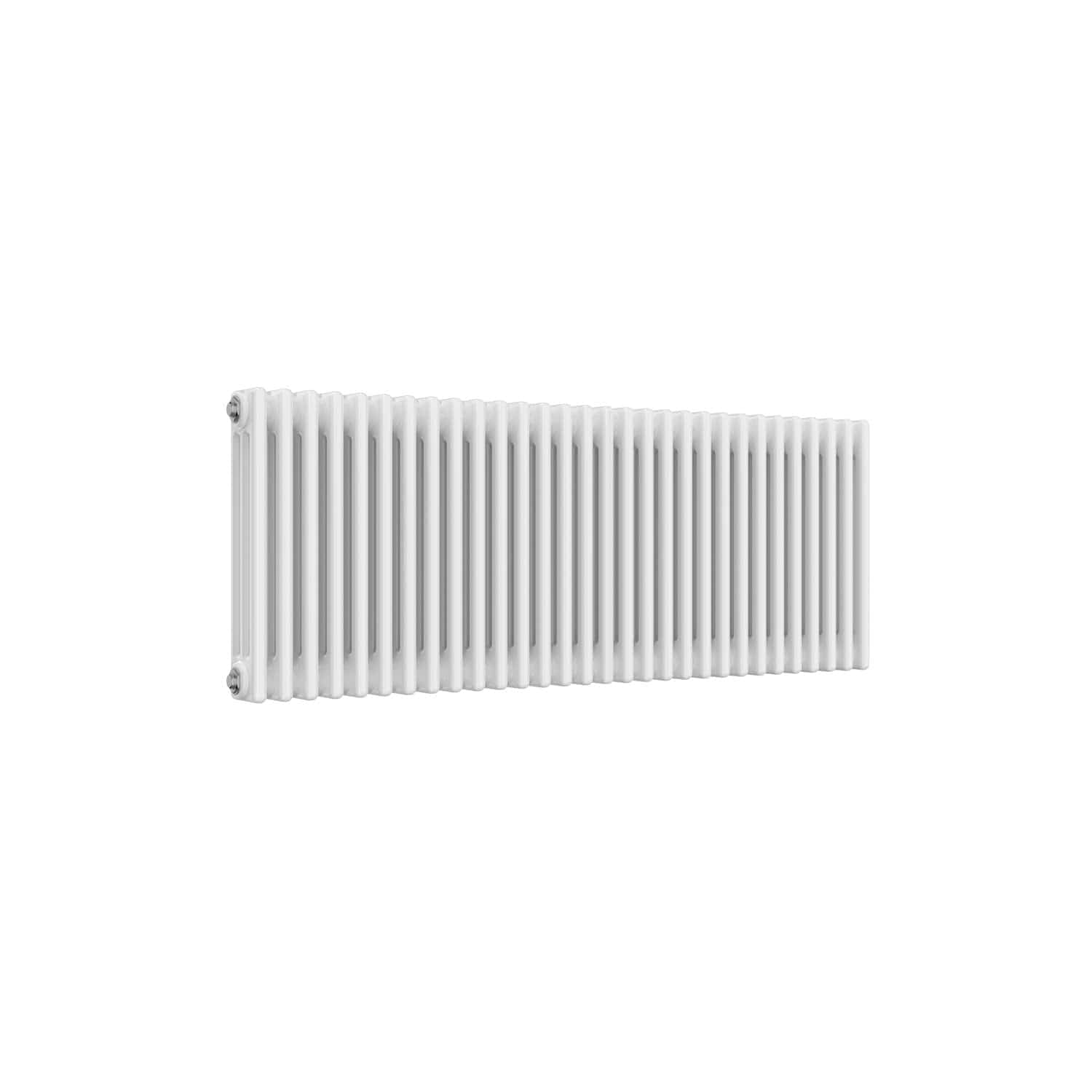

500	1370	1370	68	118	C	8081	2370

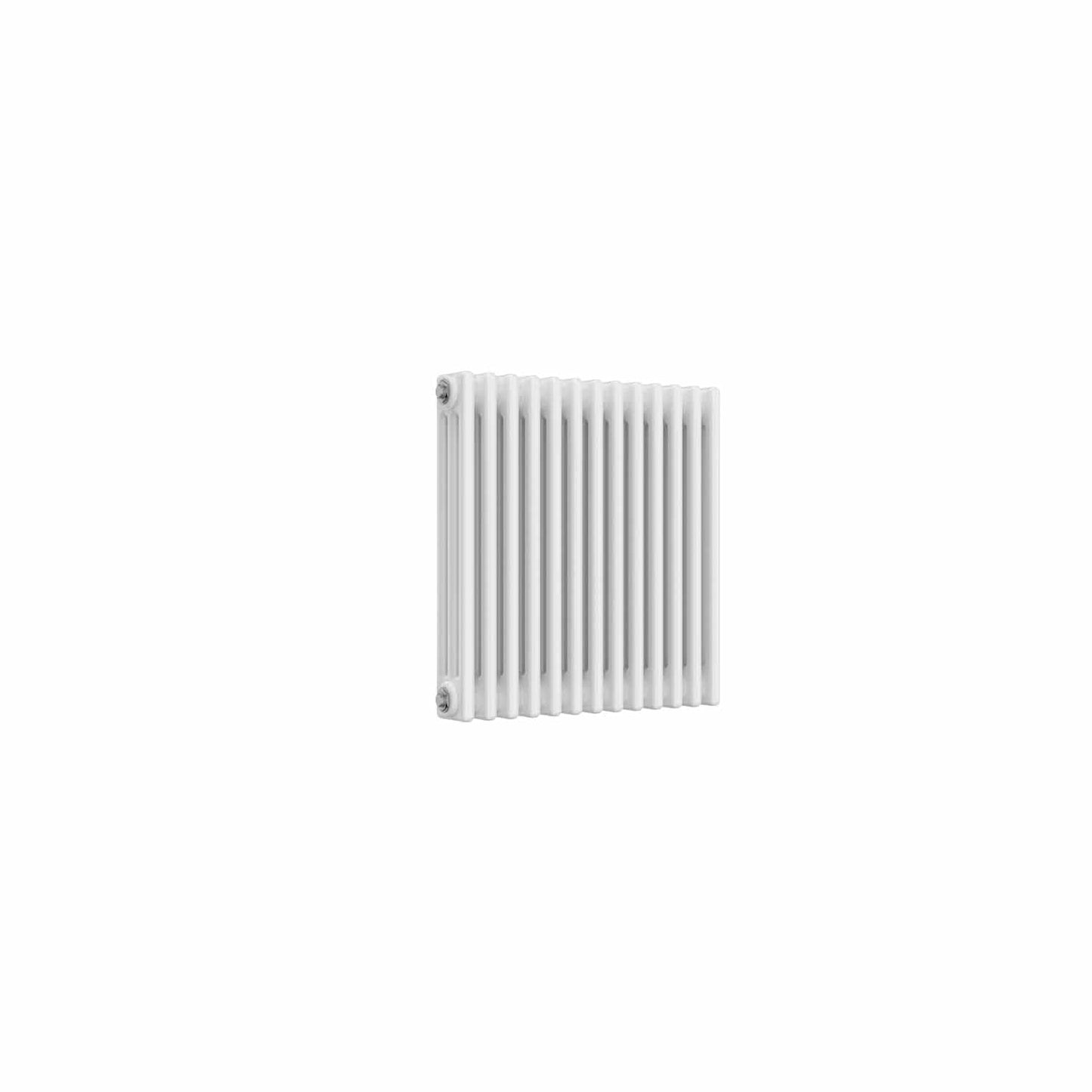

600	605	605	68	118	C/E/D	4136	1213

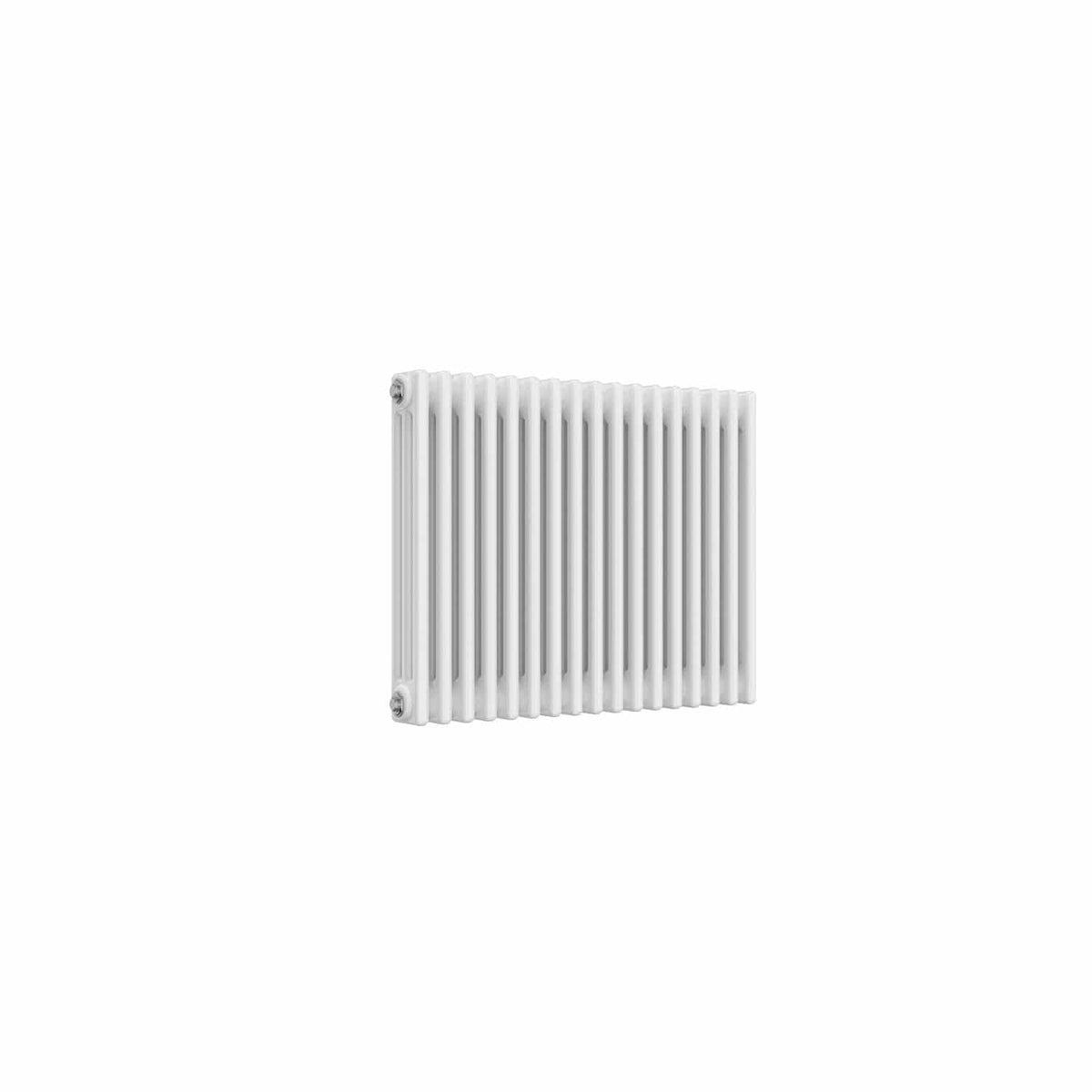

600	785	785	68	118	C/E/D	5387	1580
600	1010	1010	68	118	C/E/D	6972	2045

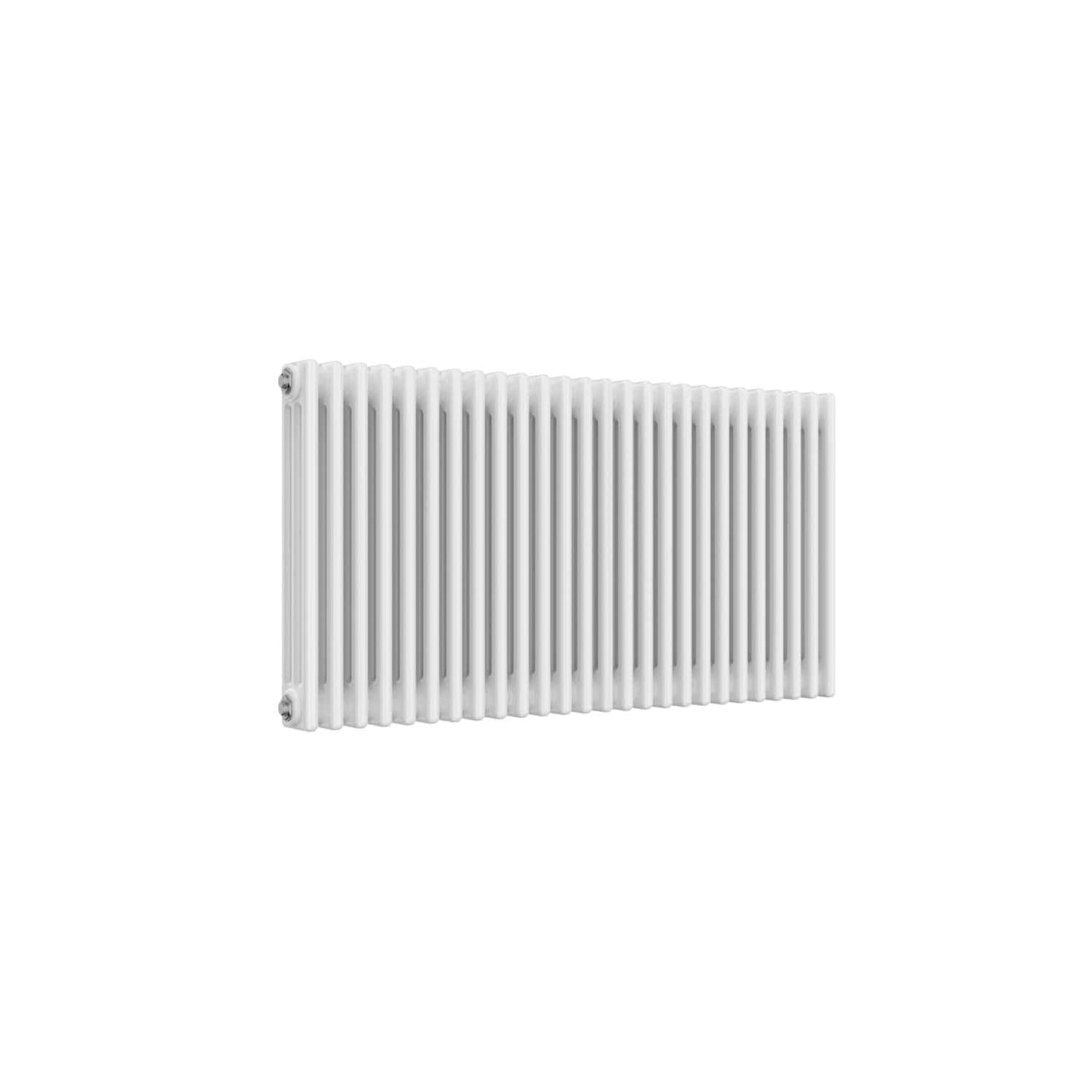

600	1190	1190	68	118	C/E/D	8241	2417

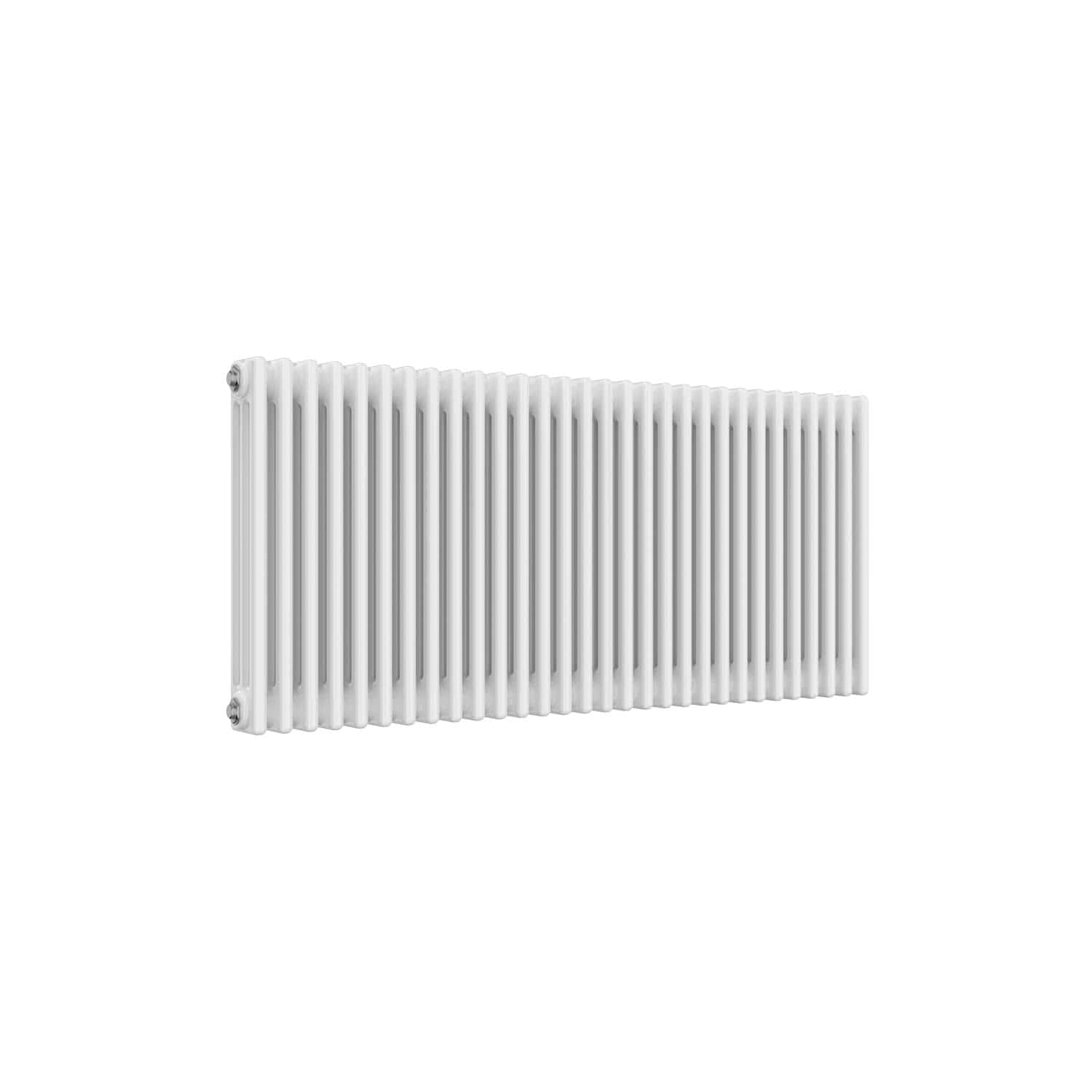

600	1370	1370	68	118	C	9508	2788

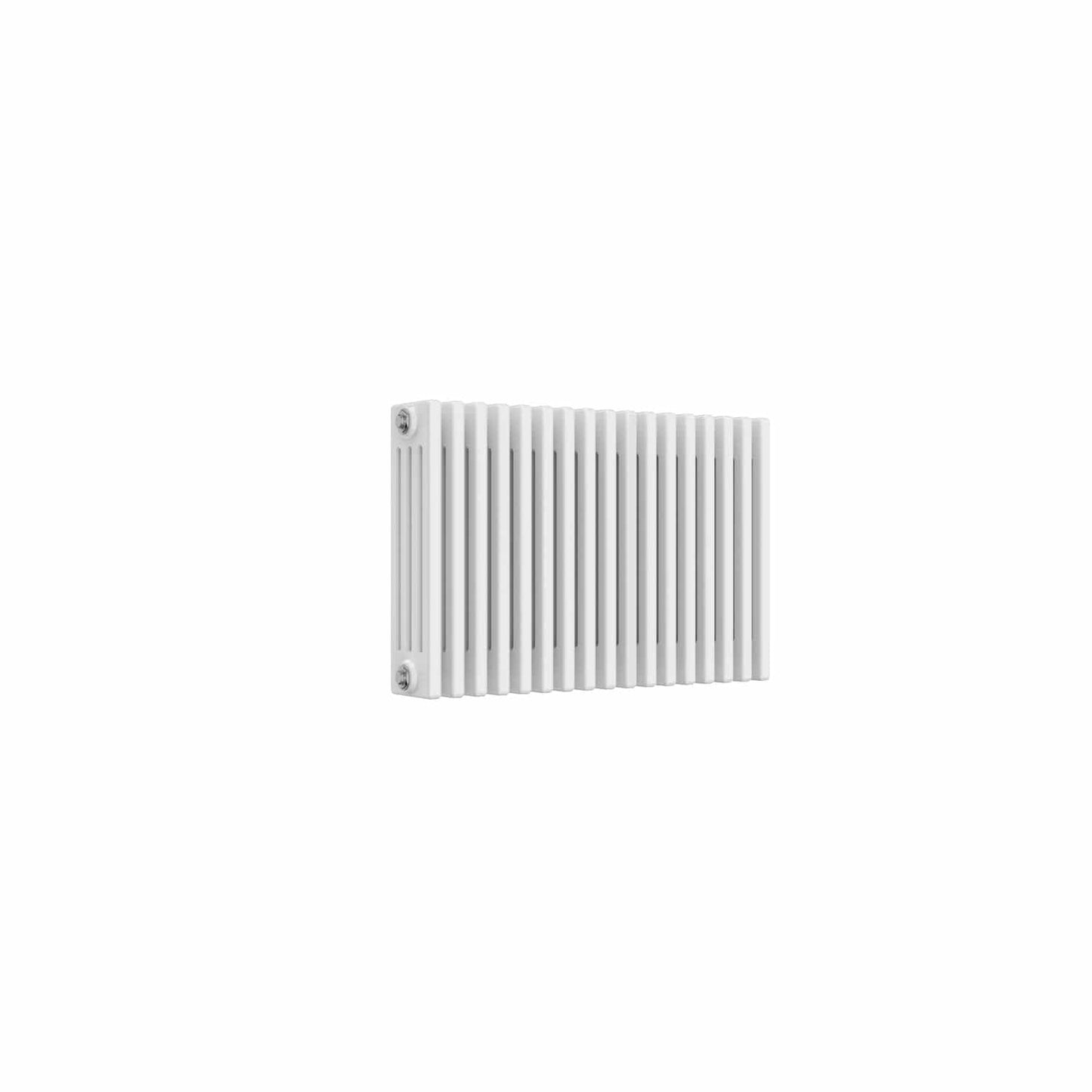

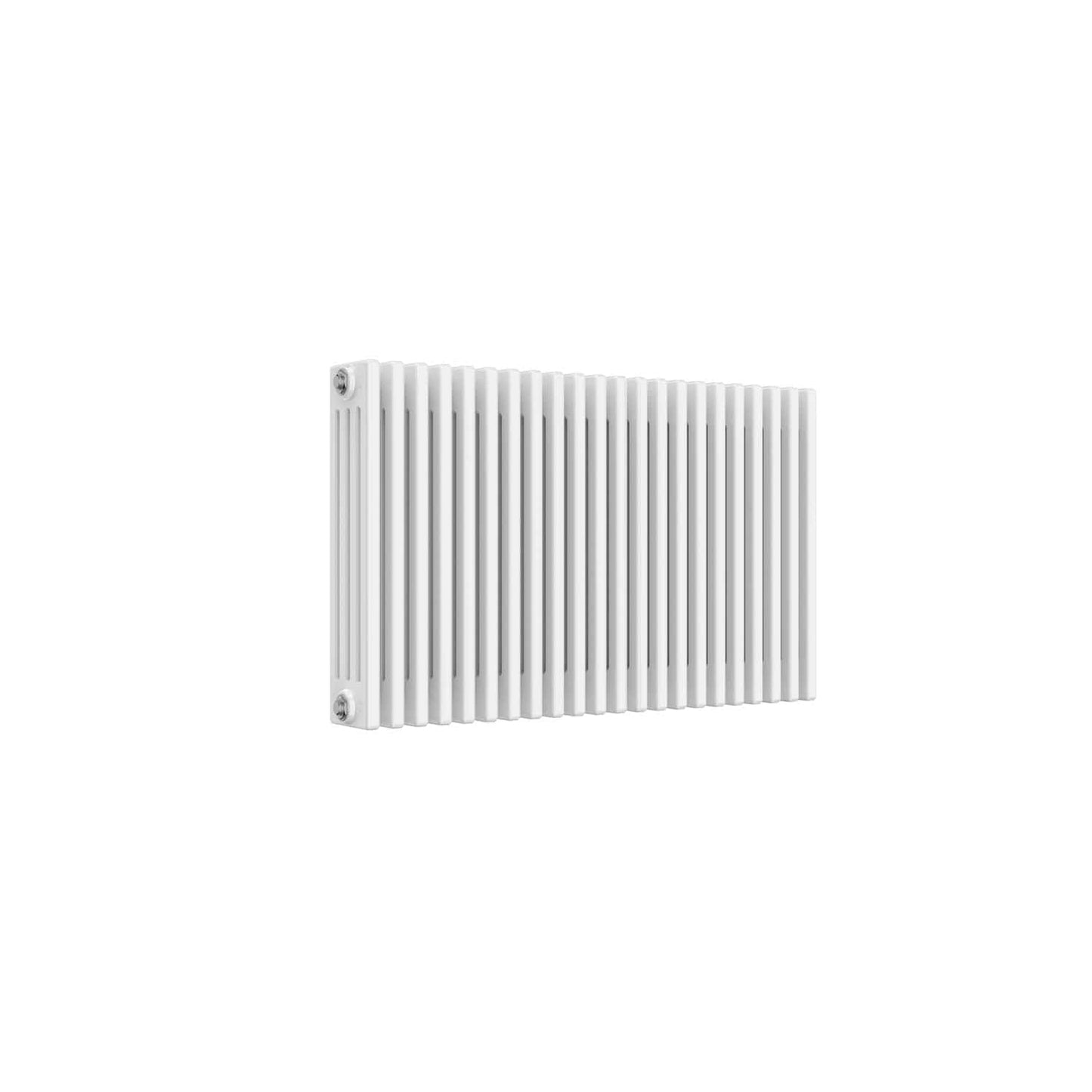

4 Column

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts

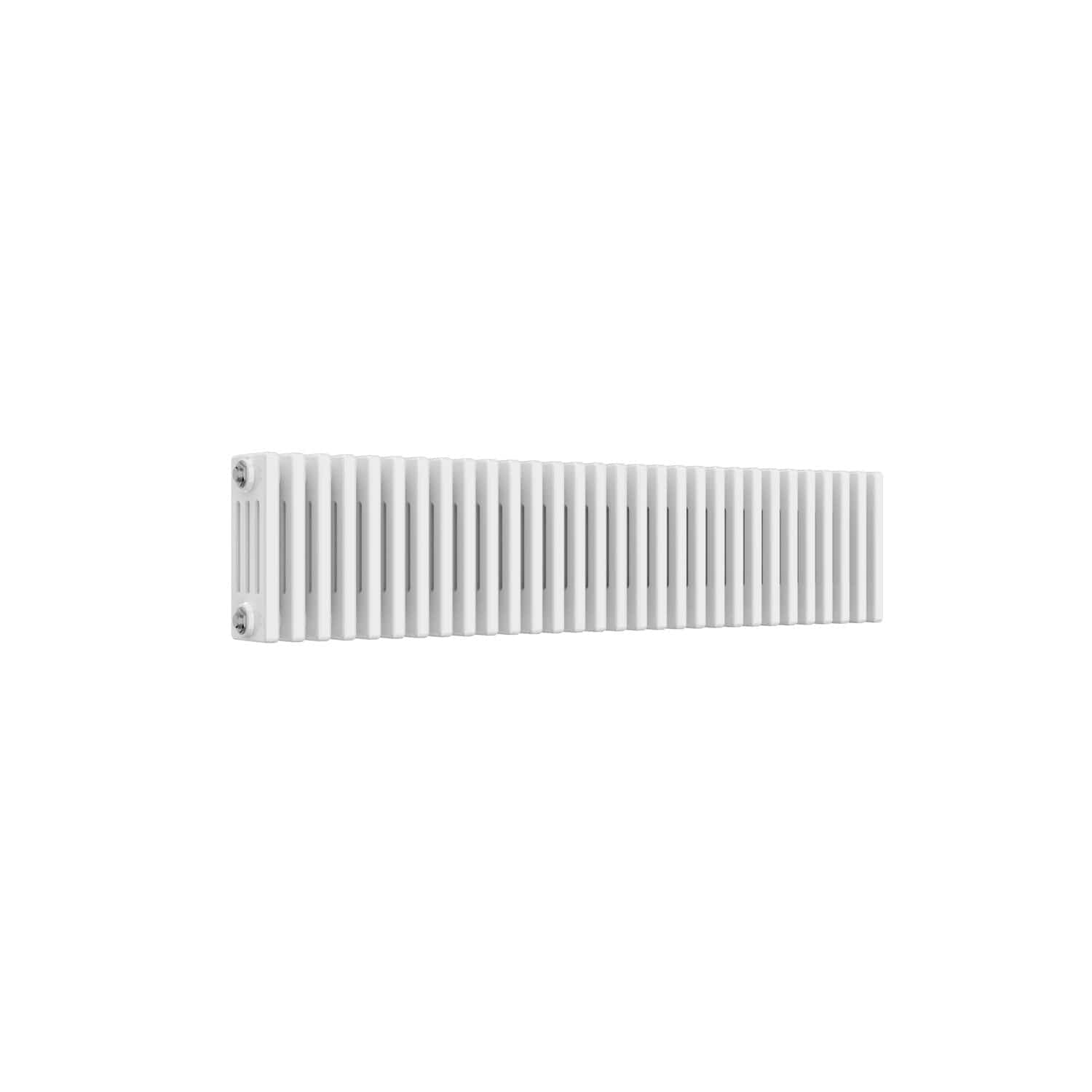

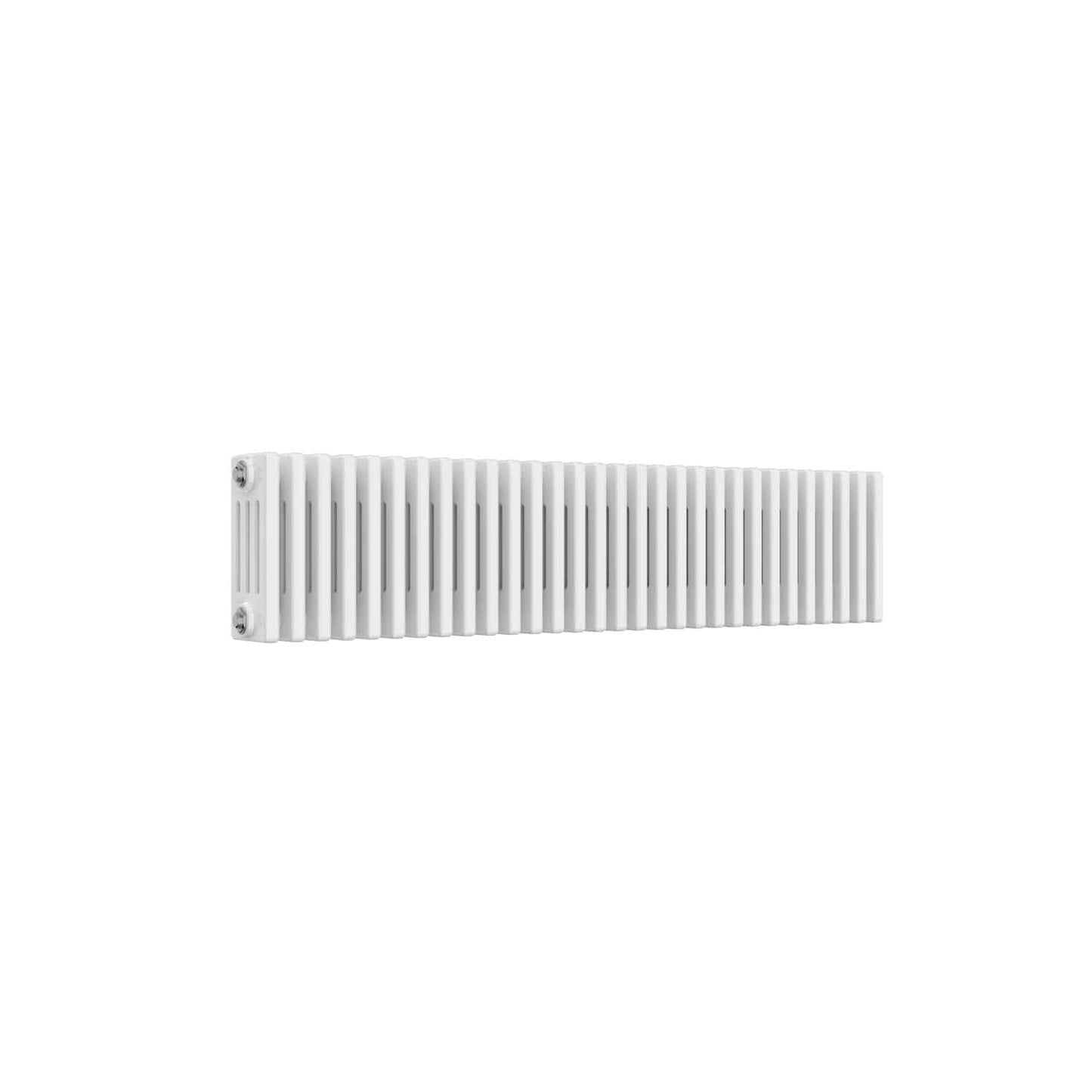

300	1010	1010	94	163	C/E/D	4649	1363

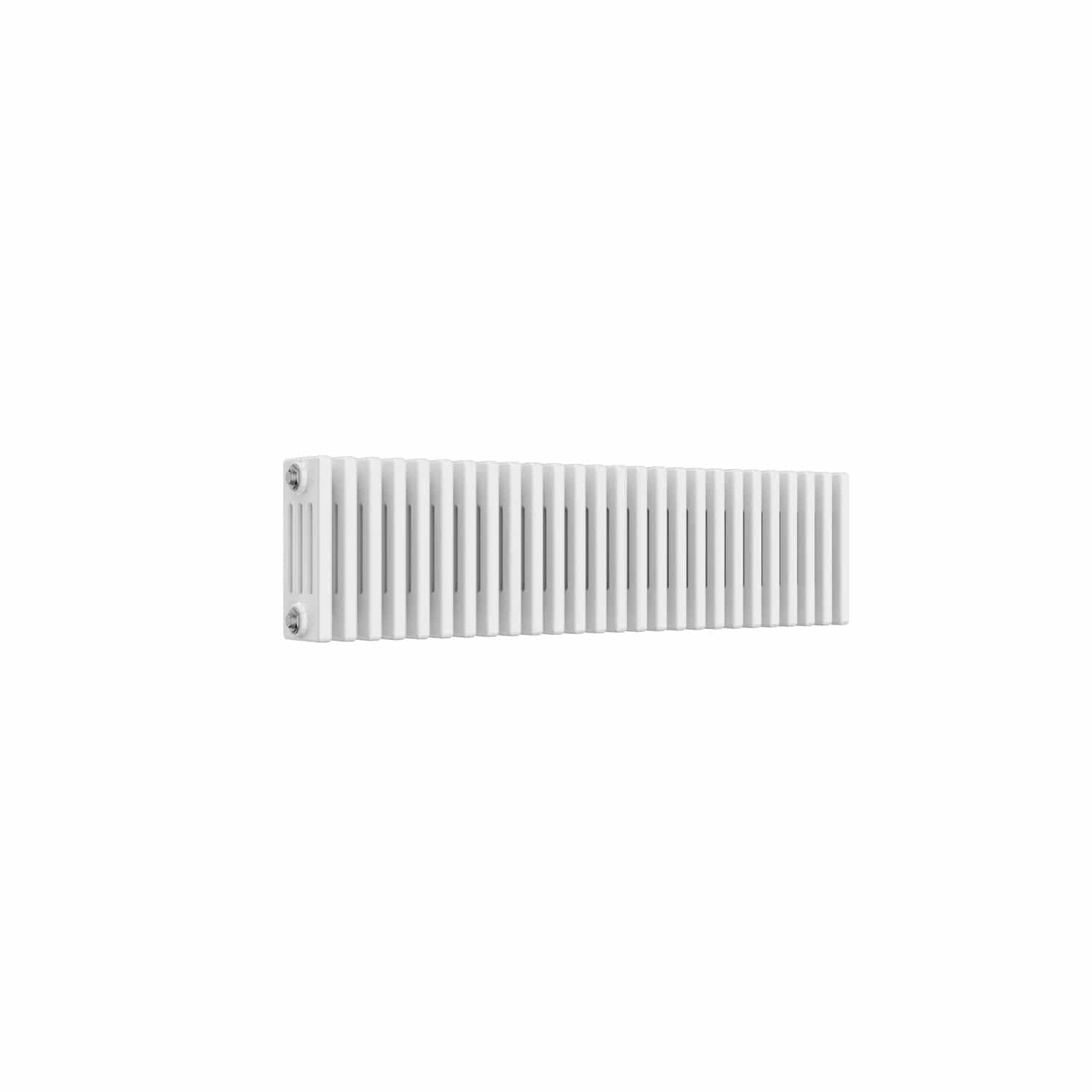

300	1190	1190	94	163	C/E/D	5493	1611

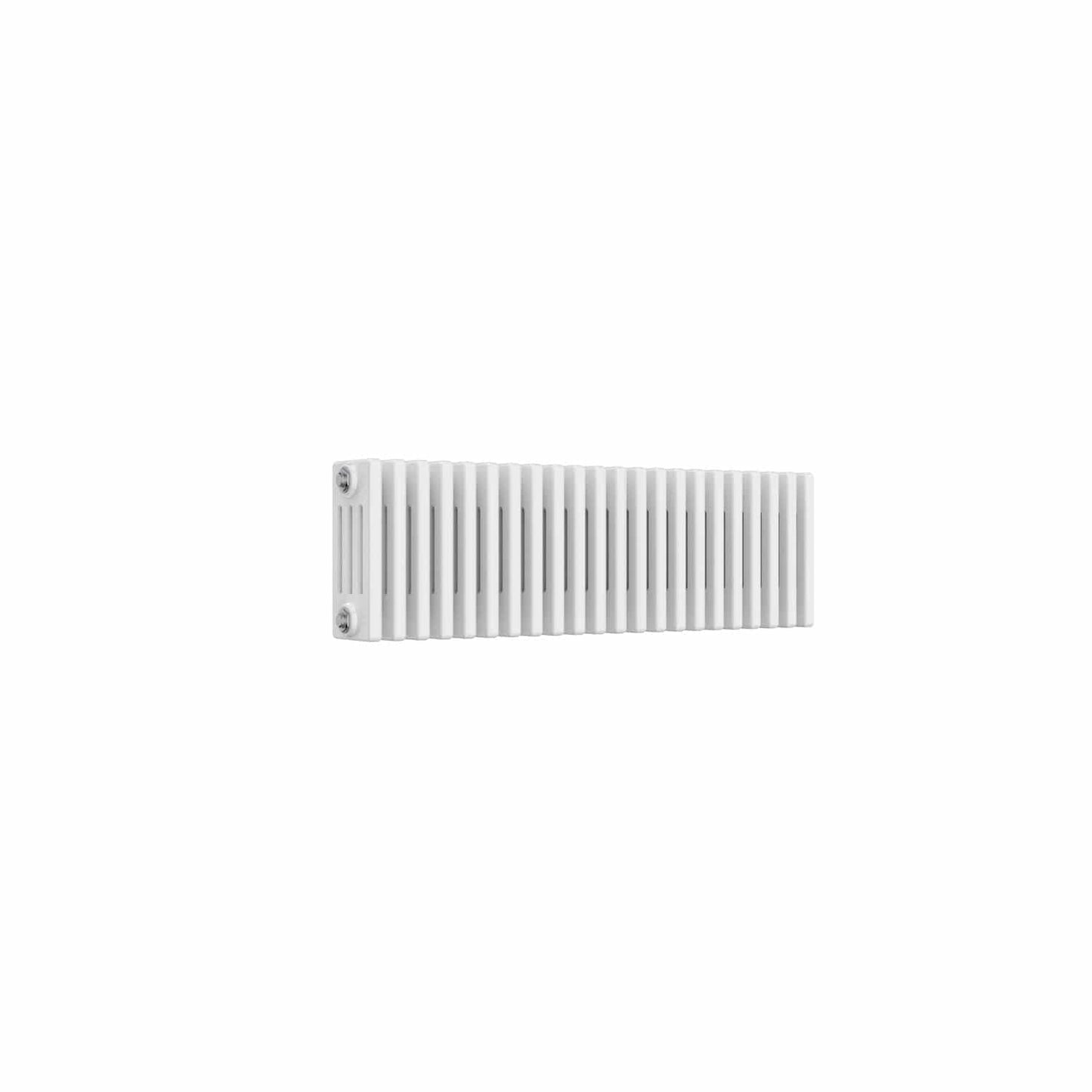

300	1370	1370	94	163	C/E/D	6339	1859

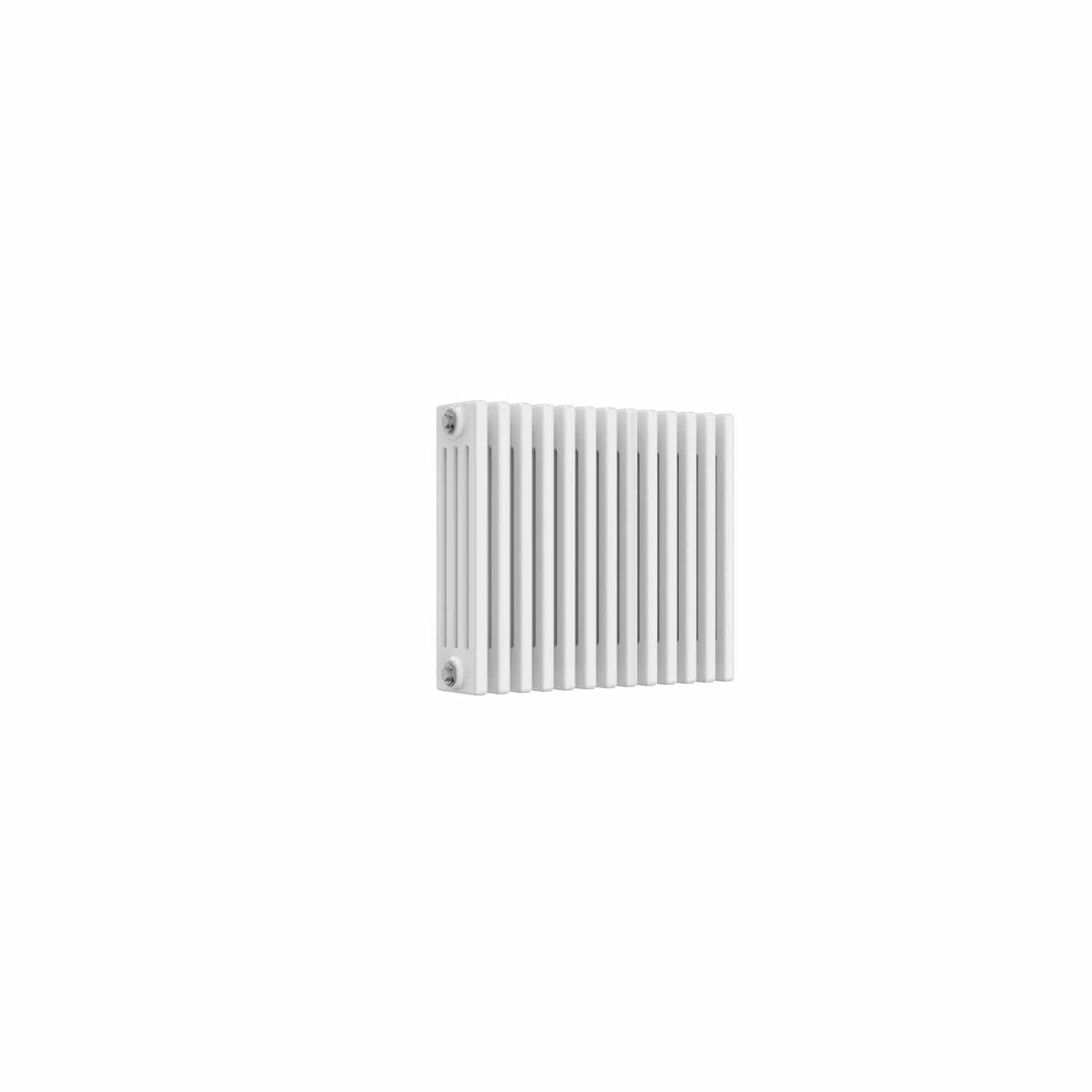

500	605	605	94	163	C/E/D	4463	1309
500	785	785	94	163	C/E/D	5837	1712
500	1010	1010	94	163	C/E/D	7553	2215

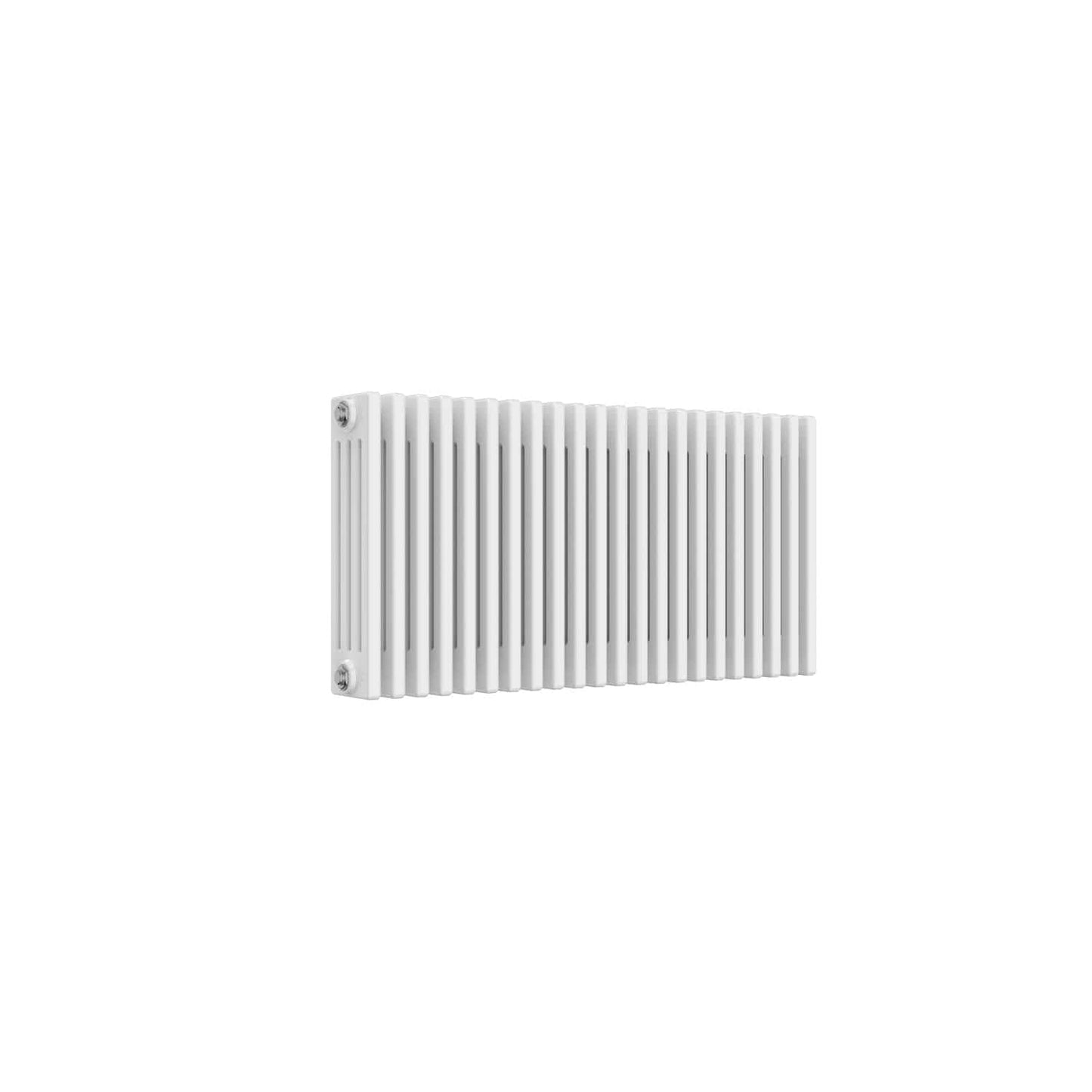

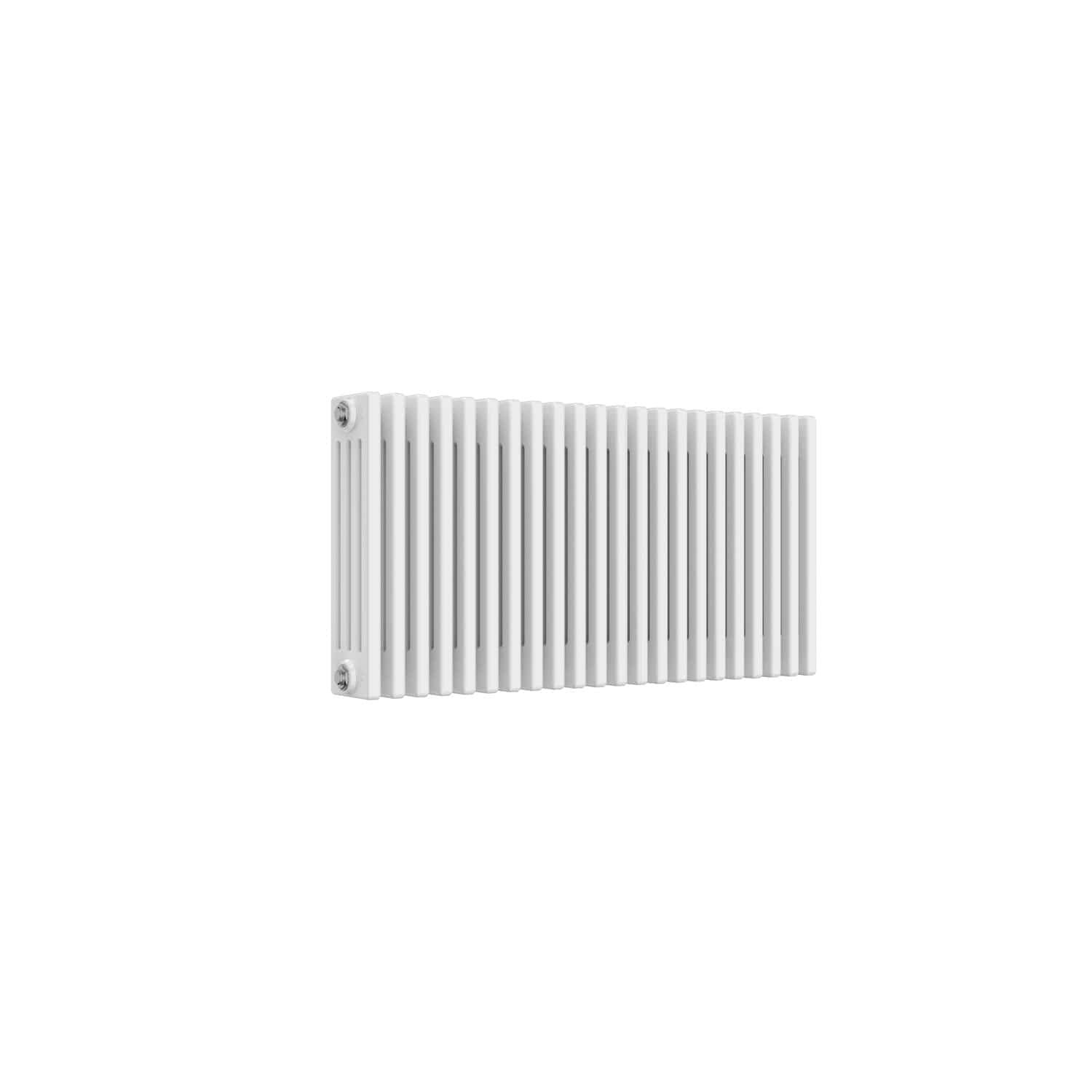

500	1190	1190	94	163	C	8927	2618

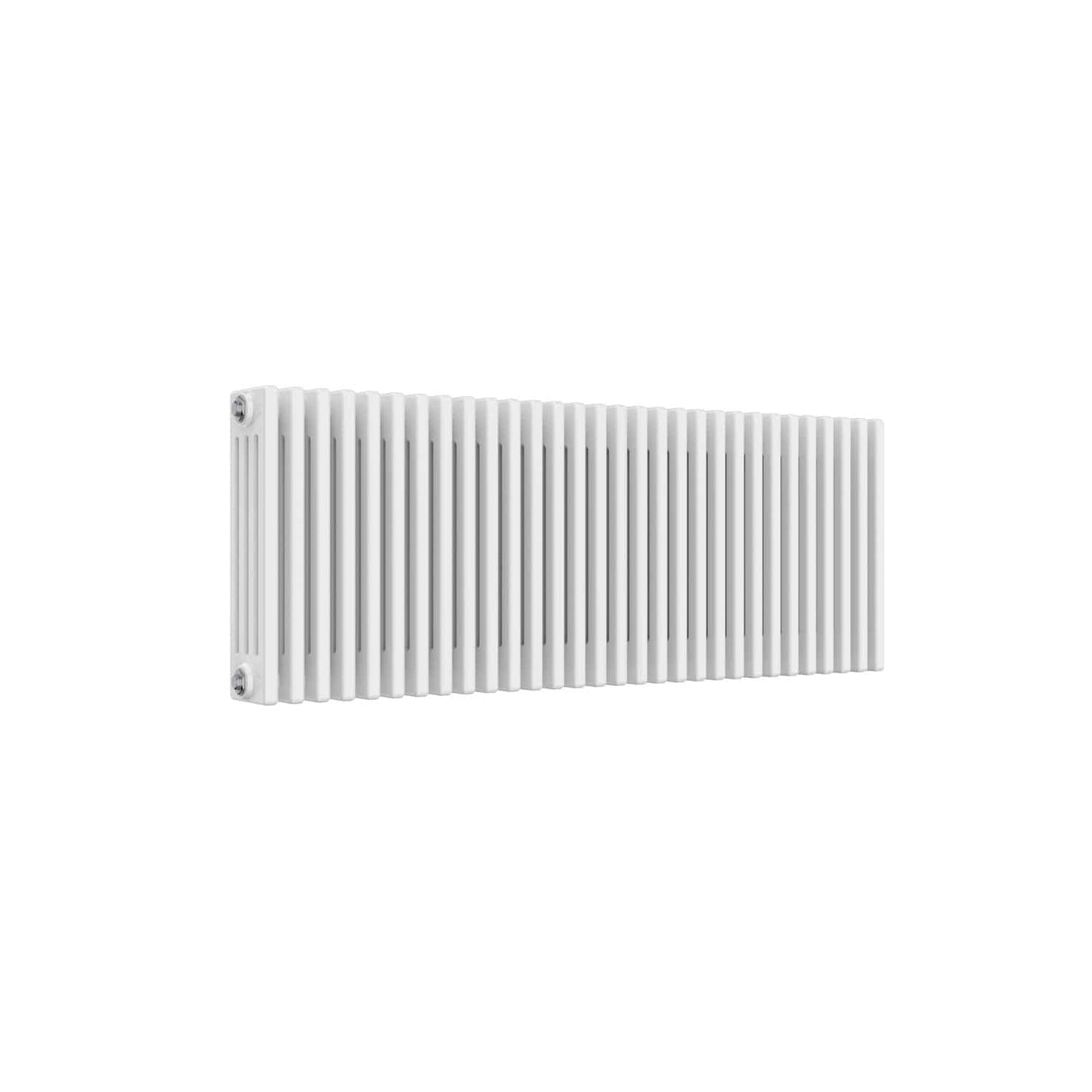

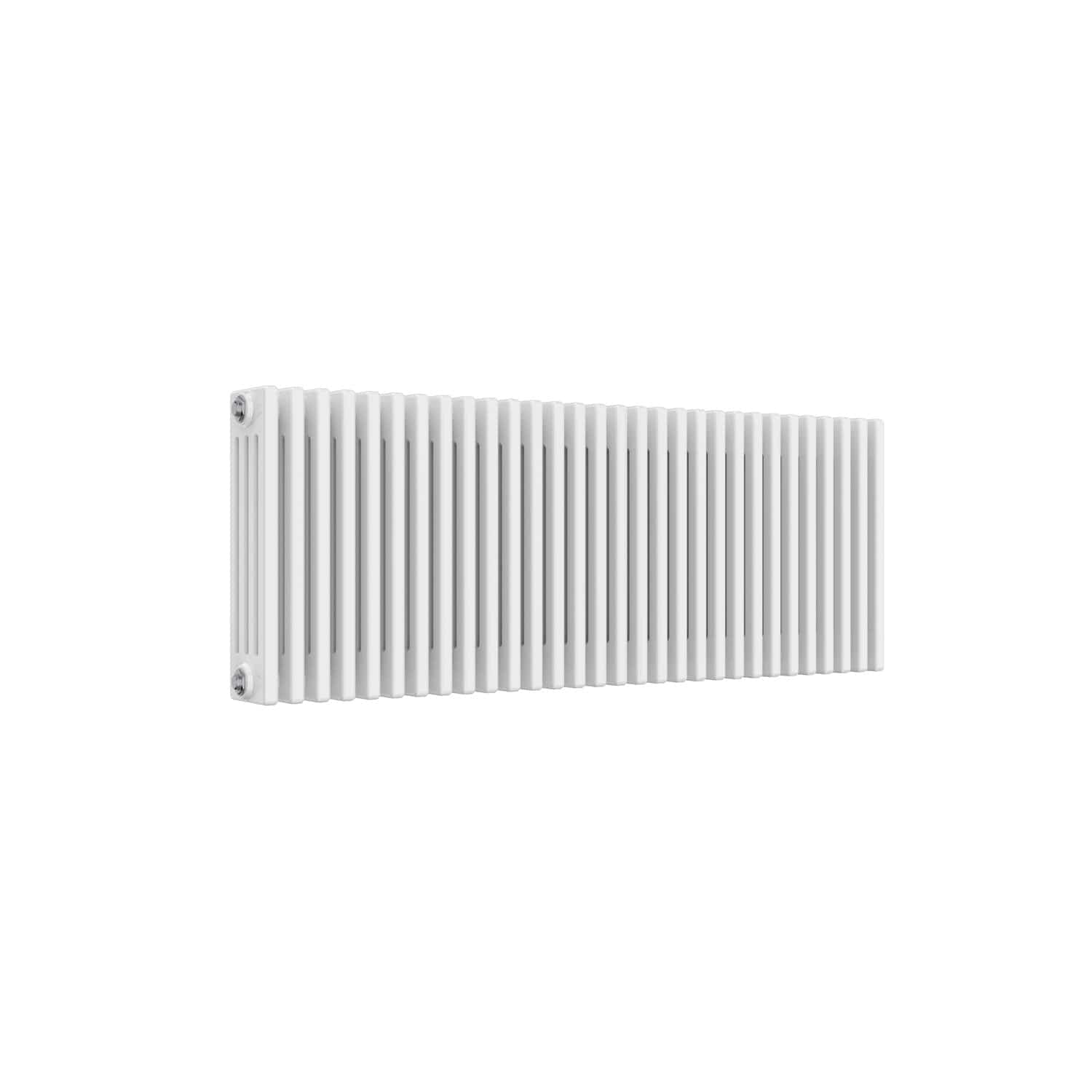

500	1370	1370	94	163	C	10301	3021
600	605	605	94	163	C/E/D	5287	1550

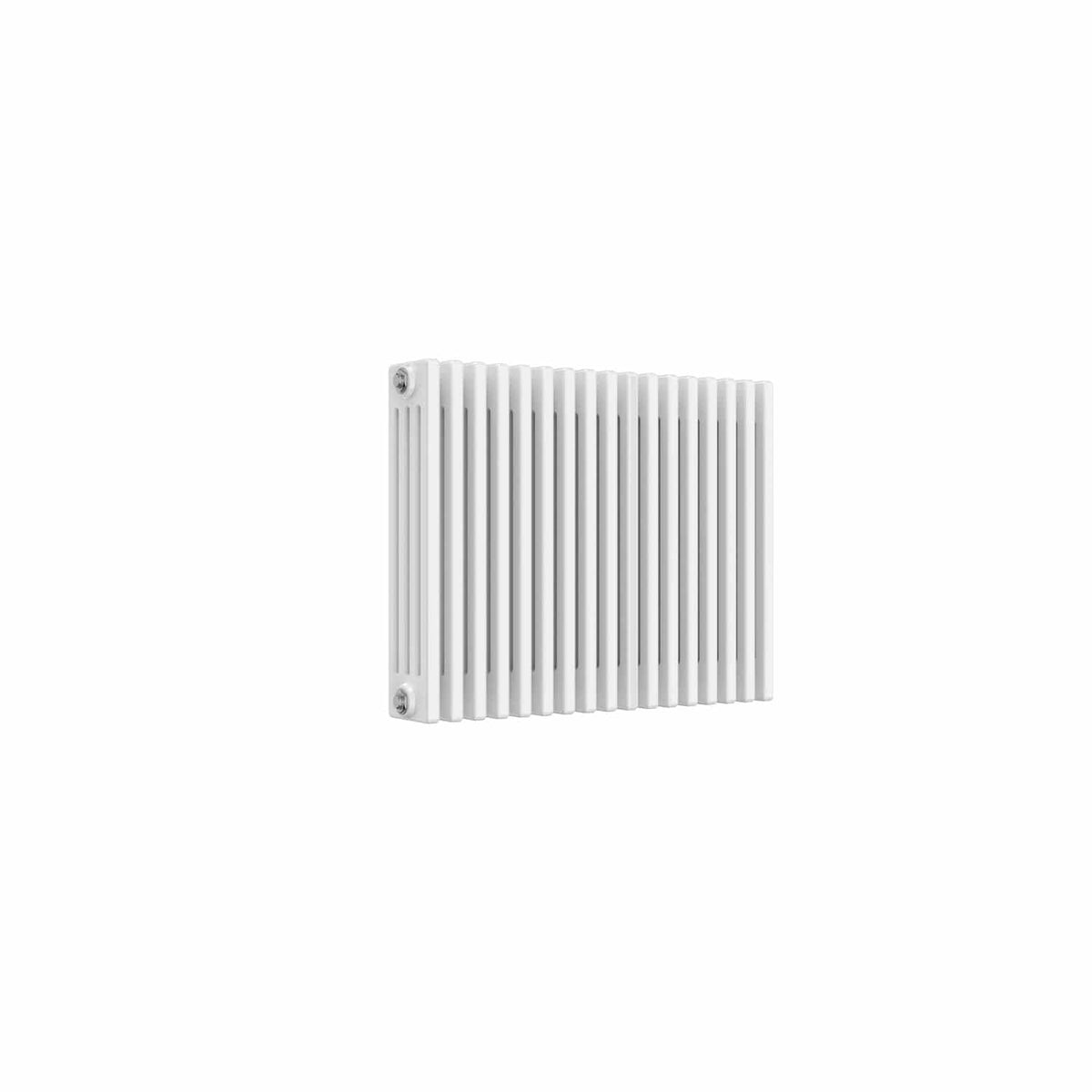

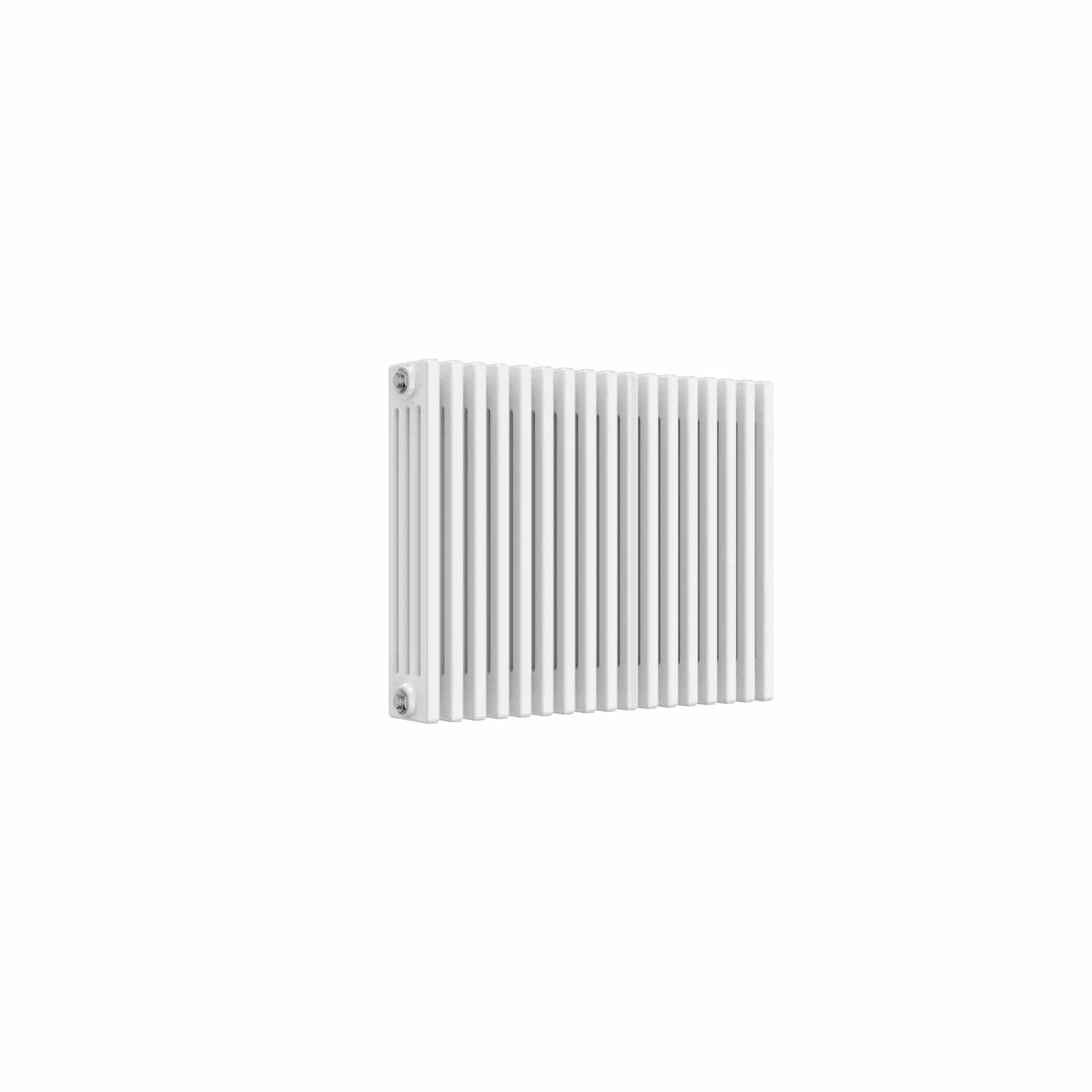

600	785	785	94	163	C/E/D	6915	2028

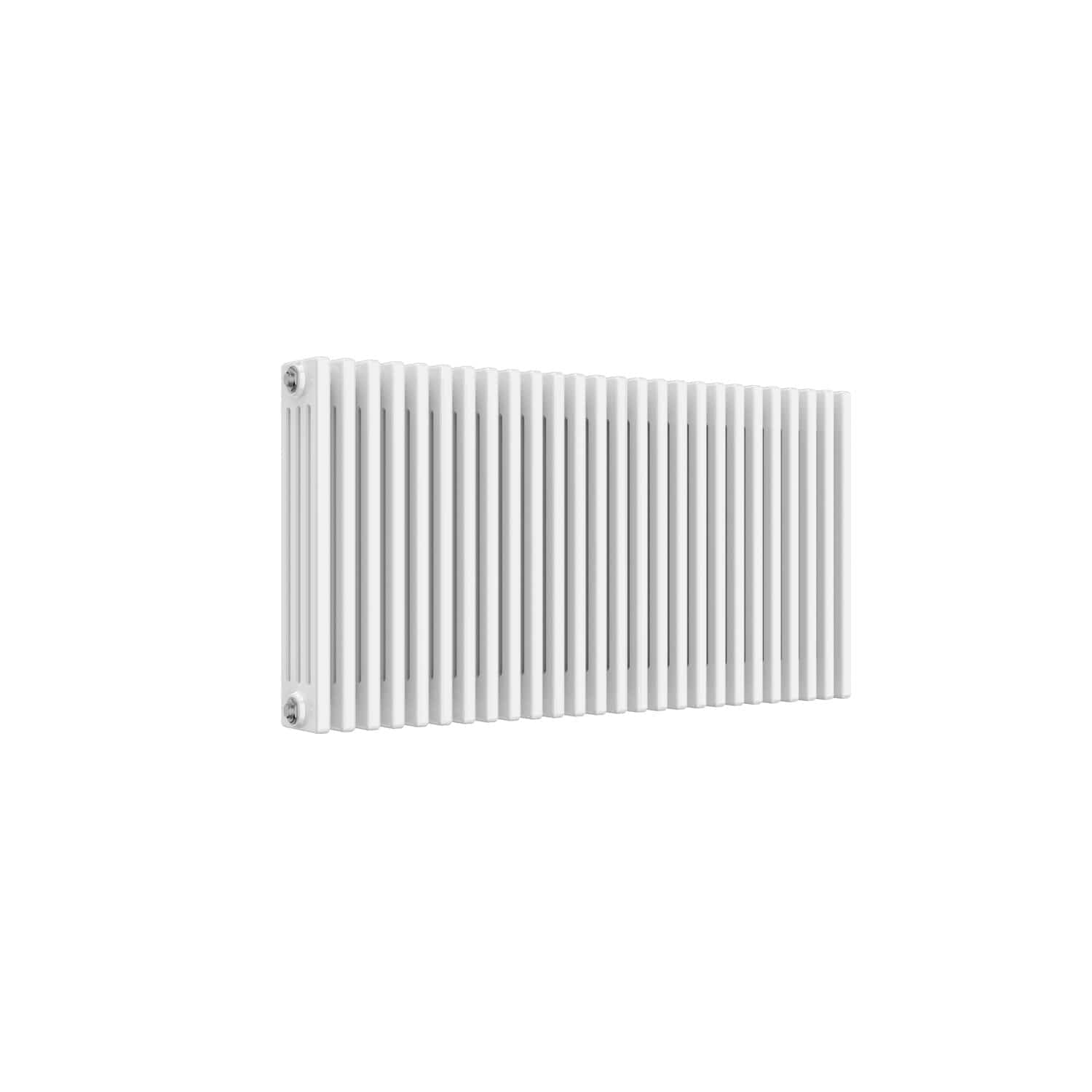

600	1010	1010	94	163	C/E/D	8949	2624
600	1190	1190	94	163	C	10575	3101

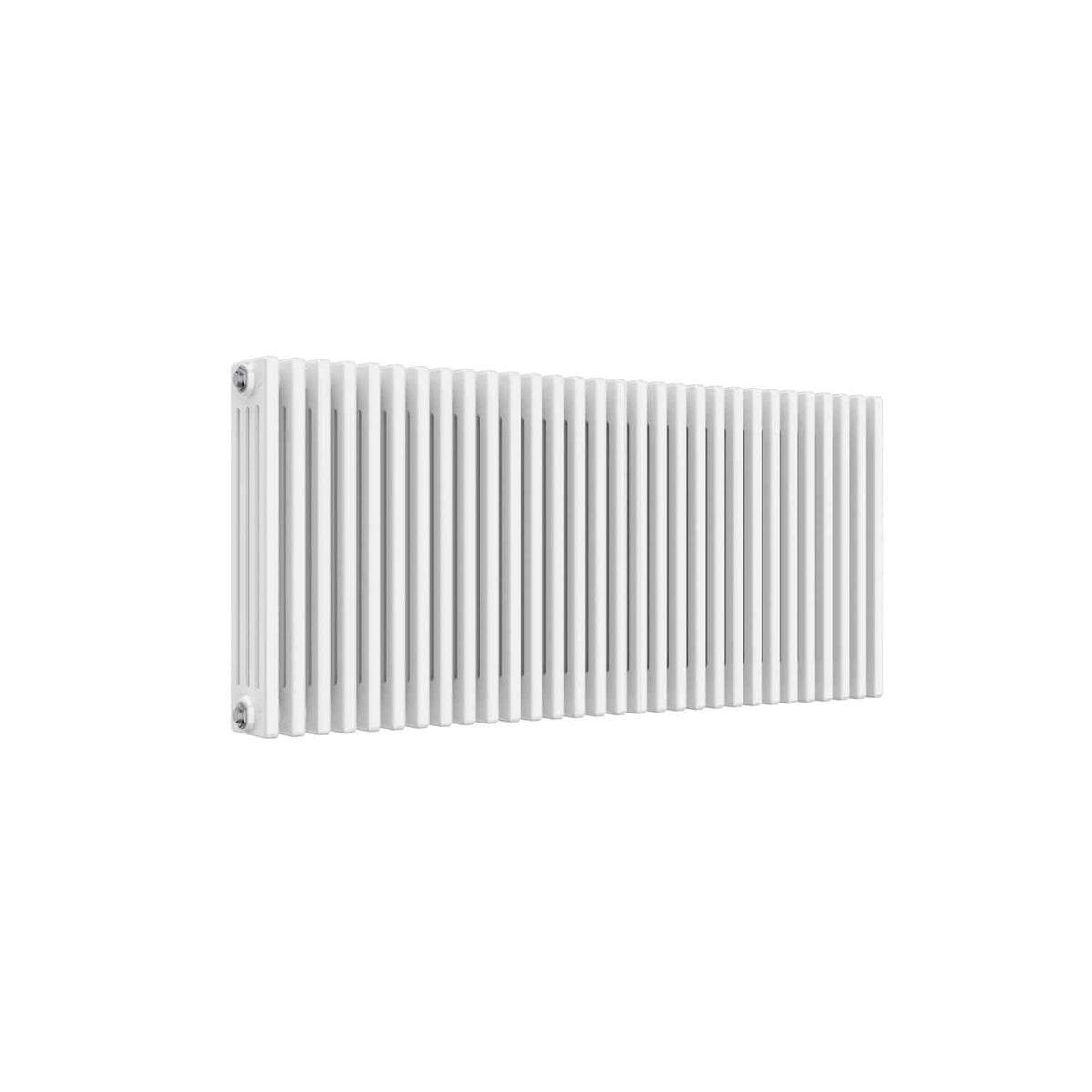

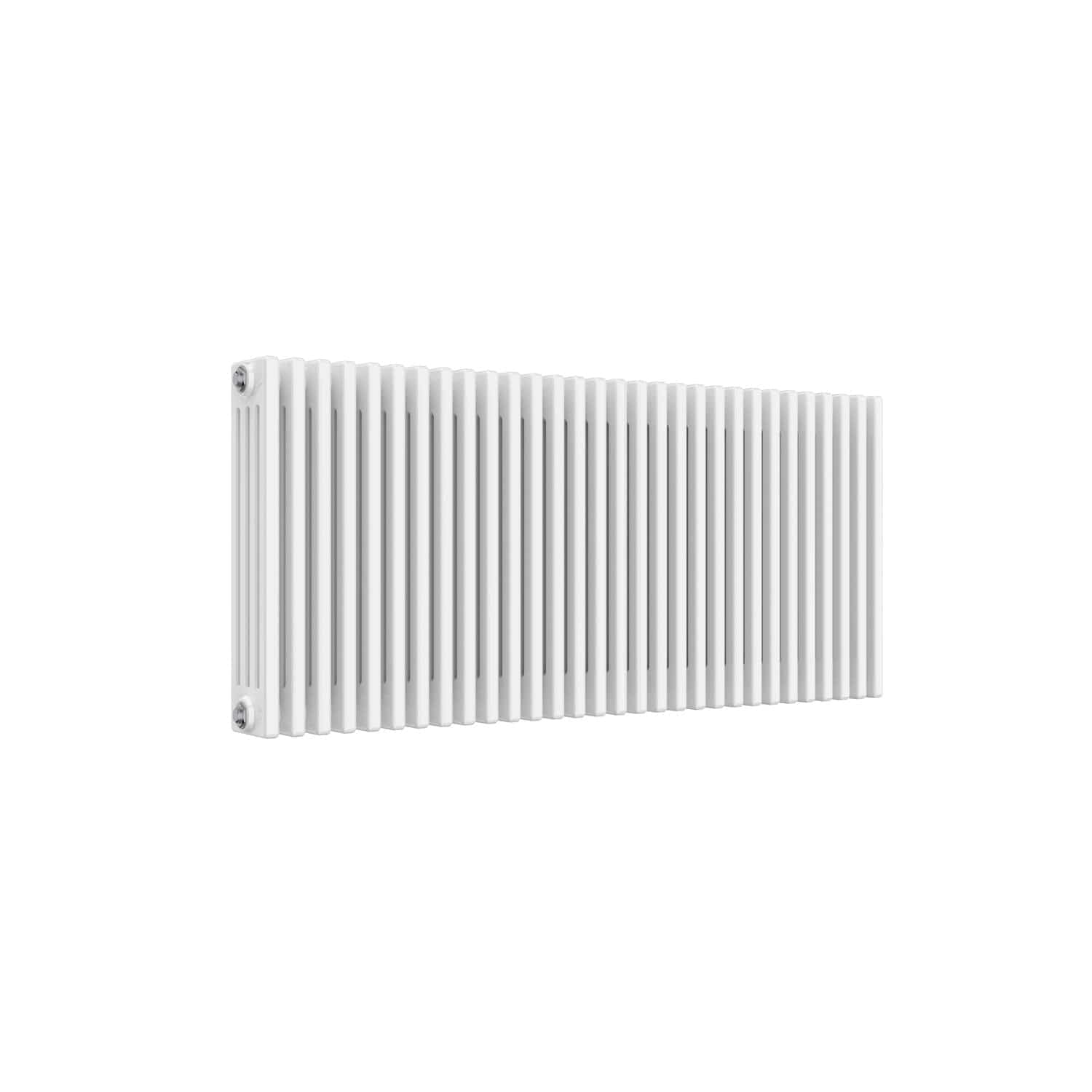

600	1370	1370	94	163	C	12201	3578

C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly

Which valve fits your pipework?

The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.

Valve	Choose it when	Price	Product page
Straight inlineFloor pipes	Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them.	£14.99	View the straight inline valve
AngledWall pipes	Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you.	£14.99	View the angled valve
CornerWall pipes	Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way.	£19.99	View the corner valve

A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why

Finish the installation

The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.

Accessory	What it does	Price	Product page
Chrome cover caps (pair)	Caps the bleed and blanking plugs so the top of the rail looks finished	£2.49	View product : Chrome cover caps (pair)
Talon Snappit pipe covers	Clips around exposed pipe to hide it — no glue, no cutting	From £5.99	View product : Talon Snappit pipe covers
Towel rail pegs (pair)	Clip-on pegs add hanging space, fitted by hand	£9.99	View product : Towel rail pegs (pair)
