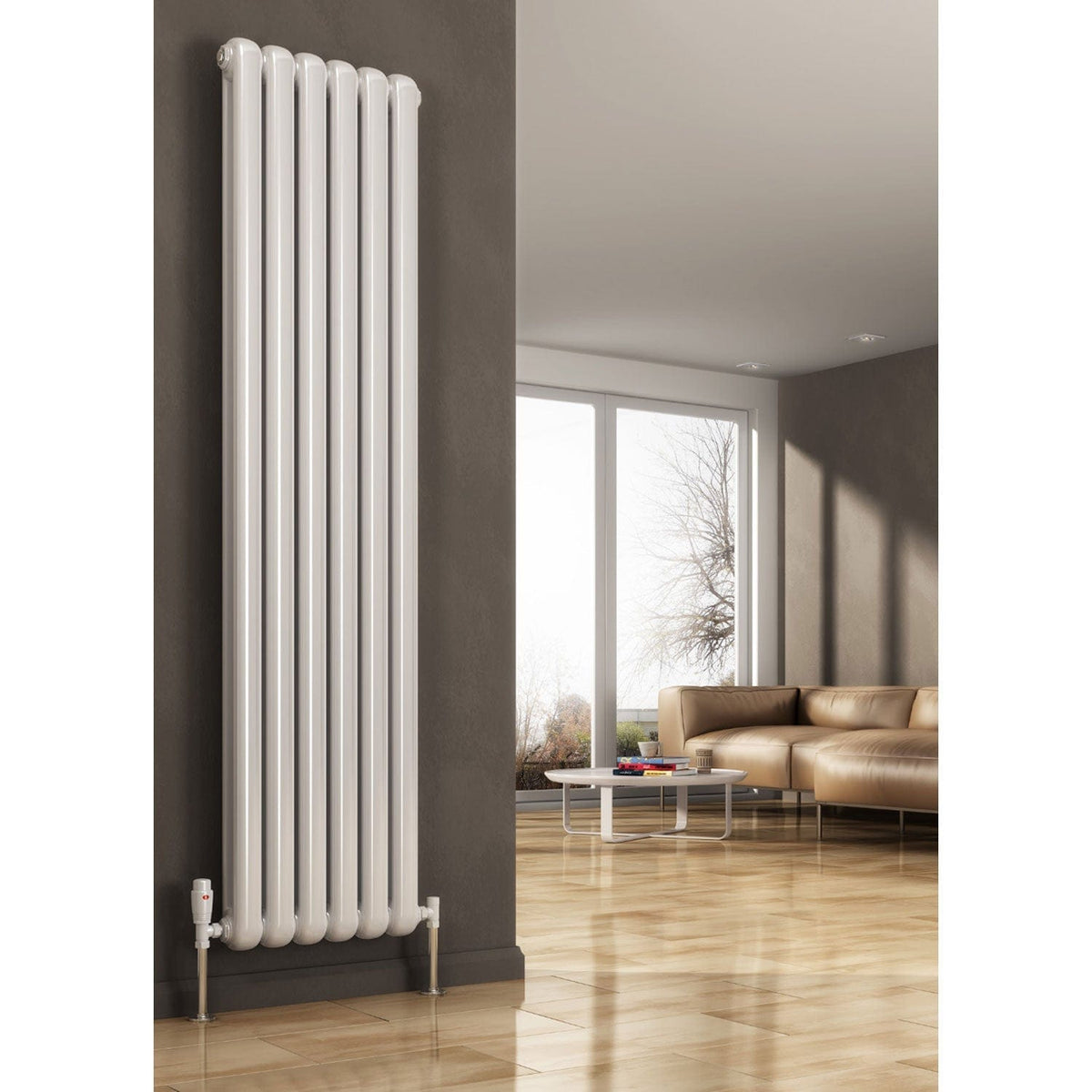

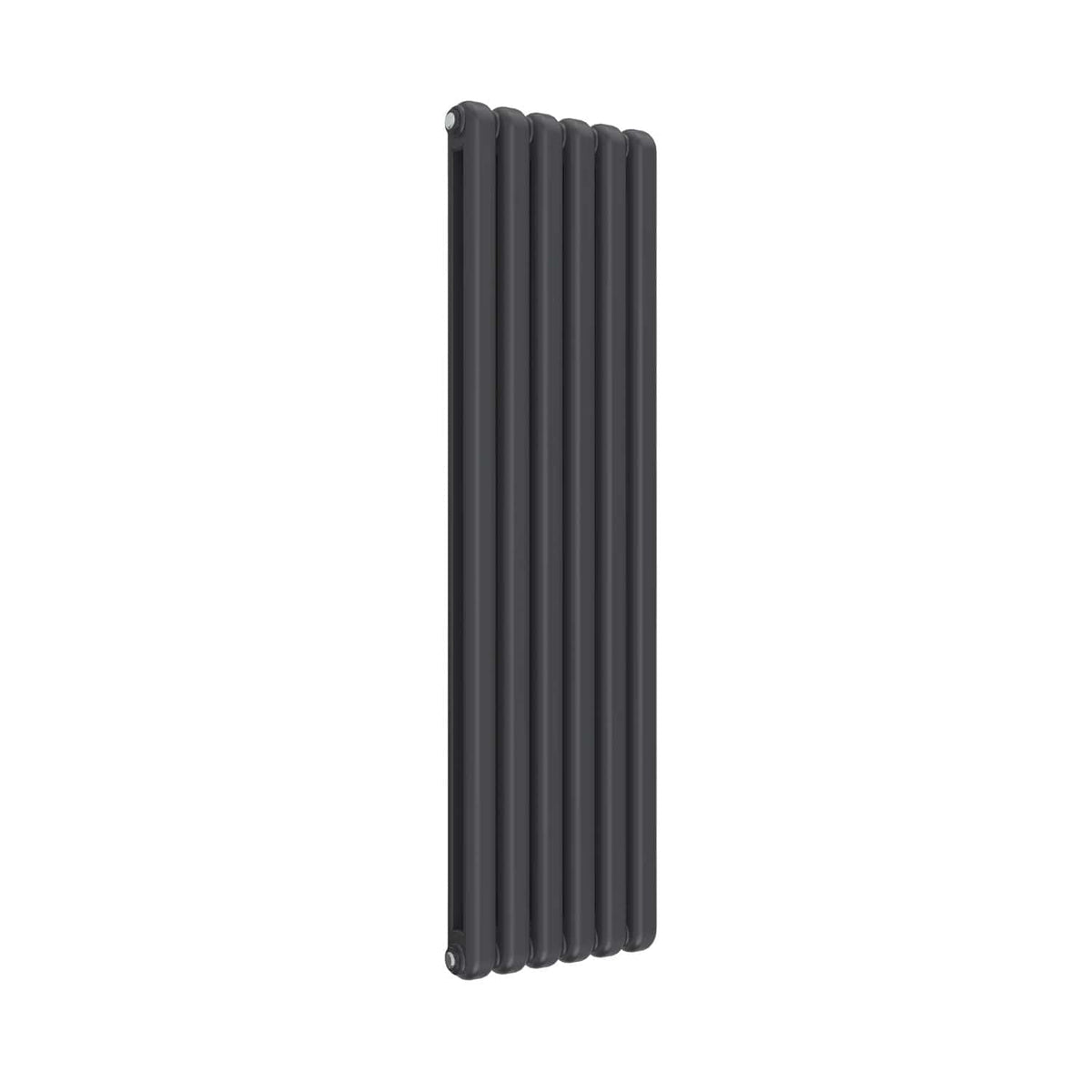

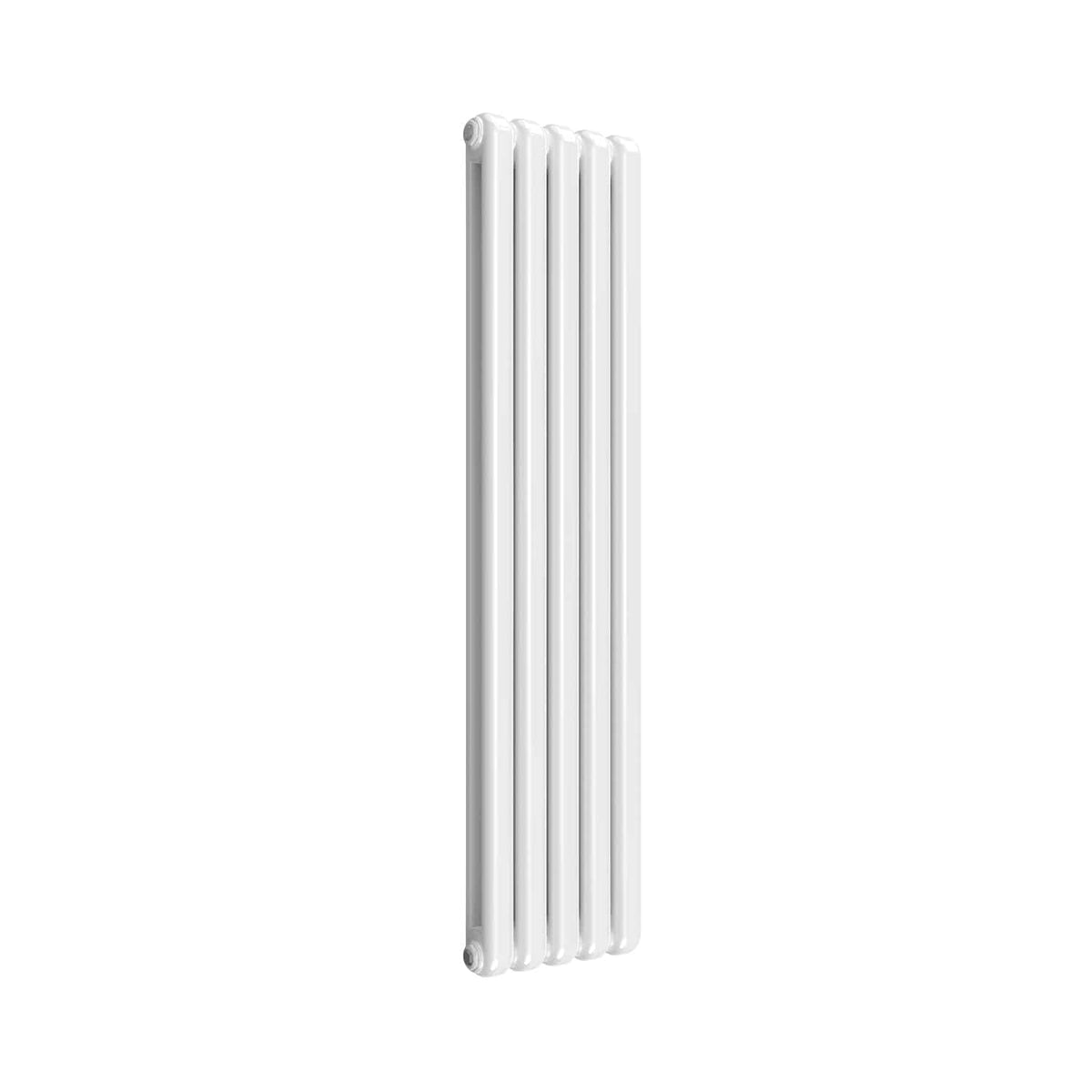

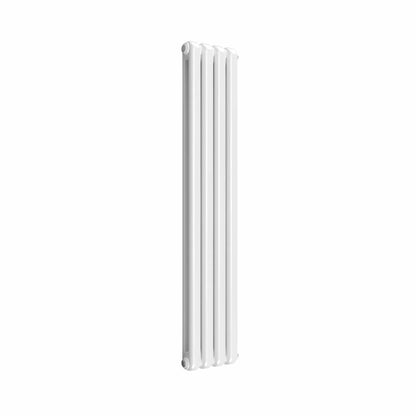

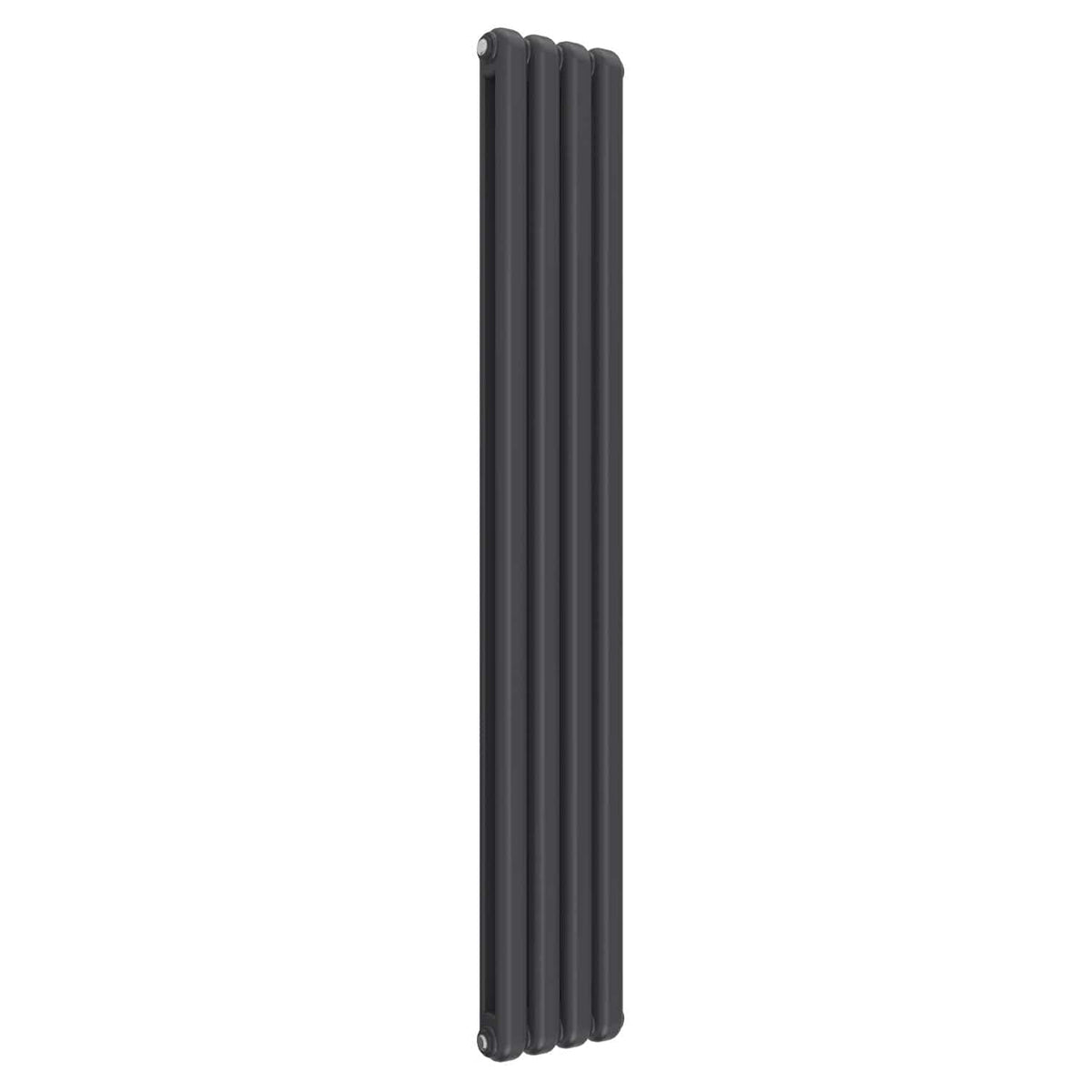

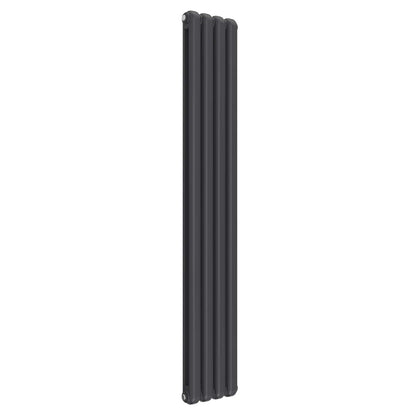

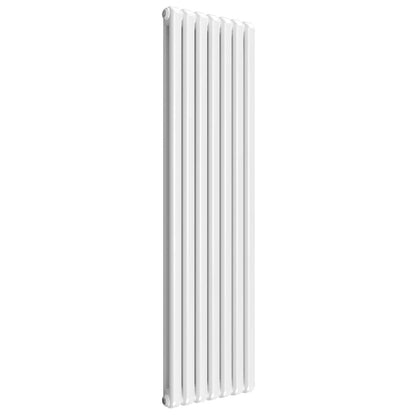

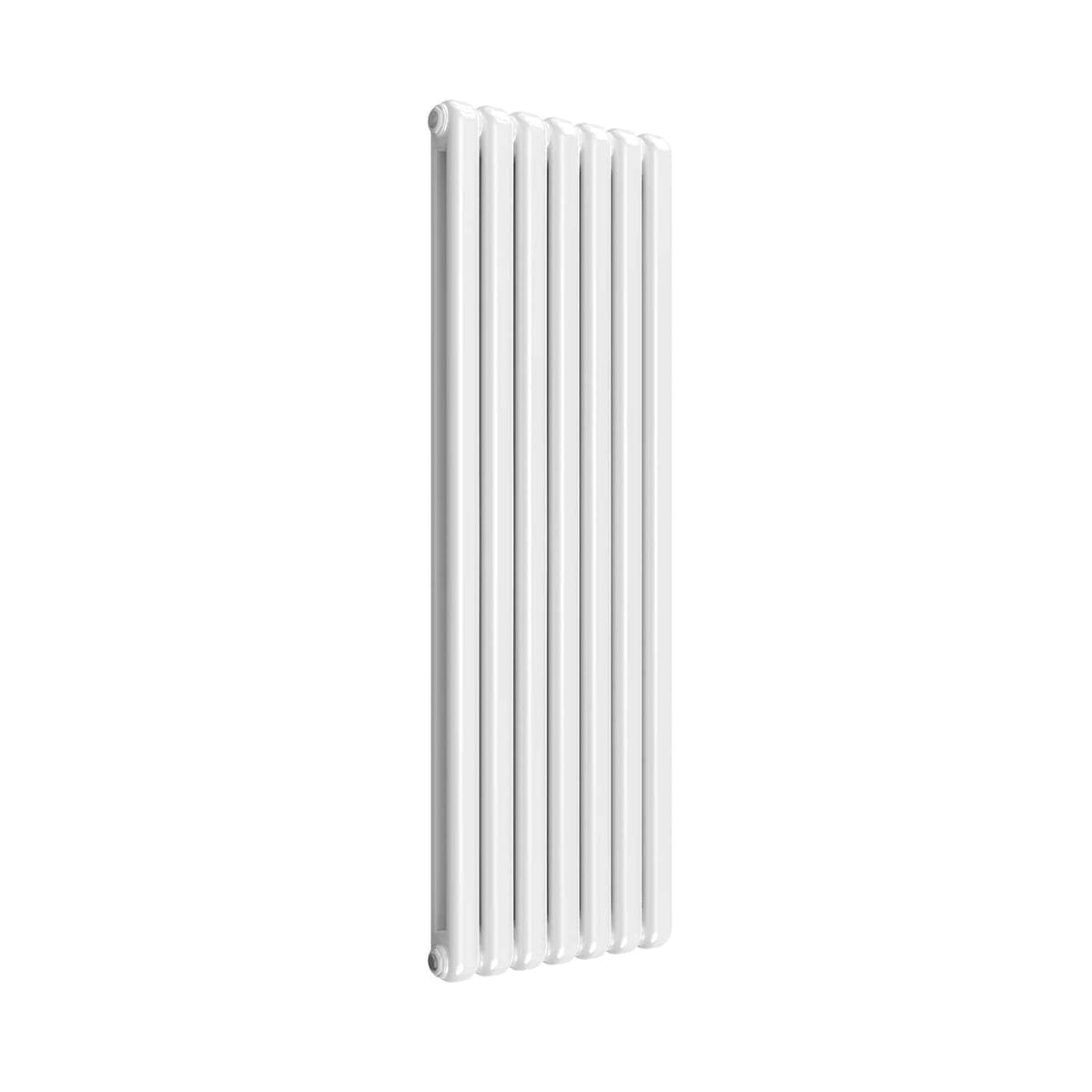

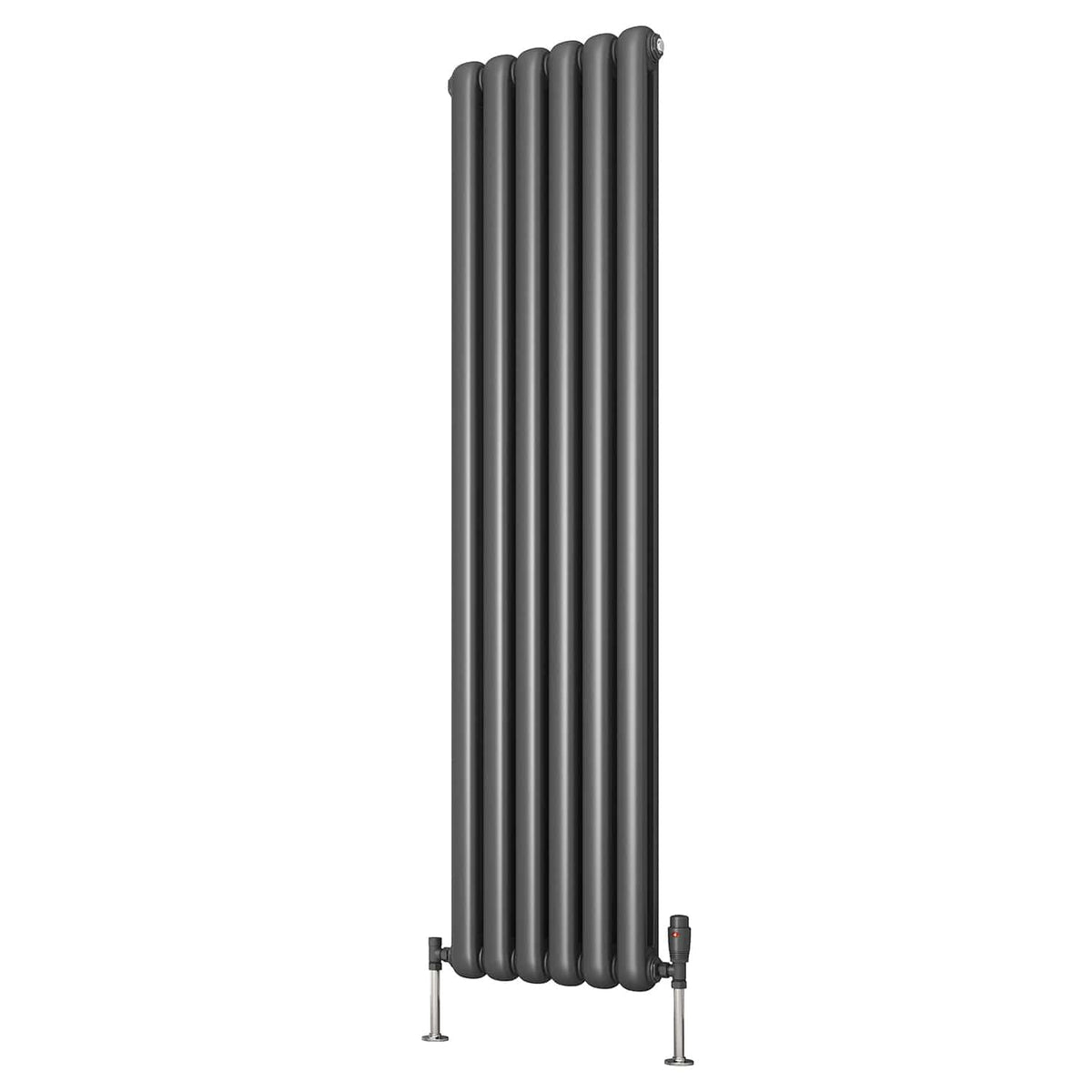

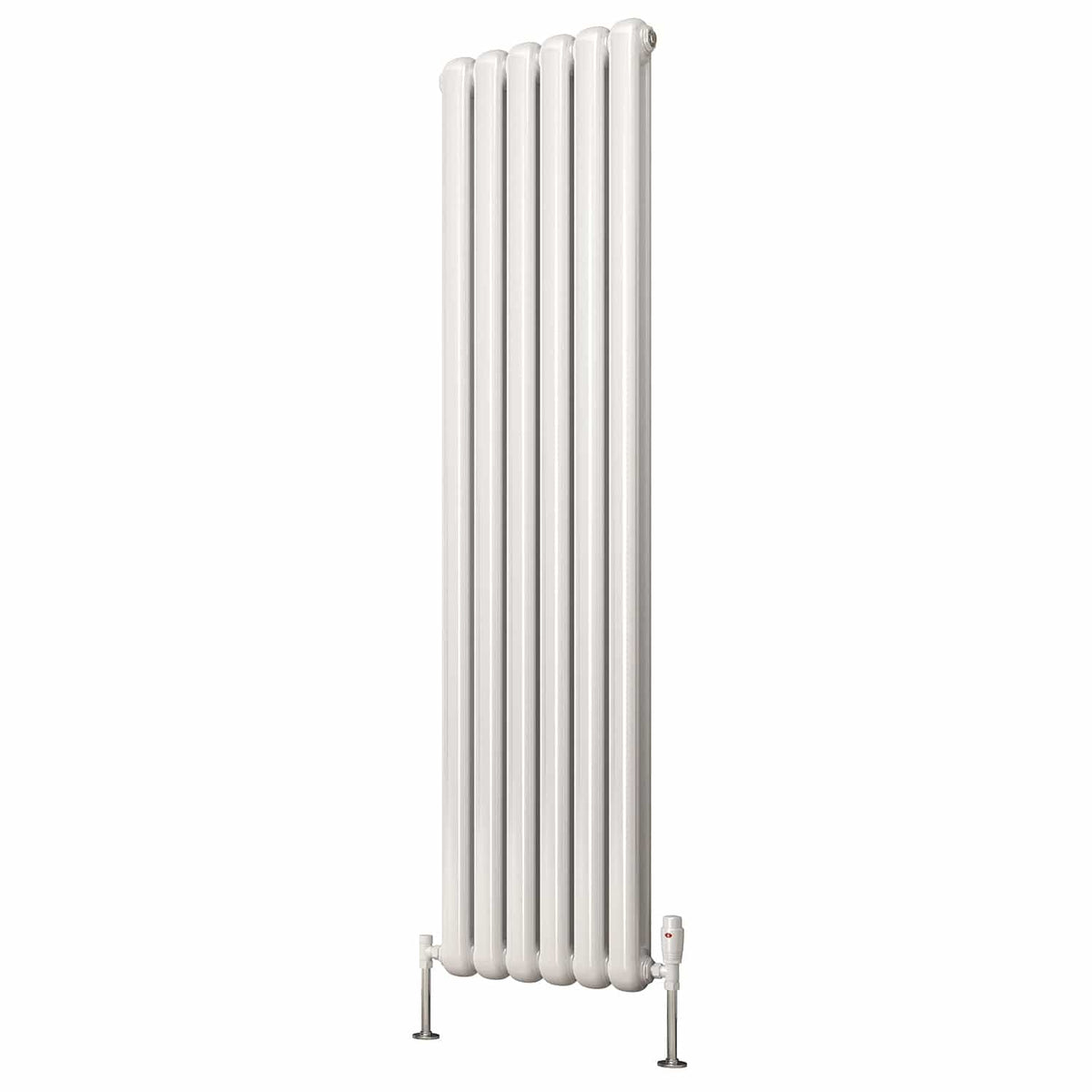

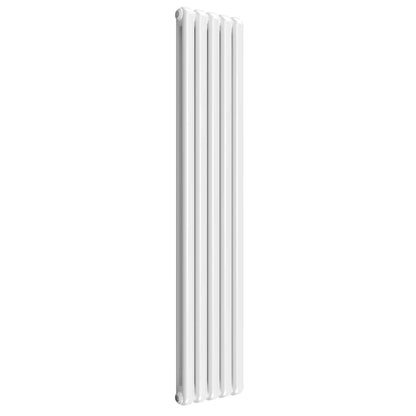

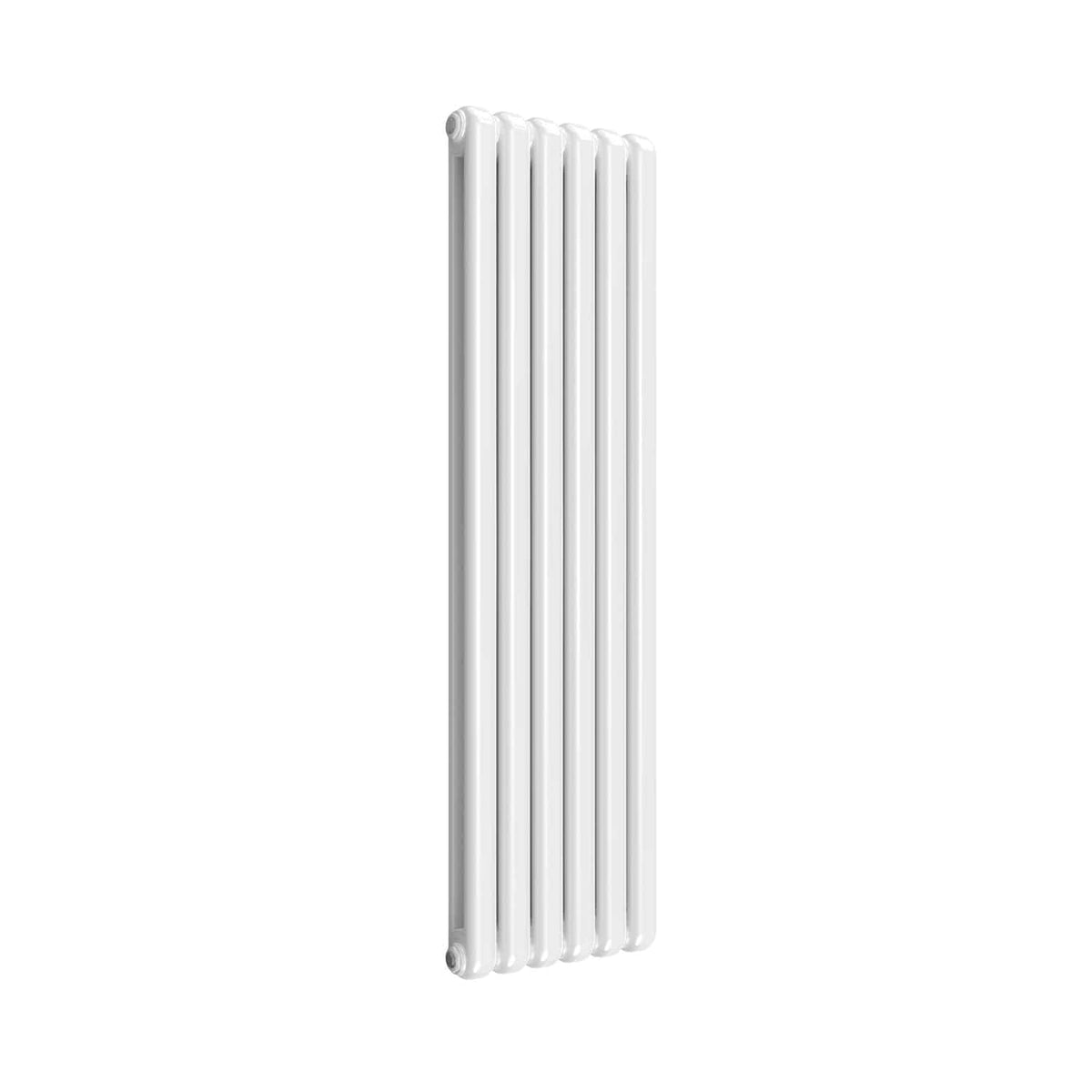

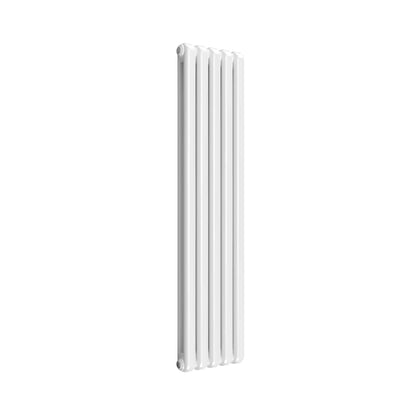

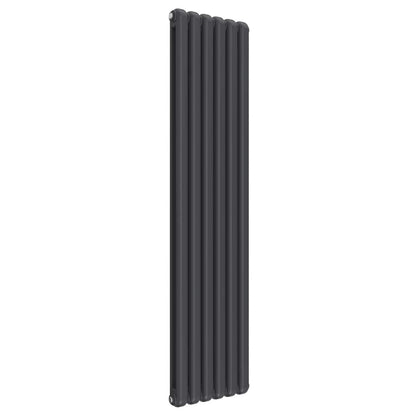

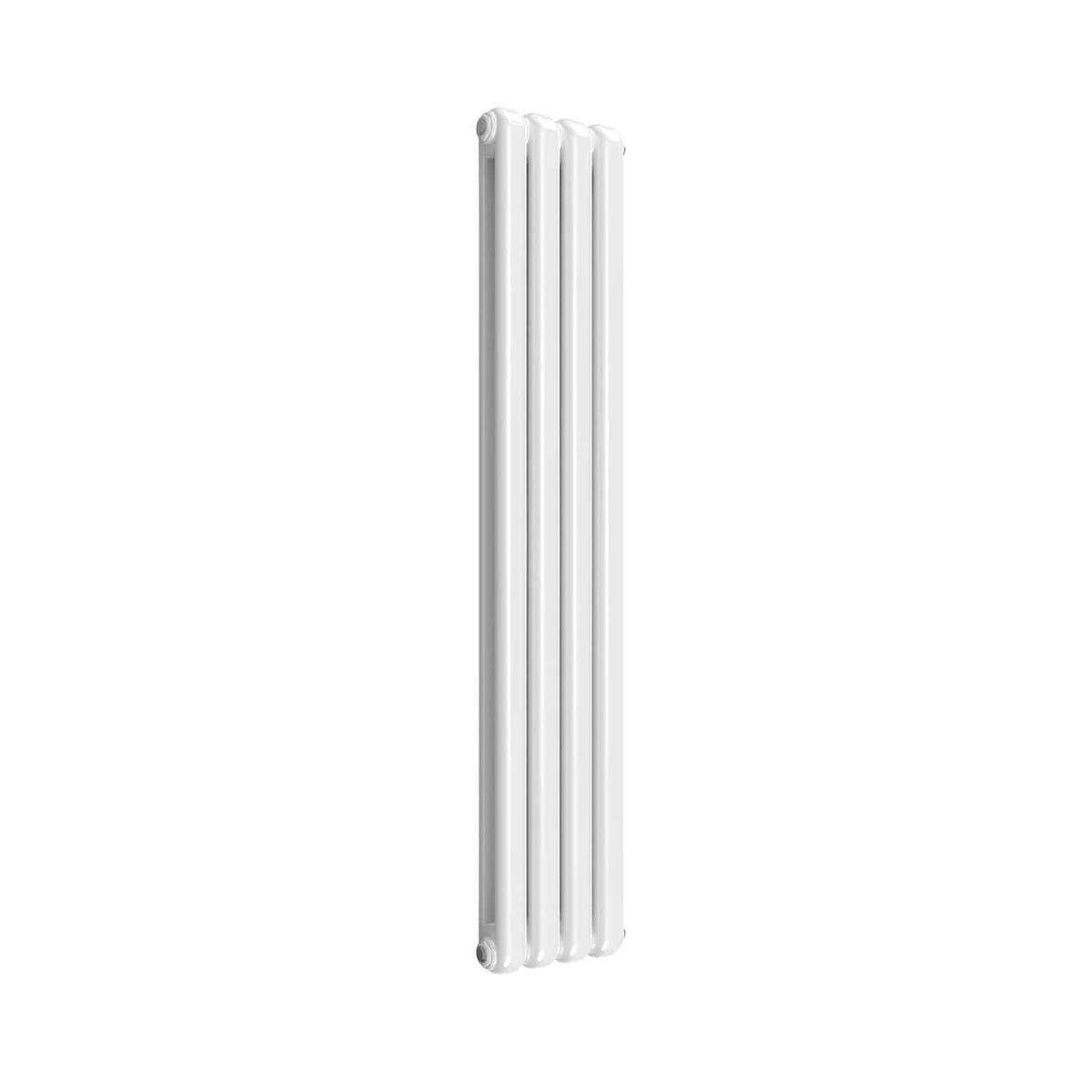

Reina Coneva Designer Column Vertical Radiator

1500mm or 1800mm high and 300mm , 370mm , 440mm or 510mm wide

A Traditional style radiator with 2 columns, White, Anthracite or Silver are available from stock, the Coneva has thicker oval tubes giving excellent output. RAL coloured versions are also available in both Horizontal and vertical models.

Usage : Central Heating only
5 Years Manufacturers Warranty
High Quality standard
Suitable for any room
Elegant and contemporary in appearance

Installation Instructions Download Link

Coneva Vertical

Overall Dimension		Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Heat Output
Height mm	Width mm	Pipe Centres mm	Wall to Pipe Centres mm	Wall Distance mm	Fuel Type	Btu	Watts

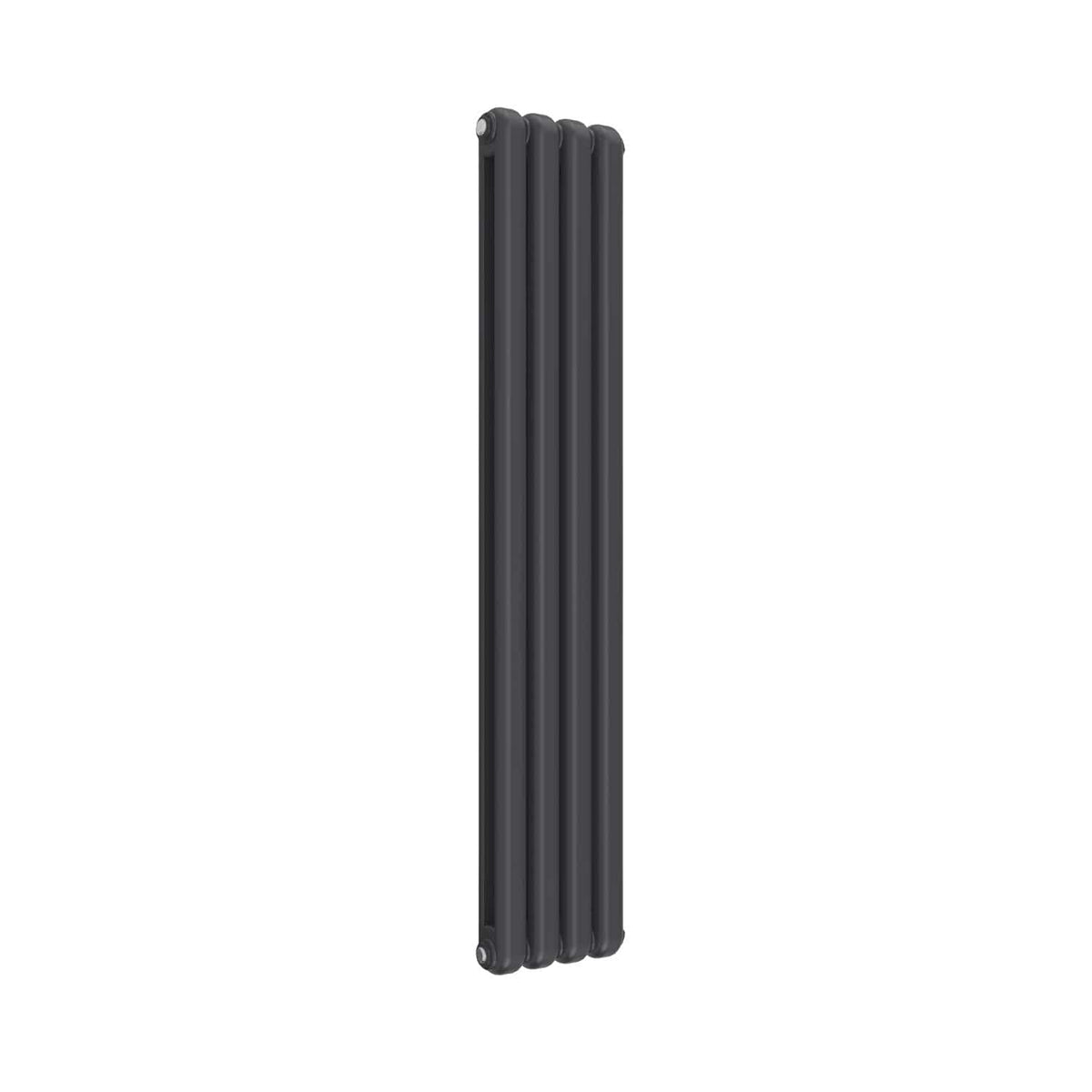

1500	300	300	68	113	C	5031	1475

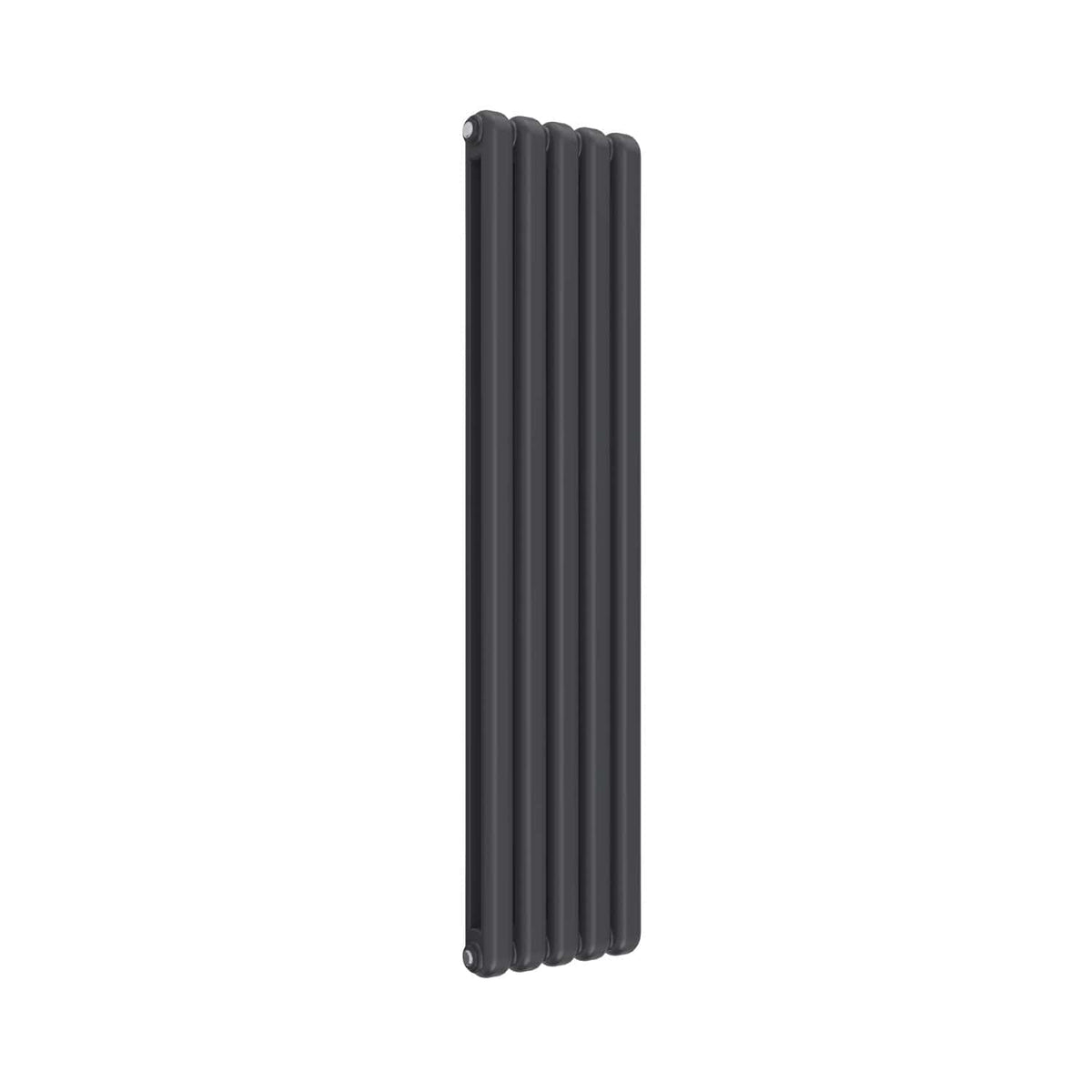

1500	370	370	68	113	C	6289	1844

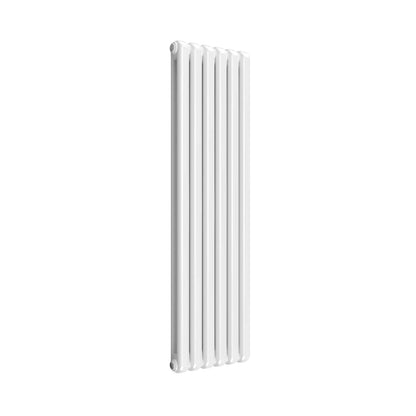

1500	440	440	68	113	C	8547	2506

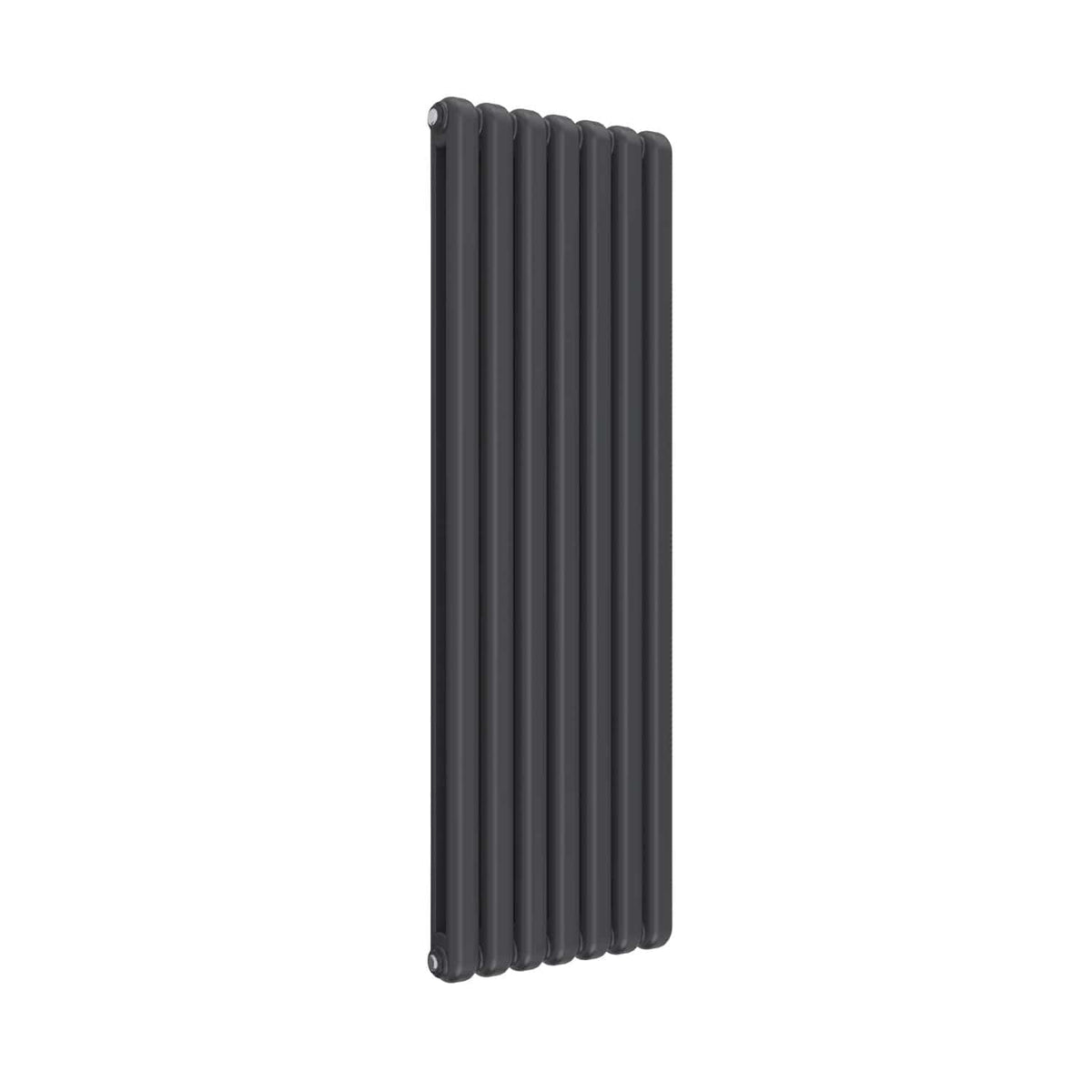

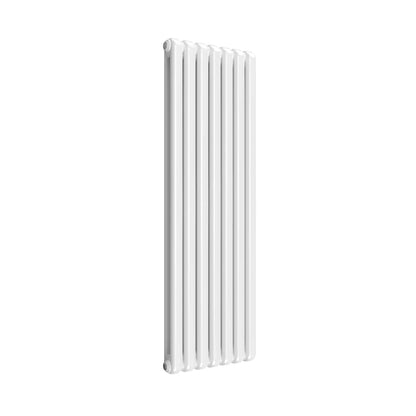

1500	510	510	68	113	C	8803	2582

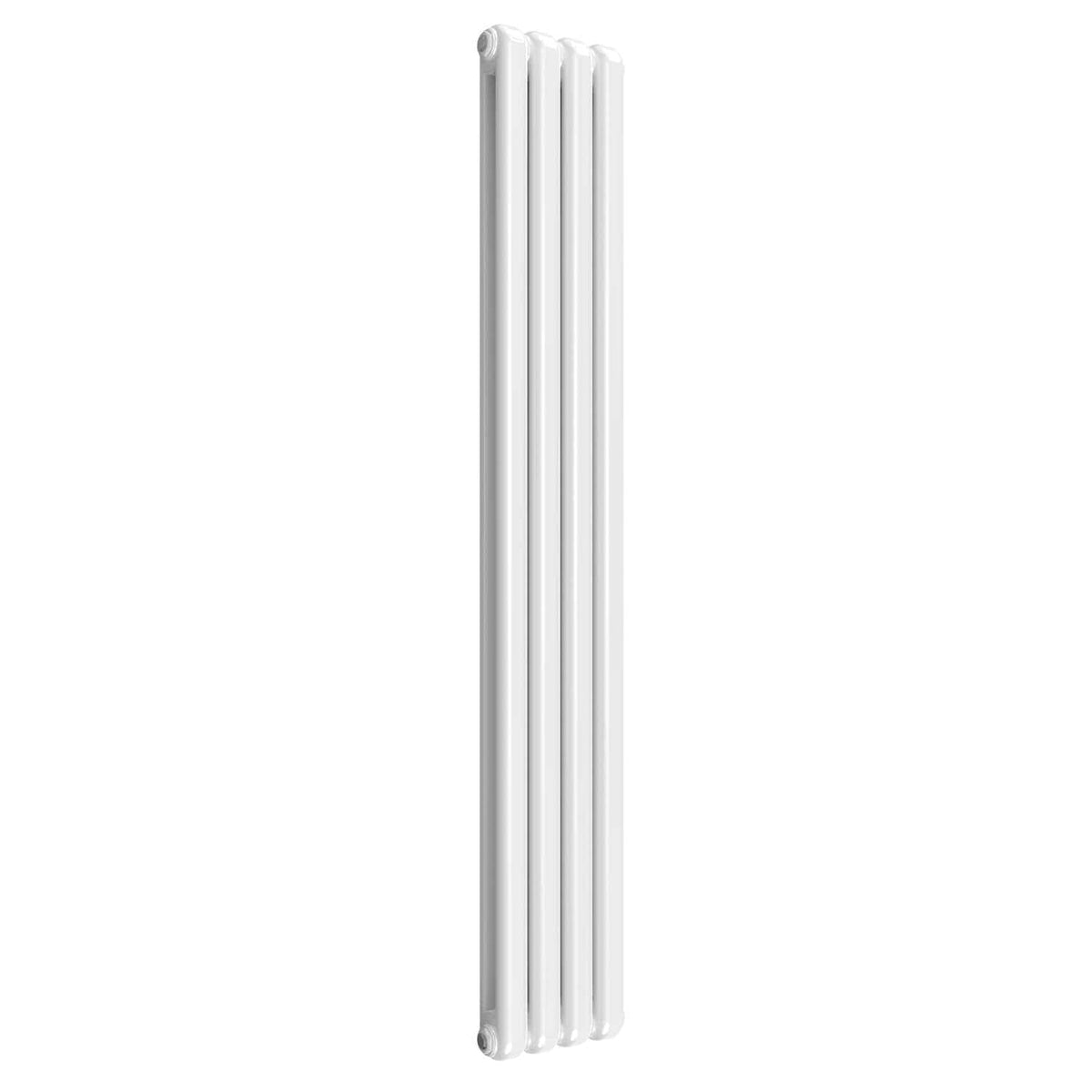

1800	300	300	68	113	C	6036	1770

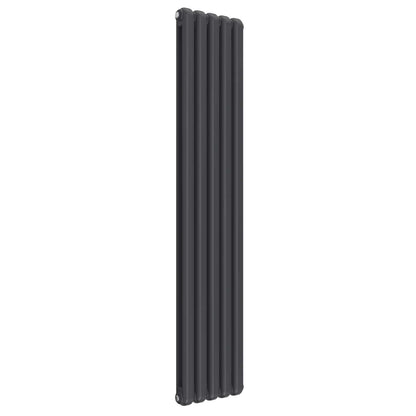

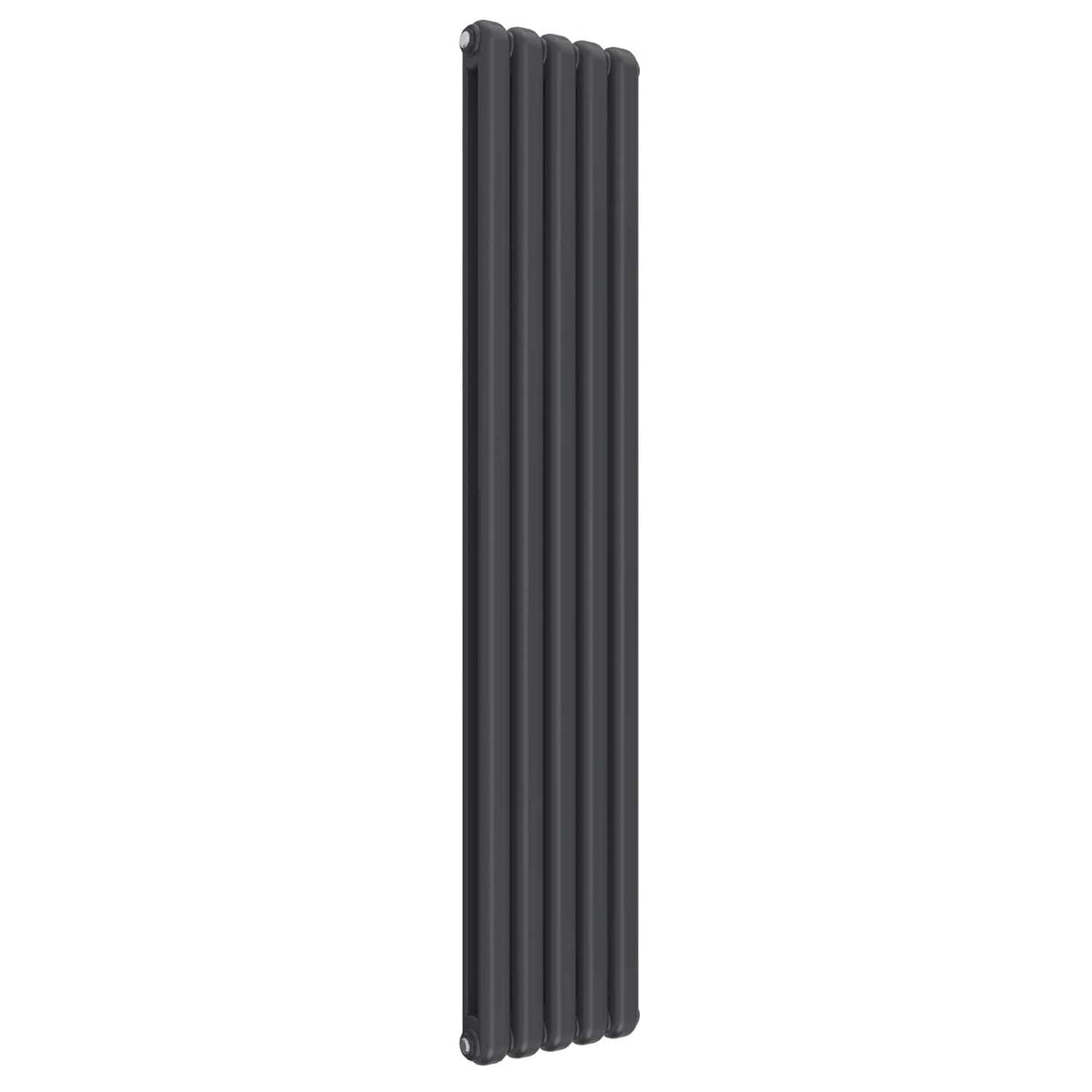

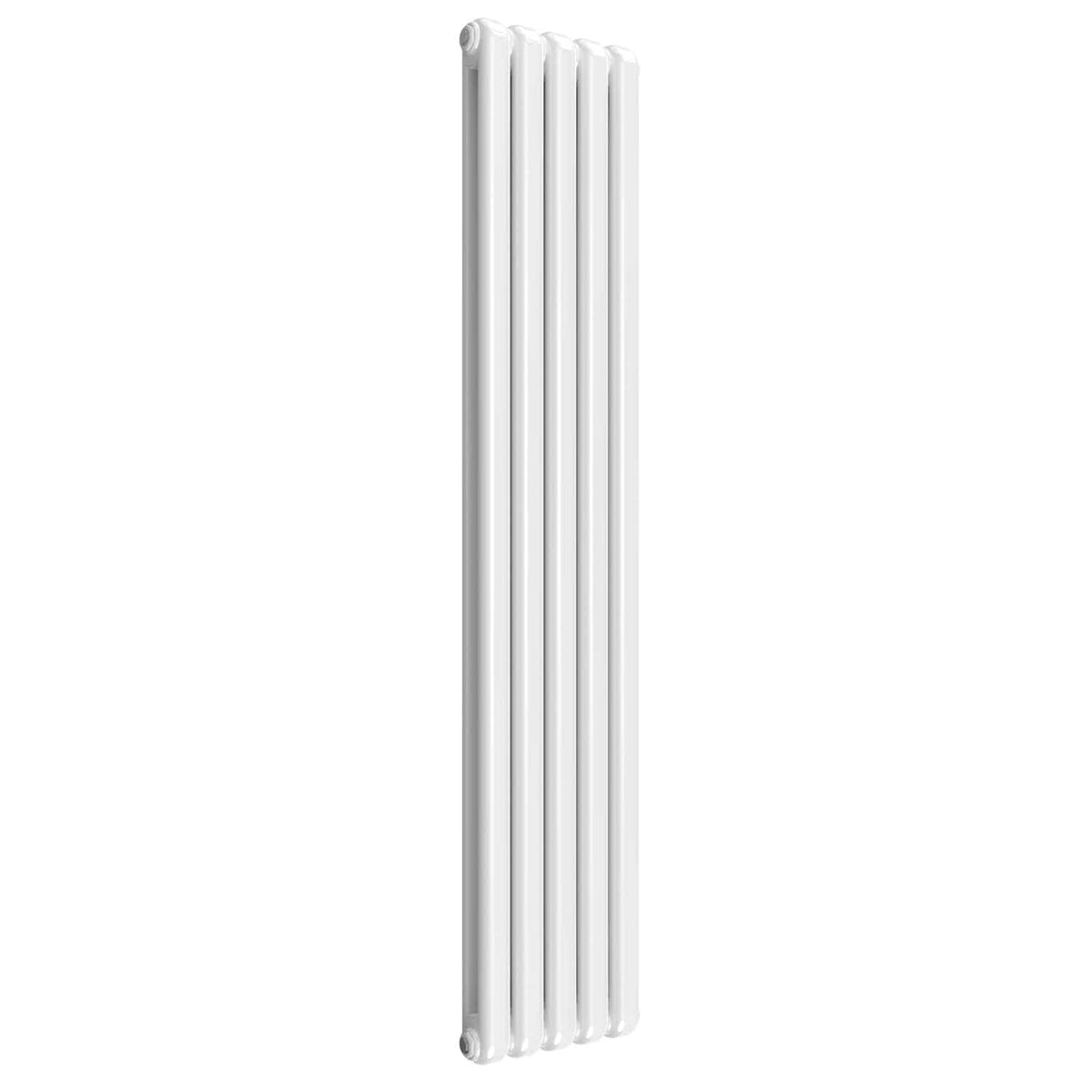

1800	370	370	68	113	C	7547	2213

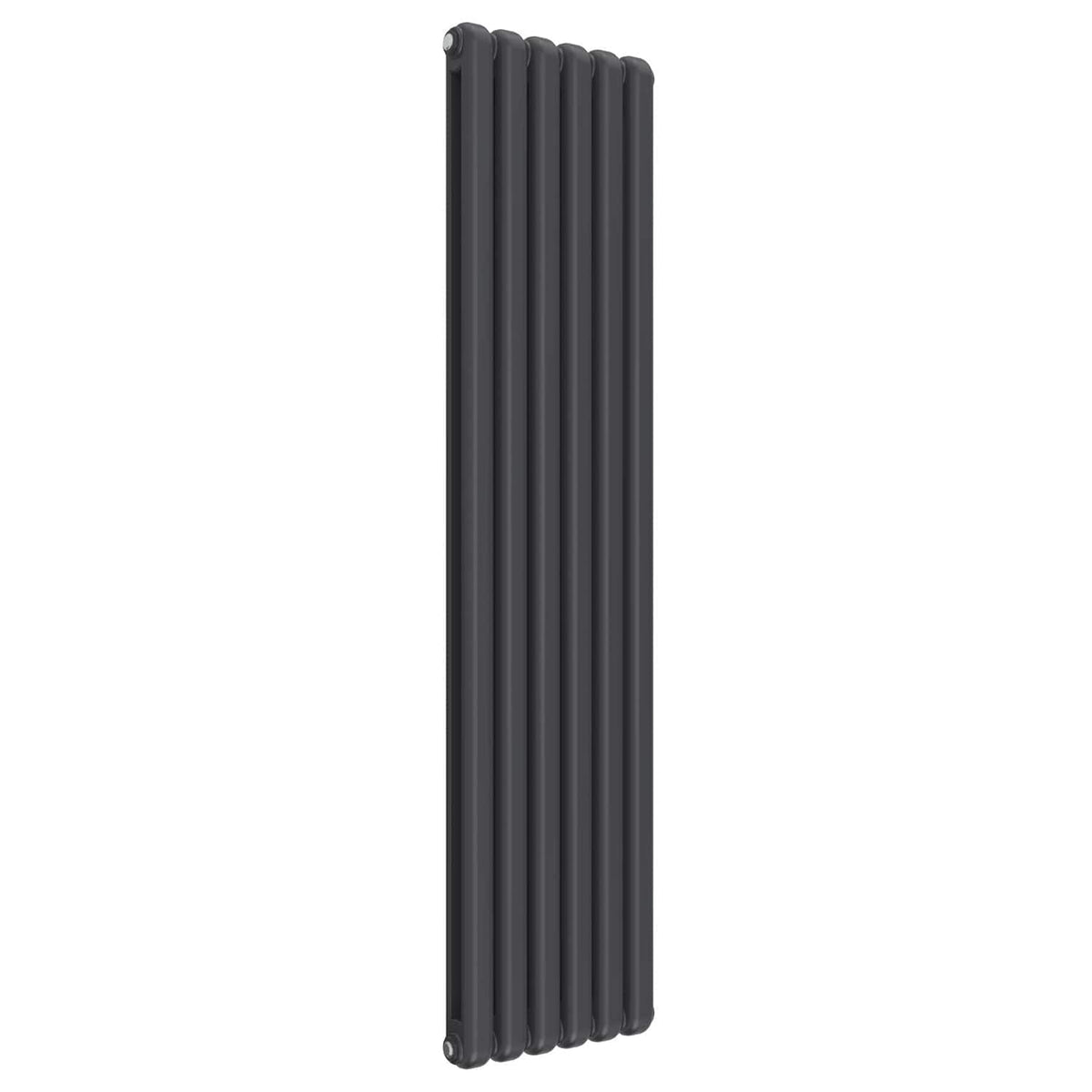

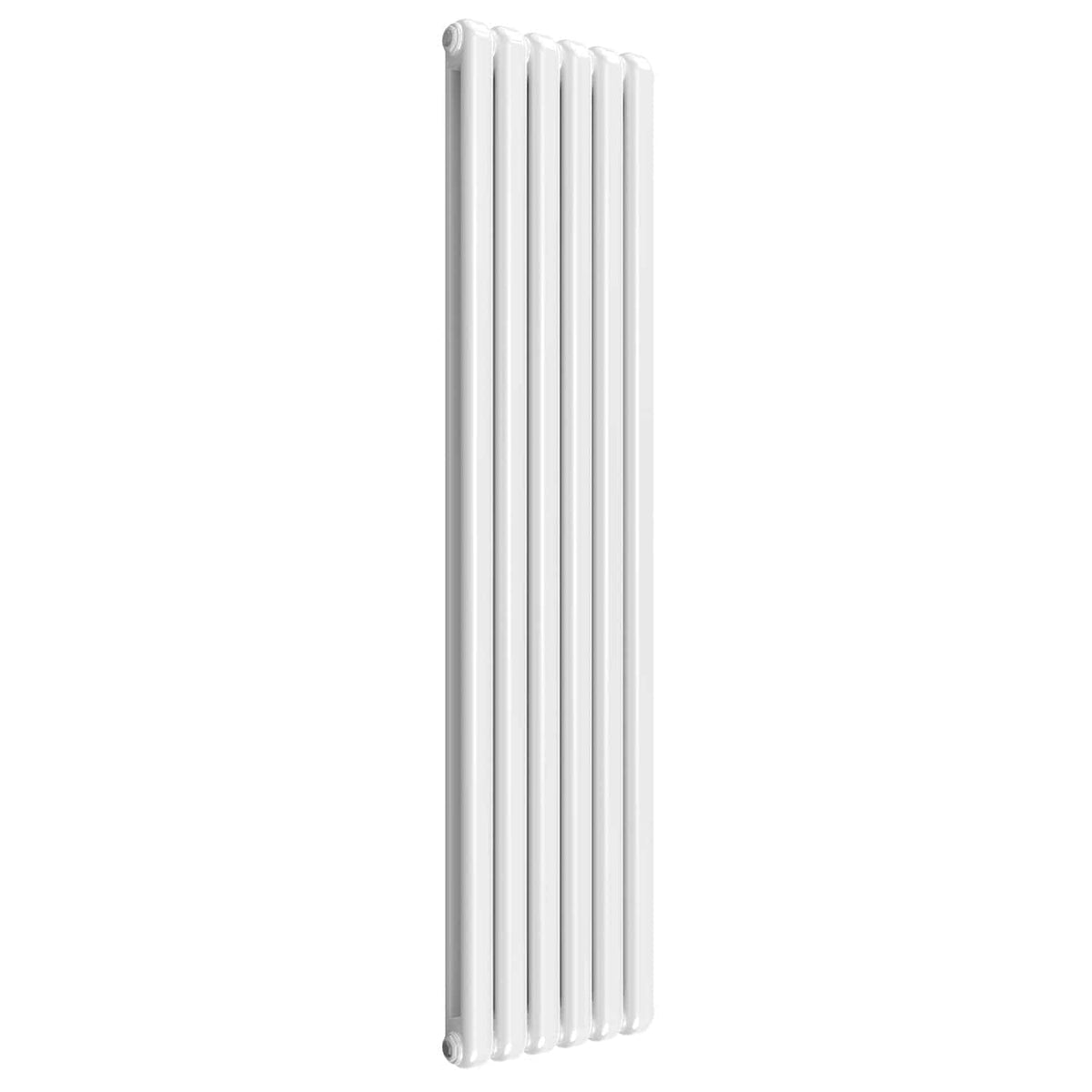

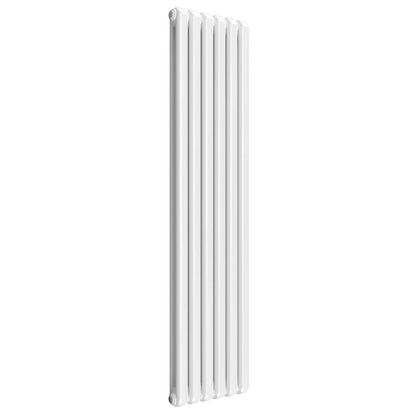

1800	440	440	68	113	C	9055	2655

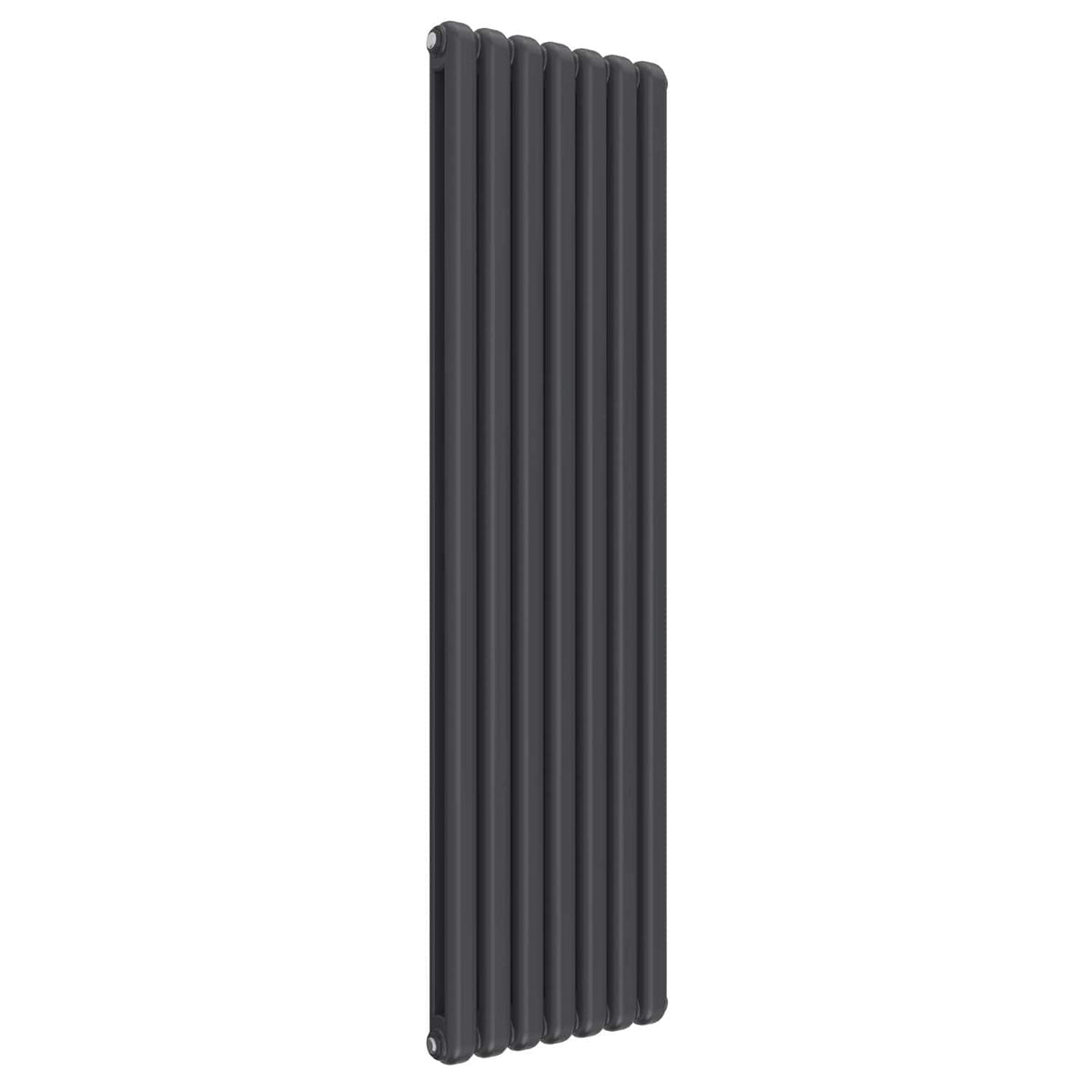

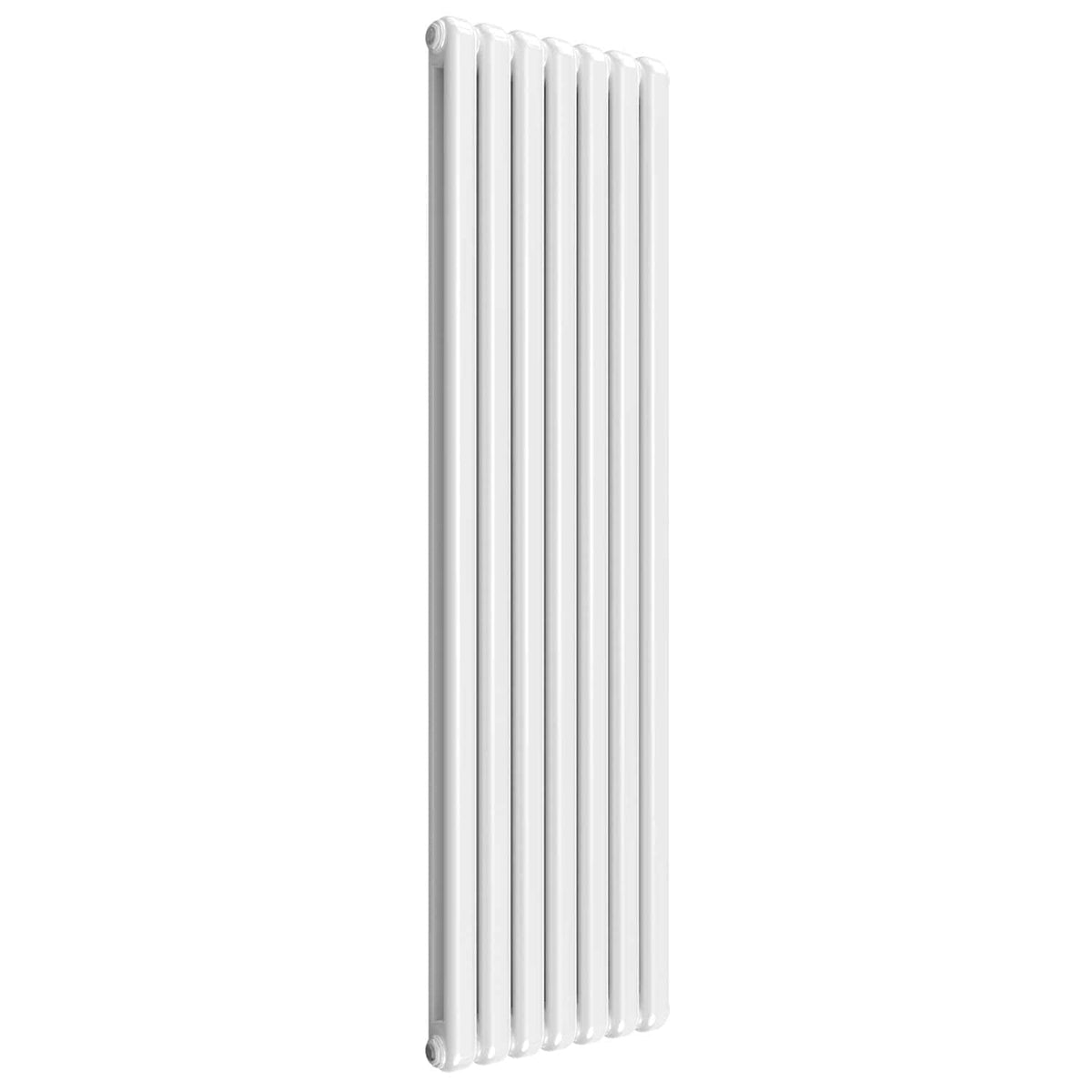

1800	510	510	68	113	C	10564	3098

C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly

All Vertical Designer Radiators

Which valve fits your pipework?

The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.

Valve	Choose it when	Price	Product page
Straight inlineFloor pipes	Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them.	£14.99	View the straight inline valve
AngledWall pipes	Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you.	£14.99	View the angled valve
CornerWall pipes	Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way.	£19.99	View the corner valve

A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why

Finish the installation

The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.

Accessory	What it does	Price	Product page
Chrome cover caps (pair)	Caps the bleed and blanking plugs so the top of the rail looks finished	£2.49	View product : Chrome cover caps (pair)
Talon Snappit pipe covers	Clips around exposed pipe to hide it — no glue, no cutting	From £5.99	View product : Talon Snappit pipe covers
Towel rail pegs (pair)	Clip-on pegs add hanging space, fitted by hand	From £11.95	View product : Towel rail pegs (pair)
