500x1000mm Dual Fuel Flat Black Heated Towel Rail

£147.00 GBP

~~£170.00 GBP~~ £147.00 GBP

Sale Sold out

Taxes included.

500 × 1000mmSize
1225 BTUHeat output
10 yrWarranty

Buy it now

Estimated delivery Tue 1 – Wed 2 Sep

Free over £200 · £9.99 below
Order by 2pm
30-day returns

Frequently bought together

Pair of Matt Black Cover Caps for Heated Towel Rail Radiators £2.49
Talon Snappit Towel Rail Radiator Pipe Covers Collars Black, White, Chrome, Anthracite From £5.99

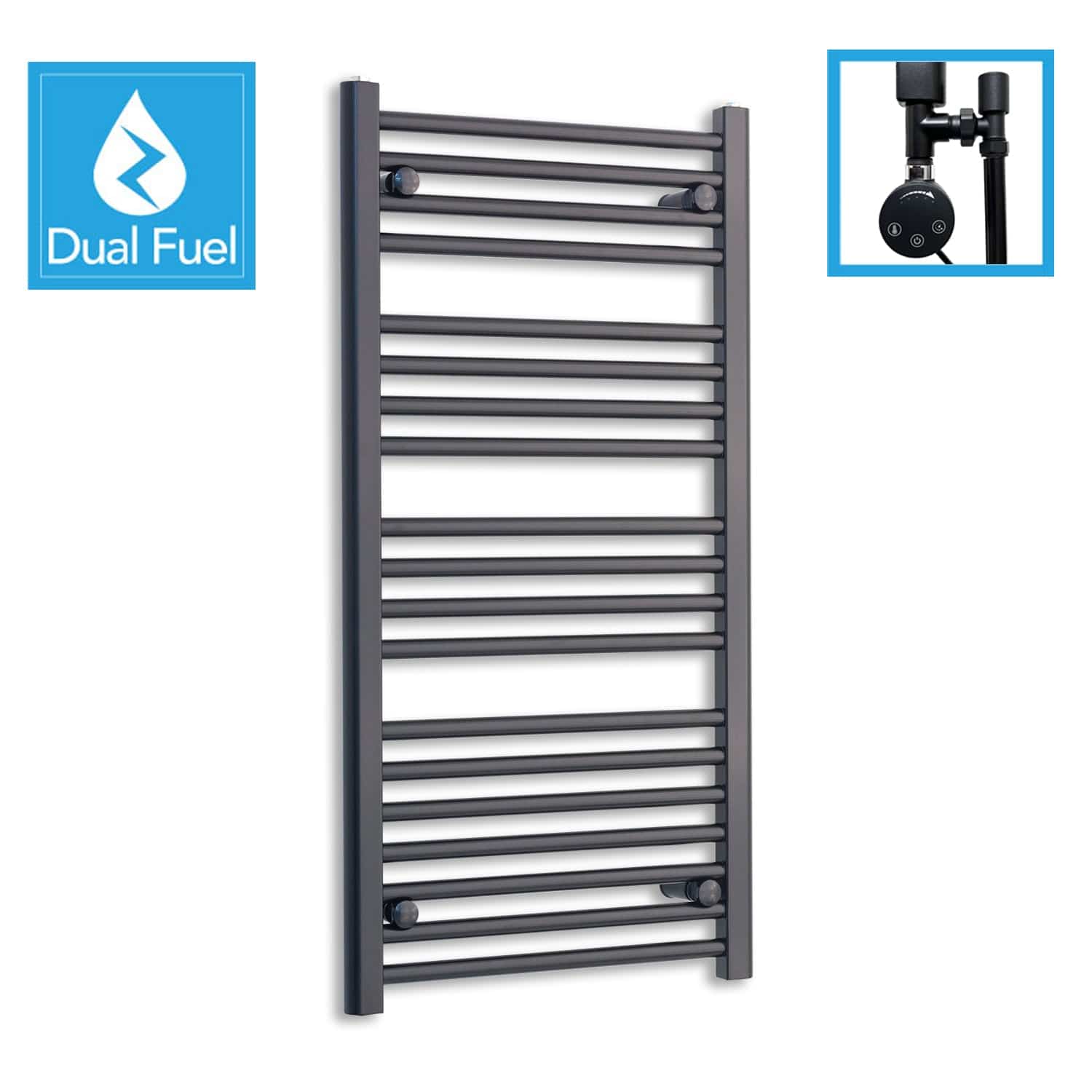

1000 mm High x 500 mm Wide Flat Black Heated Towel Radiator and Smart Dual Fuel Kit Black (Electric and Gas) heating.

Features:

Suitable For Kitchens or Bathrooms or Cloakroom
Manufactured to BS EN442
Durable High Quality Triple Layer Black Plating
Pressure Tested To 10Bar
Elegant Contemporary In Appearance

Specifications:

Manufacturer ID:	FB-50-100
Width:	500mm
Height	1000mm
Pipe Centre:	450mm
Projection From Wall:	90-110 mm
Tube Layout:	4+4+4+7=19
Tube Diameter:	22mm
Output BTUs:	1225 BTU/h
Output Watts:	359 Watts
Finish:	Matt Black
Model:	Straight / Flat
Material:	Mild Steel
Output BTUs:	1225 BTU/h
Output Watts:	359 Watts

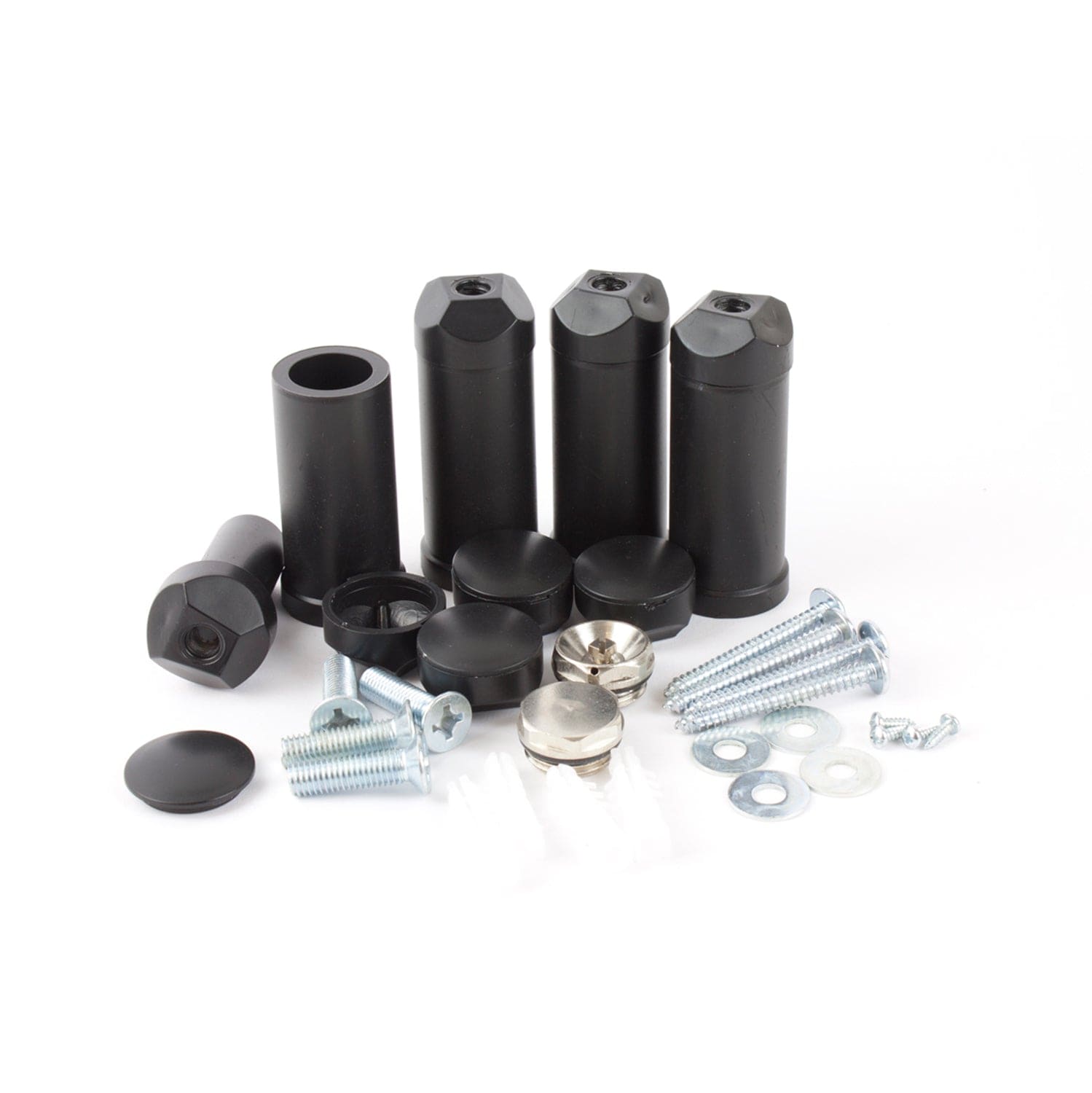

Whats included in the box:

4 x Adjustable Black Brackets
4 x Screws, Rawlplugs, and Washers
1 x Blanking and Bleeding Plug

* Valves are optional

Need help choosing? Message us or give us a ring.

Message us on WhatsApp Call 02477 220 955Mon–Fri 9am–5pm

View full details

Specifications

Height	1000mm
Width	500mm
Model	Straight
Material	Mild Steel
Finish	Black
Fuel type	Dual Fuel
Warranty	10 Years
SKU	FB-50-100-DFK-SMR
MPN	FB-50-100

Getting both supplies into one rail

The element screws into a bottom inlet — the same inlet the pipework wants. These fittings give both a way in, so the rail runs off the boiler in winter and off the element once it is switched off for summer.

Fitting	Choose it when	Price	Product page

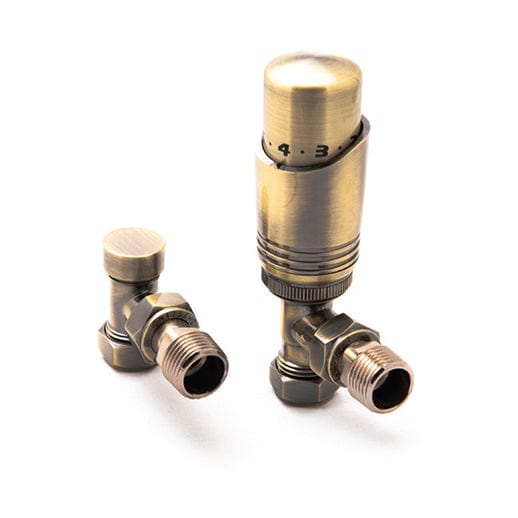

Angled valves with a T-pieceFloor or wall pipes with a T-piece adaptor	Pipes come out of the floor, or out of the wall. The T-piece screws in behind one valve and splits that inlet two ways — pipework on one side, element on the other — so this route suits either.	£28.98 the pair	View angled valves with a t-piece
Dual fuel corner valvesWall pipes only	Pipes come out of the wall and you want the tidier job. The split is machined into the valve body, so there is no adaptor sticking out below the rail — one part instead of two.	£29.99	View dual fuel corner valves

Running it on the element:close one of the two valves so the heat stays in the rail instead of draining away down the pipework. Either side will do, as long as one is shut. Open it again when the heating goes back on.

Fitting it yourself? All valves and adaptors

The element that heats it when the boiler is off

It screws into a bottom inlet, left or right, and runs the rail on its own out of the heating season. The choice is how much control you want over it — the rating is set by the rail, and we have worked that out below.

Element	Control	Temperature	Size for this rail	Price	Product page

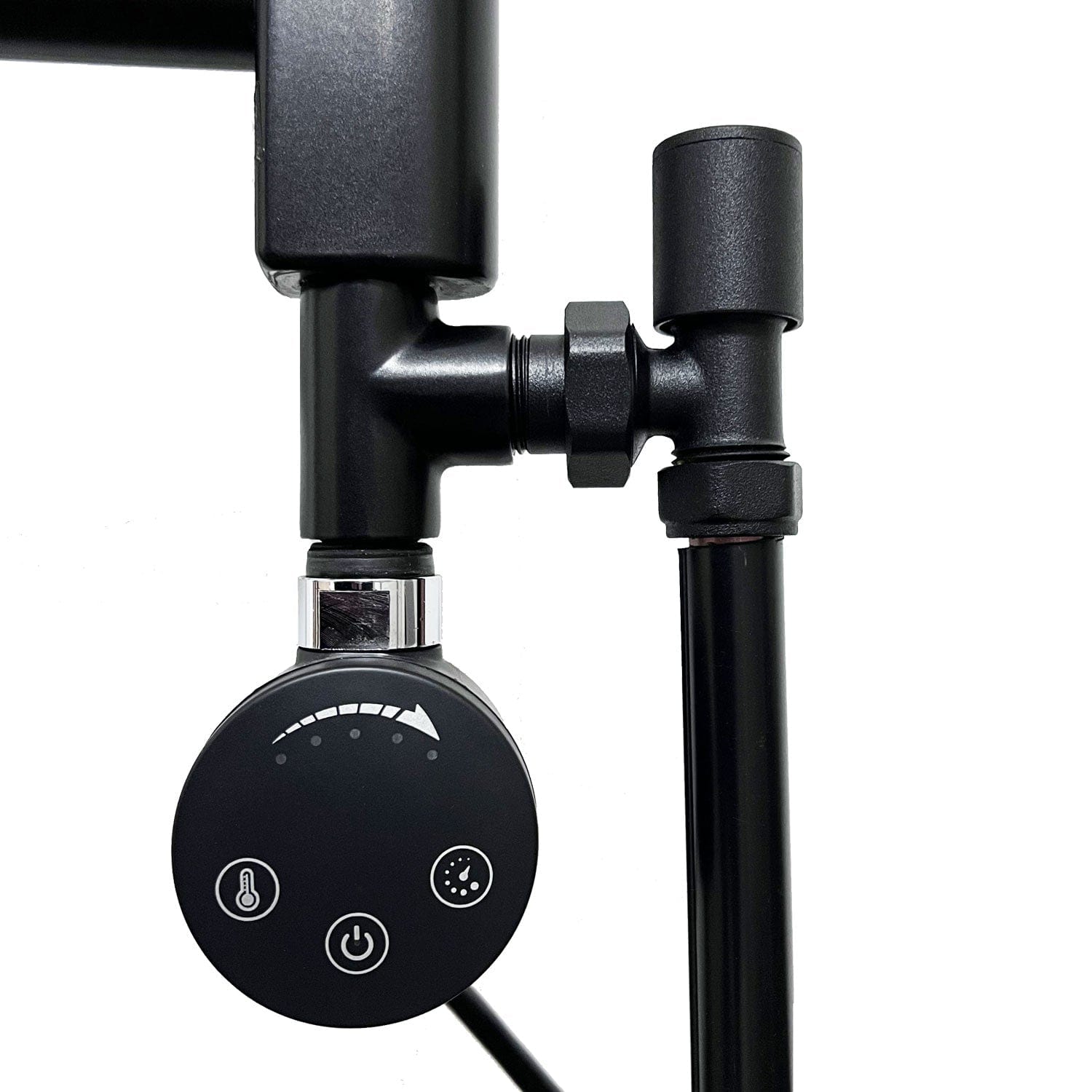

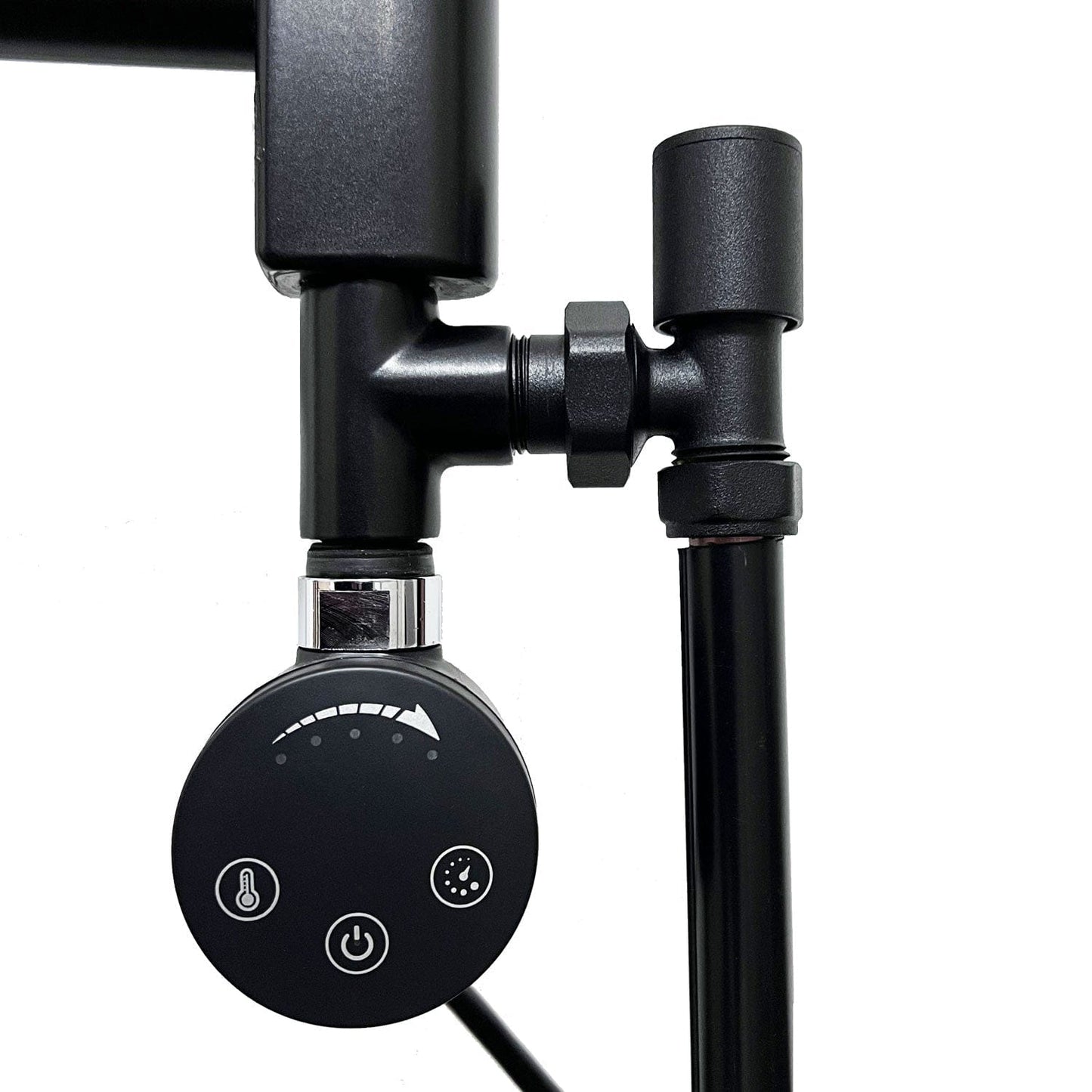

ER-Touch thermostatic kitMost popularKit: smart element, dual fuel adaptor and a pair of angled valves	Touch dial on the element head	Set 45–65°C, cycles to hold it	300W rail is 359W	£80.00	View er-touch thermostatic kit
Single heat kitEntry levelKit: element, matching T-piece and a pair of angled valves	On or off, at the spur or a timer	Not adjustable — full output whenever it runs	400W rail is 359W	£35.99	View single heat kit
Single heat kit, corner valvesWall pipesKit: element and a pair of dual fuel corner valves — no separate adaptor	On or off, at the spur or a timer	Not adjustable — full output whenever it runs	400W rail is 359W	£50.99	View single heat kit, corner valves

Every kit here comes with the fittings as well as the element, so nothing has to be sourced separately. Bathroom wiring is notifiable work: the element goes to a fused spur and a qualified electrician signs it off.

Warm by the time you are up. An element takes about half an hour to come up to heat, and left switched on it runs all day. A timer starts it before you need it and shuts it off after, which is where the running cost of one actually goes.

Finish the installation

The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.

Accessory	What it does	Price	Product page
Chrome cover caps (pair)	Caps the bleed and blanking plugs so the top of the rail looks finished	£2.49	View product : Chrome cover caps (pair)
Talon Snappit pipe covers	Clips around exposed pipe to hide it — no glue, no cutting	From £5.99	View product : Talon Snappit pipe covers
Towel rail pegs (pair)	Clip-on pegs add hanging space, fitted by hand	£9.99	View product : Towel rail pegs (pair)
