400x1600mm High Flat White Heated Towel Rail Radiator HTR
400x1600mm High Flat White Heated Towel Rail Radiator HTR
- 400 × 1600mmSize
- 1559 BTUHeat output
- 27Tubes
- 5 yrWarranty
- Free over £200 · £9.99 below
- Order by 2pm
- 30-day returns
Frequently bought together
Introducing the 400mm Wide 1600mm High Flat White Heated Towel Rail Radiator HTR, a stylish and practical addition to any modern bathroom. This sleek radiator not only adds a touch of elegance with its flat, white finish but also ensures your towels are always warm and dry. Designed with a focus on efficiency and durability, it offers a substantial heat output of 1559 BTU/h (457 W), making it an excellent choice for keeping your bathroom cozy. Made from high-quality steel, this radiator is built to last and can be integrated into central heating systems. With the option to be used as an electric-only or dual fuel system (additional accessories required), this versatile towel rail radiator adapts to your heating preferences.
Features:
- Dimensions: 400mm wide, 1600mm high
- Pipe Centers: 310mm
- Wall to Pipe Centers: 75-95mm
- Projection from the Wall: 90-110mm
- Heat Output: 1559 BTU/h (457 W)
- Tube Layout: 4 + 6 + 7 + 10 = 27 total tubes
- Finish: Sleek white
- Design: Flat and straight
- Material: High-quality steel
- Usage: Suitable for central heating, with options for electric-only or dual fuel usage

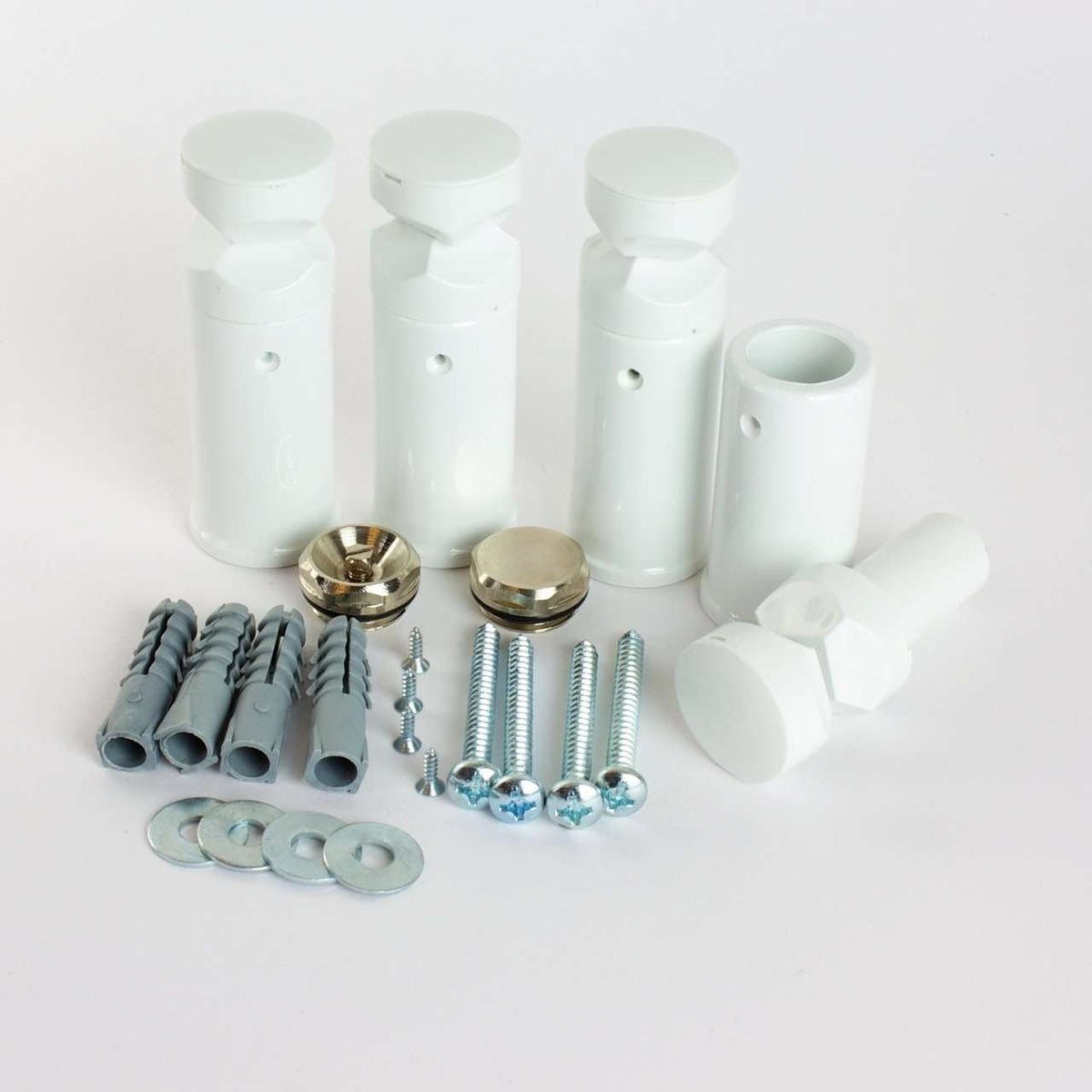

Whats included in the box:
- 4 x Adjustable White brackets
- 4 x Screws, rawl plugs and washers
- 1 x Blanking and Bleeding Plug
FAQs:
-
What are the installation requirements for this towel rail radiator?
- For installation, the radiator requires a pipe centre spacing of 310mm. The wall-to-pipe centres range from 75 to 95mm, making it adaptable to a variety of bathroom layouts.
- For installation, the radiator requires a pipe centre spacing of 310mm. The wall-to-pipe centres range from 75 to 95mm, making it adaptable to a variety of bathroom layouts.
-
Can this radiator be used with electric heating?
- Yes, while it is primarily intended for central heating, it may also be used as an electric-only or dual fuel radiator with the appropriate supplementary attachments.
- Yes, while it is primarily intended for central heating, it may also be used as an electric-only or dual fuel radiator with the appropriate supplementary attachments.
-
What is the total heat output of this radiator?
- The 400mm Wide 1600mm High Flat White Heated Towel Rail Radiator HTR has a heat output of 1559 BTU/h or 457 Watts, providing ample warmth for your bathroom.
-
Is this towel rail radiator easy to install?
- Yes, it is intended for easy installation, with precise measurements for pipe centres and wall projections. However, expert installation is suggested for safety and efficiency.
- Yes, it is intended for easy installation, with precise measurements for pipe centres and wall projections. However, expert installation is suggested for safety and efficiency.
Need help choosing? Message us or give us a ring.
Specifications
| Height | 1600mm |
|---|---|
| Width | 400mm |
| Projection from wall | 90-110mm |
| Pipe centres | 350mm |
| Wall to pipe centres | 75-95mm |
| Tube diameter | 22mm |
| Tube count | 27 |
| Tube layout | 4+6+7+10 |
| Model | Straight / Flat |
| Material | Mild Steel |
| Finish | Matt White |
| Fuel type | Central Heating |
| Valve connection | ½" BSP |
| Standard | BS EN 442 |
| Warranty | 5 Years |
| SKU | FW-40-160 |
Which valve fits your pipework?
The rail is the same whichever you pick — the valve is the part that meets your pipes. Match it to how they come into the room.
| Valve | Choose it when | Price | Product page |
|---|---|---|---|
Straight inlineFloor pipes
|
Pipes rise out of the floor directly under the rail inlets, and the valve carries straight on up into them. | £14.99 | View the straight inline valve |
AngledWall pipes
|
Pipes leave the wall horizontally. The valve takes the 90° turn upward into the rail for you. | £14.99 | View the angled valve |
CornerWall pipes
|
Also for wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way. | £19.99 | View the corner valve |
A TRV belongs on a radiator, not a towel rail. Throttling the flow leaves the rail running cool, and a cool rail leaves towels damp and smelling. Read why
Still unsure? See the full valve range
Finish the installation
The small parts fitters ask for on the day — caps, collars and hooks that tidy up the job.
| Accessory | What it does | Price | Product page |
|---|---|---|---|
Chrome cover caps (pair)
|
Caps the bleed and blanking plugs so the top of the rail looks finished | £2.49 | View product : Chrome cover caps (pair) |
Talon Snappit pipe covers
|
Clips around exposed pipe to hide it — no glue, no cutting | From £5.99 | View product : Talon Snappit pipe covers |
Towel rail pegs (pair)
|
Clip-on pegs add hanging space, fitted by hand | £9.99 | View product : Towel rail pegs (pair) |
Fitting it yourself? See all accessories
- 5 Years warrantymanufacturer’s warranty
- Fast UK delivery1–2 working days · free over £200
- In stockorder by 2pm and it ships the same day
- 30-day returnscounted from the day it arrives
Bought this one? Tell other customers how you got on. Write a review
