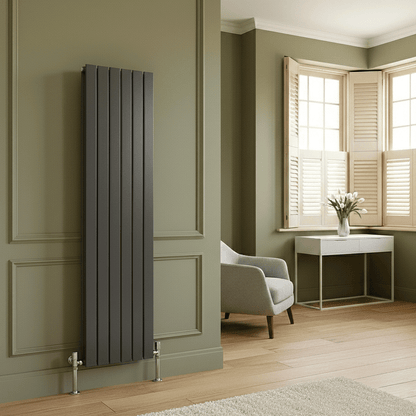

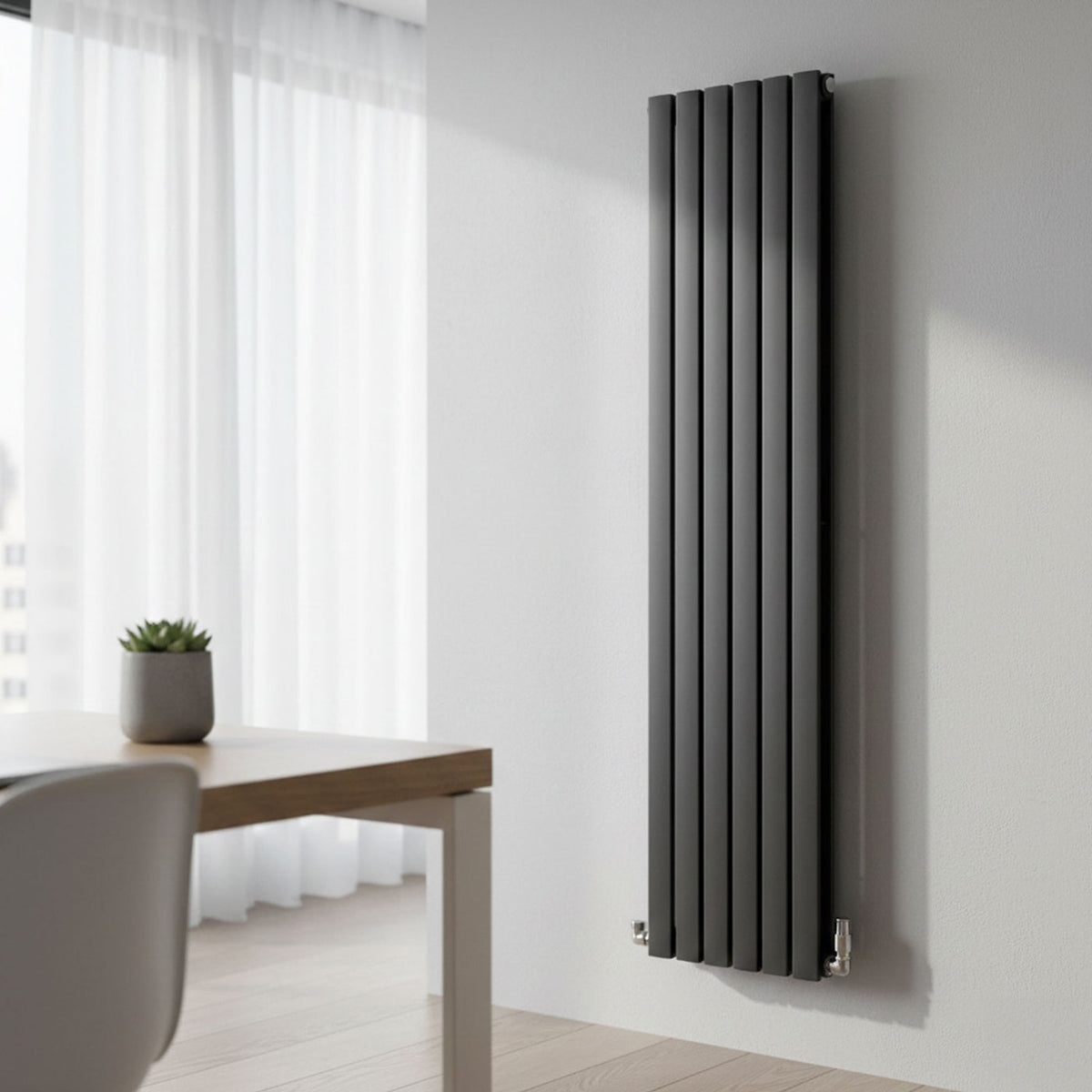

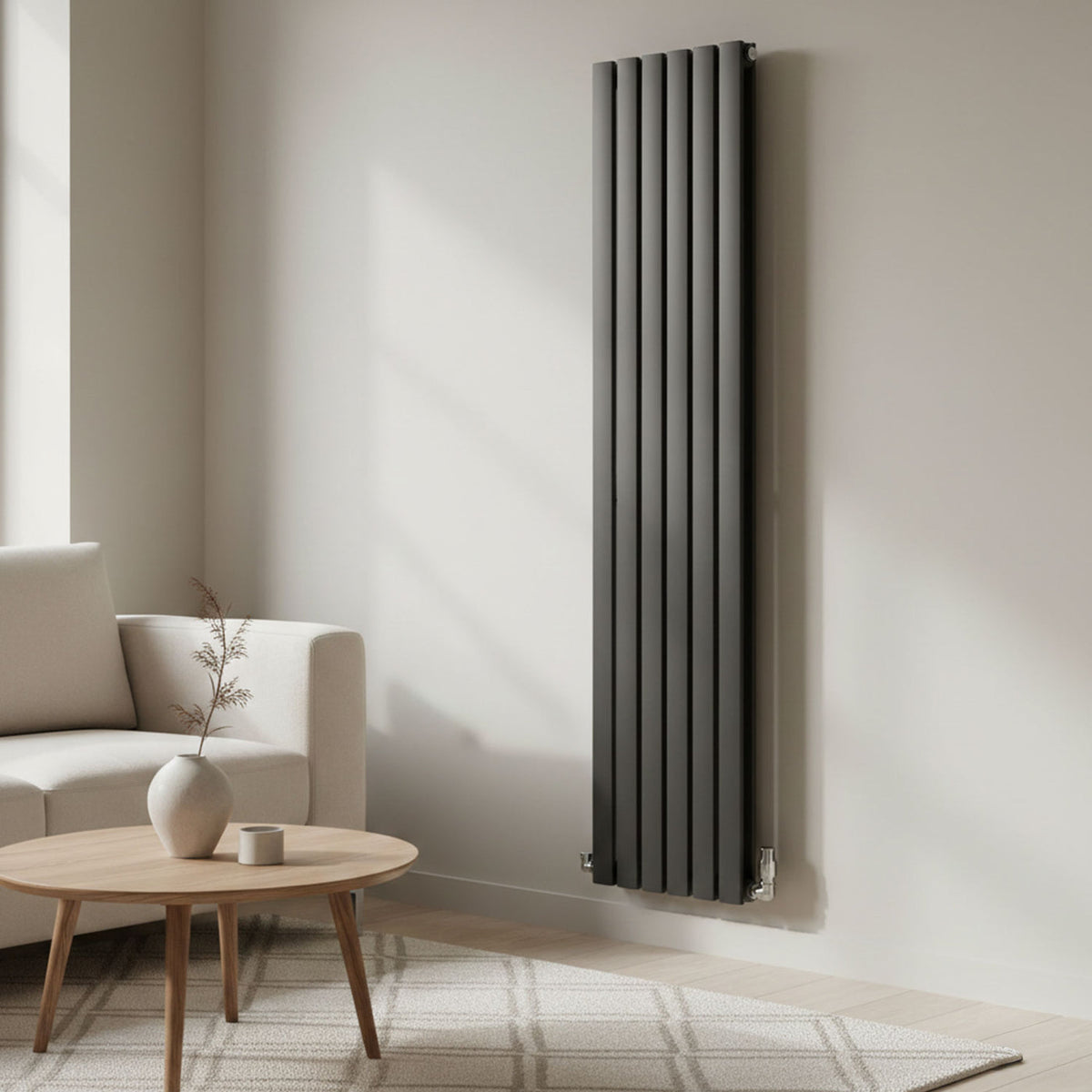

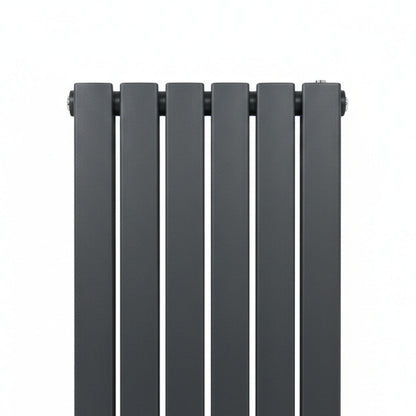

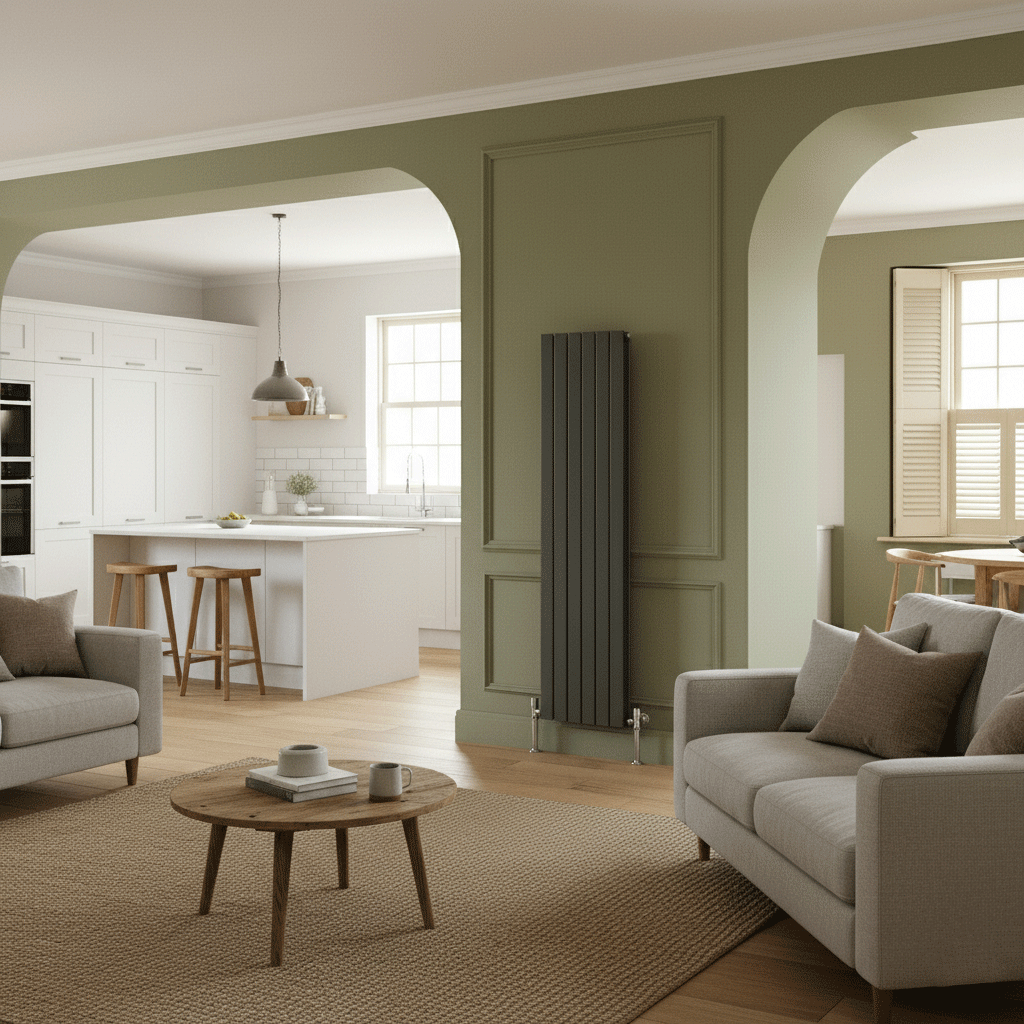

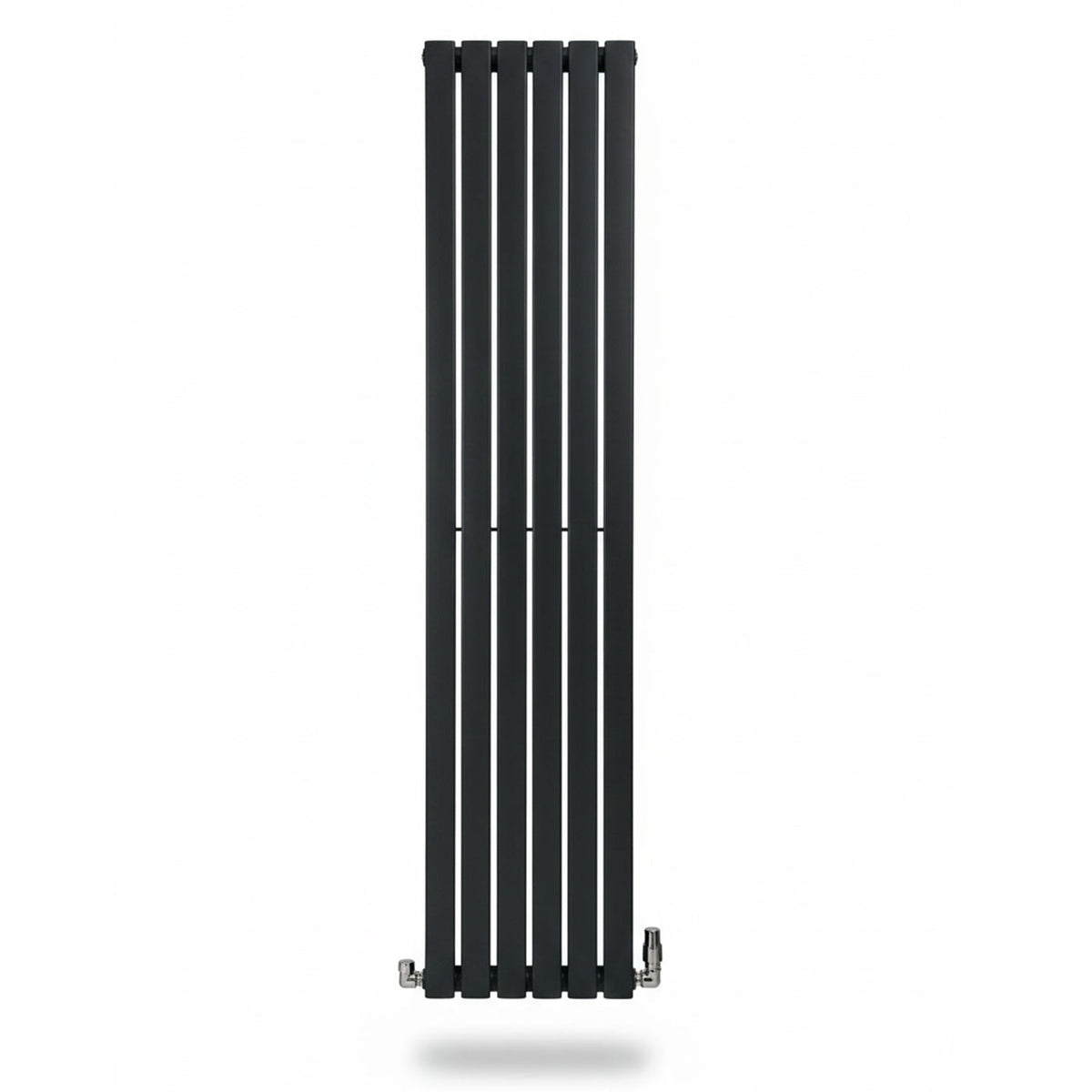

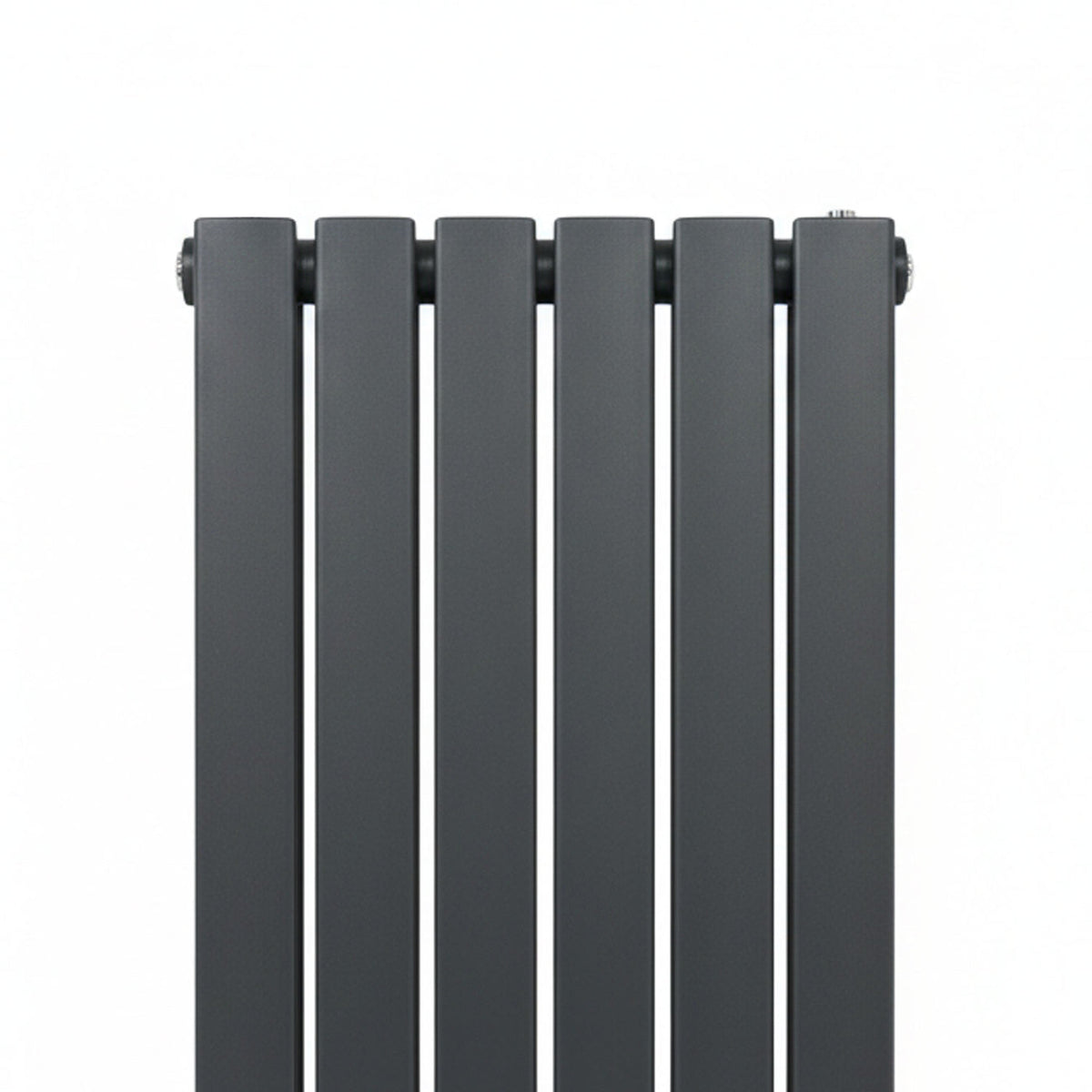

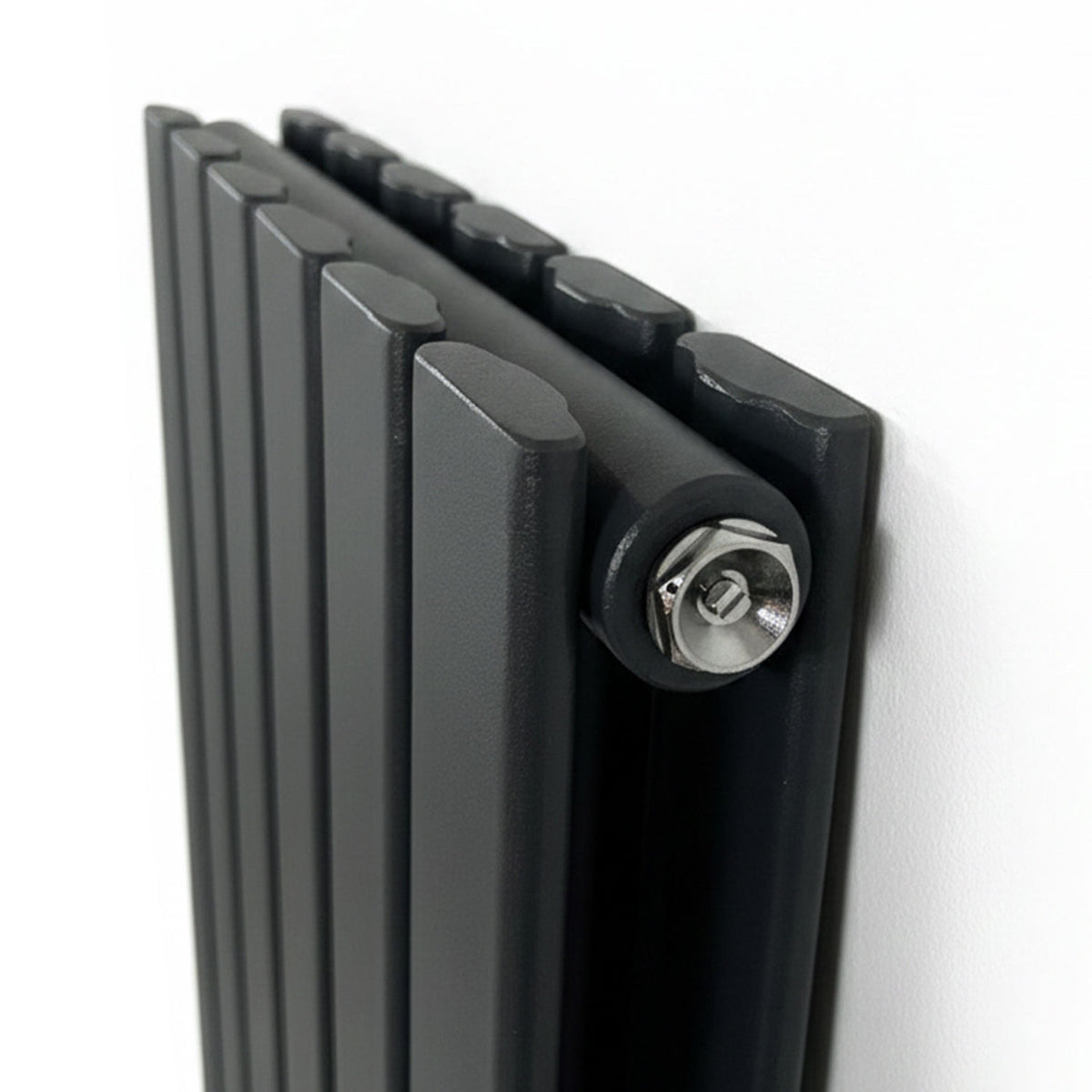

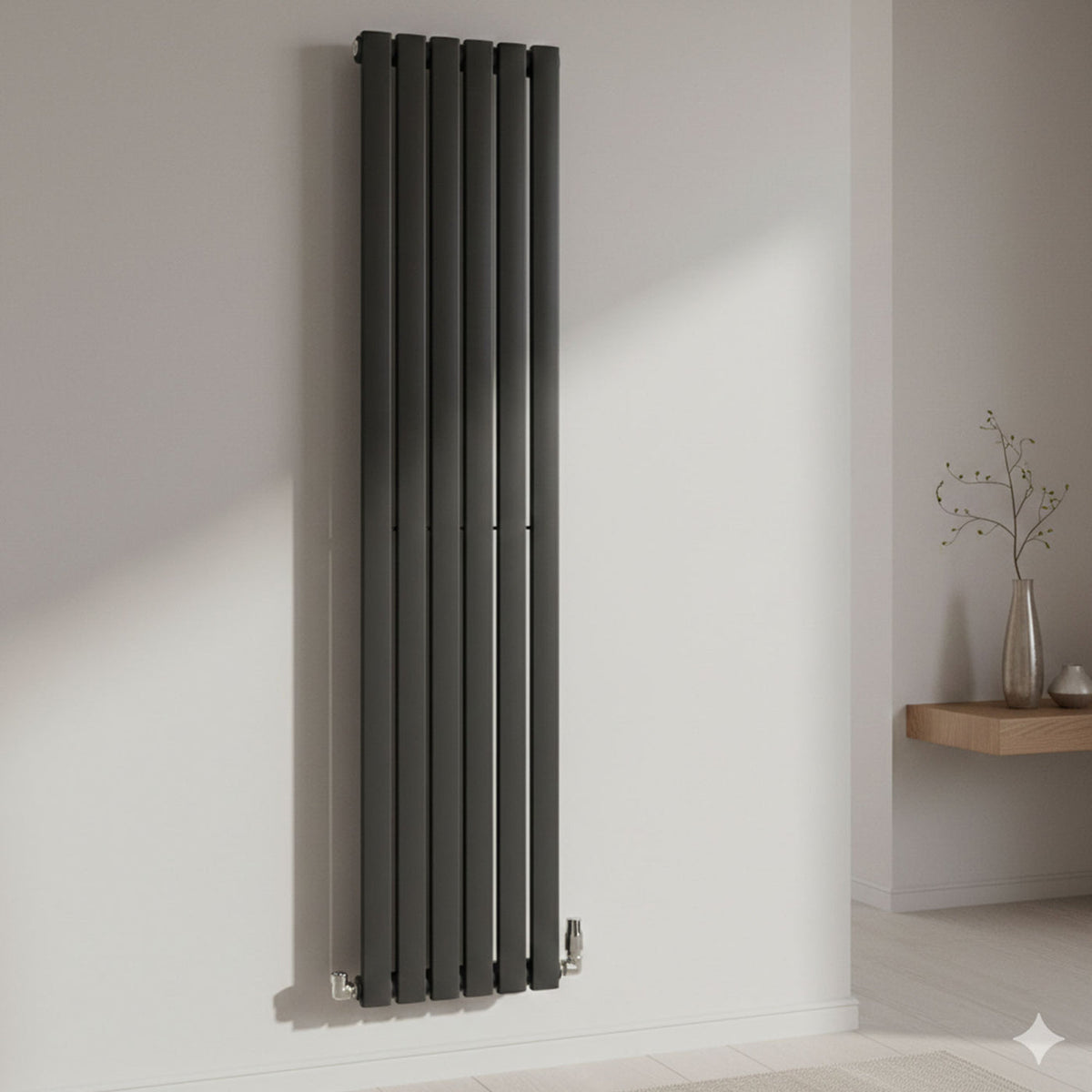

Flatty Anthracite Vertical Column Panel Radiator – Single & Double

Maximise your heating potential with this stylish anthracite vertical column panel radiator. The commanding vertical design makes a feature of your heating while freeing up valuable floor area, and the textured matt anthracite finish perfectly complements modern interiors. Choose a Single Panel for a slimmer profile or a Double Panel when you need maximum BTU output in larger or cooler rooms.

Why this model?

Efficient Heat, Faster Comfort: The high surface area columns promote quick and even heat distribution.
Space-Saving Design: The tall, narrow footprint makes the most of small wall sections beside doors or windows, drawing the eye upwards.
Built for Modern Living: The durable, scuff-resistant textured matt anthracite coating provides a long-lasting, premium appearance.

Single vs Double Panel

Single Panel: A slimmer profile; ideal for compact rooms or when projection from the wall is a concern.
Double Panel: Greater surface area provides a higher BTU output for open-plan living, rooms with high ceilings, or north-facing spaces.

Sizing & BTU Guidance

Always size your radiator by BTU requirement rather than physical dimensions. Use our BTU Calculator to estimate the ΔT50 BTU output needed based on room dimensions, insulation, and glazing. You can meet the total BTU requirement with one larger radiator or by combining multiple radiators in the same room.

What’s Included

Wall brackets & fixings
Blanking plug & bleed valve
Installation guide

Valves not included. Pair with angled or straight valves to suit your pipework; a thermostatic (TRV) set is recommended for finer temperature control.

Available Heights, Widths & Panel Options

H (mm)	W (mm)	Type	Bars	Pipe Centres	Wall Pipe	Wall Distance	BTU	W
1800	350	Single	5	350 mm	50 mm	79 mm	2885	846
1800	420	Single	6	420 mm	50 mm	79 mm	3462	1015
1800	490	Single	7	490 mm	50 mm	79 mm	4038	1184
1800	560	Single	8	560 mm	50 mm	79 mm	4617	1354
1800	630	Single	9	630 mm	50 mm	79 mm	5193	1523
1800	350	Double	10	350 mm	63 mm	94 mm	4445	1304
1800	420	Double	12	420 mm	63 mm	94 mm	5335	1565
1800	490	Double	14	490 mm	63 mm	94 mm	6223	1825
1800	560	Double	16	560 mm	63 mm	94 mm	7113	2086
1800	630	Double	18	630 mm	63 mm	94 mm	8001	2346
1600	420	Single	6	420 mm	50 mm	79 mm	3126	917
1600	490	Single	7	490 mm	50 mm	79 mm	3647	1070
1600	560	Single	8	560 mm	50 mm	79 mm	4168	1222
1600	420	Double	12	420 mm	63 mm	94 mm	4719	1384
1600	490	Double	14	490 mm	63 mm	94 mm	5505	1614
1600	560	Double	16	560 mm	63 mm	94 mm	6292	1845

Orientation: Vertical
Finish: Textured matt anthracite (anthracite grey)
Material: Low-carbon steel
Compliance: BS EN 442
System Type: Closed-loop (water) central heating
Connections: Standard radiator valve connections
Warranty: 5 Years
Heights: 1600 mm and 1800 mm
Widths: 350 mm – 630 mm
Panel options: Single or double
Bars: 5 – 9 on single · 10 – 18 on double
Pipe centres: Match the radiator width, 350 mm – 630 mm
Wall pipe centres: 50 mm on single · 63 mm on double
Projection from wall: 79 mm on single · 94 mm on double
Heat output ΔT50: 2885 – 5193 BTU on single · 4445 – 8001 BTU on double
Wattage ΔT50: 846 – 1523 W on single · 1304 – 2346 W on double
SKU: RV-HRV166SA
Brand: Companyblue

Heat outputs are quoted at ΔT50. The figure for each individual size is in the Sizes & heat output tab.

5 year guaranteemanufacturer backed
Fast UK delivery1–2 working days · free over £200
In stockorder by 2pm and it ships the same day
Expert advicecall or WhatsApp us, Mon–Fri 9am–5pm

Why vertical

Height instead of wall

Stood up, a column radiator puts the same heat into a room as a long horizontal one off a fraction of the wall. That is the point of the range: it goes where a radiator was never going to fit — beside a door, under a window, in the gap between two units.

2885–8001: BTU at ΔT50, across the range
16: sizes, at 1600 and 1800 mm
79 mm: projection on a single panel

Build

Steel, coated to take knocks

Low-carbon steel under a textured matt anthracite coating — the texture is what stops scuffs showing on a radiator people walk past. Outputs are measured to British Standard BS EN 442, and the radiator carries a five-year guarantee.

Low-carbon steel, textured matt anthracite finish
Outputs tested to BS EN 442
Closed-loop water central heating, combi or system boiler
5 year guarantee

Before you order

Valves are the one thing to add

Brackets, fixings, blanking plug and bleed valve are in the box; valves are not. Which pair depends on where your pipes come into the room, and a thermostatic set is worth it here — a vertical panel this size can overheat a room left on full.

See the valve range

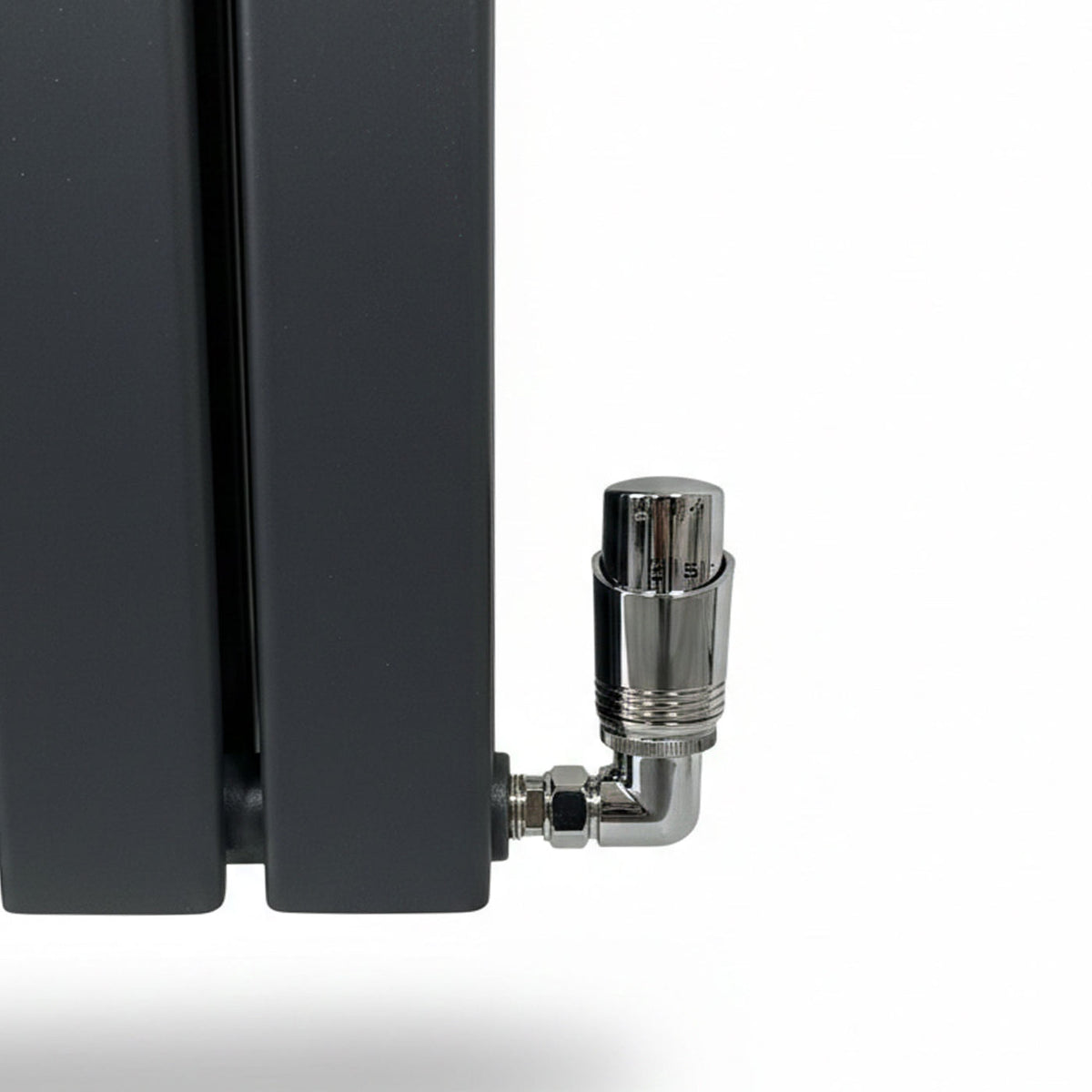

Which valve fits your pipework?

All three hold this room at the temperature you set on the dial, independently of the rest of the house. What changes between them is how your pipes come into the room.

Valve	Choose it when	Price	Product page
Straight TRV, anthraciteFloor pipes	Pipes come up out of the floor under the radiator inlets and carry straight on into the valve.	£25.00	View the straight trv, anthracite valve
Angled TRV, anthraciteWall pipes	Pipes leave the wall horizontally. The valve turns them 90° into the radiator for you.	£25.00	View the angled trv, anthracite valve
Corner TRV, anthraciteWall pipes	Also wall pipes, but tucked in tighter — the body sits close to the wall and stays out of the way.	£36.00	View the corner trv, anthracite valve
